FRN-R-200 - Eaton Bussmann 200A 250V Dual Element Time-Delay Class RK5 Fuse

FRN-R-200

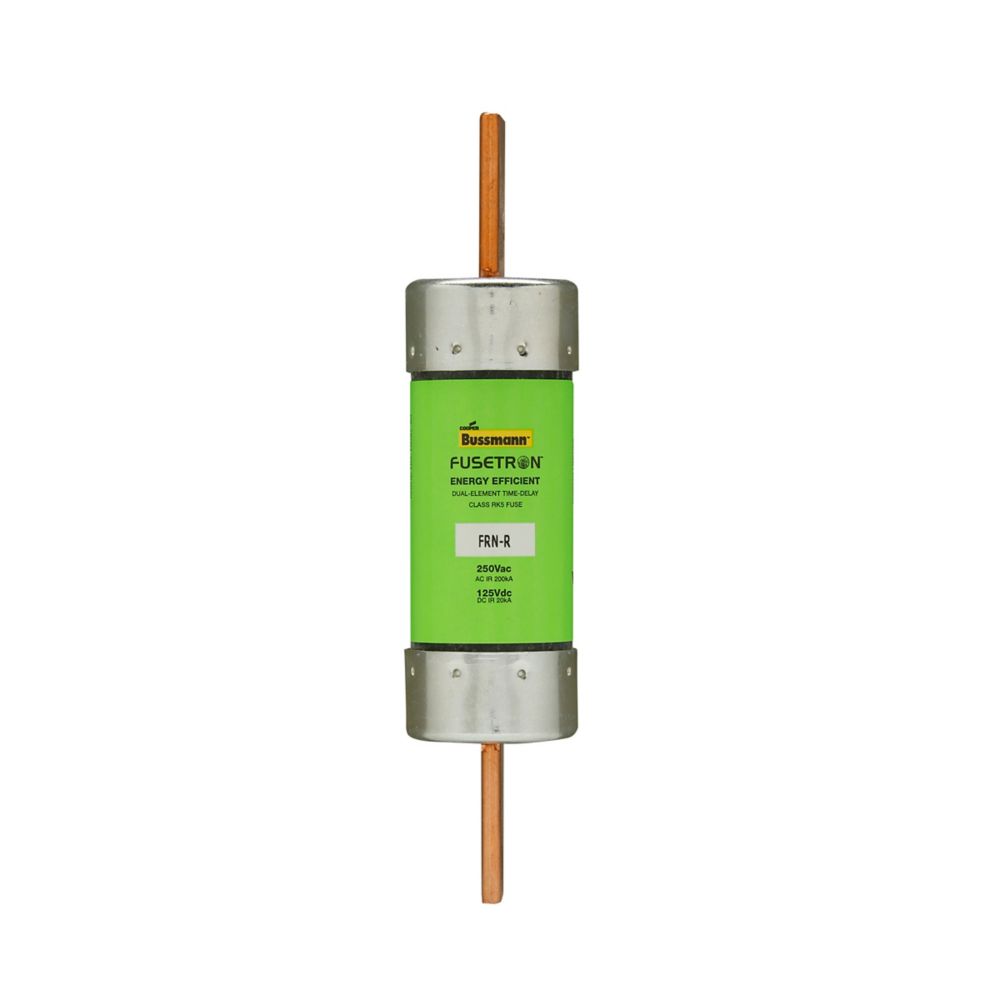

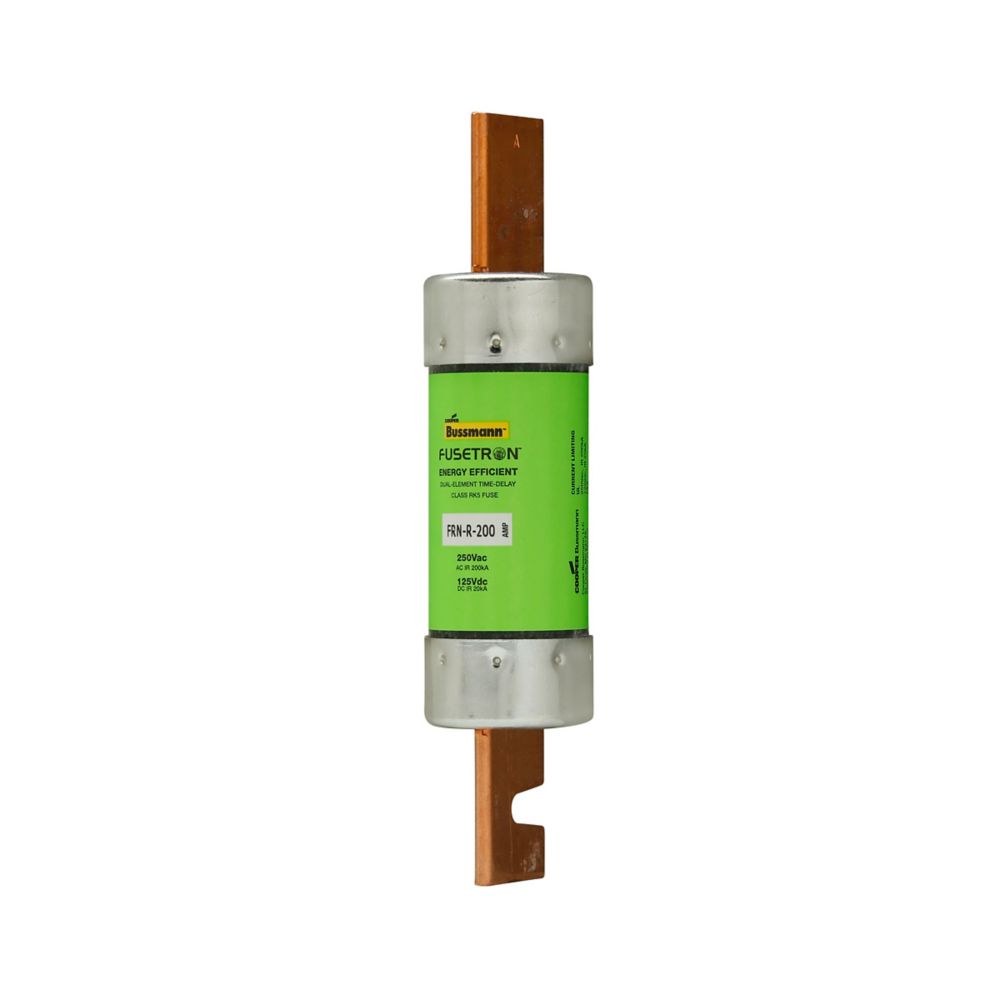

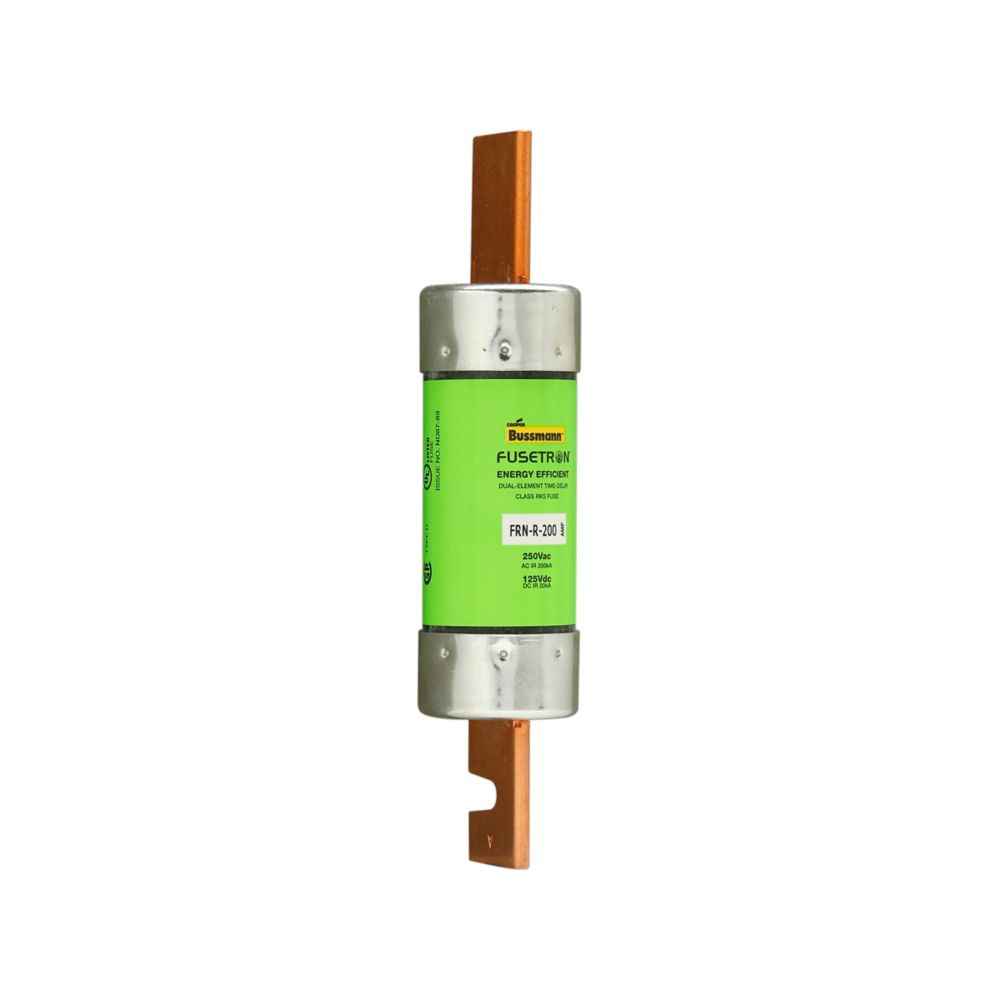

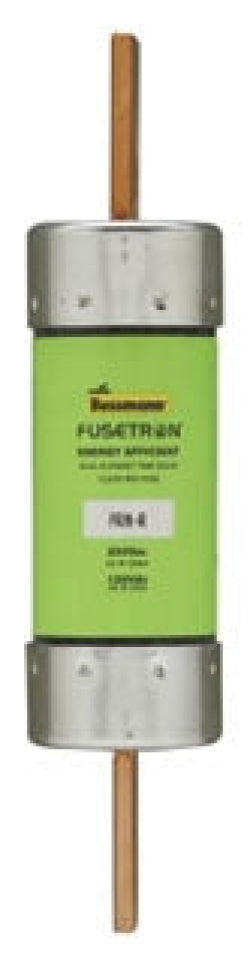

FRN-R-200 is a 200 amp, 250 volt dual element time-delay fuse from Eaton Bussmann's Class RK5 series designed for reliable circuit protection.This FRN-R-200 fuse features a 10 second response time at 500% overload, a high interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc, and a blade end x blade end connection. It is non-indicating and suitable for motor overload, ground fault, and short circuit protection applications. The fuse body measures approximately 1.56 inches in diameter by 7.13 inches in length.

Key Specifications
• Amperage Rating: 200 A
• Voltage Rating: 250 Vac, 125 Vdc
• Interrupting Rating: 200 kA at 250 Vac, 20 kA at 125 Vdc
• Class: RK5
• Fuse Type: Dual Element, Time-Delay
• Connection: Blade end x blade end
• Physical Size: 1.56 in diameter x 7.13 in length
• Fuse Indicator: Non-indicating
• Response Time: 10 seconds at 500% overload
• Certifications: UL Listed, CSA Certified, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRN-R-200
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRN-R
• Voltage : 125
• Amperage : 200
• AIC rating : 20kA@125Vdc
• Diameter : 1.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712101899
• GTIN : 00051712101899
• Country of Origin : Mexico
• Dimensions : 1 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.048
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
