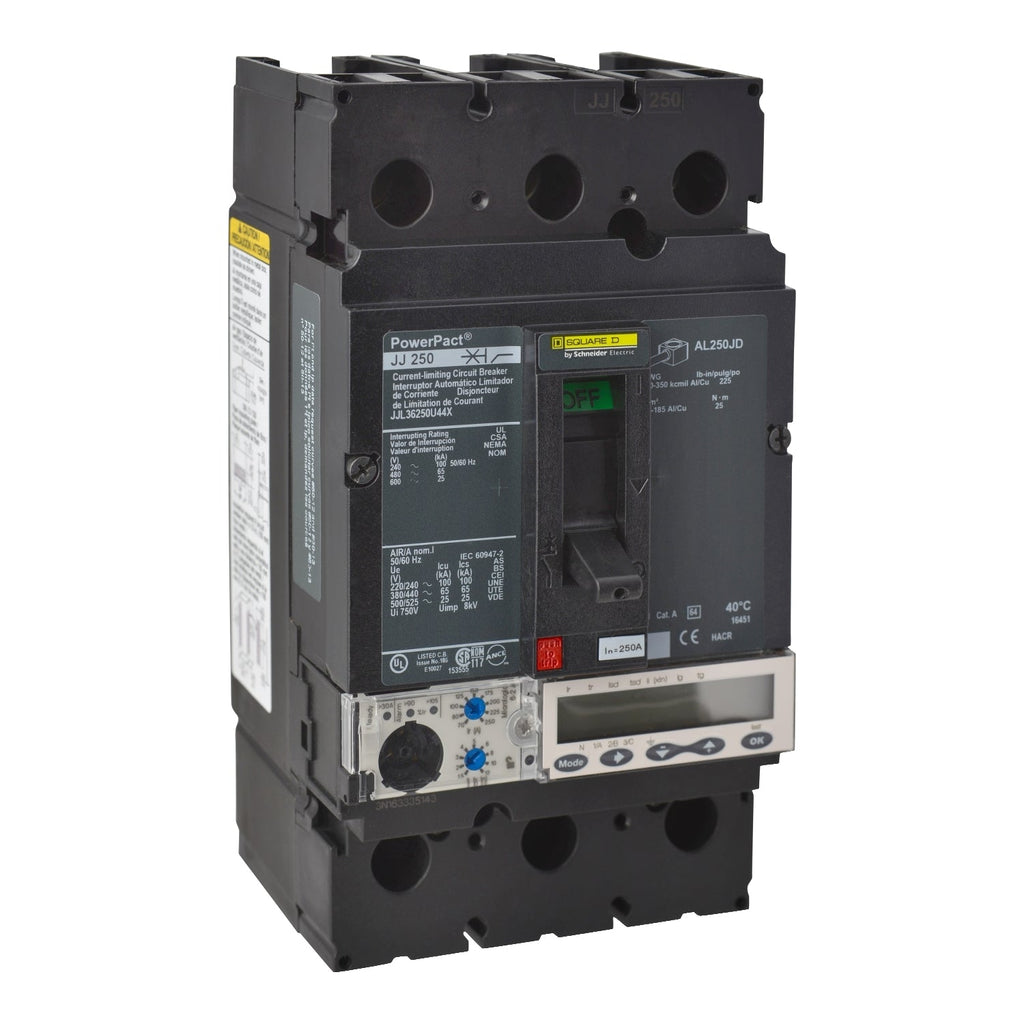

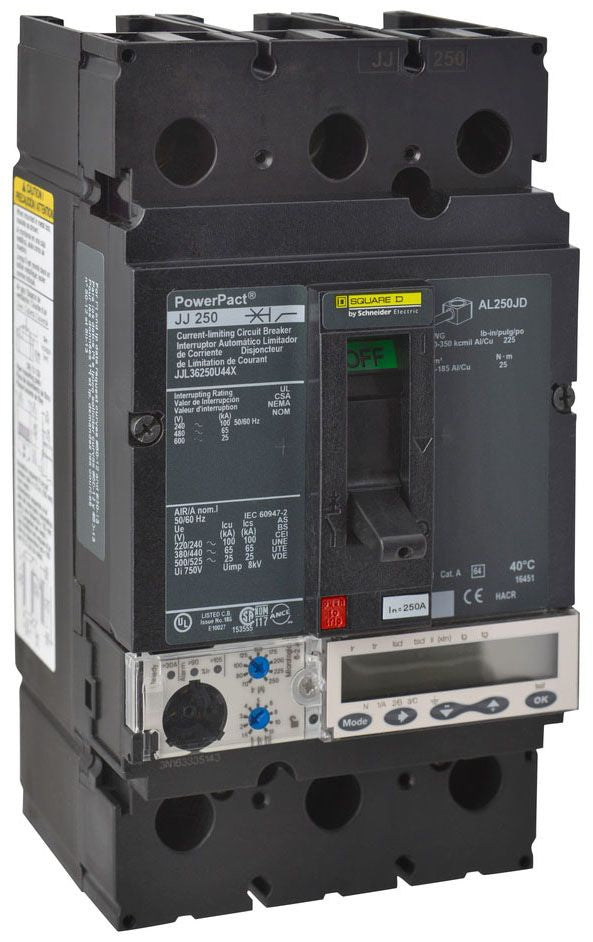

JJL36250U44X - Square D 250A 600V 3-Pole Powerpact JJL Molded Case Circuit Breaker with LSIG Trip

JJL36250U44X

JJL36250U44X is a Square D Powerpact JJL series molded case circuit breaker rated for 250 amps and 600 volts with 3 poles.This circuit breaker features a 65kA interrupting rating at 480V, electronic MicroLogic 3.2 trip unit with LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) protection, and unit-mount lug connections suitable for feed-thru applications. It is UL listed and designed for solid state, current limiting protection with line and load side lugs, compatible with AWG 3/0 to 350 kcmil aluminum or copper conductors.

• Amperage: 250A
• Voltage: 600V
• Poles: 3
• Frame Type: JJL (Powerpact J)
• Interrupt Rating: 65kAIC @ 480V
• Trip Unit: Electronic MicroLogic 3.2 with LSIG
• Mounting Type: Unit-Mount Lug
• Connection Type: Feed-Thru, line and load lugs
• Phase: 3
• Protection: Thermal Magnetic, current limiting
• Certifications: UL Listed
• Wire Gauge: AWG 3/0 to 350 kcmil aluminum/copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJL36250U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : Lug
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901326168
• GTIN : 00785901326168
• Country of Origin : Mexico

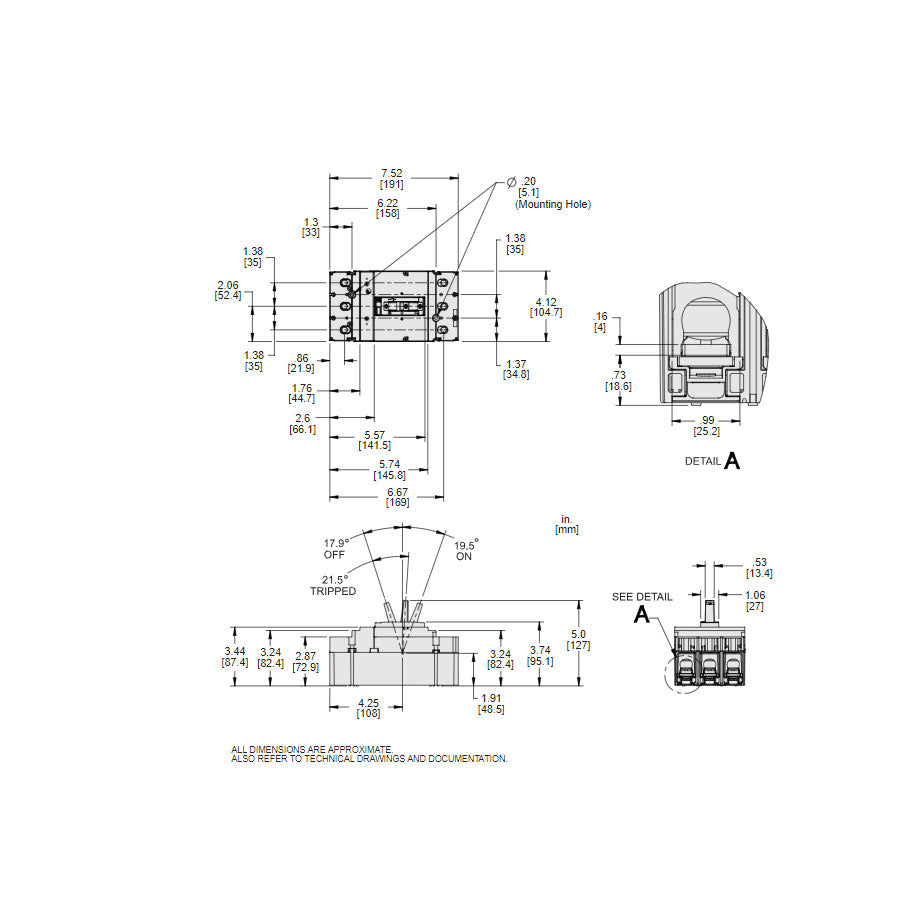

• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.192
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
