Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
JJL36175SA

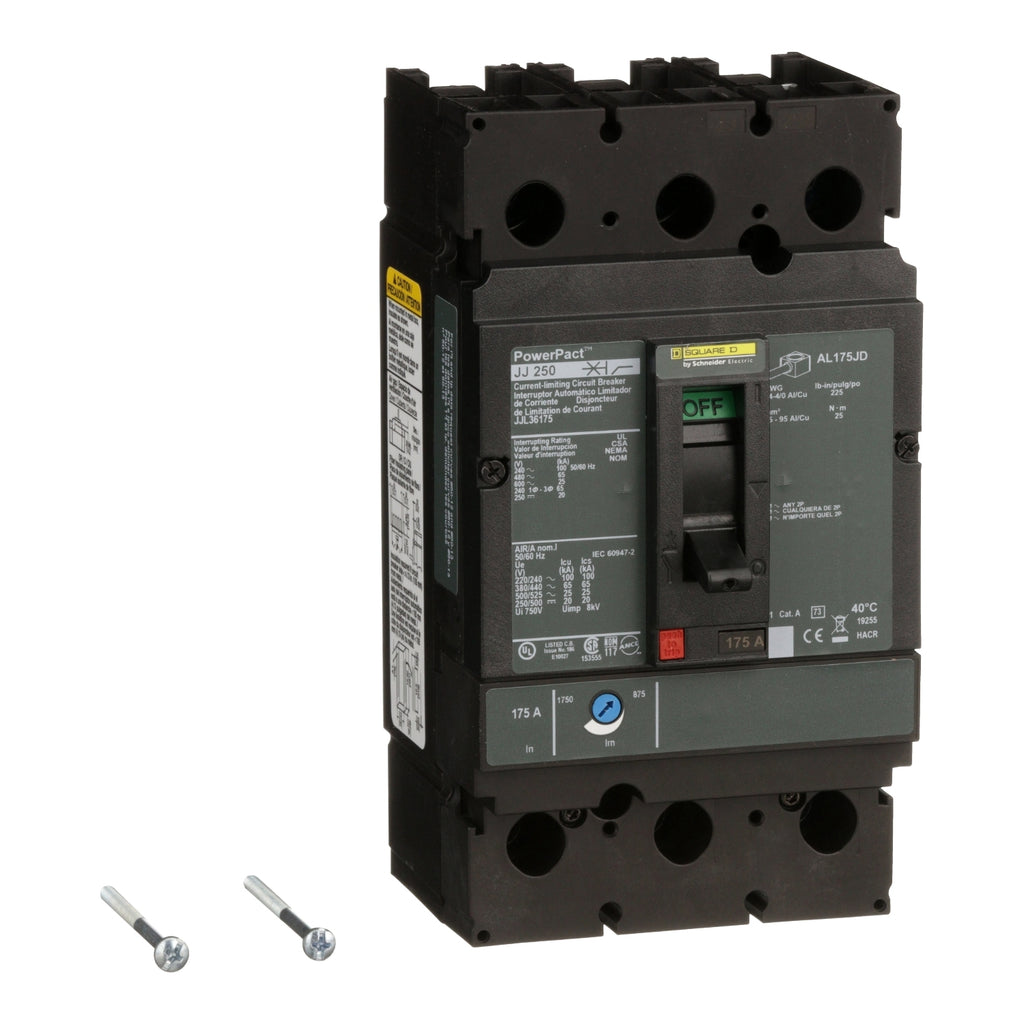

JJL36175SA is a Square D 3 pole molded case circuit breaker rated for 175 amps and 600 volts with a 120 volt shunt trip feature.This circuit breaker features a thermal magnetic trip unit and a 65kA interrupting rating at 480 volts, designed for reliable protection in industrial and commercial power distribution applications. It is part of the Square D JJL series and supports feed-thru power connections.
- Key Specifications
- Amperage: 175 Amps
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 3
- Interrupt Rating: 65kA at 480V
- Trip Unit: Thermal Magnetic with 120V Shunt Trip
- Series/Frame: JJL
- Mounting Type: Molded Case
- Feed-Thru Power Compatible
- Certifications: UL Listed, CSA Certified
- Part Number: JJL36175SA
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JJL
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
- Weight : 5
Additional Information
complete with 110Vac shunt trip
