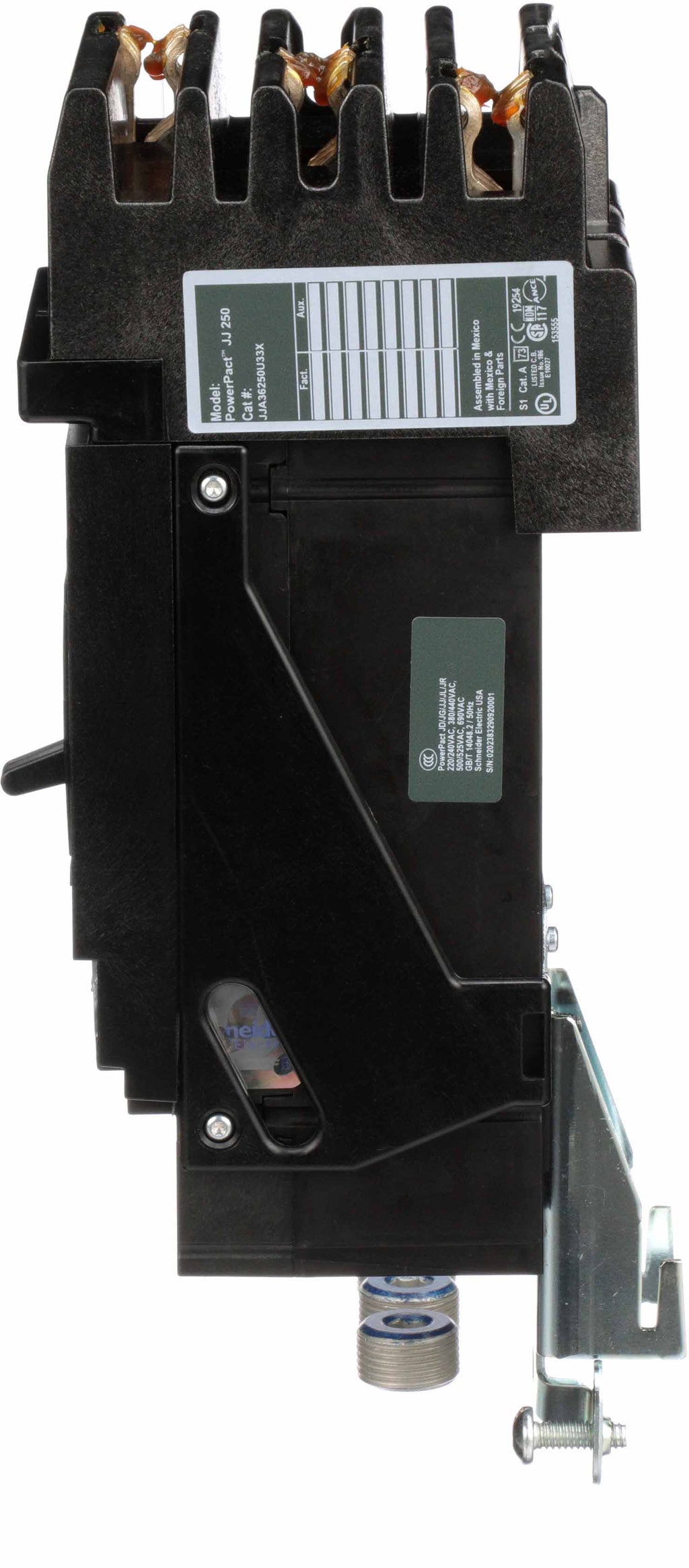

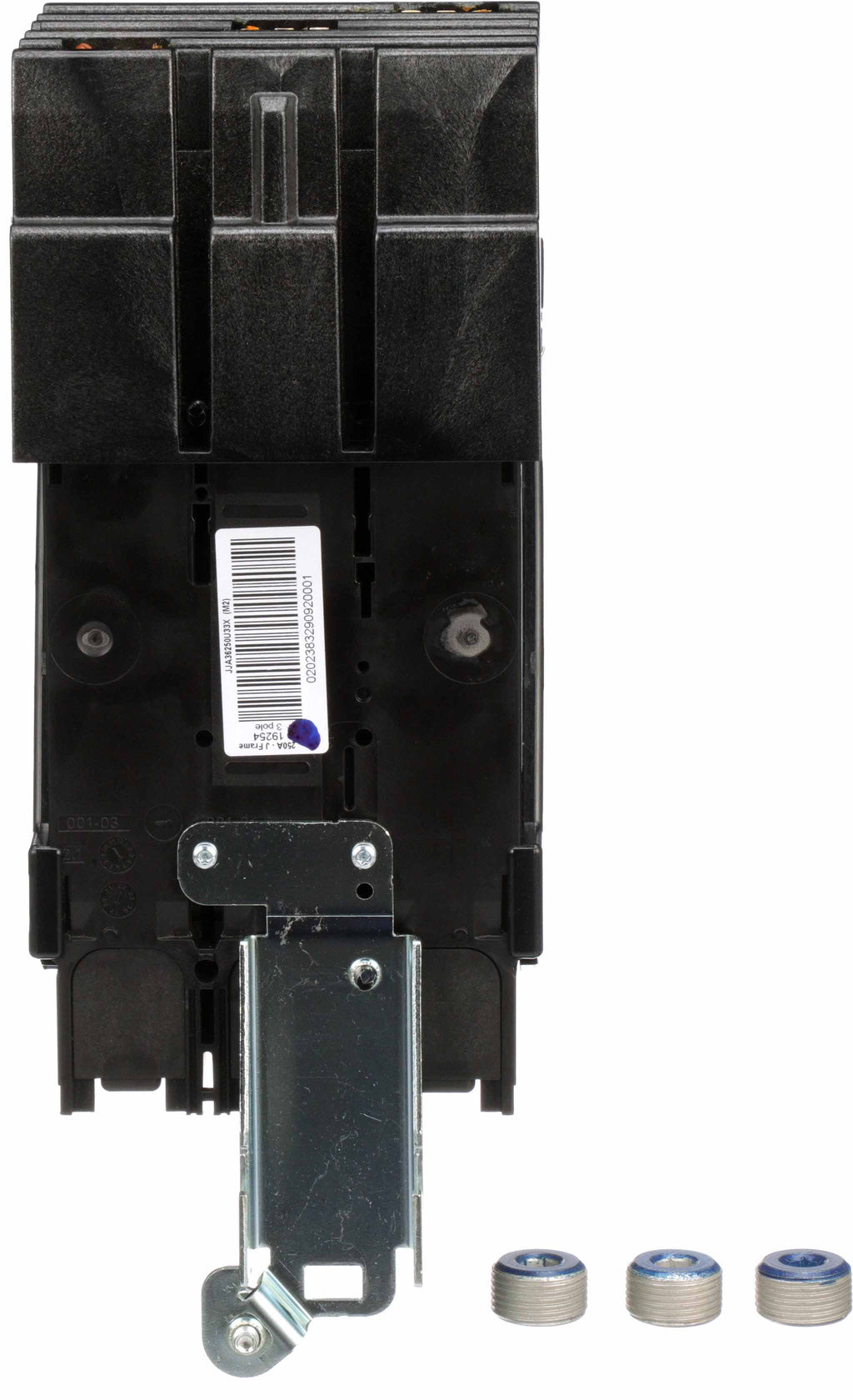

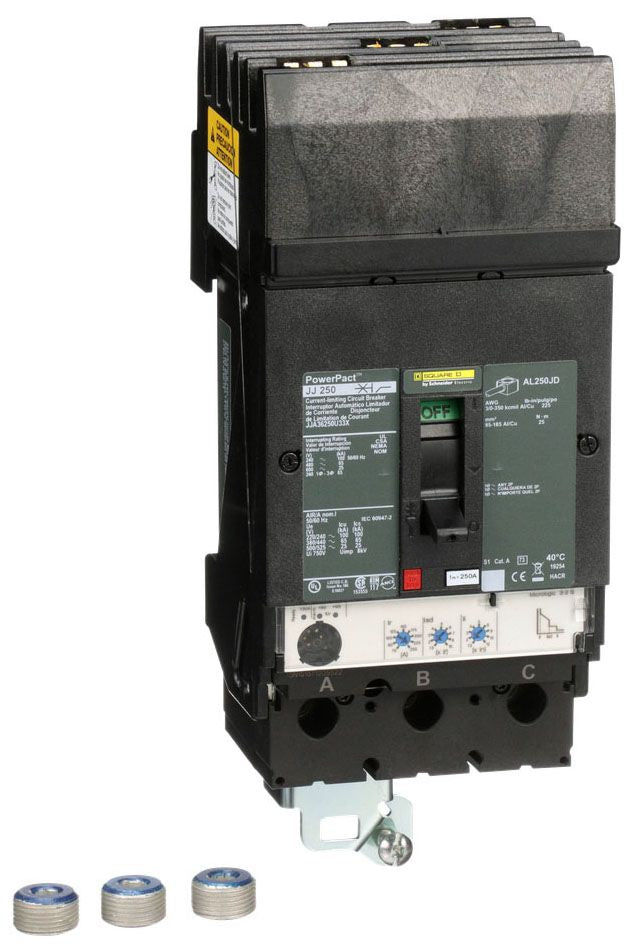

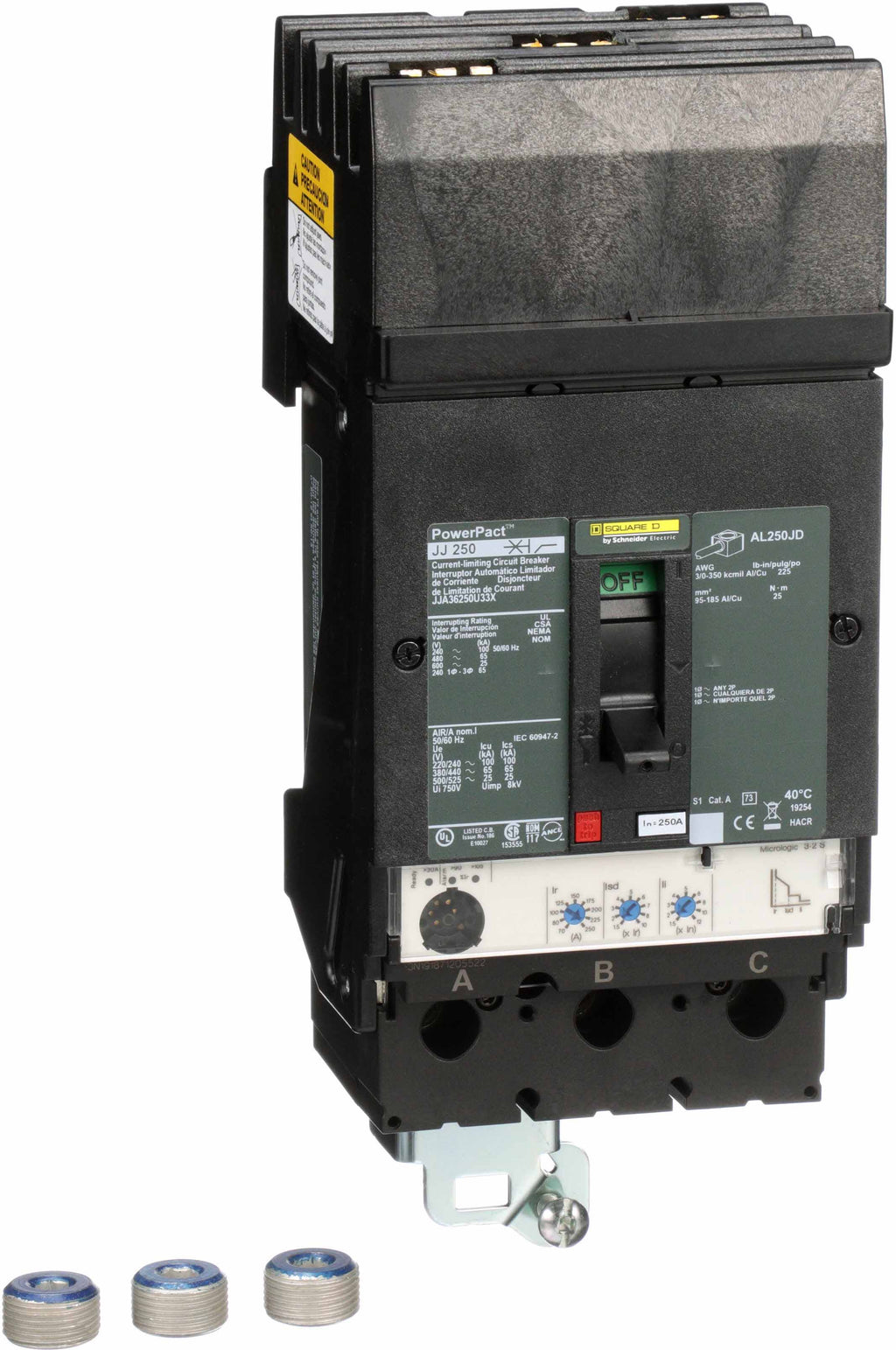

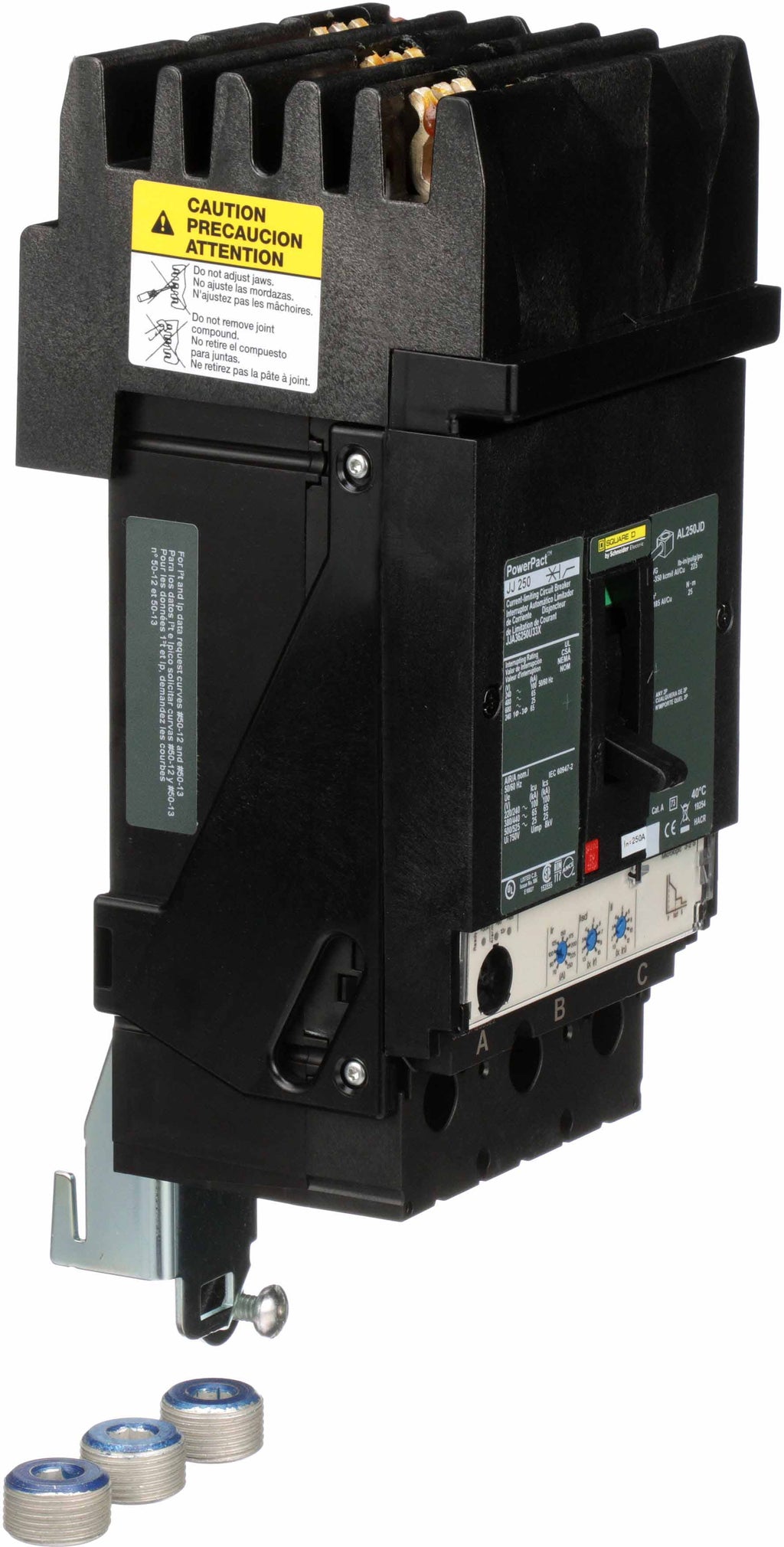

JJA36250U33X - Square D Powerpact J-Frame 250A 600V 3-Pole Molded Case Circuit Breaker I-Line Plug-In

JJA36250U33X

JJA36250U33X is a Square D Powerpact J-Frame 3-pole molded case circuit breaker rated for 250 amps and 600 volts with I-Line plug-in mounting.This circuit breaker features solid state electronic protection with a Micrologic 3.2 S trip unit providing LSI (Long-Time, Short-Time, Instantaneous) trip functions. It has an interrupting rating of 65kA at 480V, 100kA at 240V, and 25kA at 600V, suitable for heavy-duty industrial applications. The breaker supports AWG 3/0 to 350 kcmil aluminum or copper wiring and is UL, CSA, IEC, CE, and CCC certified.

Key Specifications
• Manufacturer: Square D (Schneider Electric)
• Series/Frame: Powerpact JJA
• Amperage: 250A
• Voltage Rating: 600V AC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupting Rating: 65kA @ 480V, 100kA @ 240V, 25kA @ 600V
• Trip Unit: Electronic Micrologic 3.2 S with LSI functions
• Connection Type: I-Line style plug-in with lug terminals
• Wire Gauge: AWG 3/0 to 350 kcmil aluminum/copper
• Certifications: UL 489, CSA, IEC, CE, CCC
• Protection Type: Solid state overcurrent and short-circuit protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JJA36250U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Solid State



Product Data

• UPC : 785901606314
• GTIN : 00785901606314
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 7.11
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
