JJA36250 - Square D PowerPacT J-Frame 250A 3-Pole 600VAC 25kA I-Line Plug-In Molded Case Circuit Breaker, Thermal Magnetic Trip, UL/CSA/NOM/IEC/CE

JJA36250

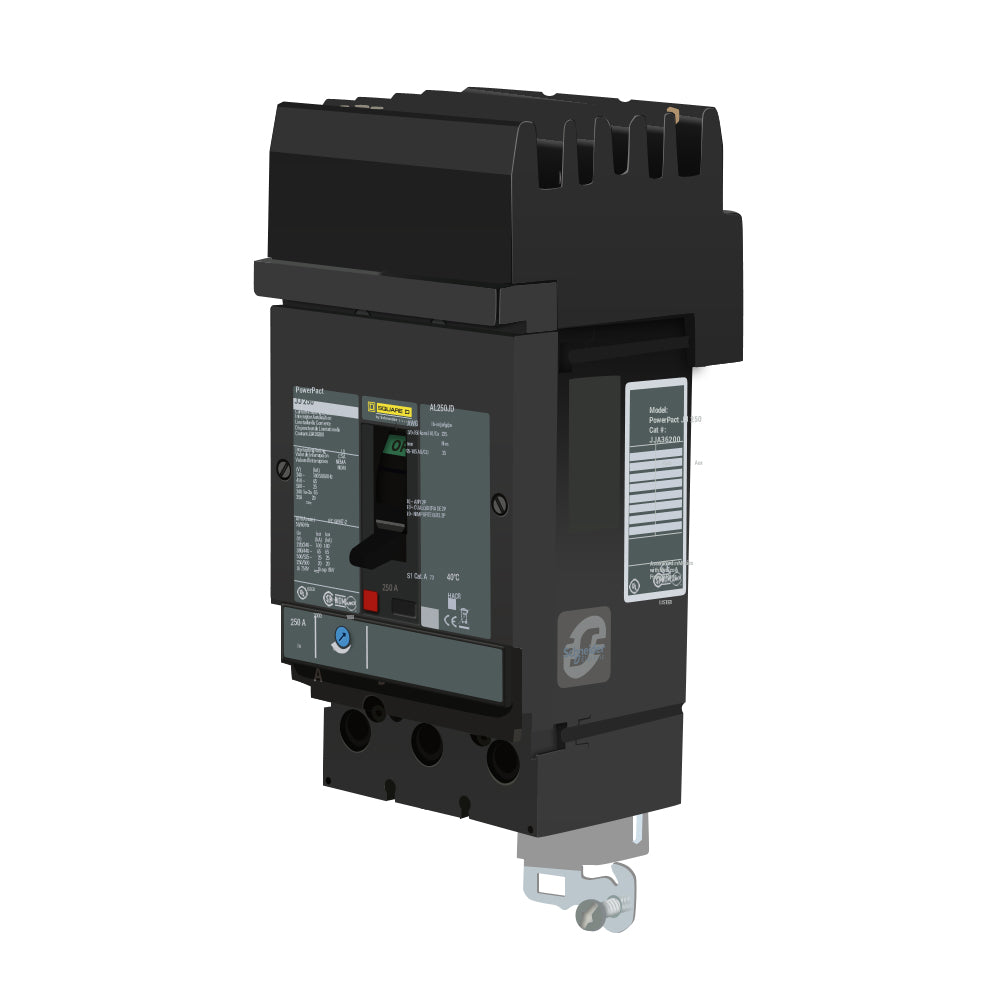

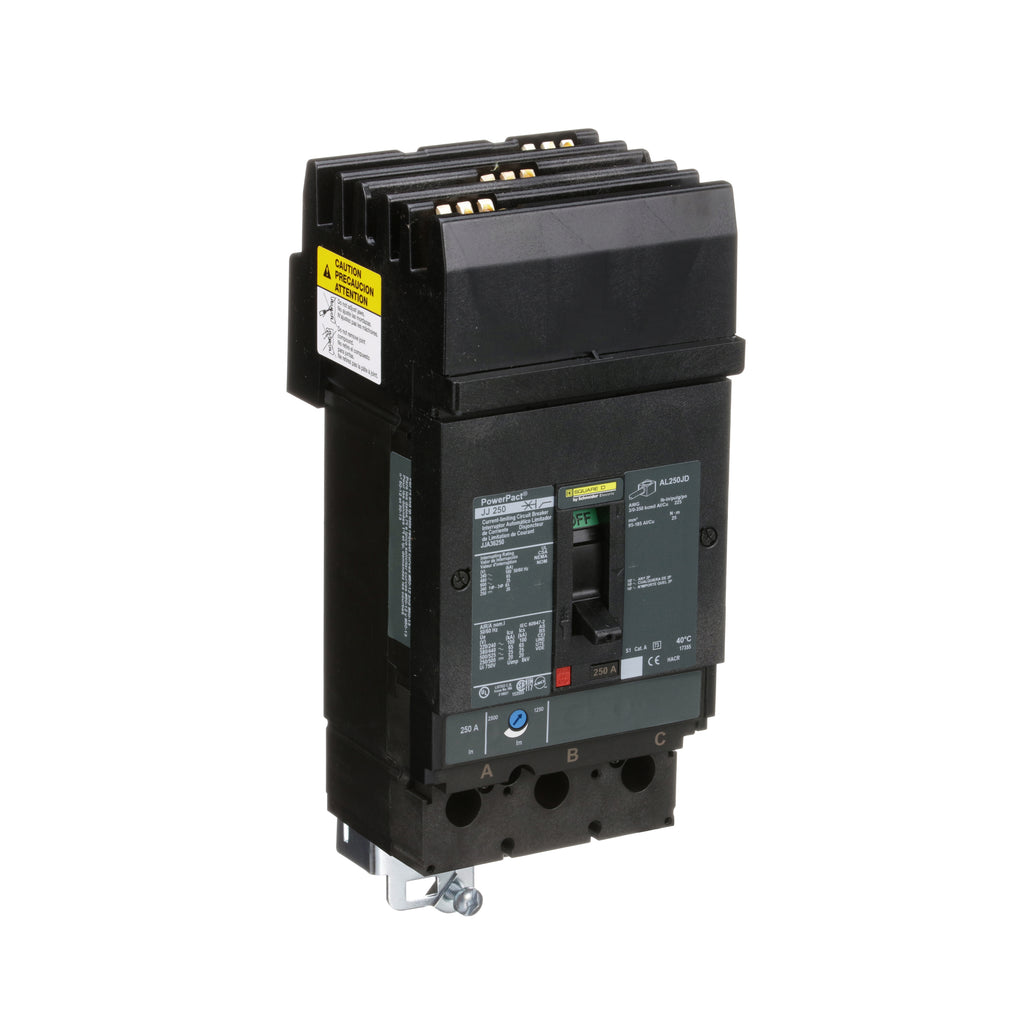

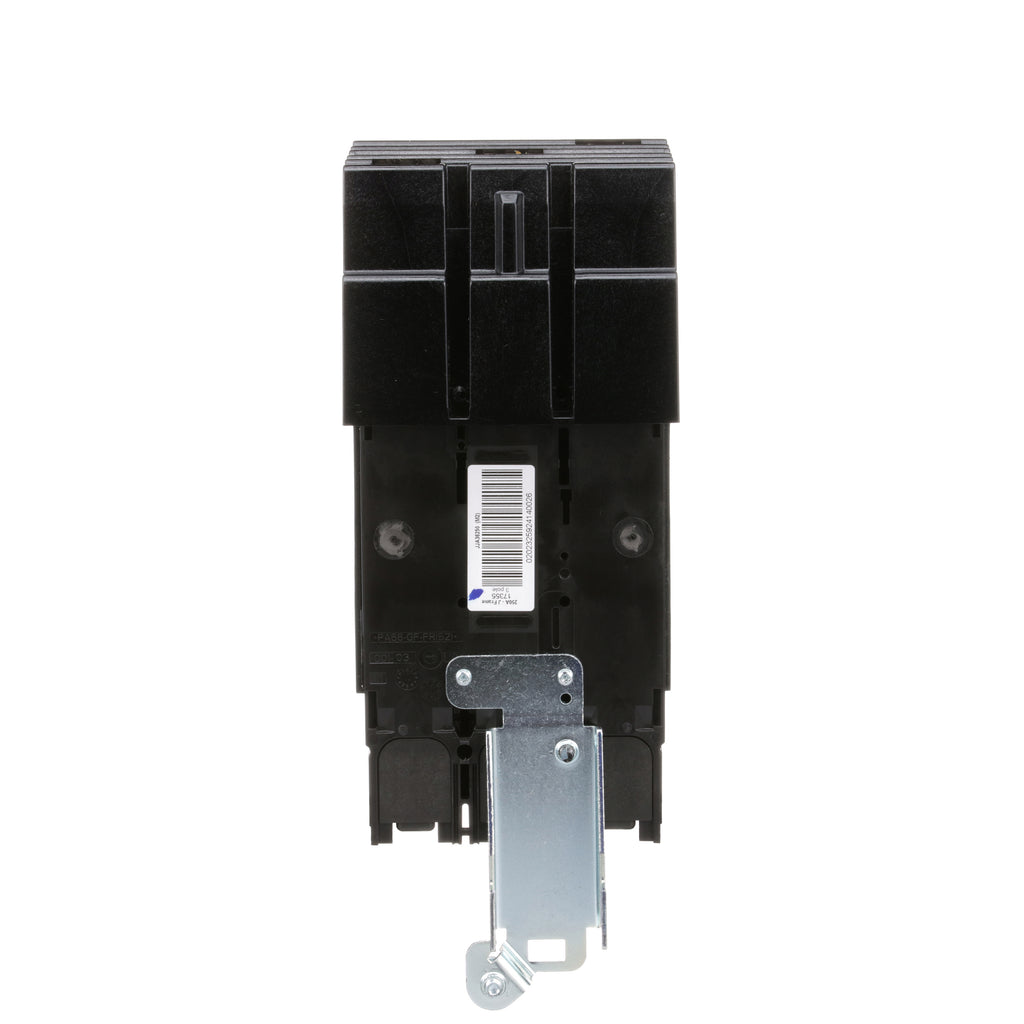

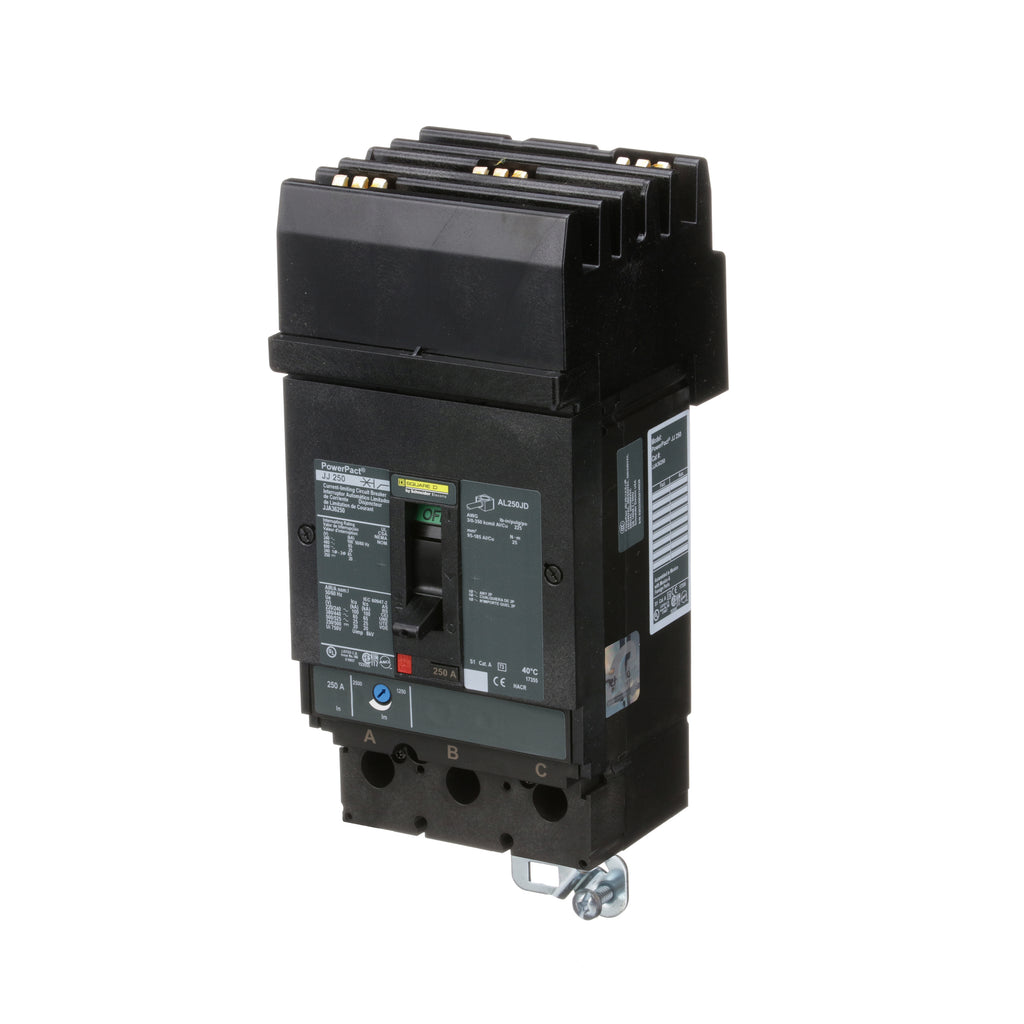

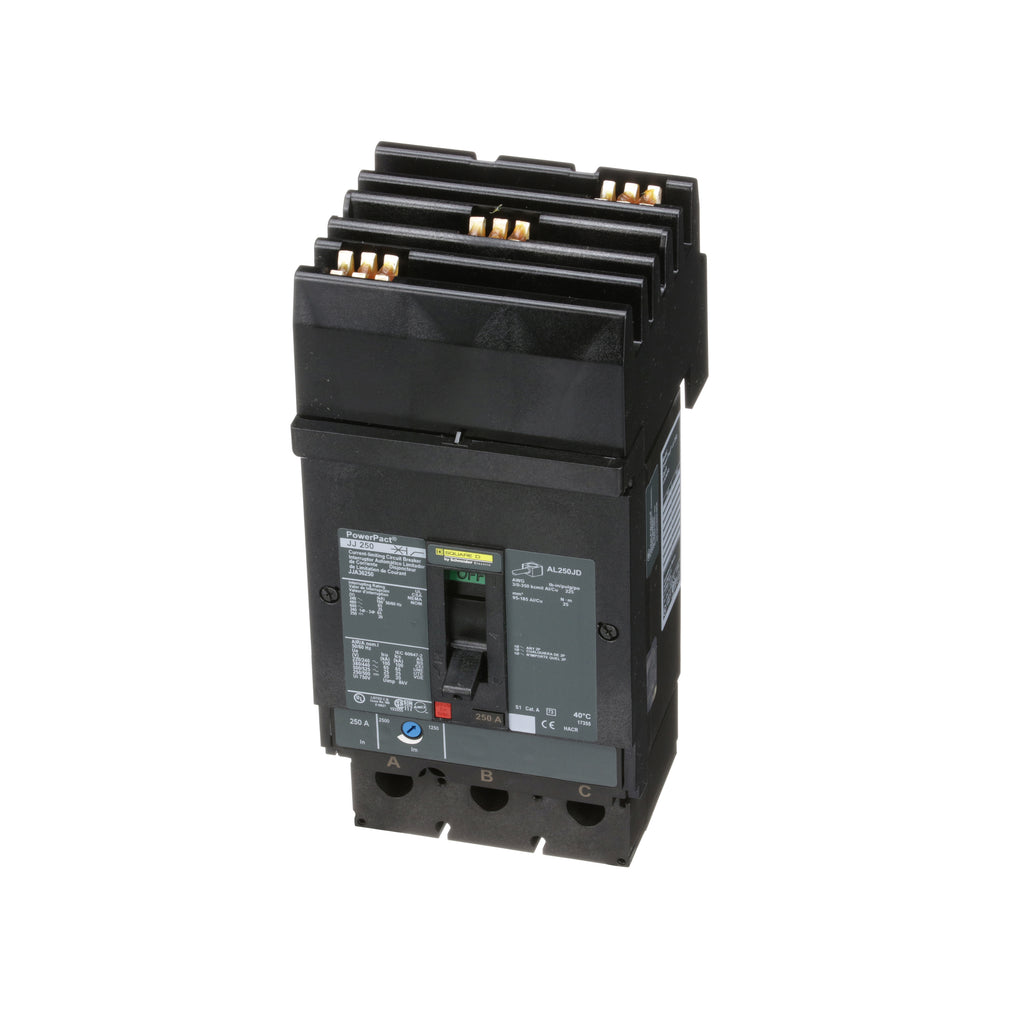

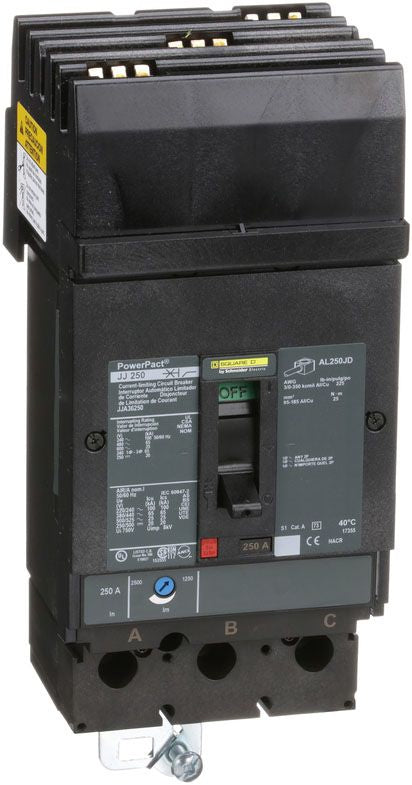

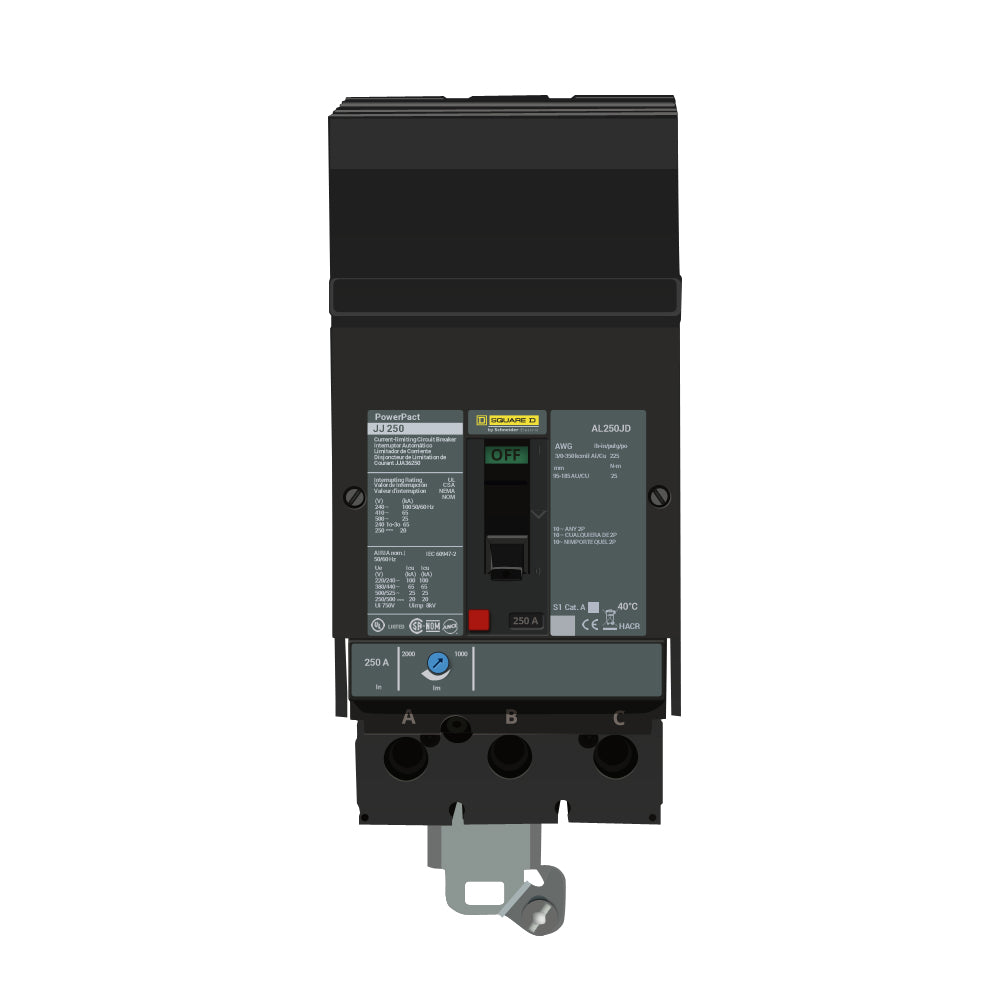

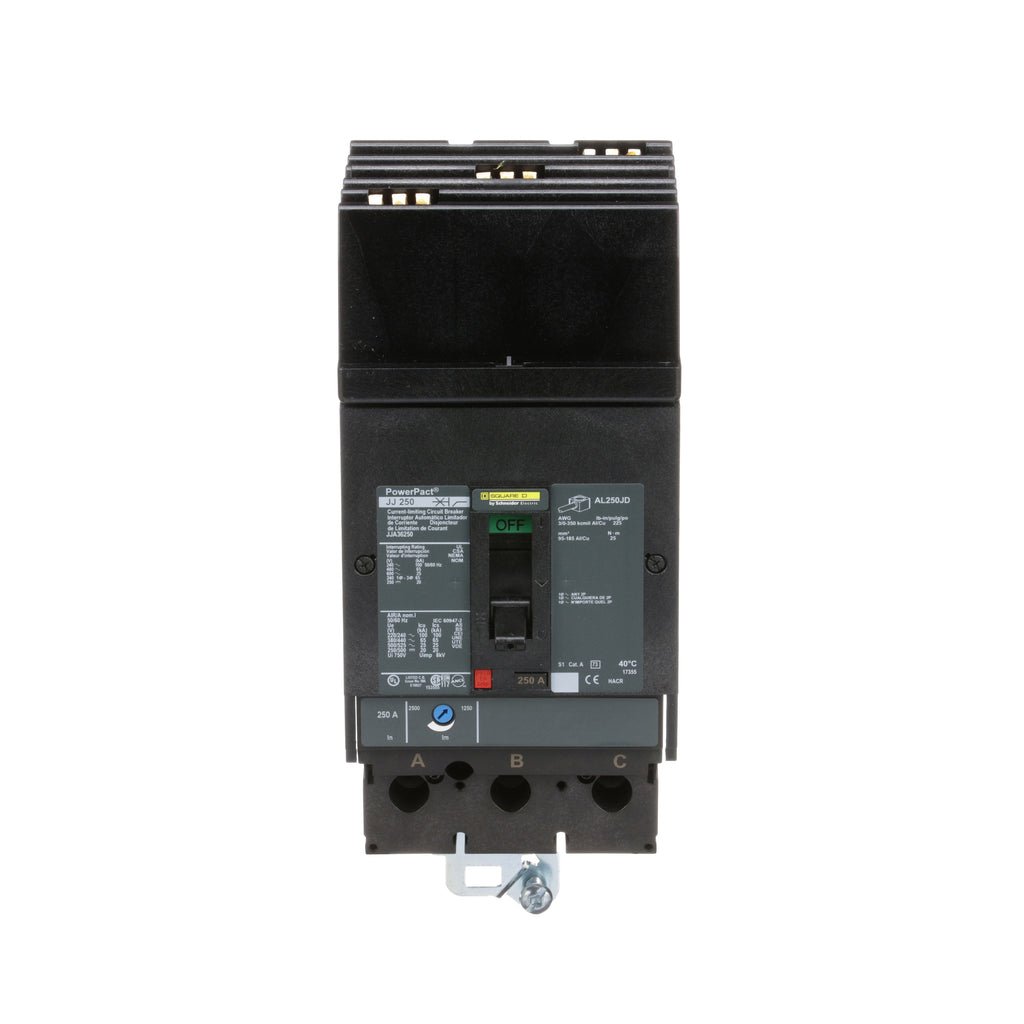

JJA36250 is a Square D PowerPacT J-Frame molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This 3-pole, 250A, 600VAC/250VDC circuit breaker features an I-Line plug-in mounting style, thermal magnetic trip unit, and a breaking capacity of 25kA at 600VAC (65kA at 480VAC, 100kA at 240VAC). It is suitable for ABC phase connection, offers both long-time and instantaneous (LI) protection, and is approved for use under UL, CSA, NOM, IEC, and CE standards. The JJA36250 is mercury-free, PVC-free, and designed for easy installation and removal in I-Line panelboards.

Key Specifications

• Amperage: 250A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 25kA at 600VAC, 65kA at 480VAC, 100kA at 240VAC
• Series/Frame: PowerPacT J-Frame (JJA)
• Trip Unit: Thermal magnetic (LI - Long-time and Instantaneous)
• Certifications: UL, CSA, NOM, IEC, CE, RoHS, REACh, HACR
• Connection: I-Line line side, mechanical lugs load side
• Continuous Current Rating: 80%
• Wire Range: AWG 3/0 to 350 kcmil, Cu/Al
• Actuator: Toggle
• Environmental: Mercury free, PVC free

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJA36250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : J
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901689881
• GTIN : 00785901689881
• Country of Origin : Mexico

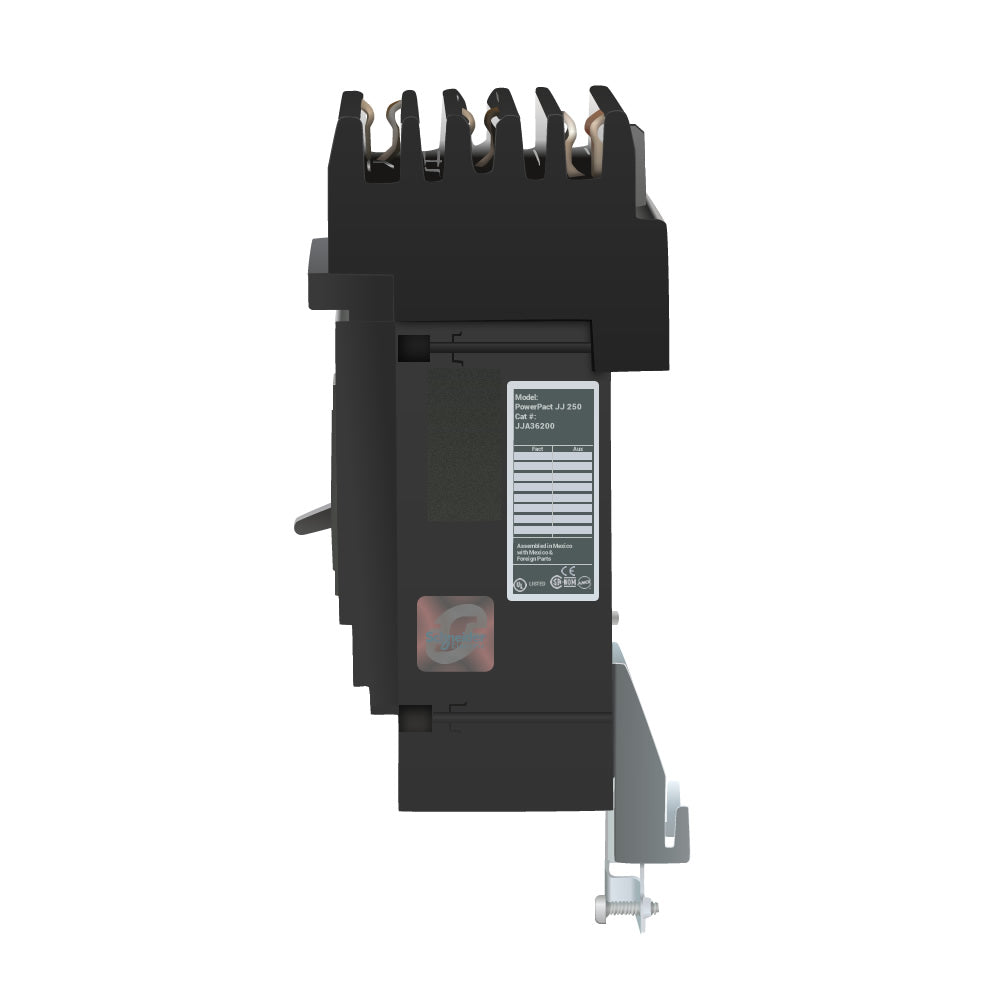

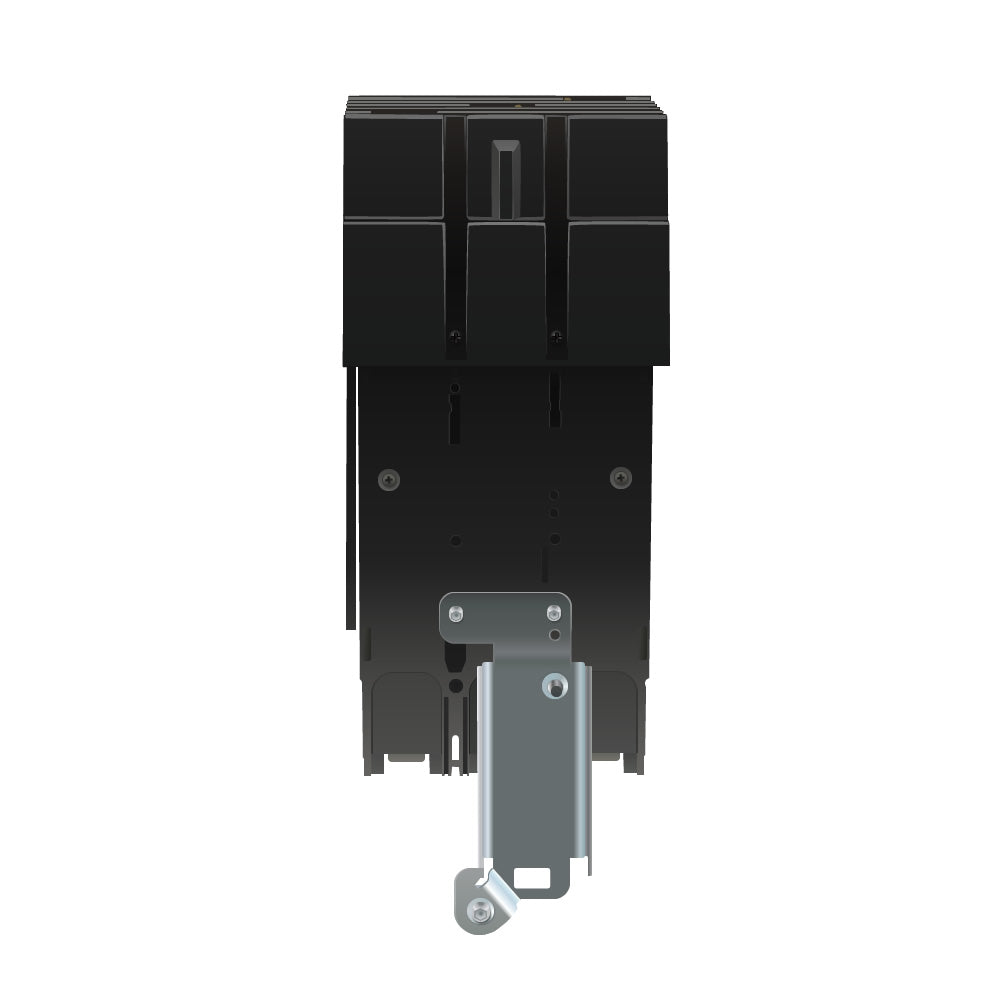

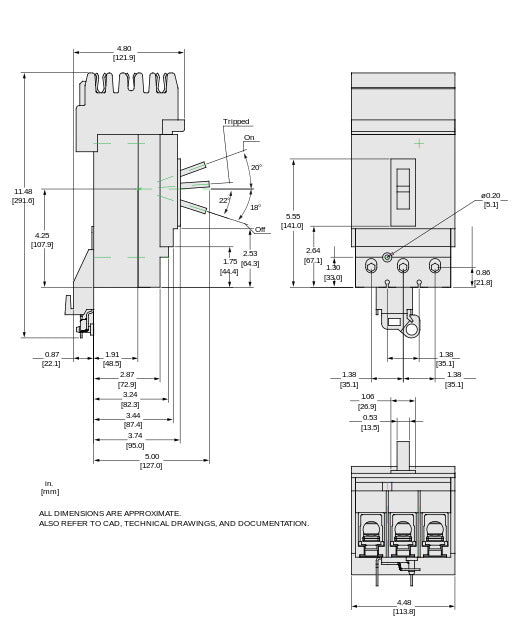

• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.574
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
