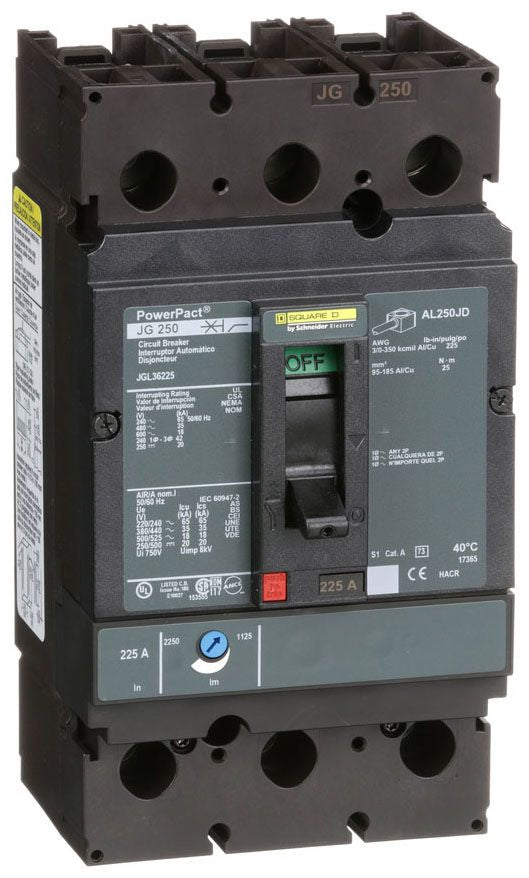

JGL36225SOLK - Square D PowerPact J 3-Pole 225A 600V Molded Case Circuit Breaker

JGL36225SOLK

JGL36225SOLK is a 3-pole, 225-amp molded case circuit breaker rated for 600V AC and 250V DC applications. This Square D PowerPact J-frame breaker features thermal-magnetic trip technology with long-time and instantaneous protection functions, delivering reliable overload and short-circuit protection for industrial and commercial power distribution systems. The unit mount configuration with lug line and load terminals accommodates AWG 4 through 4/0 copper or aluminum conductors, making it suitable for feed-thru applications including reverse-fed installations. Key Specifications

• Manufacturer: Square D (Schneider Electric)
• Part Number: JGL36225SOLK
• Poles: 3
• Amperage: 225A
• Voltage Rating: 600V AC, 250V DC
• Frame Type: J-Frame (PowerPact J)
• Trip Unit: Thermal-Magnetic with LI (Long-Time and Instantaneous) functions
• Breaking Capacity: 65kA at 480V AC, 25kA at 600V AC, 20kA at 250V DC
• Mounting: Unit Mount (Lug)
• Electrical Connection: Lug line and Lugs load
• Continuous Current Rating: 80%
• Certifications: UL 489, CSA, CE, IEC
• Dimensions: 7.52 inches H x 4.12 inches W x 5 inches D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL36225SOLK
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGL
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• Country of Origin : United States
• Weight : 6.001
