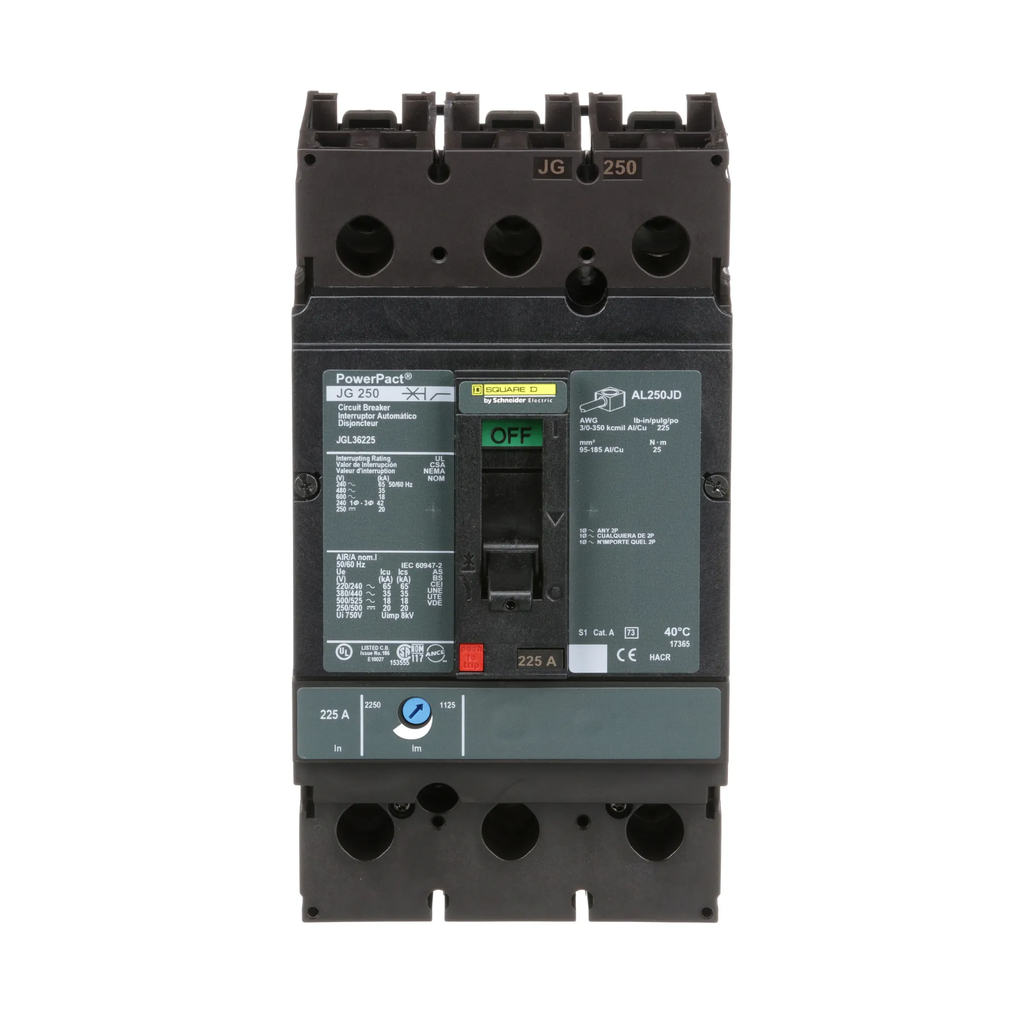

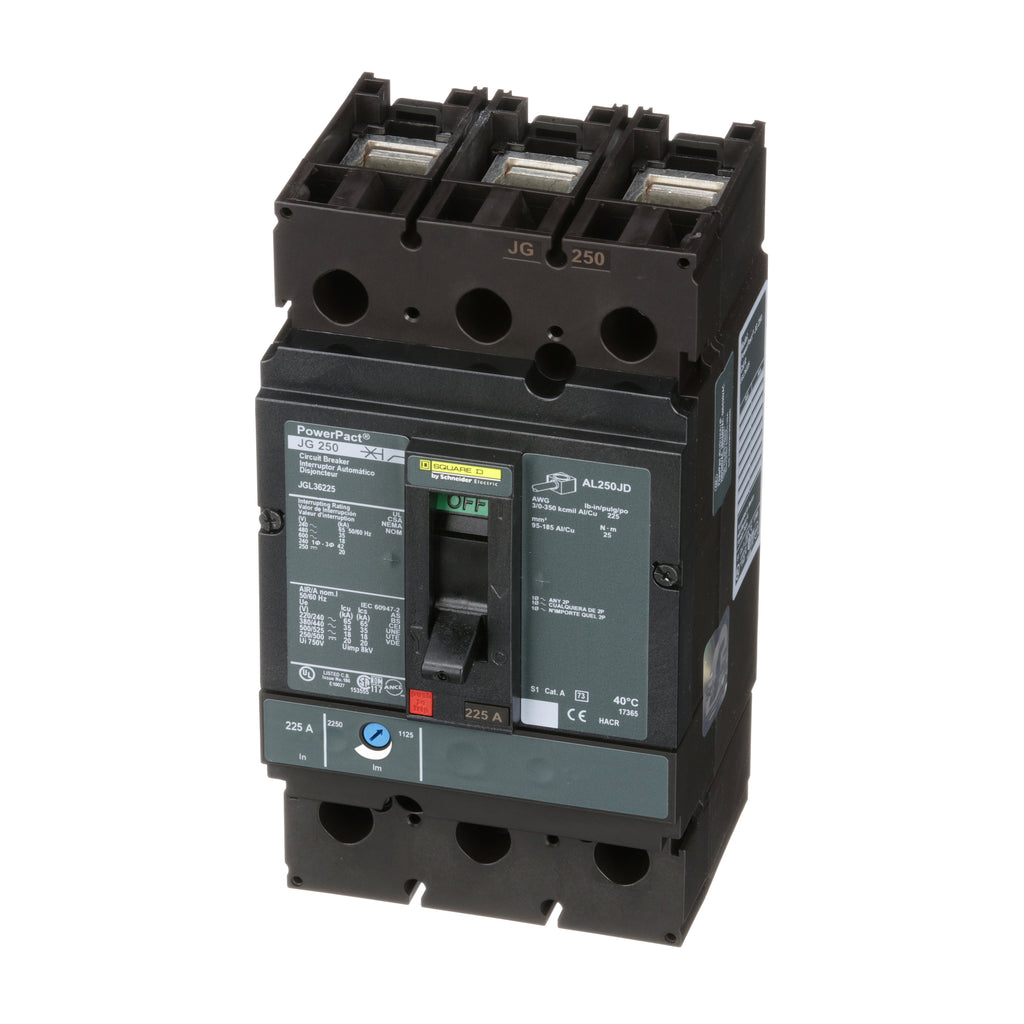

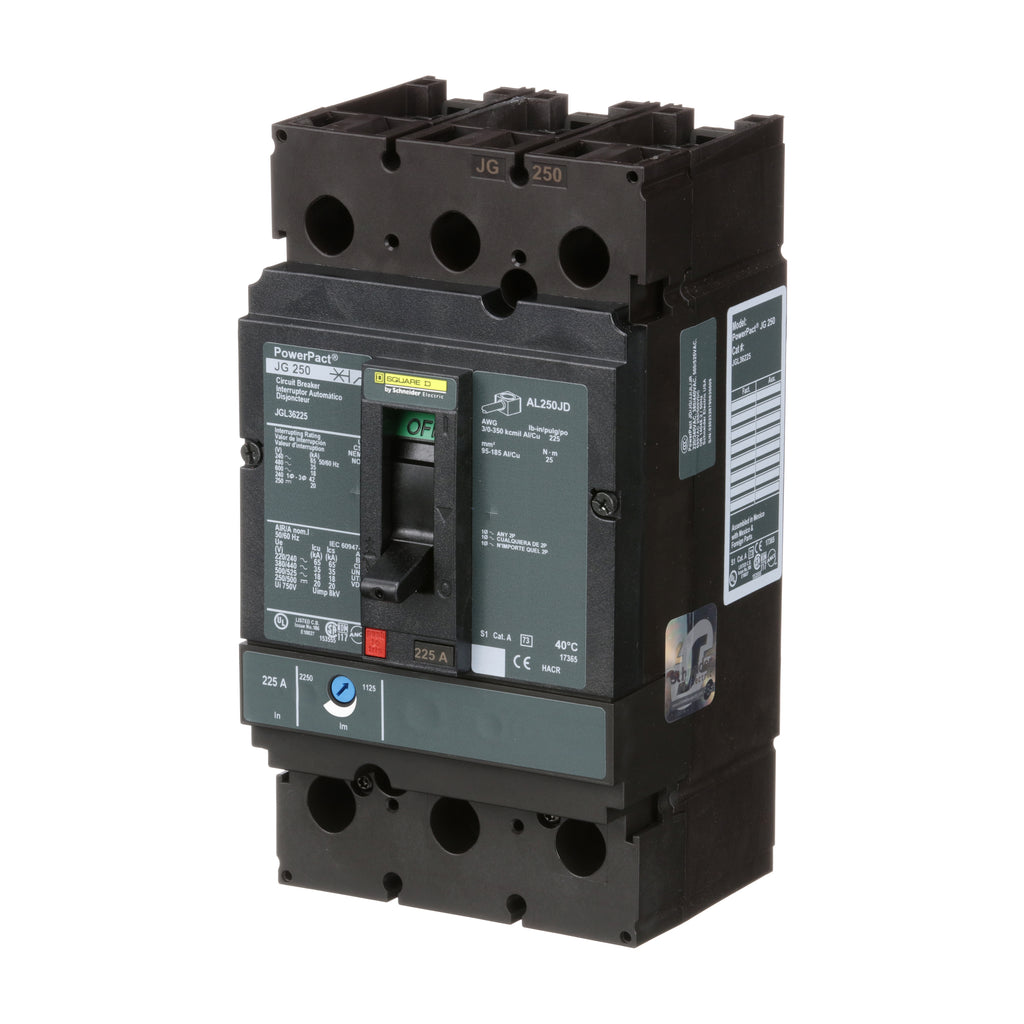

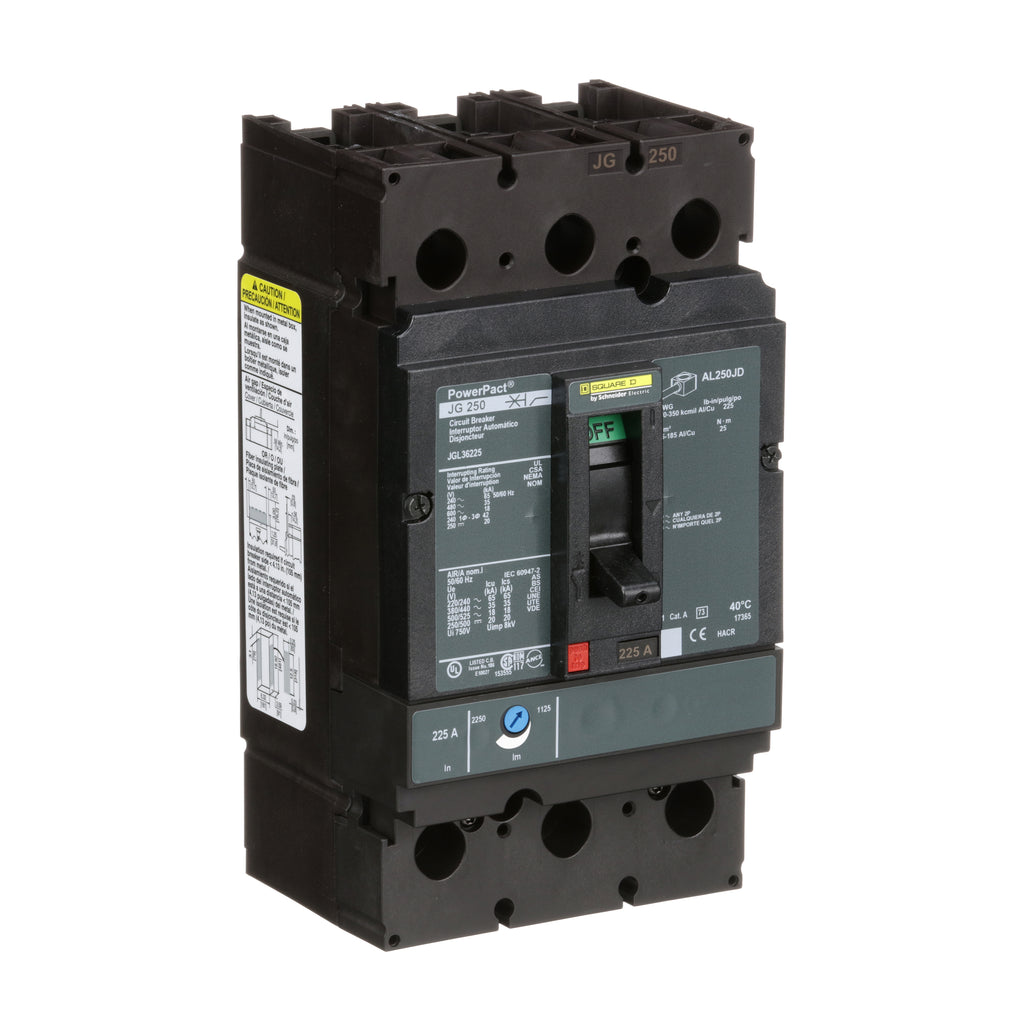

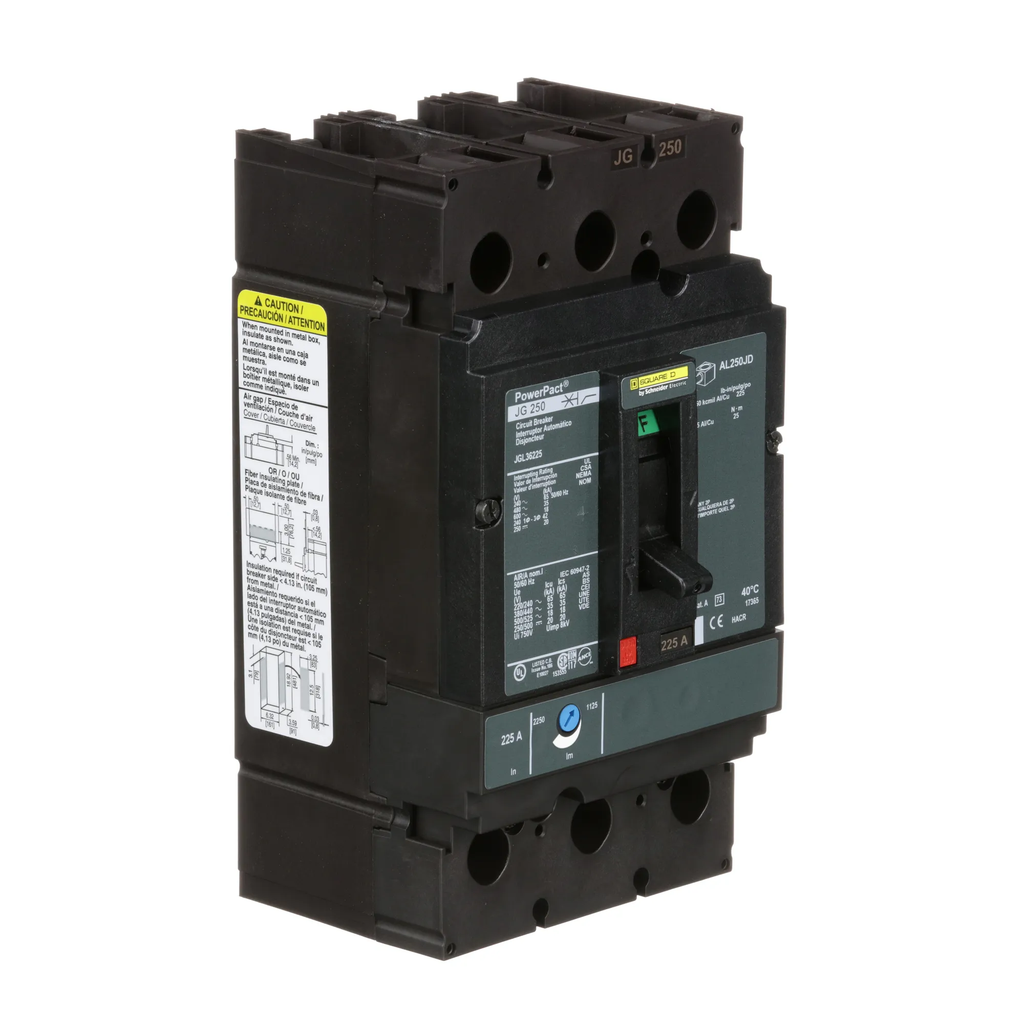

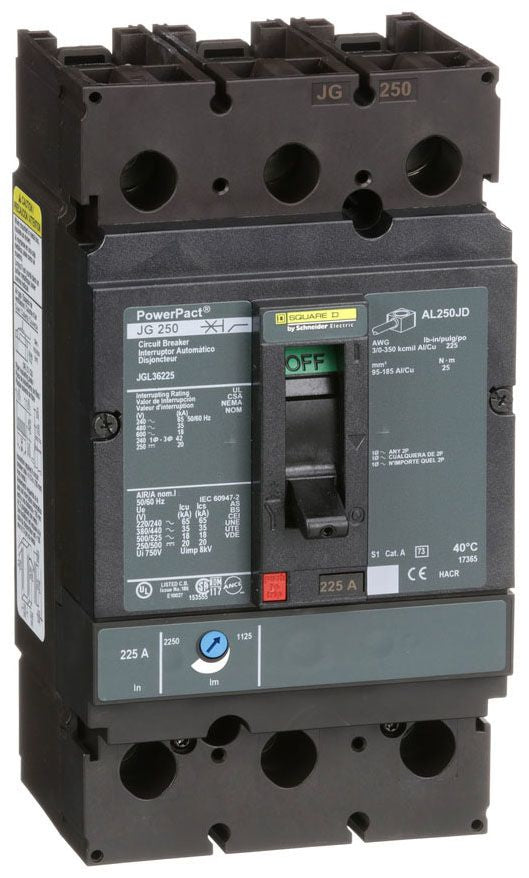

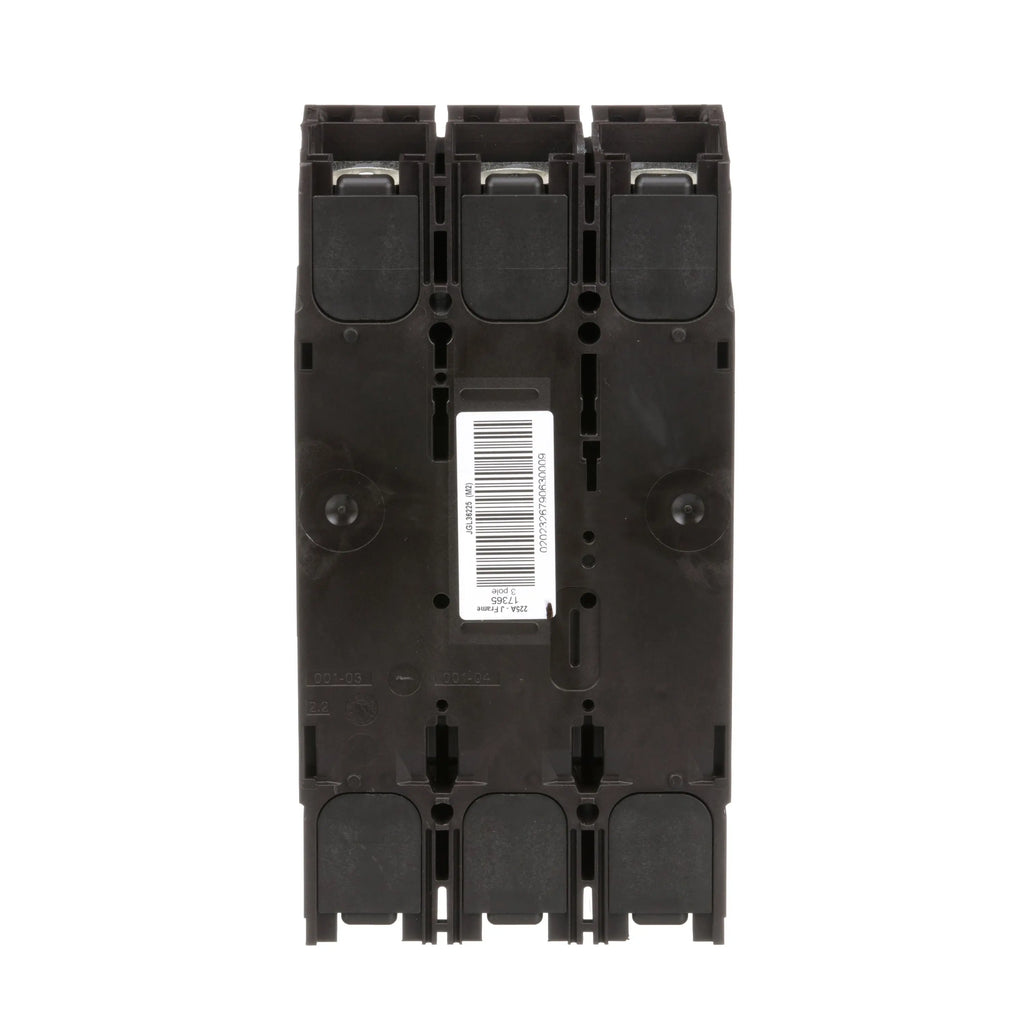

JGL36225 - Square D 225A 600V 3-Pole Powerpact JGL Molded Case Circuit Breaker

JGL36225

JGL36225 is a Square D Powerpact JGL series molded case circuit breaker rated for 225 amps, 600 volts, and 3 poles.This thermal-magnetic circuit breaker features a 35kA interrupting rating at 480V, lug line/load connections, and is designed for feed-thru mounting. It provides overload and short-circuit protection with long-time and instantaneous trip functions. The breaker is UL, CSA, and CE certified and suitable for three-phase applications.

• Amperage: 225A
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Frame Type: J-Frame
• Interrupt Rating: 35kA at 480V
• Trip Unit: Thermal Magnetic
• Mounting Type: Feed-Thru (Unit Mount with lugs)
• Connection: Lug line/load terminals
• Continuous Current Rating: 80%

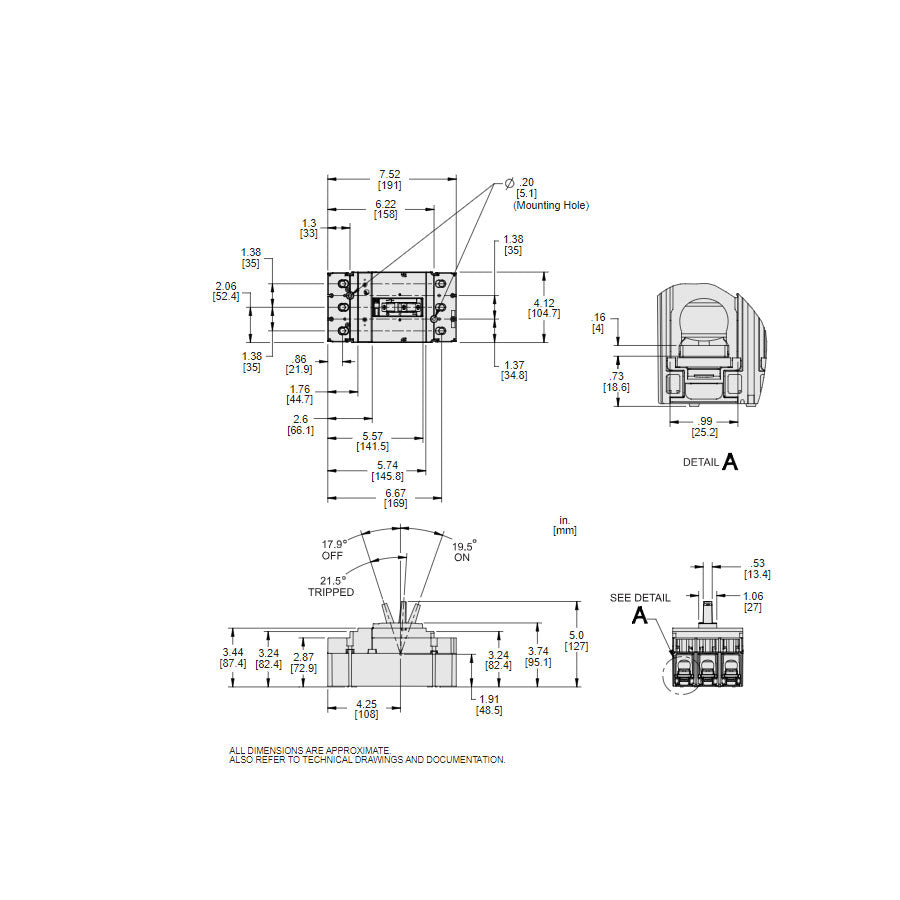

• Dimensions: 7.52" H x 4.12" W x 5" D
• Certifications: UL, CSA, CE
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL36225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGL
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3 AWG Max. Wire Size 350 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901883760
• GTIN : 00785901883760
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.85
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
