Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
JGL36225CLC

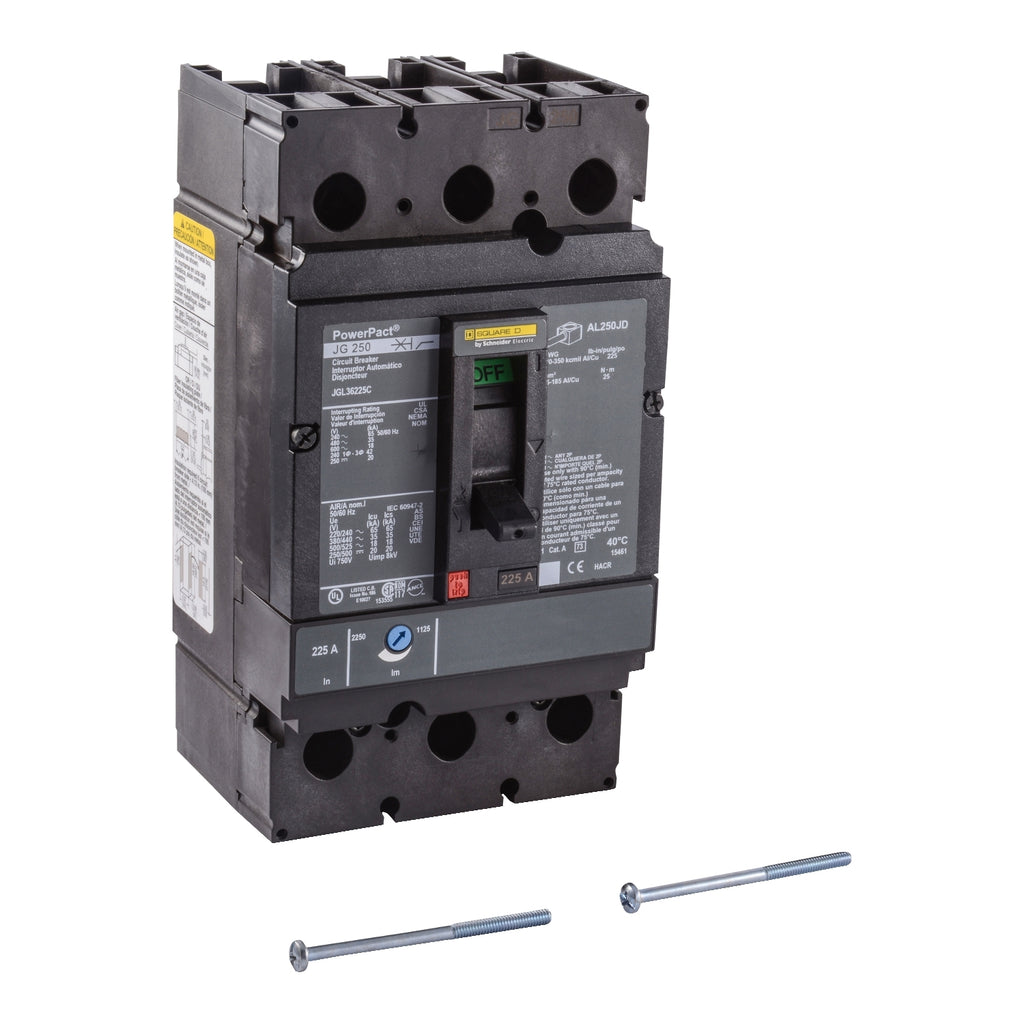

JGL36225CLC is a Square D Powerpact J-Frame molded case circuit breaker rated for 225 amps and 600 volts with 3 poles and thermal magnetic trip unit.This circuit breaker features a unit mount lug design, suitable for overload and short-circuit protection with a G interrupt rating. It supports up to 600 VAC or 500 VDC, has a breaking capacity of 65kA at 240 VAC, 35kA at 480 VAC, and 18kA at 600 VAC. The breaker includes long-time and instantaneous trip functions and is UL 489 listed.
- Key Specifications
- Amperage: 225 Amp
- Voltage: 600 VAC / 500 VDC
- Poles: 3
- Frame Type: J-Frame
- Mounting Type: Unit Mount
- Interrupt Rating: 65kA @ 240V, 35kA @ 480V, 18kA @ 600V
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
- UL Listed: UL 489
- Connection: Lug line and load terminals
- Breaking Capacity Code: G
- Control Type: Toggle
- AWG Range: 4 to 4/0 aluminum/copper terminals
- Part Number: JGL36225CLC
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JGL
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
- Weight : 6
