Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
JGL36225ABLC

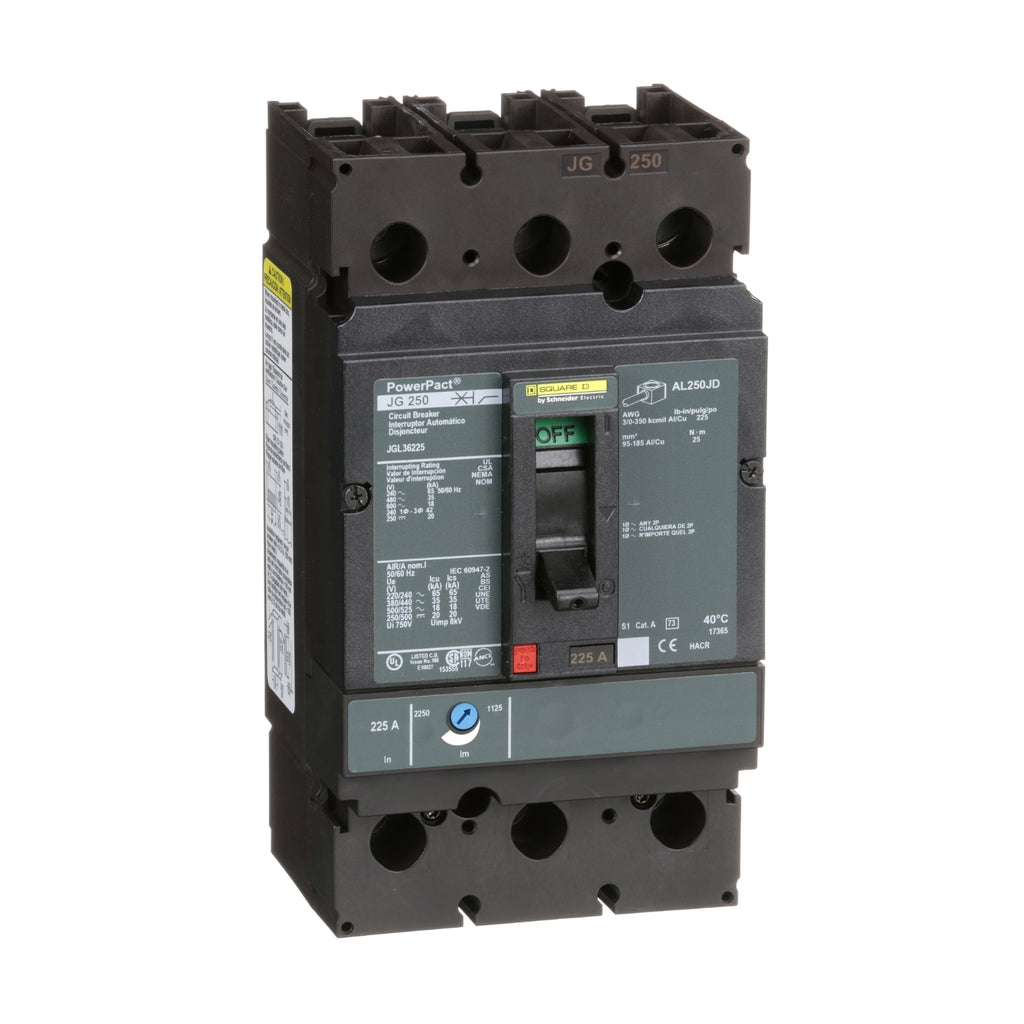

JGL36225ABLC is a Schneider Electric PowerPact J-Frame circuit breaker providing 225 Amp overcurrent protection for 600 VAC systems with a 3 pole configuration.This molded case circuit breaker features a thermal magnetic trip unit designed for reliable overload and short-circuit protection. It supports a maximum voltage of 600 VAC and 250 VDC, with a breaking capacity suitable for industrial and commercial power distribution applications. The breaker is compatible with I-Line mounting and uses lug-type electrical connections. It is UL listed and certified to meet CSA, CE, IEC, and CCC standards.
- Amperage: 225 Amp
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3 Pole
- Trip Unit: Thermal Magnetic
- Interrupt Rating: Up to 18 kA at 600 VAC
- Mounting Type: I-Line
- Electrical Connection: Lug
- Series/Frame: PowerPact J
- Certifications: UL Listed, CSA, CE, IEC, CCC
Specifications
- Part Number: JGL36225ABLC
- Manufacturer : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JGL
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : J Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 6
