Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
JGL36200

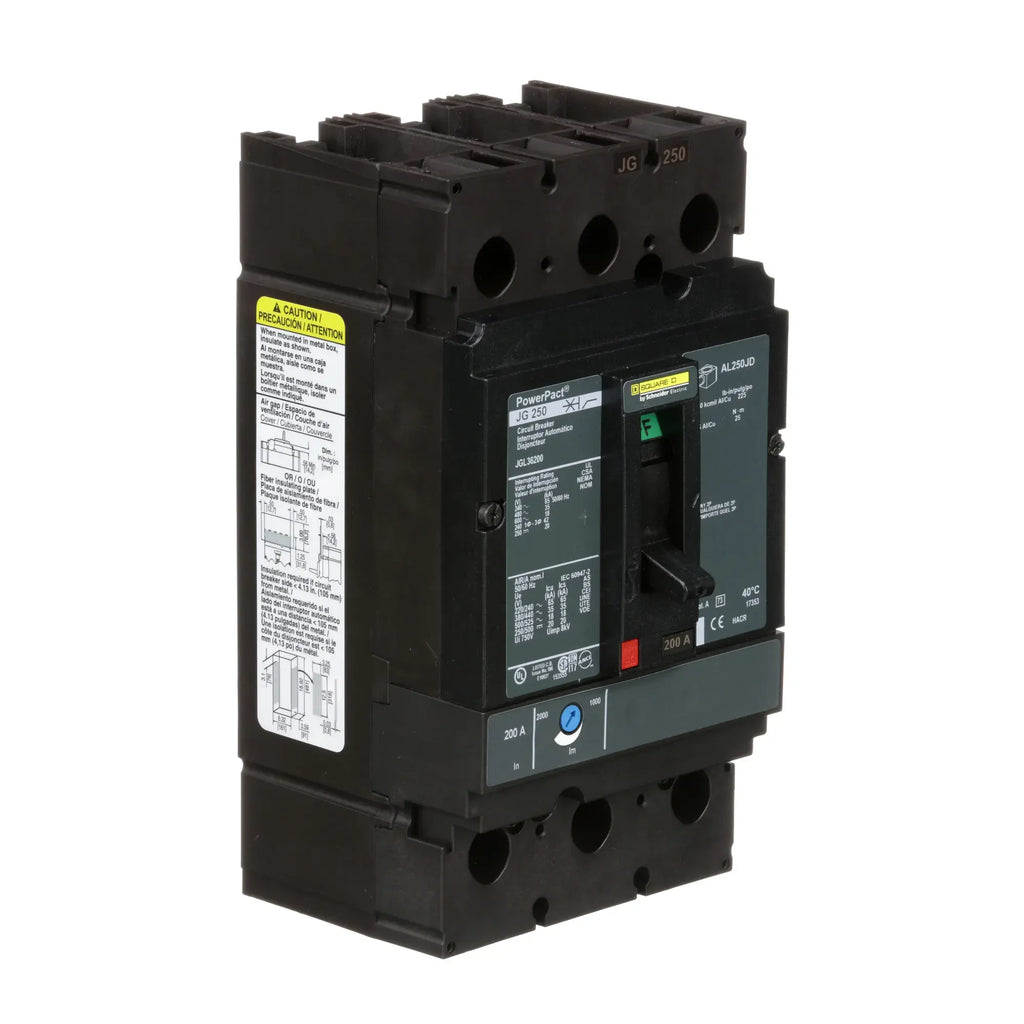

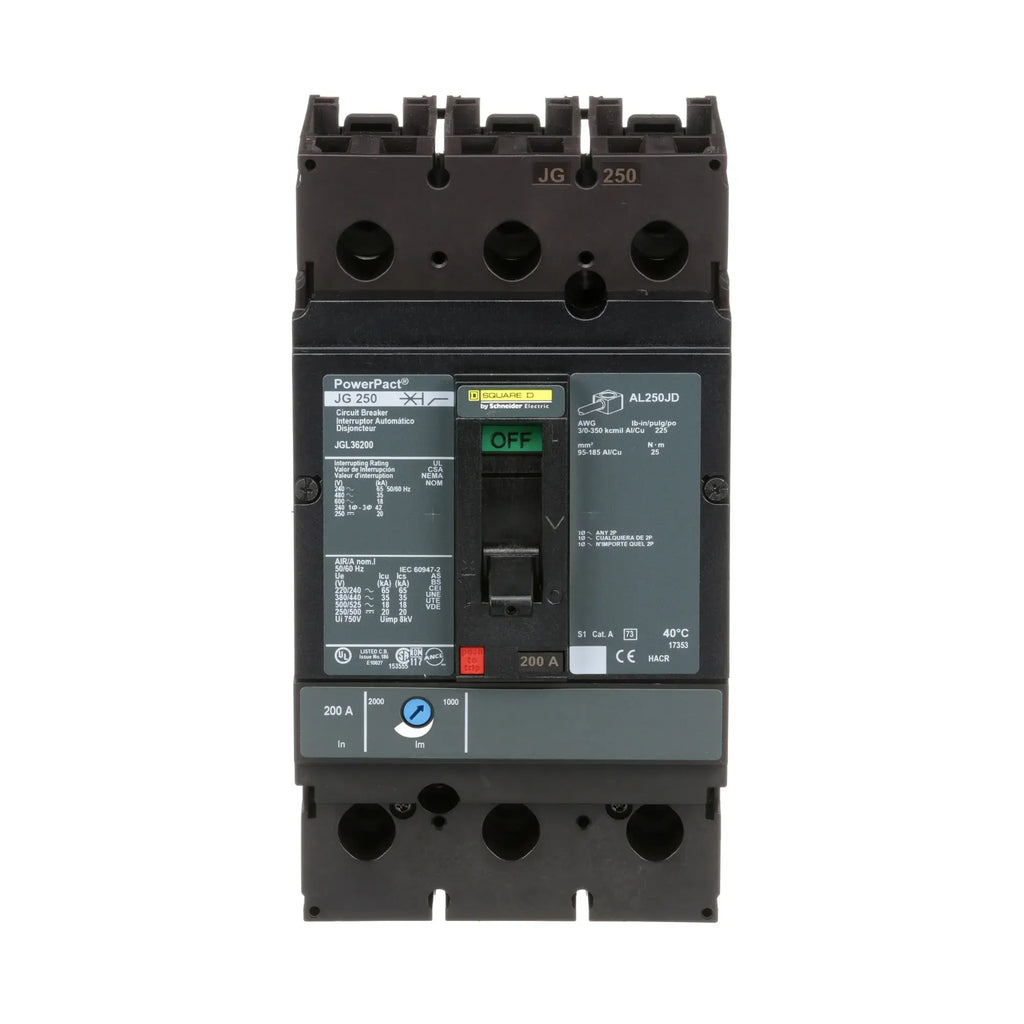

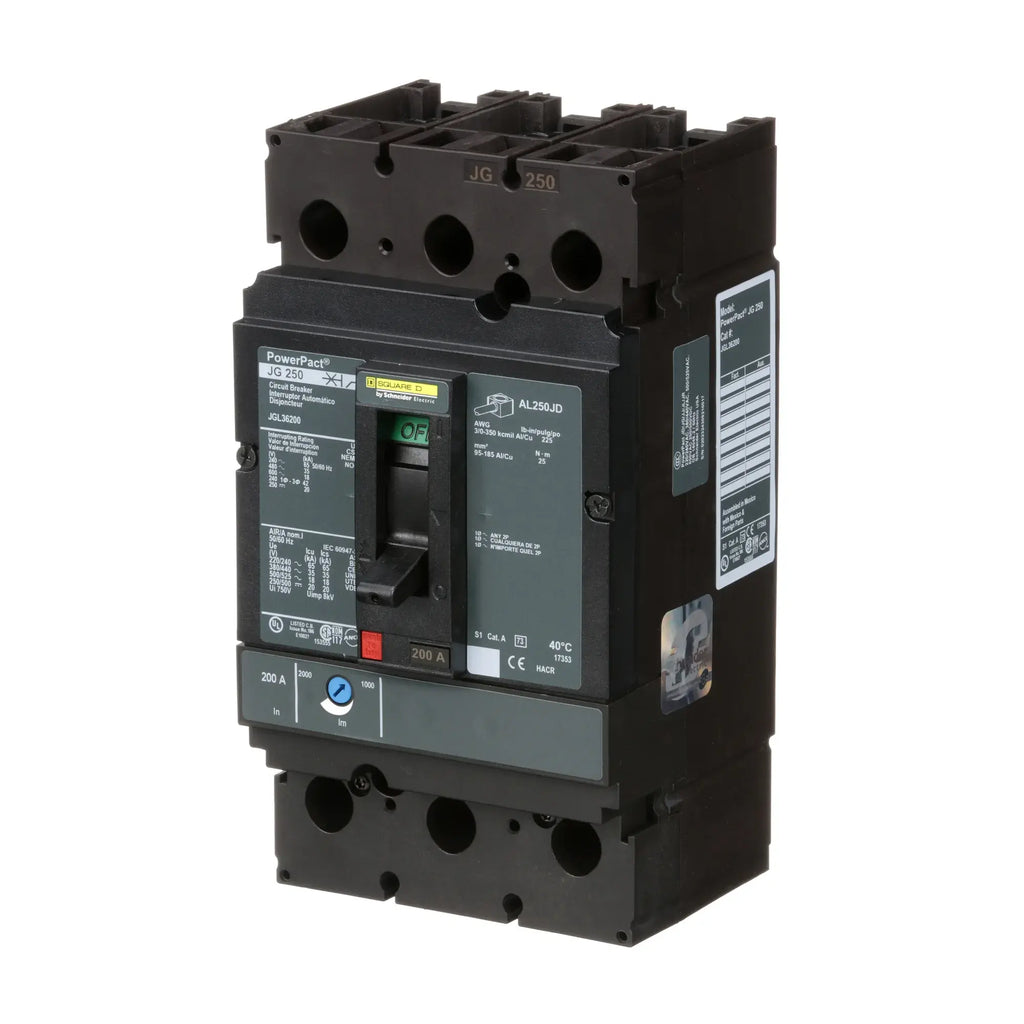

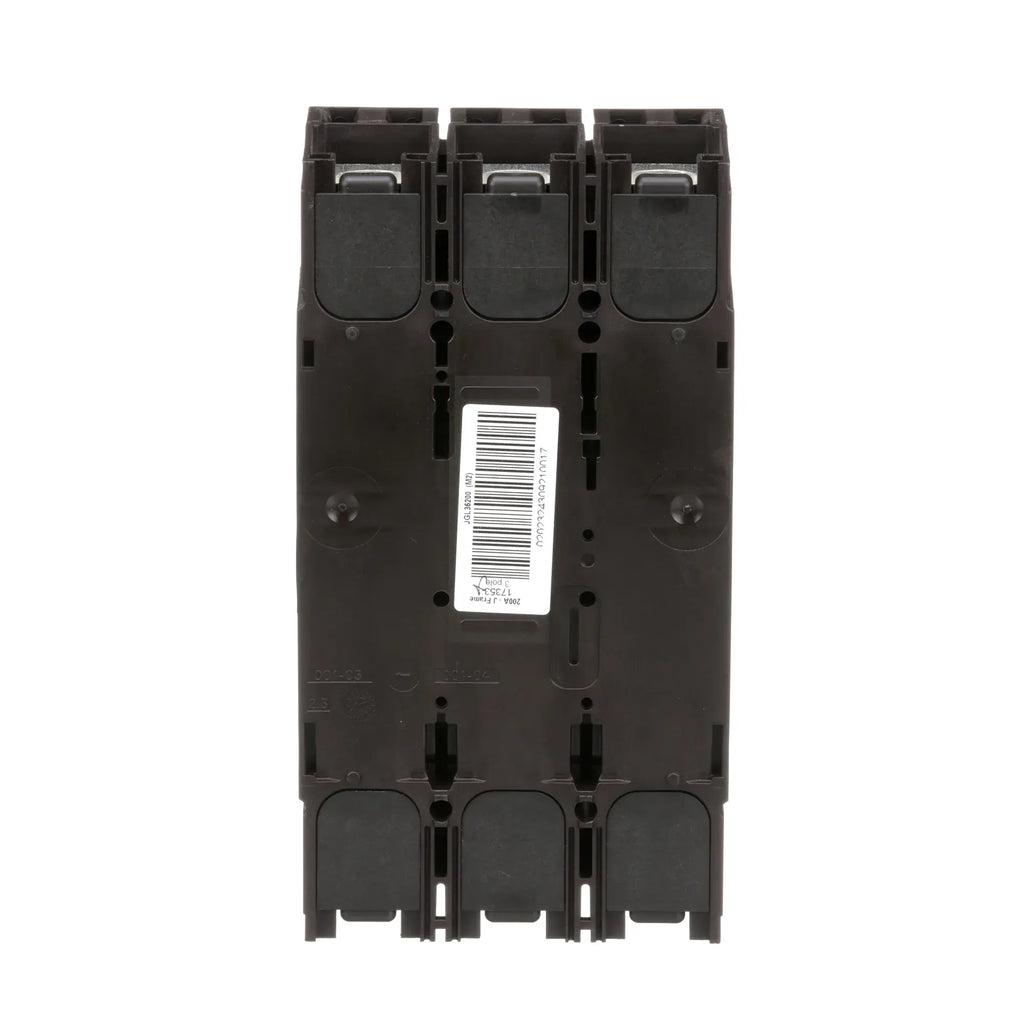

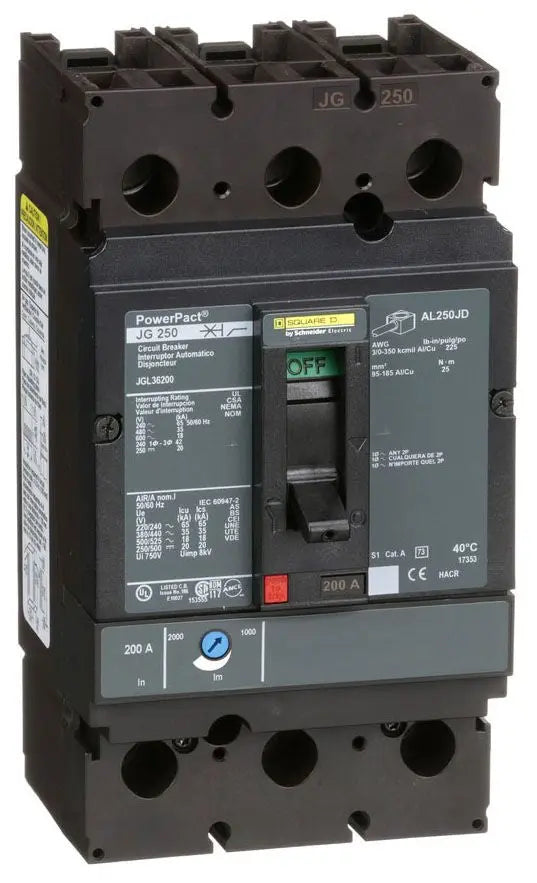

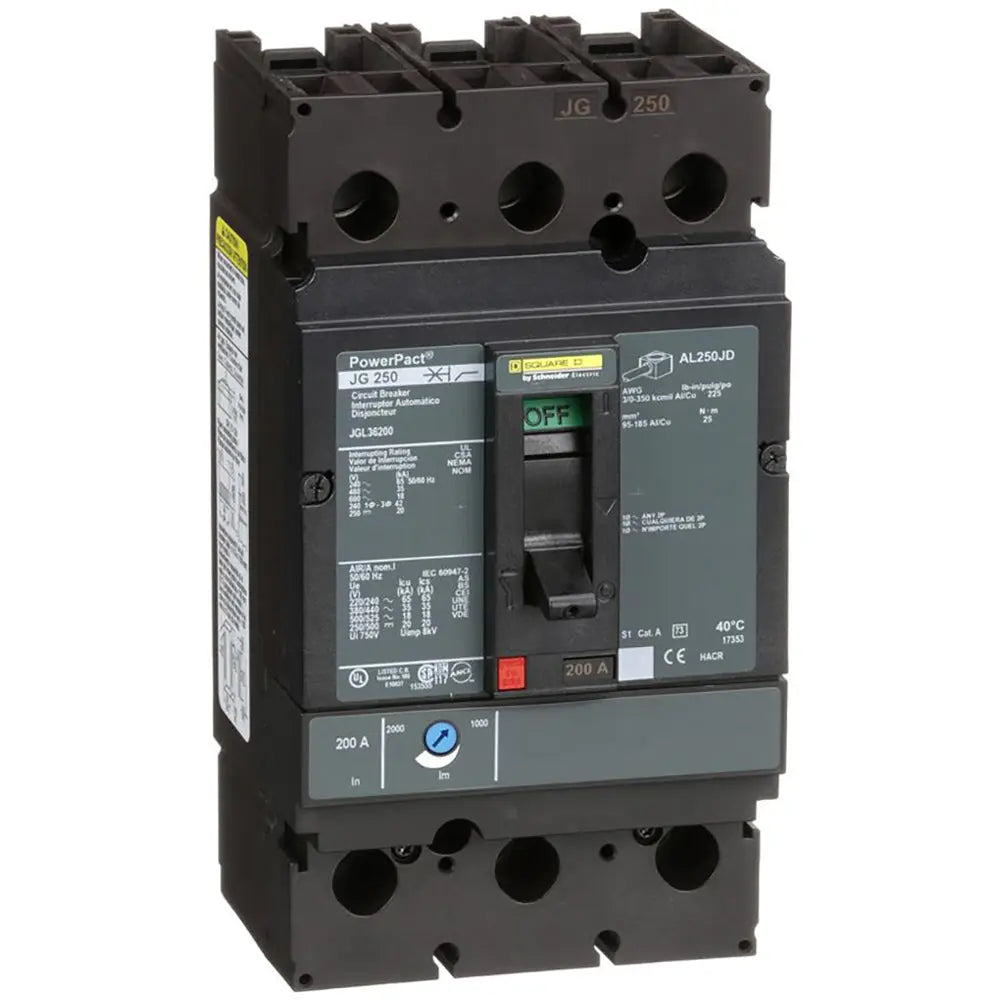

JGL36200 is a Square D PowerPacT J-frame molded case circuit breaker designed for reliable overcurrent and short-circuit protection in commercial and industrial applications.
This 3-pole, 200A, 600VAC (250/500VDC) breaker features a thermal magnetic trip unit, feed-thru mounting, and is suitable for both AC and DC systems. It offers high interrupting capacity, is UL 489 listed, and carries CSA and CE certifications for global compliance. The JGL36200 is engineered for easy installation with line and load side lug terminals and is mercury and PVC free.
-
Key Specifications
- Amperage: 200A
- Voltage: 600VAC, 250/500VDC
- Poles: 3
- Mounting Type: Feed-Thru (Unit Mount)
- Interrupt Rating: 35kAIC @ 480VAC, 65kAIC @ 240VAC, 18kAIC @ 600VAC
- Series/Frame: PowerPacT J (JGL)
- Trip Unit: Thermal Magnetic (LI - Long-Time & Instantaneous)
- Certifications: UL 489, CSA, CE, NEMA, NOM, IEC, RoHS, REACH, HACR
- Connection: Line & Load Side Lug Terminals
- Wire Range: AWG 3/0 to 350 kcmil (Aluminum/Copper)
- Continuous Current Rating: 80%
- Environmental: Mercury Free, PVC Free
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JGL36200
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JGL
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Line/Load Lug
- Frame Size : 250A/JG
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 3 AWG Max. Wire Size 350 MCM
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901683216
- GTIN : 00785901683216
- Country of Origin : Mexico

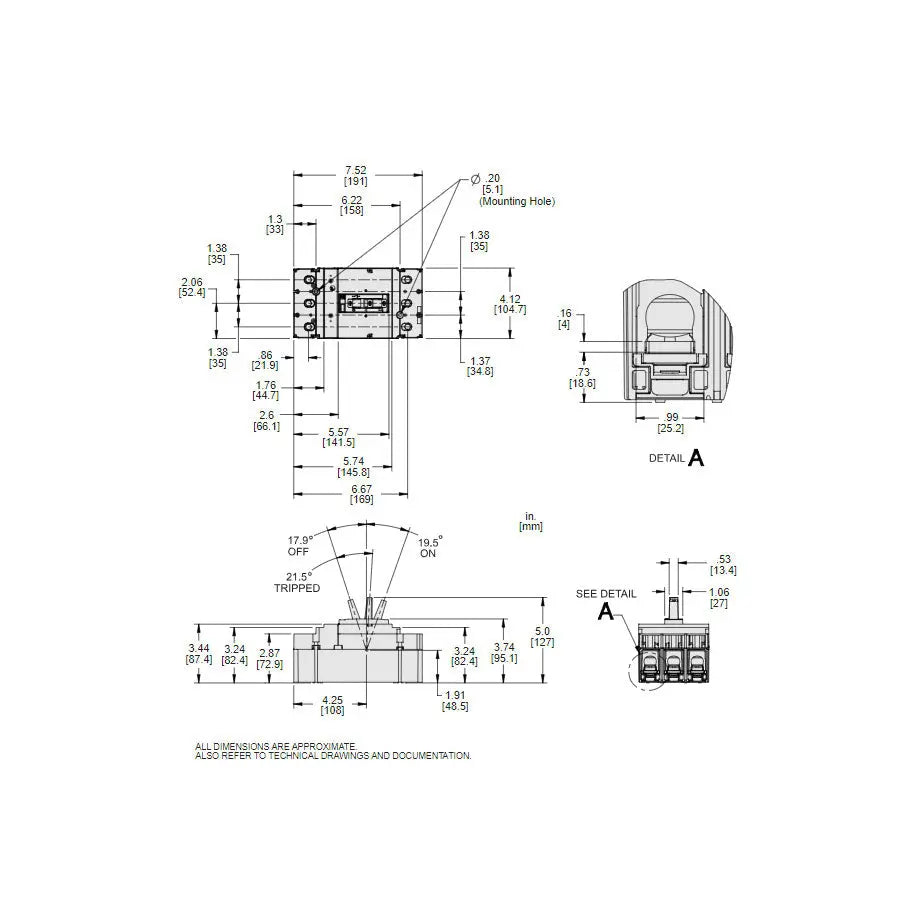

- Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.85
- Panel Type : I Line Panelboards
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
