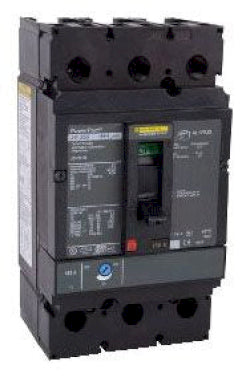

JGF36200 - Square D 200A 600V 3 Pole PowerPact J Frame Molded Case Circuit Breaker Thermal Magnetic

JGF36200

JGF36200 is a Square D PowerPact J Frame molded case circuit breaker rated for 200 amps and 600 volts with 3 poles and thermal magnetic trip type.This 3 pole circuit breaker features a 200 amp amperage rating, 600 VAC voltage rating, and a G frame with thermal magnetic trip unit for reliable overload and short circuit protection. It has an interrupt rating of 65 kA at 240 VAC, 35 kA at 480 VAC, and 18 kA at 600 VAC, suitable for industrial and commercial applications. The breaker mounts via bus bar connection and is UL 489 listed with CSA and CE certifications.

• Amperage: 200 A
• Voltage Rating: 600 VAC / 500 VDC
• Number of Poles: 3
• Frame: G (PowerPact J Frame)
• Interrupt Rating: 65 kA @ 240 VAC, 35 kA @ 480 VAC, 18 kA @ 600 VAC
• Trip Type: Thermal Magnetic
• Mounting Type: Bus Bar
• Frequency: 50/60 Hz
• Temperature Rating: 104°F
• Connection Type: Busbar
• Certifications: UL 489, CSA, CE
• Country of Origin: US

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGF36200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGF
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901620471
• GTIN : 00785901620471
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
