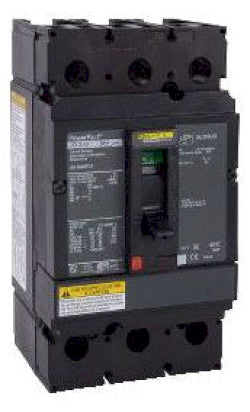

JGF36000F25 - Square D PowerPact J 250 Amp 600V 3-Pole Molded Case Circuit Breaker

JGF36000F25

JGF36000F25 is a Square D PowerPact J-frame molded case circuit breaker rated for 250 amperes at 600 volts AC with 3 poles and thermal-magnetic trip protection. This bolt-on circuit breaker features long-time and instantaneous sensing elements designed for reliable overcurrent and short-circuit protection in industrial and commercial power distribution applications. The toggle actuator provides manual on-off control with positive indication of breaker status. Key Specifications

• Part Number: JGF36000F25
• Manufacturer: Square D (Schneider Electric)
• Frame Type: PowerPact J-Frame
• Amperage Rating: 250 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Mounting: Bolt-On
• Trip Unit: Thermal-Magnetic with Long-Time and Instantaneous
• Interrupt Rating: 18 kA at 600 VAC
• Actuator Type: Toggle
• Dimensions: 7.52 in H x 4.12 in W x 5 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.

Specifications

• Part Number: JGF36000F25
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGF
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078590163586
• GTIN : 00785901635864
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
