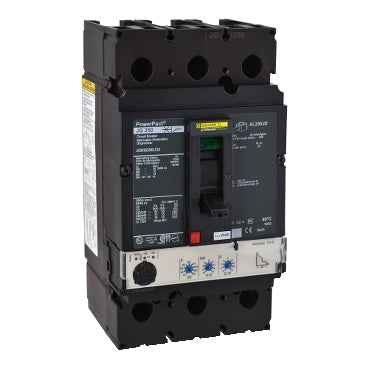

JDP36250U31X - Square D 250A 600V 3 Pole PowerPact J Circuit Breaker with Micrologic 3.2 Trip Unit

JDP36250U31X

JDP36250U31X is a 3 pole, 250 amp, 600 Volt circuit breaker from Square D's PowerPact J series featuring a Micrologic 3.2 electronic trip unit.This circuit breaker provides reliable overcurrent protection and switching for AC systems with a 14kA interrupt rating at 600VAC and 18kA at 480VAC. It includes lug connections and is UL 489 listed with multiple certifications including CSA, NOM, IEC, CCC, UKCA, and CE. The breaker supports adjustable trip settings and is designed for bolt-on mounting.

Key Specifications
• Amperage: 250A
• Voltage Rating: 600VAC
• Poles: 3
• Interrupt Rating: 14kA @ 600VAC, 18kA @ 480VAC
• Series/Frame: PowerPact J
• Trip Unit: Micrologic 3.2 electronic
• Mounting Type: Bolt-On
• Certifications: UL 489, CSA, NOM, IEC, CCC, UKCA, CE
• Connection Type: Lug
• Current Limiting: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDP36250U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Solid State

Product Data

• UPC : 060648628322
• GTIN : 03606486283226
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.003
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
