Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
JDL36250CU31X

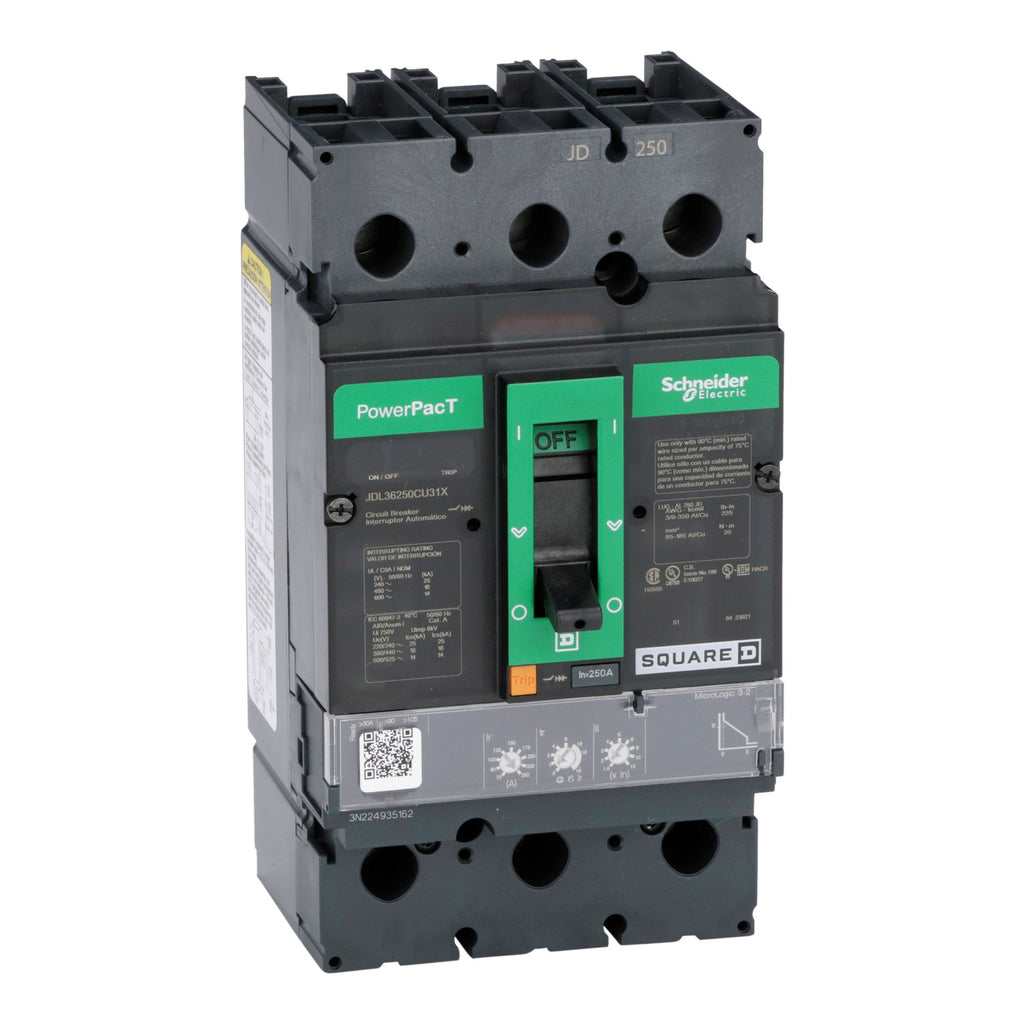

JDL36250CU31X is a Square D PowerPact J Frame molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This breaker features a 250 amp rating, three poles, and is rated for up to 600V AC. It is equipped with a Micrologic 3.2 LI electronic trip unit for precise overload and short-circuit protection. The unit mount design allows for easy installation in compatible panelboards. The breaker is UL, CSA, and CE listed for safety and compliance. This circuit breaker is suitable for a wide range of applications, including main and feeder protection in industrial and commercial facilities. The robust construction and advanced trip technology ensure dependable performance and long service life. The breaker is compatible with both copper and aluminum conductors, supporting wire sizes from AWG 3/0 to 350 kcmil.
- Part Number: JDL36250CU31X
- Manufacturer: Square D
- Series/Frame: PowerPact J Frame
- Amperage: 250 Amp
- Voltage: 600V AC
- Poles: 3 Pole
- Mounting Type: Unit Mount
- Interrupt Rating: 25kA @ 240V AC, 18kA @ 480V AC, 14kA @ 600V AC
- Series: PowerPact J
- Frame: J Frame
- Trip Unit: Micrologic 3.2 LI
- Certifications: UL, CSA, CE
Specifications
- Part Number: JDL36250CU31X
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JDL
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : J
- Temp Rating : 28-158 °F (-2-70 °C)
- MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
- Protection : Solid State
Product Data
- UPC : 785901994251
- GTIN : 00785901994251
- Country of Origin : United States
- Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 5
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
