JDL36250

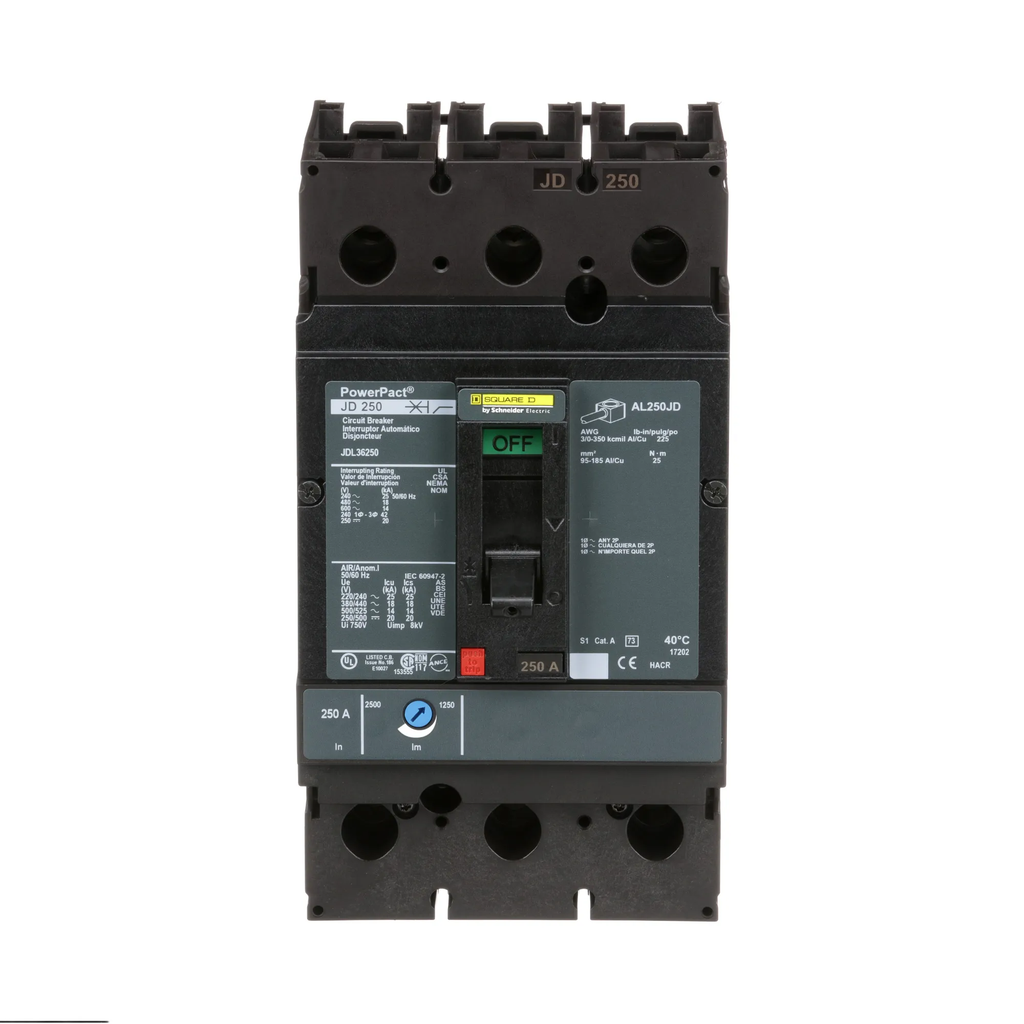

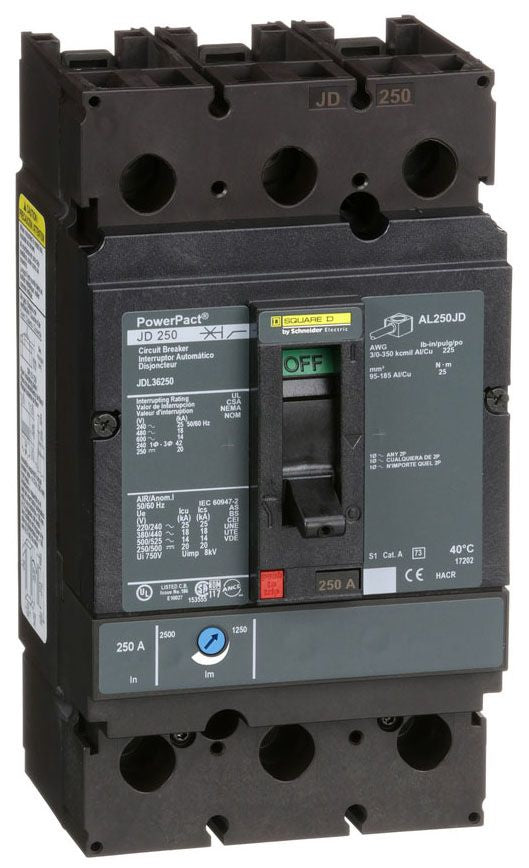

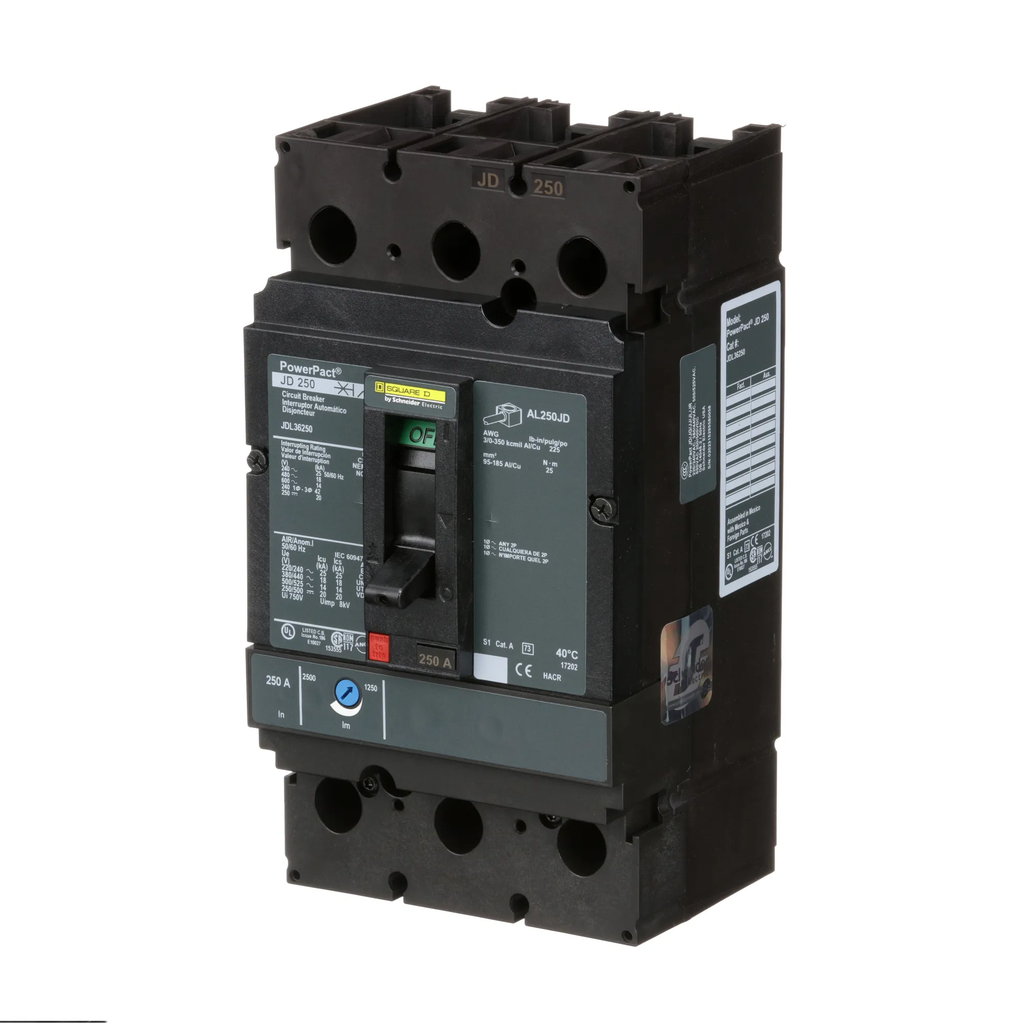

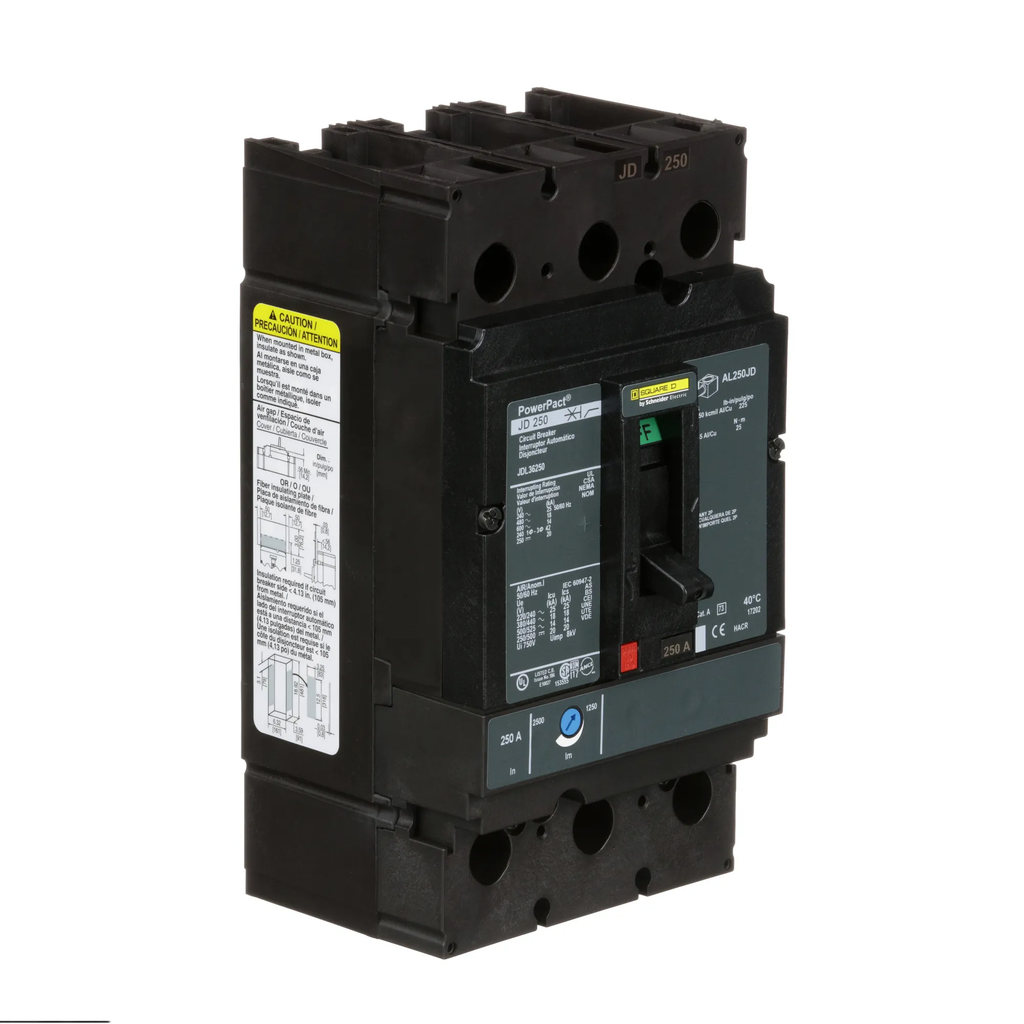

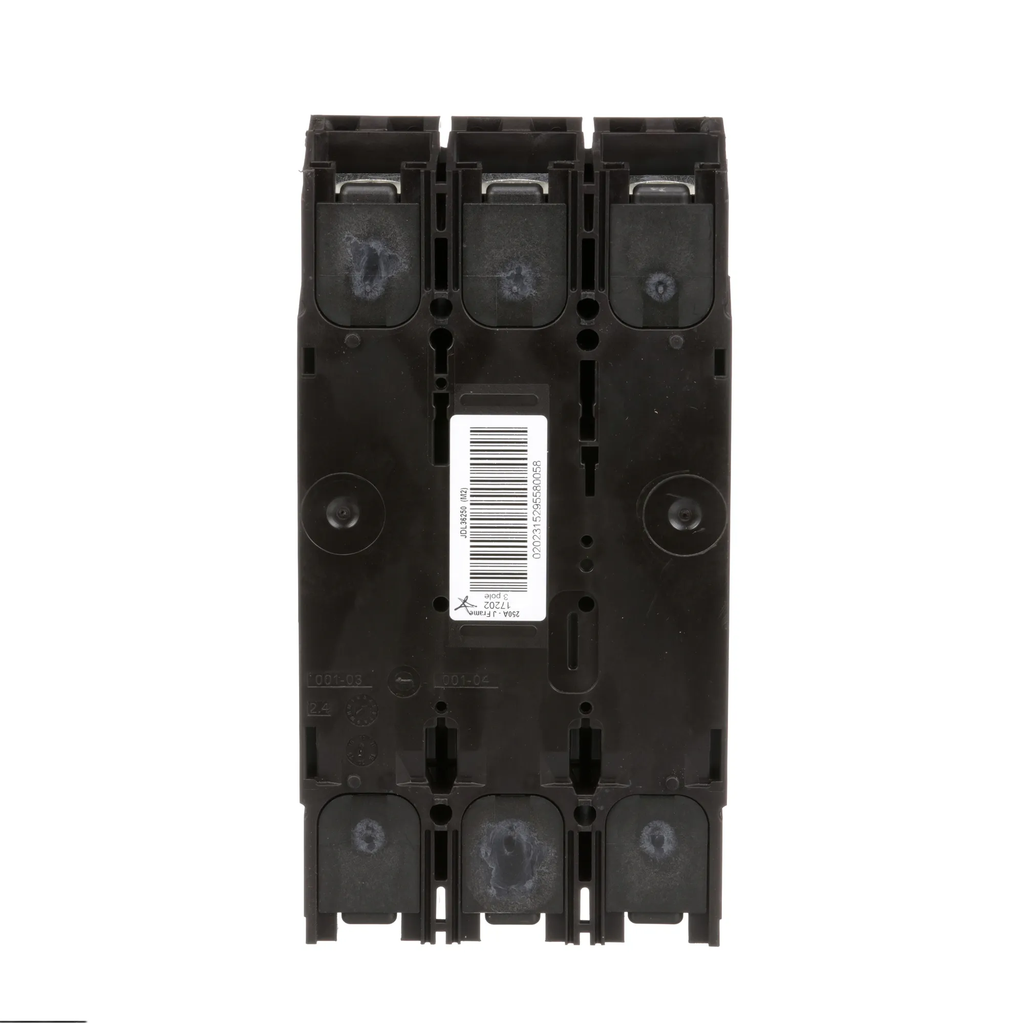

JDL36250 is a Square D PowerPacT J-Frame molded case circuit breaker designed for robust circuit protection in commercial and industrial applications.
This 3-pole, 250 Amp breaker operates at up to 600VAC (250VDC) and features a thermal magnetic trip unit for both overload and short-circuit protection. It offers a feed-thru connection with line and load side lugs, is suitable for reverse feed, and is mercury and PVC free. The JDL36250 is UL 489 listed, CSA, CE, NEMA, NOM, and IEC certified, ensuring compliance with major safety standards.
Key Specifications
- Amperage: 250A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Mounting Type: Unit mount
- Interrupt Rating: 18kAIC at 480VAC, 25kAIC at 240VAC, 14kA at 600VAC
- Series/Frame: PowerPacT J-Frame (JDL)
- Trip Unit: Thermal magnetic (LI – Long-Time and Instantaneous)
- Certifications: UL 489, CSA, CE, NEMA, NOM, IEC, RoHS, REACh, HACR
- Connection: Feed-thru, line & load side lugs
- Wire Range: AWG 3/0 to 350 kcmil (aluminum/copper)
- Continuous Current: 80% rated
- Actuator: Toggle
- Environmental: Mercury free, PVC free
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JDL36250
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JDL
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Line/Load Lug
- Frame Size : 250A/JD
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 3 AWG Max. Wire Size 350 MCM
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901839941
- GTIN : 00785901839941
- Country of Origin : Mexico

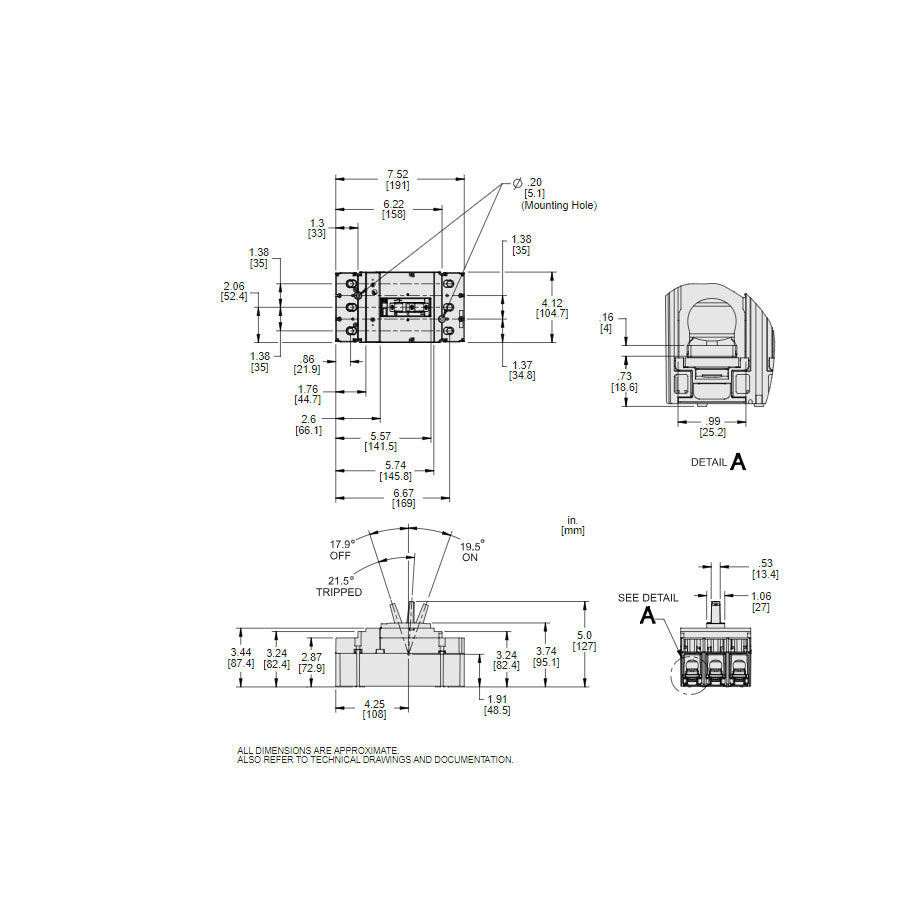

- Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.85
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
