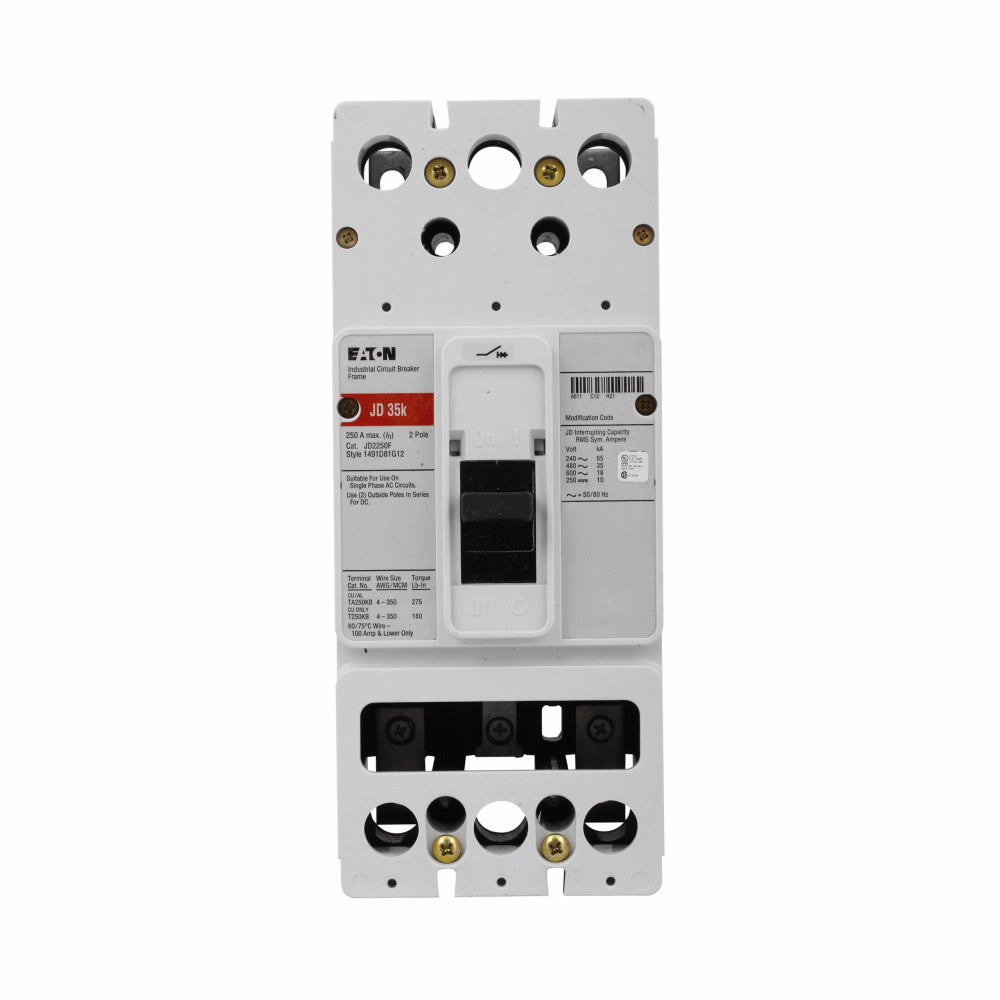

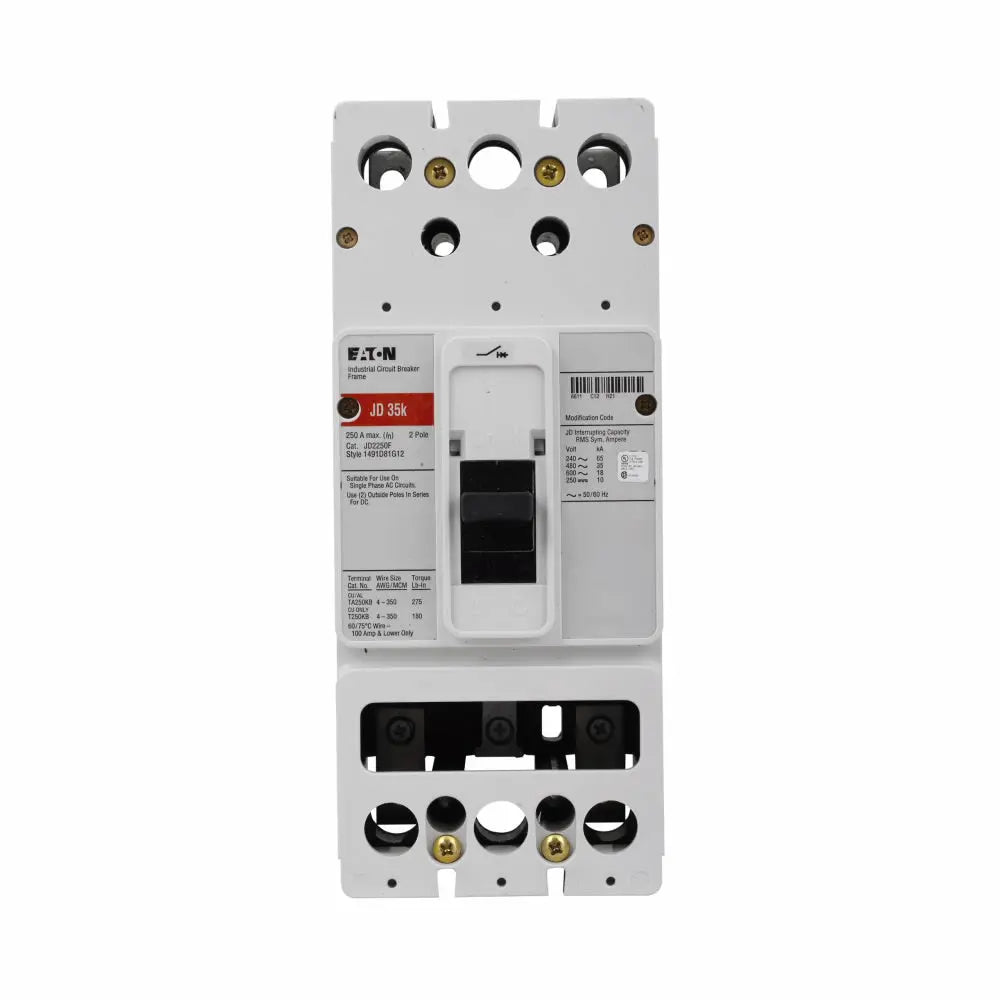

JDC2200 - Eaton 200A 600Vac 2-Pole JDC Series C Molded Case Circuit Breaker

JDC2200

JDC2200 is a 200 amp, 600 Vac, 2-pole molded case circuit breaker from Eaton's Series C JDC frame.This complete breaker features a fixed thermal and fixed magnetic trip unit, designed for reliable circuit protection. It supports both 600 Vac and 250 Vdc voltage ratings, with an interrupt rating of 100 kAIC at 480 Vac and 200 kAIC at 240 Vac. The breaker has aluminum line and load terminals and is UL Listed for safety compliance.

• Amperage: 200 A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: 2
• Interrupt Rating: 100 kAIC at 480 Vac, 200 kAIC at 240 Vac
• Trip Type: Fixed thermal, fixed magnetic
• Frame: J (Series C)
• Terminal Material: Aluminum
• Terminals: Line and load
• Mounting Type: Bolt-on
• Frequency: 50/60 Hz
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDC2200
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : JDC
• Voltage : 600
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679077146
• GTIN : 00786679077146
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 12.1
• Certification : UL Listed
