HU363 - Square D 100A 600V 3-Pole Heavy Duty Non-Fusible Safety Switch NEMA 1

HU363

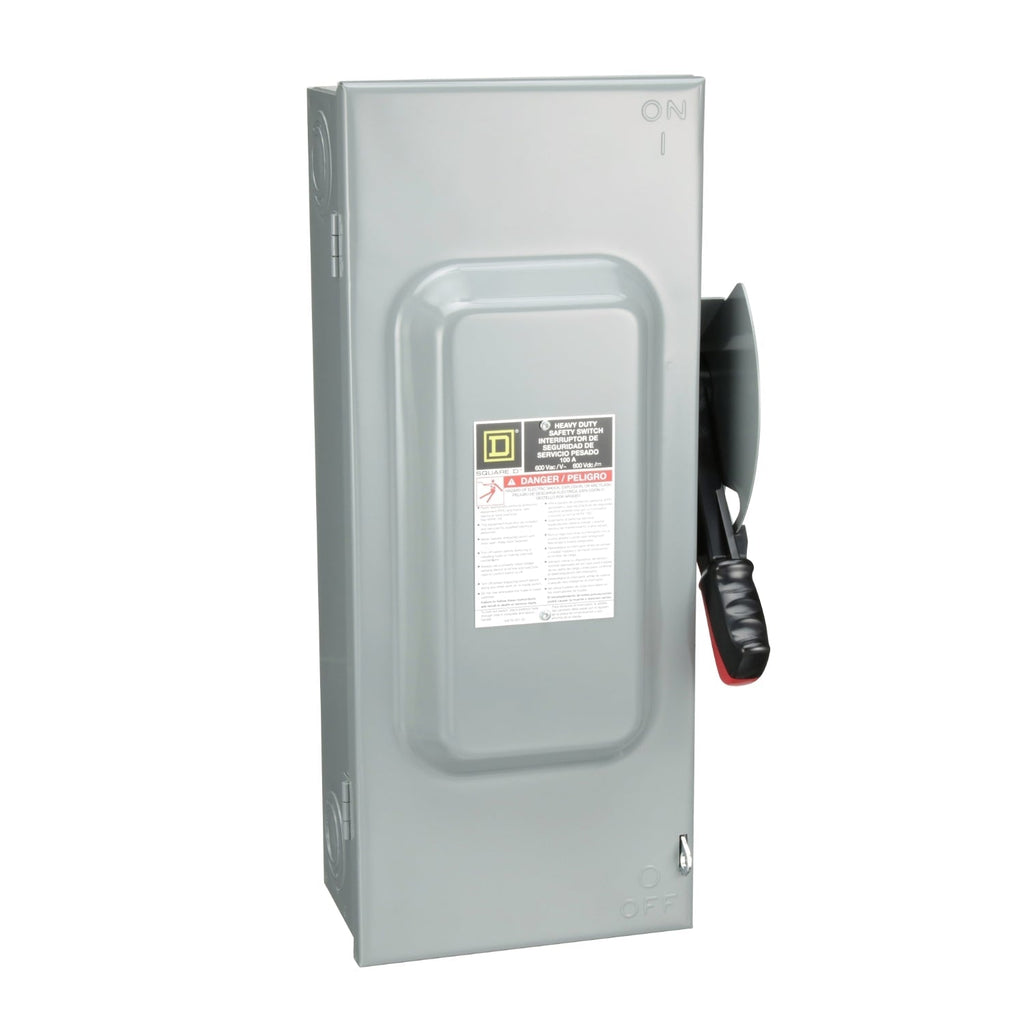

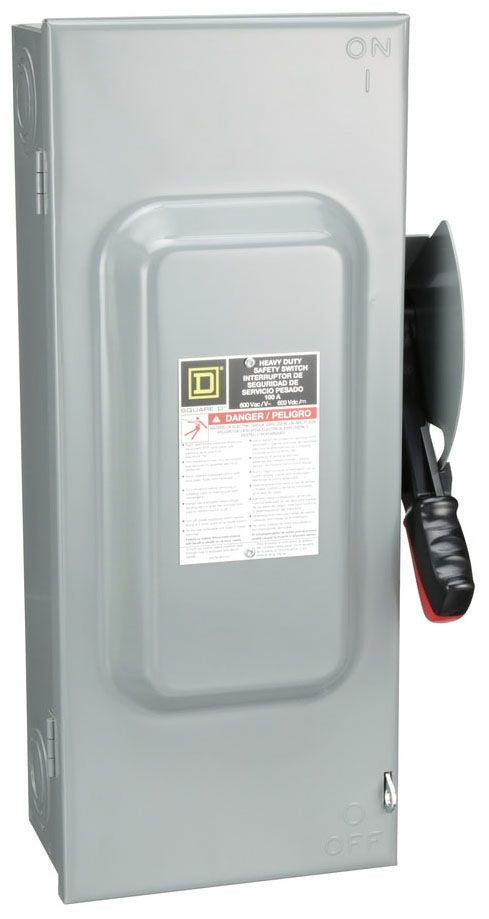

HU363 is a Square D heavy duty non-fusible safety switch rated for 100 amperes and 600 volts AC/DC with a 3-pole configuration.

This switch features a steel NEMA 1 enclosure designed for indoor general purpose applications. It supports 3-wire connections and is suitable for service entrance use when equipped with a neutral assembly or grounding kit. The switch is rated for 100A continuous current, 600V AC/DC voltage, and can handle motor loads up to 100 HP. It is UL and CSA approved and built for heavy duty industrial use with a single throw mechanism.

• Amperage: 100A
• Voltage Rating: 600V AC/DC
• Poles: 3
• Mounting Type: Surface mount, NEMA 1 steel enclosure
• Interrupt Rating: Heavy duty
• Series/Frame: Series K / E
• Trip Unit: Non-fusible
• Certifications: UL, CSA
• Wire: 3-wire
• Horsepower Ratings: Up to 100 HP
• Enclosure Type: Indoor NEMA 1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HU363
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : HU
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : 1

Product Data

• UPC : 785901505846
• GTIN : 00783164011319
• Dimensions : 21.25 in (539.75 mm) x 10.25 in (260.35 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
• Weight : 16.6 lb
• Certification : UL Listed
