Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HNF365

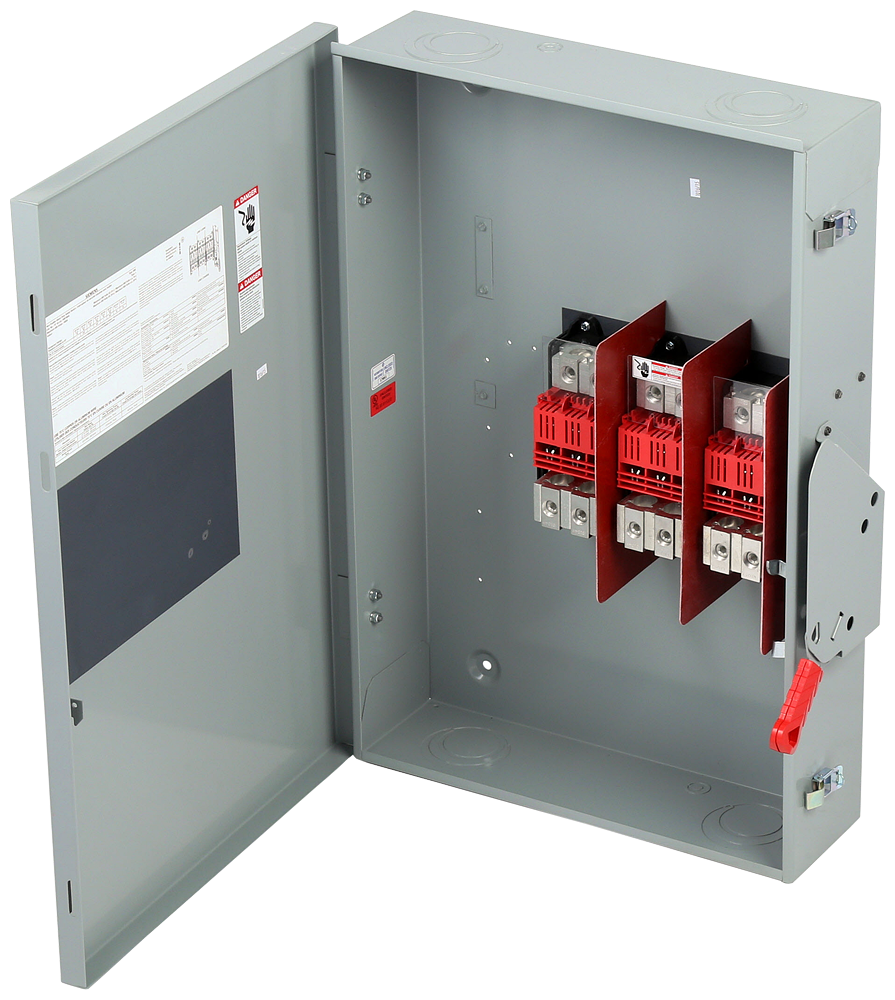

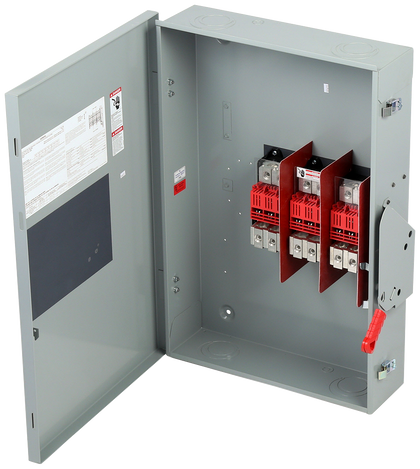

HNF365 - Siemens Heavy Duty Safety Switch, non-fusible, 3-pole design for reliable disconnect in industrial applications.This Siemens HNF365 is a VBII Series heavy duty safety switch rated at 400A and 600VAC, featuring NEMA 1 indoor enclosure, visible blades, quick-make quick-break mechanism, and 200kA short circuit rating when protected by Class R, T, or J fuses. It includes front removable lugs suitable for CU/AL conductors, defeatable dual cover interlock, and meets UL 98 standards.
- Part Number: HNF365
- Manufacturer: Siemens
- Type: Heavy Duty Safety Switch
- Amperage: 400A
- Voltage AC: 600V
- Voltage DC: 250V
- Poles: 3
- Wires: 3
- Fuse Provision: Non-Fusible
- Enclosure: NEMA 1
- Mounting: Surface
- Series: HNF
Specifications
- Part Number: HNF365
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Non-Fusible Disconnect Switch
- Family : VBII Series
- Type : HNF
- Voltage : 600 AC AC
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
Product Data
- Country of Origin : Mexico
- Weight : 113.031
- Certification : UL listed
