HNF364 Siemens VBII Series Disconnect 600 ACV 200A Non-Fusible Switch

HNF364

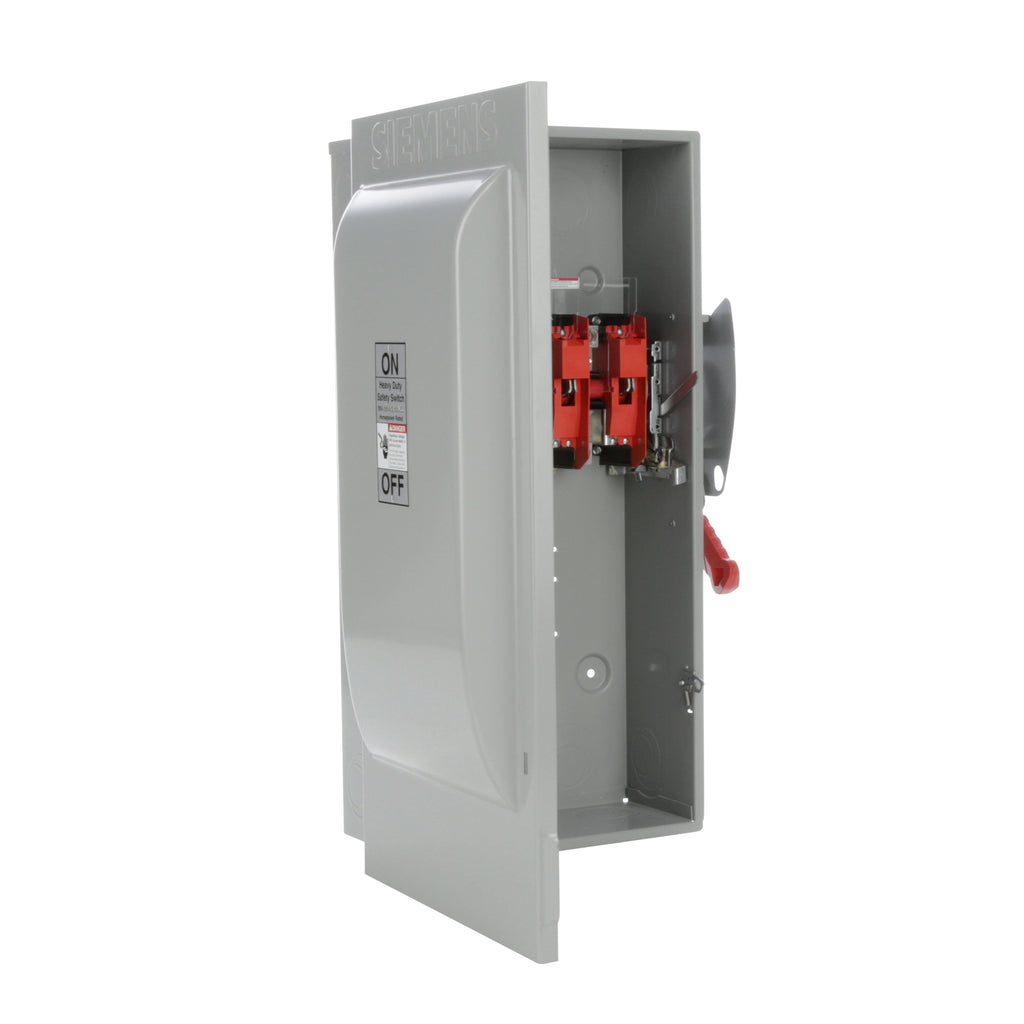

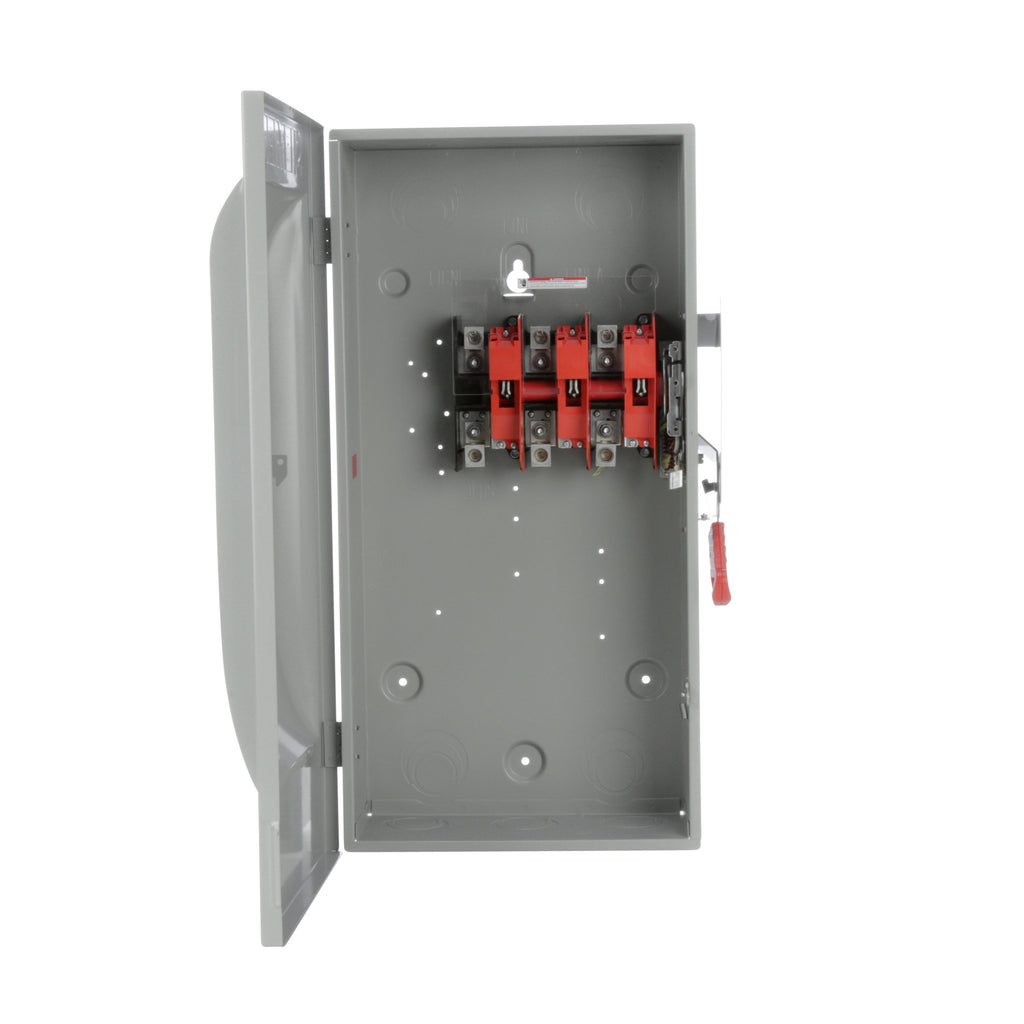

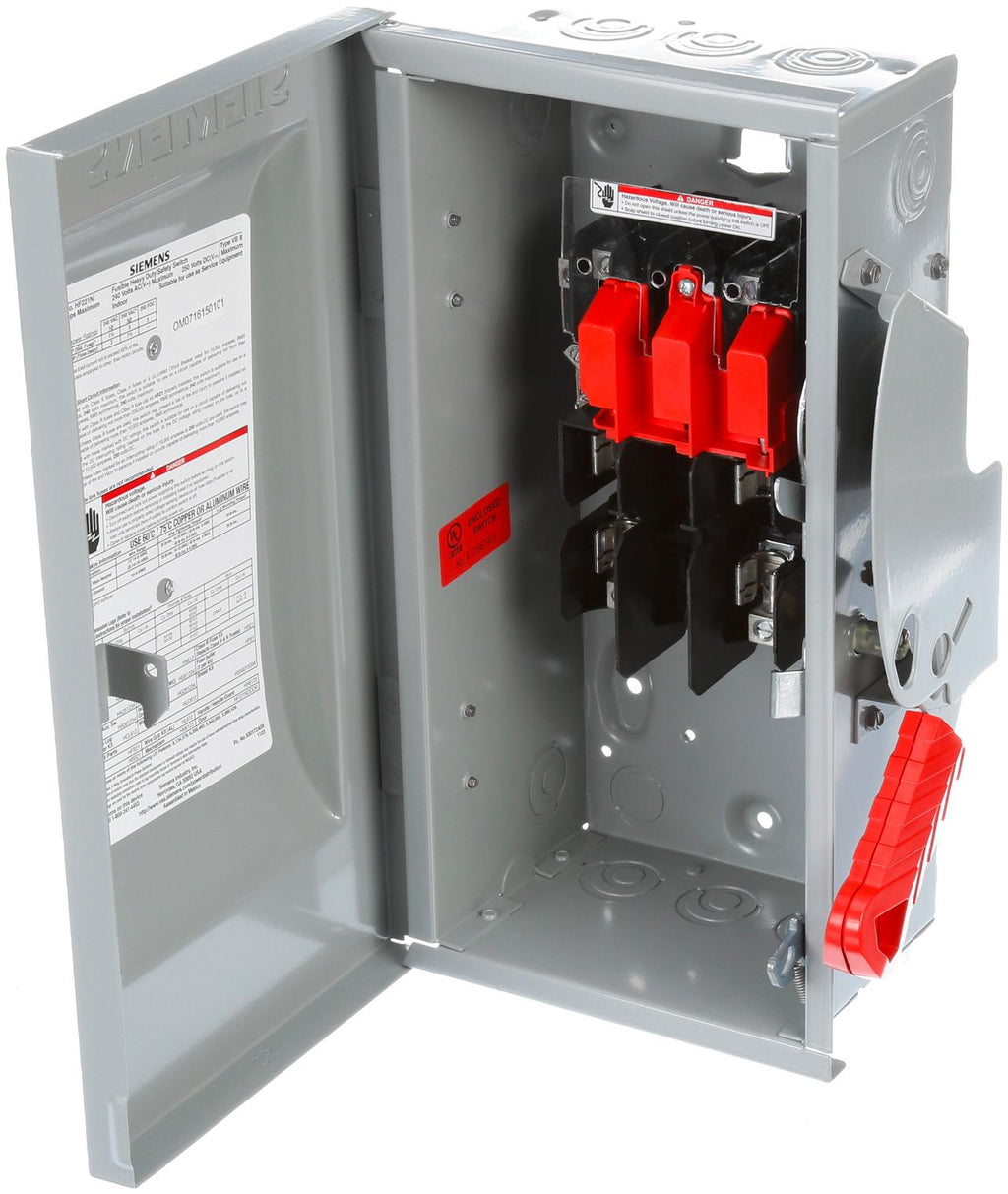

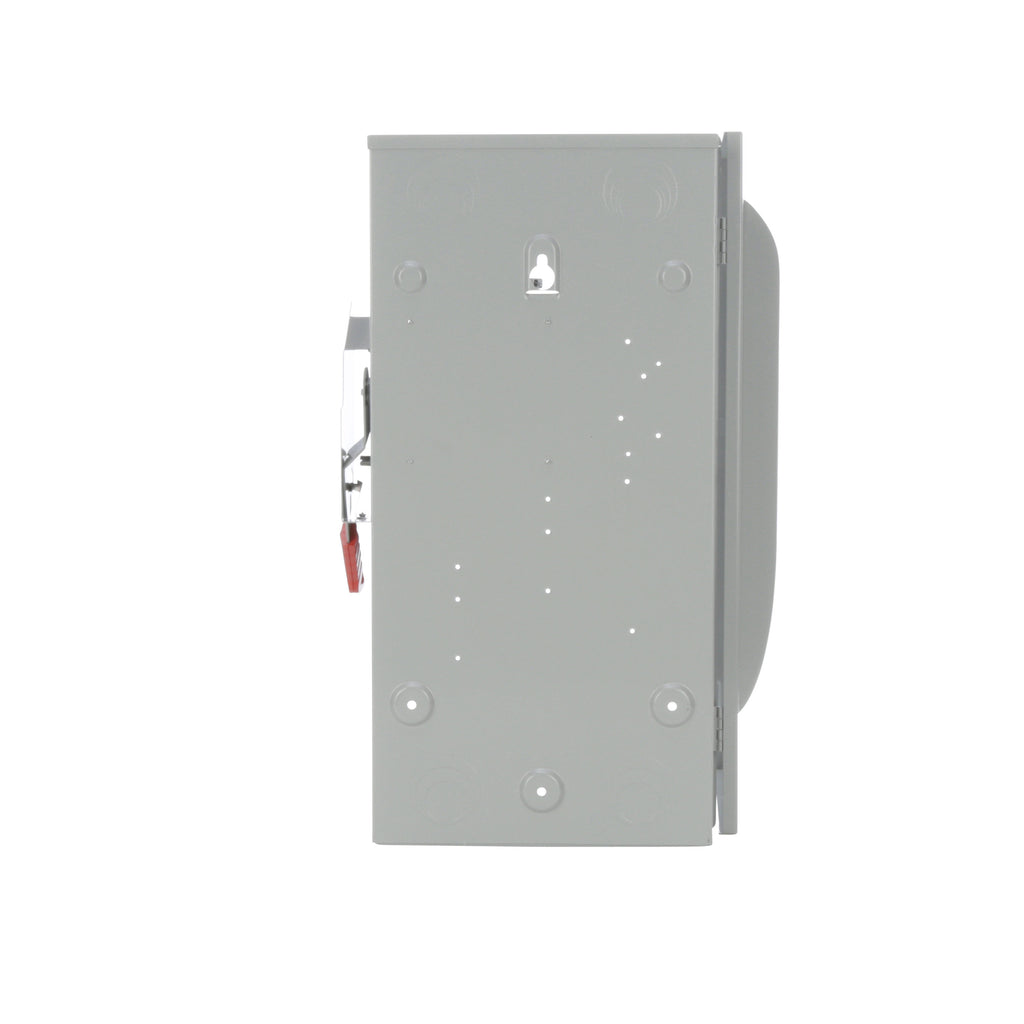

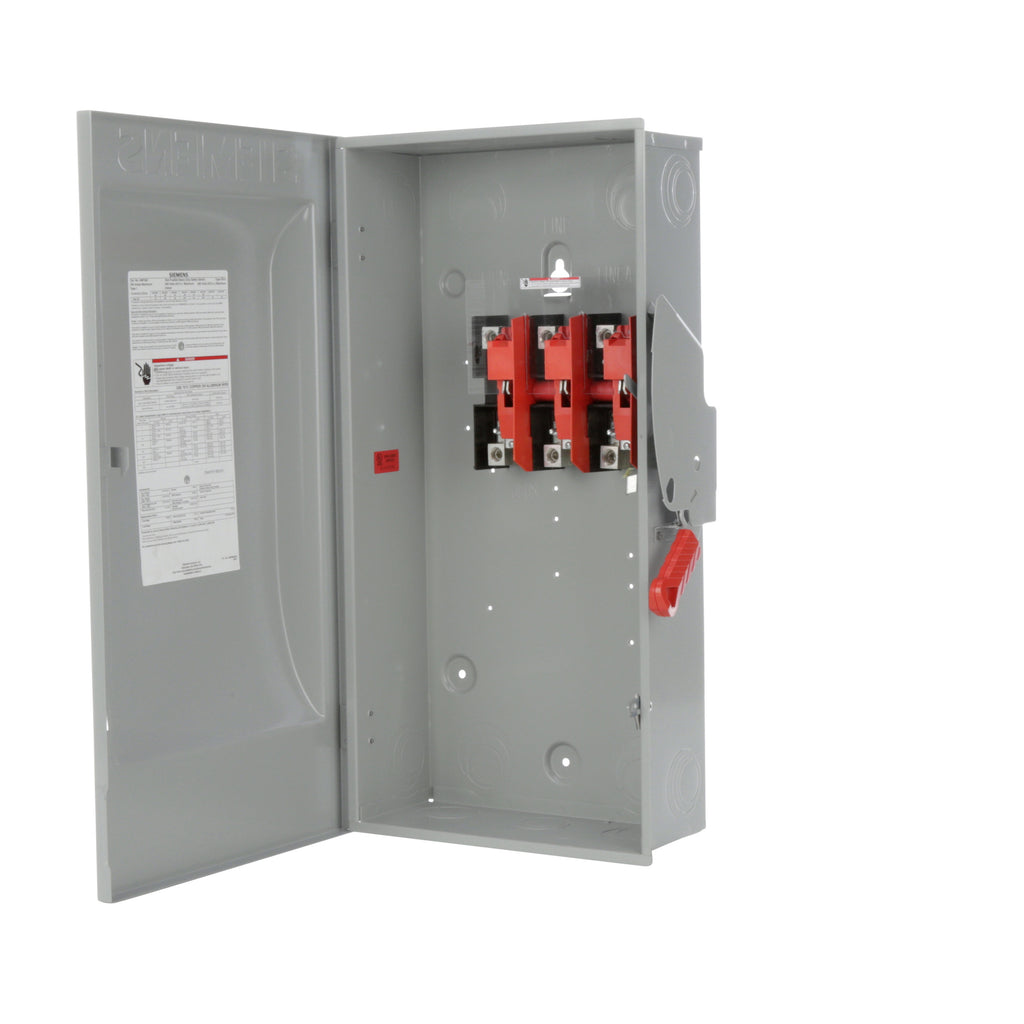

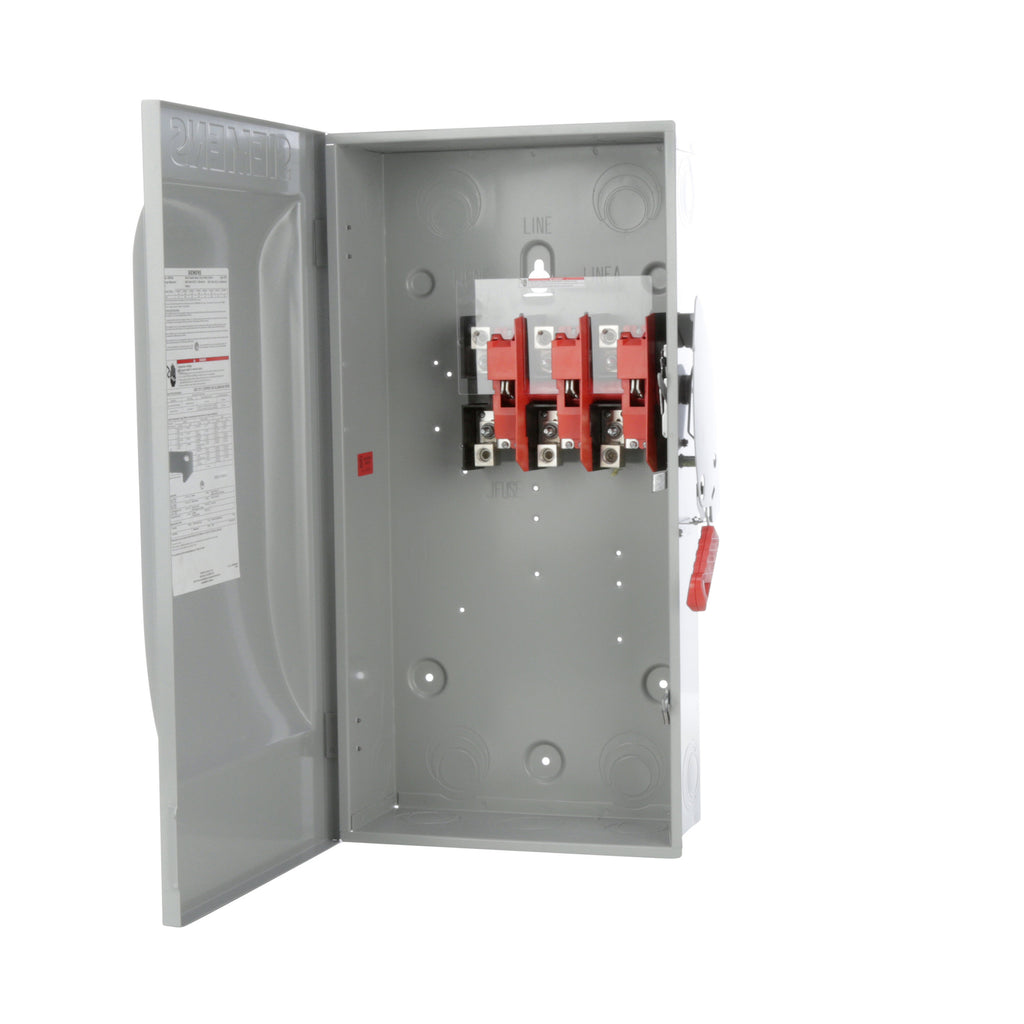

HNF364 is a Siemens Type VBII enclosed heavy duty low voltage non-fusible single throw safety switch designed for indoor applications with quick-make, quick-break operation and visible blade double-break switching action. This heavy duty safety switch features arc chutes that dissipate heat and prolong switch life, a highly visible red handle grip designed for hook stick operation, and a defeatable dual cover interlock with center punch provided for field drilling to allow padlocking. The enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer hands, with a side hinged door that opens 180 degrees for easier wiring and tangential knockouts through 600A for easy conduit lineup.

• Amperage Rating: 200A
• Voltage Rating: 600 VAC, 250-600 VDC
• Number of Poles: 3
• Number of Wires: 3
• Fusibility: Non-Fusible
• Enclosure Type: NEMA 1
• Mounting Type: Surface
• Short Circuit Current Rating: 200 kA
• Terminal Type: Lug
• Material: Steel
• Operating Temperature: -29 to 85 degrees C
• Horsepower Rating: 150 hp at 600 VAC 3-Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HNF364
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Non-Fusible Disconnect Switch
• Family : VBII Series
• Type : HNF
• Voltage : 600 AC AC
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 783643151192
• GTIN : 0783643151192
• Country of Origin : Mexico
• Dimensions : 33.858 x 18.898 x 9.843 inch
• Weight : 35.093
• Certification : UL listed
