HND312T35W - Cutler Hammer 1200A 600V 3P Molded Case Circuit Breaker, Series C HND Frame, Electronic LSG Trip, 65kAIC @ 480V, UL/CSA/CE

HND312T35W

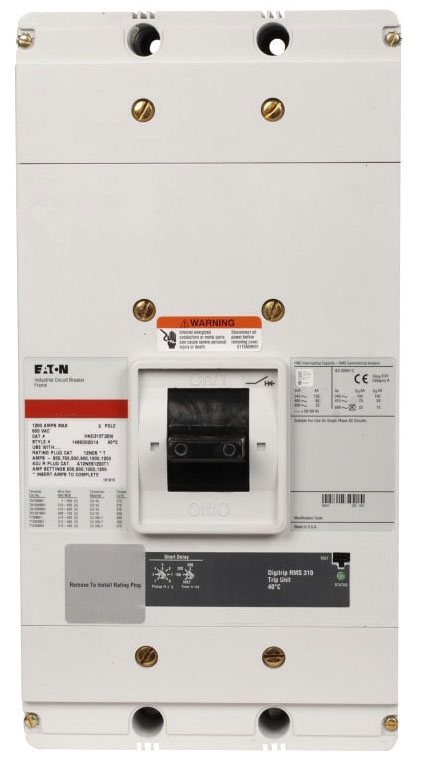

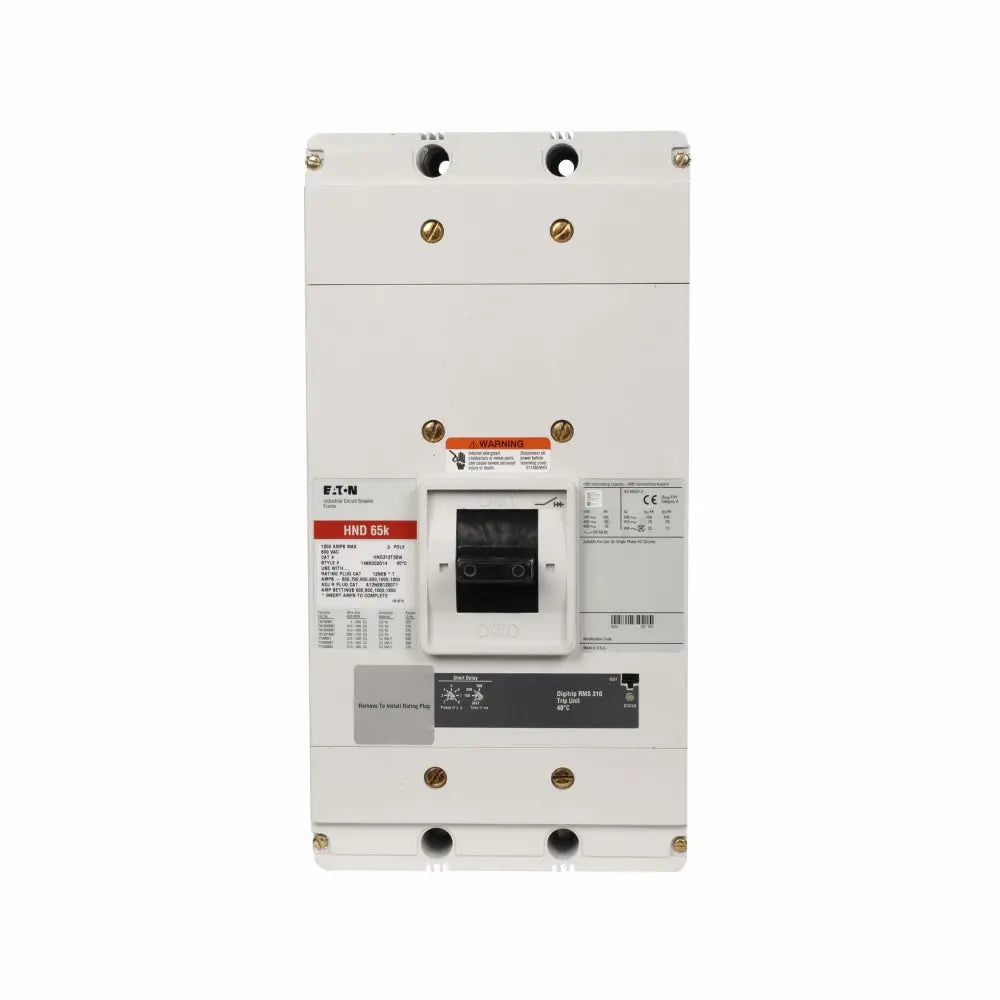

HND312T35W is a Cutler Hammer (Eaton) 1200A, 600V, 3-pole molded case circuit breaker designed for industrial power distribution.

This Series C HND frame breaker features an electronic LSG (long time, short time, ground fault) trip unit with Digitrip 310 RMS technology, providing advanced protection and coordination. It is panel mount, bolt-on connection, and is rated for 80% continuous load. The unit is compliant with UL, CSA, and CE standards, making it suitable for a wide range of commercial and industrial applications.

Key Specifications
• Amperage: 1200A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Panel mount
• Interrupt Rating: 65kAIC at 480V, 100kAIC at 240V
• Series/Frame: Series C, HND (NG) frame
• Trip Unit: Electronic LSG (Digitrip 310 RMS)
• Certifications: UL, CSA, CE, HACR
• Frequency: 50/60 Hz
• Connection: Bolt-on
• Continuous Rating: 80%
• Dimensions: 8.25" W x 5.5" D x 8.25" H
• Weight: 53 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HND312T35W
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HND
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSG - Long-Time, Short-Time and Ground Fault
• Frame Size : N Frame
• Protection : Solid State

Product Data

• UPC : 786679252765
• GTIN : 00786679252765
• Country of Origin : United States
• Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 53
• Certification : HACR Rated
