Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HND312T32W

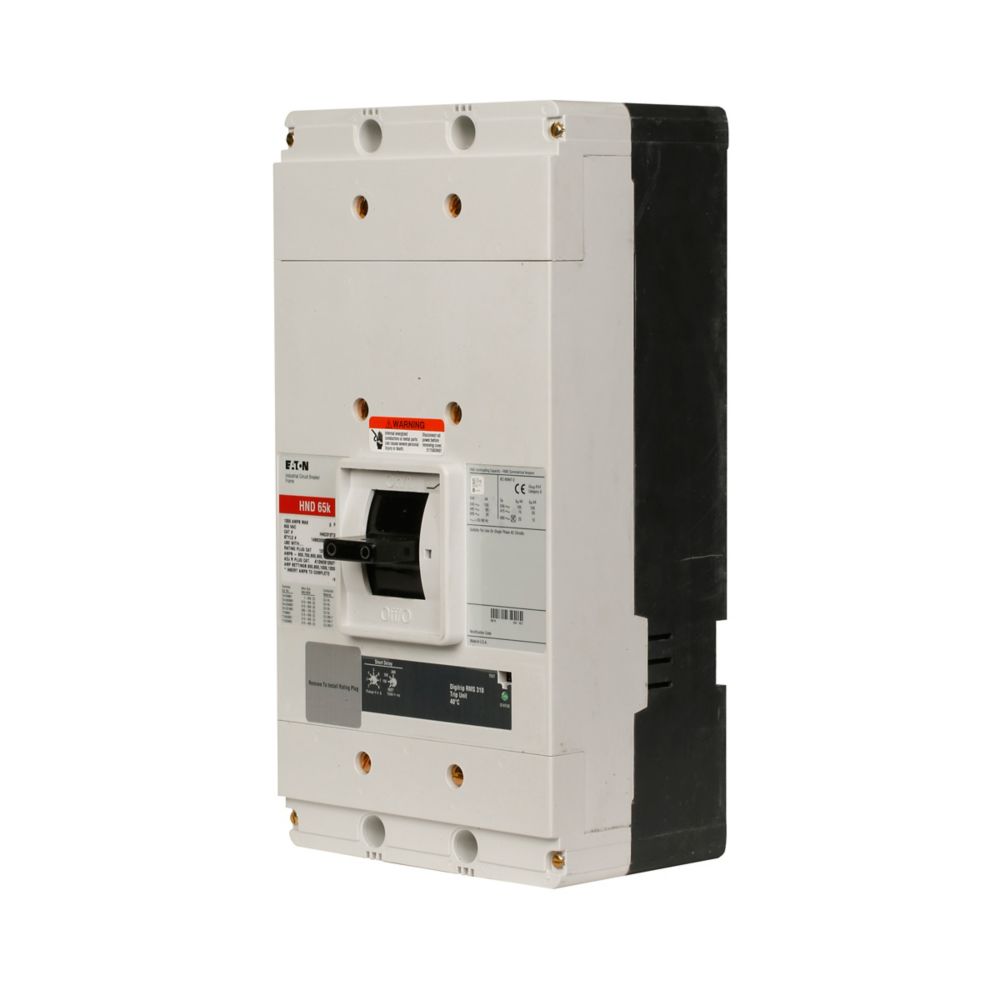

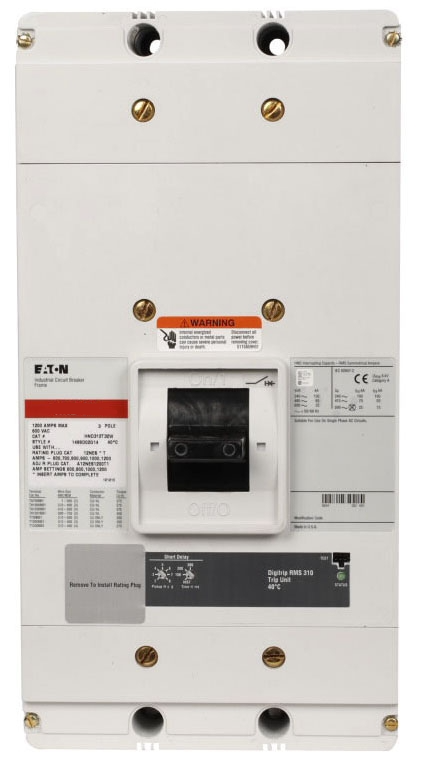

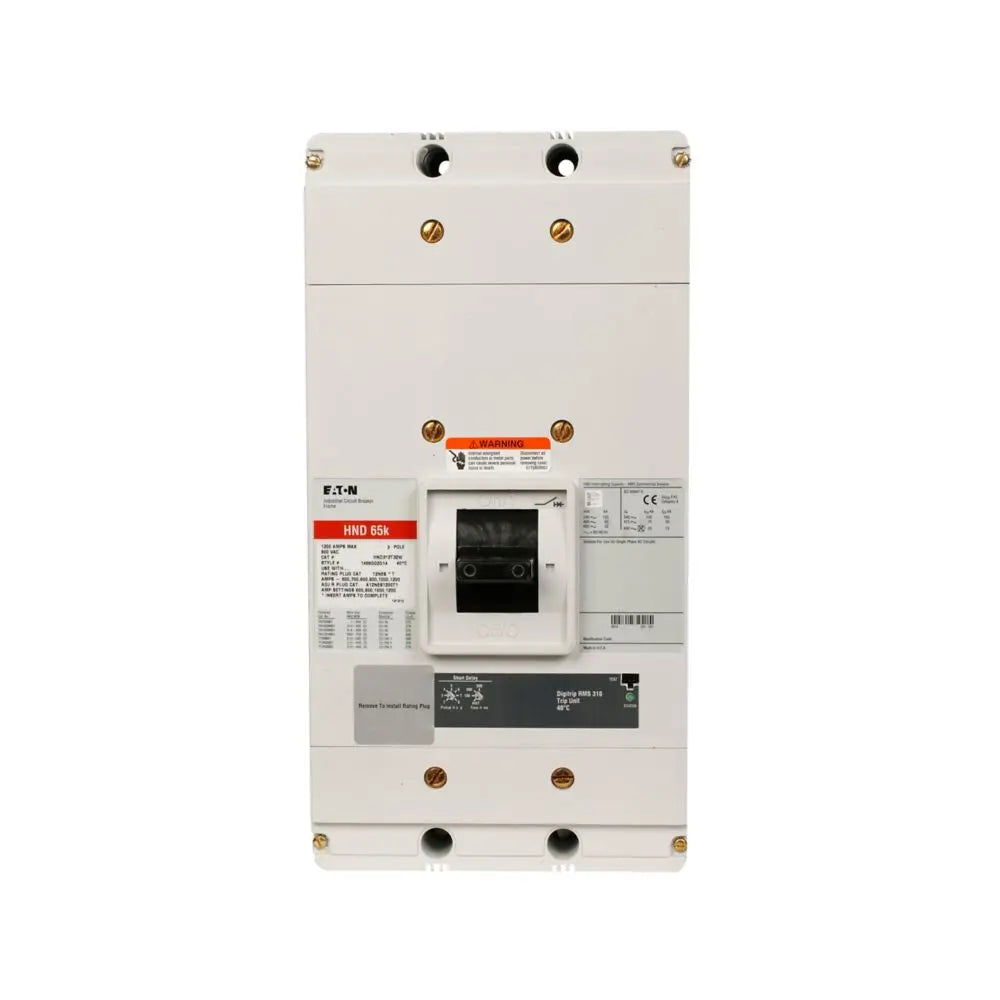

HND312T32W is an Eaton Series C electronic molded case circuit breaker designed for reliable protection in commercial and industrial applications. This NG-frame HND breaker features a Digitrip 310 RMS electronic LSI trip unit, three-pole configuration, 1200A amperage rating, and 600 Vac voltage rating. It is rated for 100 kAIC at 240 Vac and 65 kAIC at 480 Vac, making it suitable for demanding electrical environments. The unit is 80% rated, HACR compliant, and does not include terminals. Engineered for durability and precise protection, the HND312T32W is ideal for use in main distribution panels, switchgear, and critical power systems. Its electronic trip system provides accurate overload, short-circuit, and ground fault protection, ensuring optimal safety and performance.
- Part Number: HND312T32W
- Manufacturer: Eaton
- Series: Series C
- Frame: NG
- Type: HND
- Amperage Rating: 1200A
- Voltage Rating: 600 Vac
- Number of Poles: Three-pole
- Interrupt Rating: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
- Frequency Rating: 50/60 Hz
- Mounting Type: Bolt-On
- Terminals: Without terminals
- Compliances: HACR Rated
- Warranty: 1 year from installation or 18 months from shipment
Specifications
- Part Number: HND312T32W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HND
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Frame Size : N Frame
- Protection : Solid State
Product Data
- UPC : 786679252741
- GTIN : 00786679252741
- Country of Origin : United States
- Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
- Weight : 49.25
- Certification : HACR Rated
