Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
HND312T106W

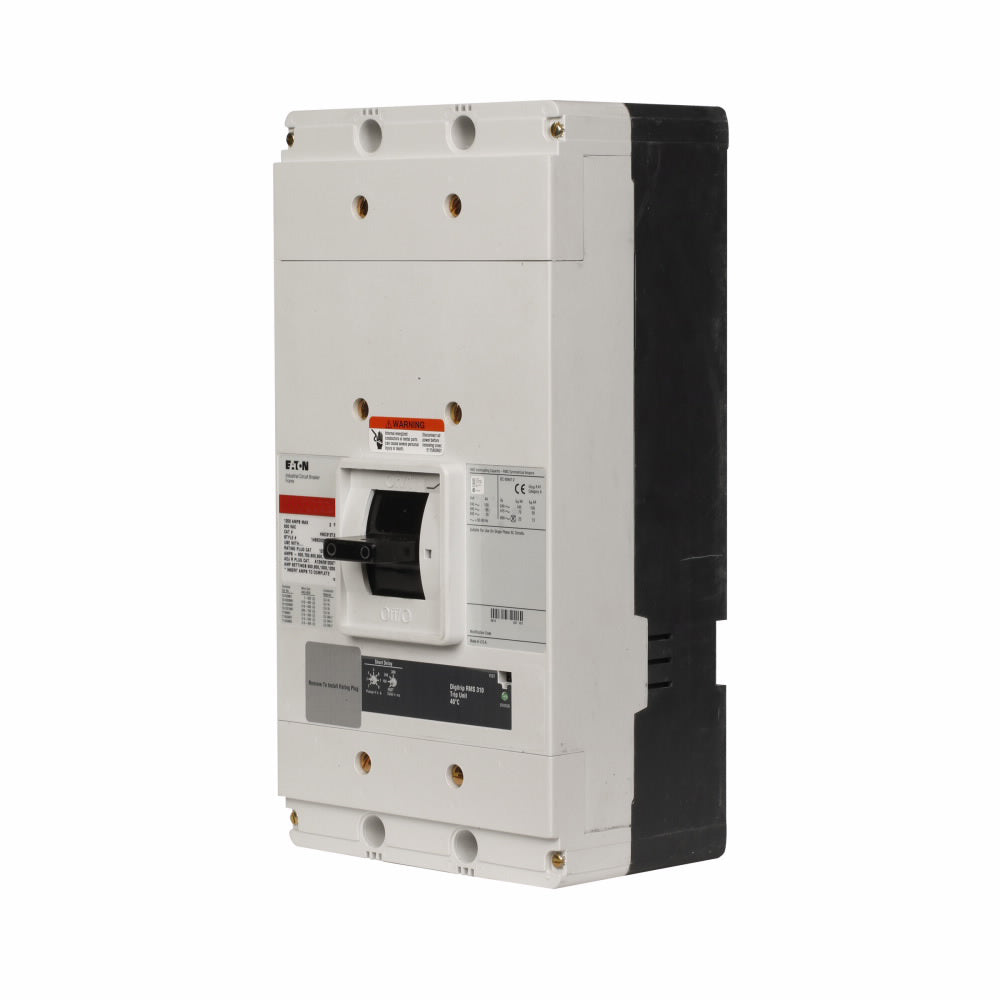

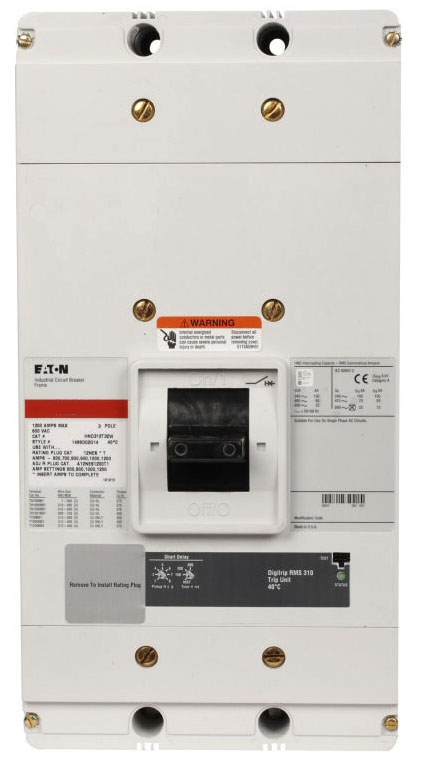

HND312T106W is a 3-pole, 1200 amp, 600 volt molded case circuit breaker from Westinghouse designed for high interrupting capacity applications.
This circuit breaker is part of the Series C N-Frame family and features a bolt-on mounting type. It provides reliable protection with a high interrupt rating suitable for industrial and commercial power distribution systems. The breaker is UL 489 listed and built for 240/480/600 VAC operation at 50/60 Hz.
- Key Specifications
- Amperage: 1200A
- Voltage Rating: 600V
- Poles: 3
- Frame Type: N-Frame (Series C)
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA at 480V
- Trip Unit: Electronic
- Standards: UL 489 Listed
- Part Number: HND312T106W
- Manufacturer : Westinghouse
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HND
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Frame Size : N Frame
- Protection : Solid State
- UPC : 786679050194
- GTIN : 00786679050194
- Country of Origin : United States
- Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
- Weight : 48
- Certification : UL Listed,HACR Rated
