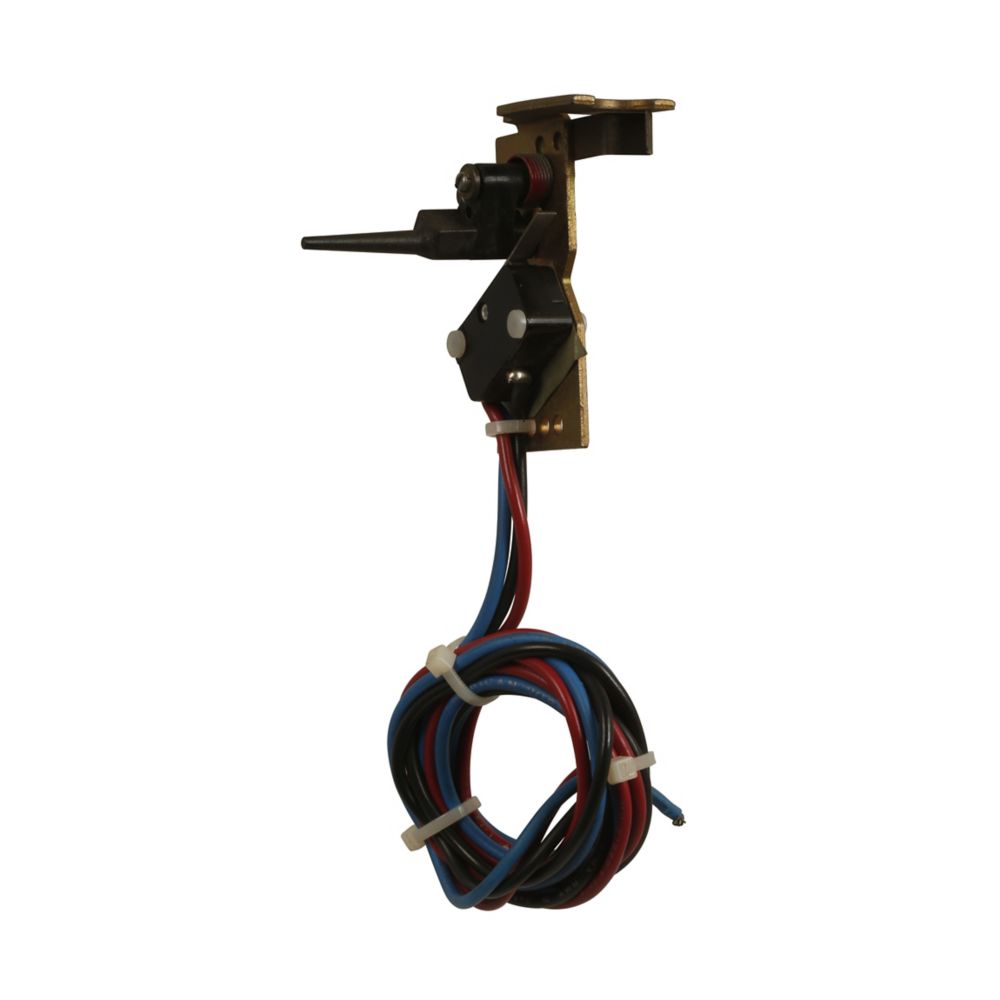

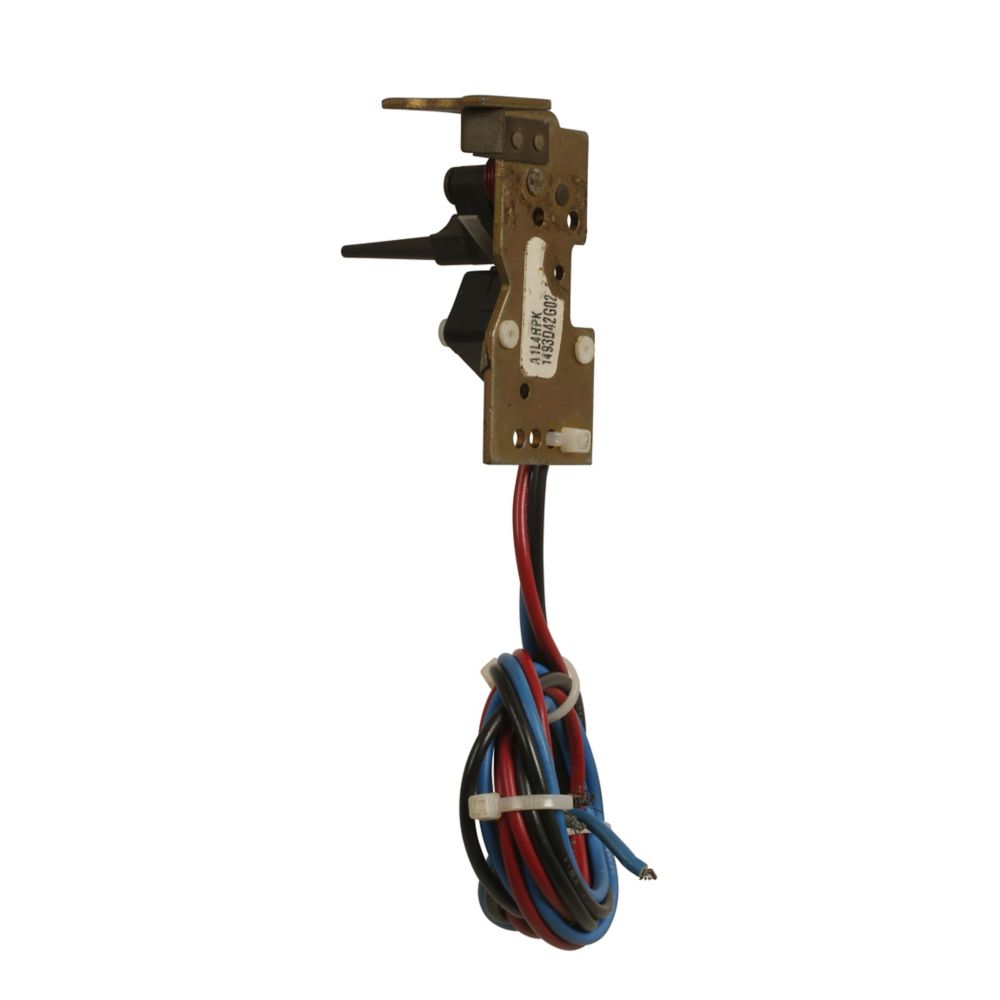

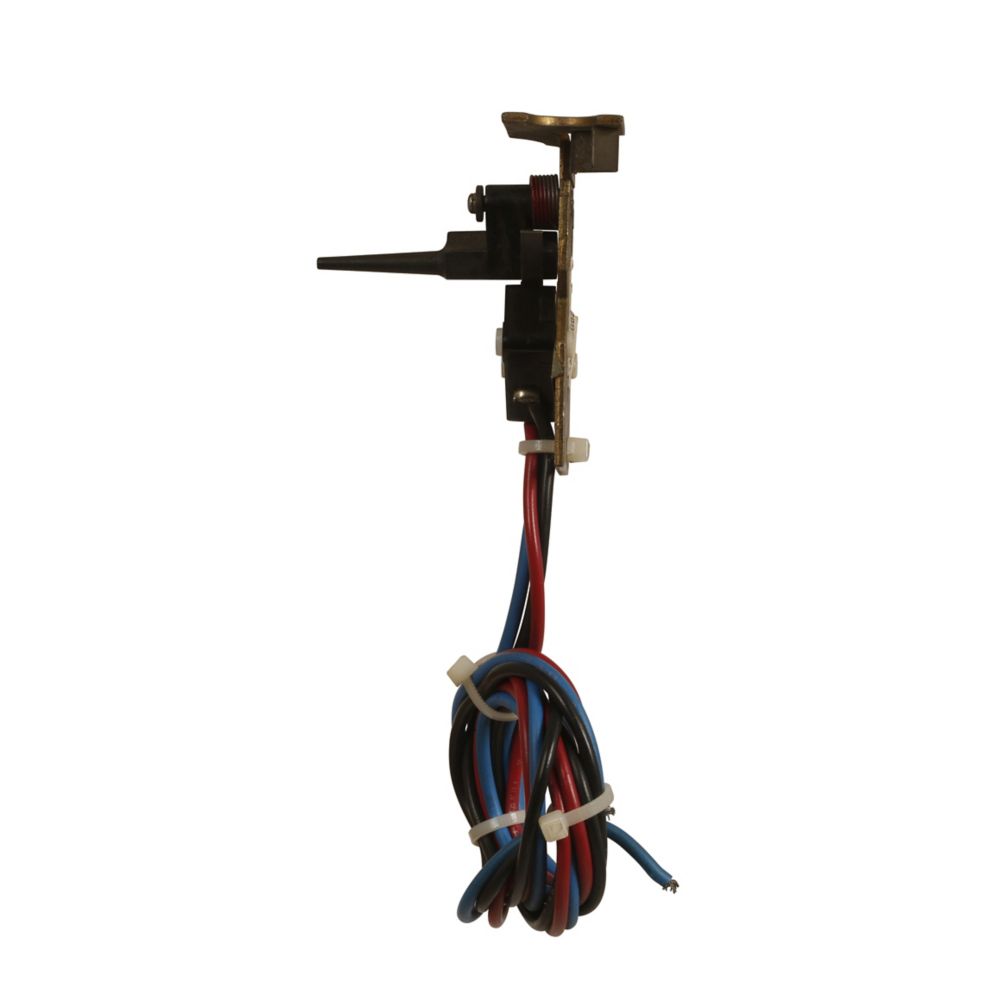

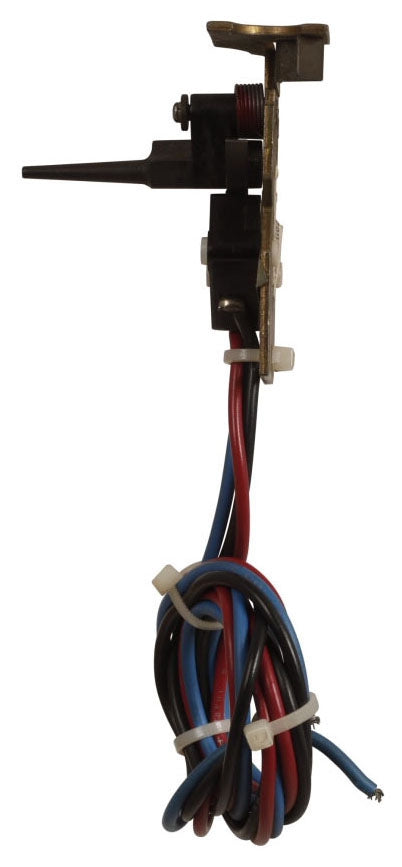

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Bell Alarm
- Series
- Series C
- Frame
- A1
- Connection
- Pigtail Leads
- Configuration
- 1A/1B
- Country of origin
- United States
- Compatible Frames
- ND,HND,NDC,NDU,CND,CHND,CNDC,E2N,E2NM
- UPC
- 078667902712
- GTIN
- 00786679027127
- Dimensions
- 5.5 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight
- 0.32
Product description & additional details
A1L5RPK
A1L5RPK is a right-hand mounted alarm switch accessory designed for Cutler Hammer N-frame molded case circuit breakers, Series G, Frame J-K.This alarm lockout switch features a single contact (1MK-1BK) with pigtail leads and is compatible with G Series N-frame and HMCP molded case circuit breakers. It operates at up to 600 VAC and 125/250 VDC, supporting current ratings of 0.25, 0.5, and 6 amps. The switch is designed for reliable alarm signaling and lockout functionality to enhance circuit breaker safety.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: A1L5RPK
- Type: Alarm Lockout Switch
- Mounting: Right-Hand Pole Mount
- Compatible Frames: N-Frame, Frame J-K
- Series: G Series
- Contact Configuration: 1MK-1BK (Single Contact)
- Voltage Rating: 600 VAC / 125/250 VDC
- Current Rating: 0.25 / 0.5 / 6 A
- Connection: Pigtail Leads
- Application: Molded Case Circuit Breaker Accessory
- Part Number: A1L5RPK
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Bell Alarm
- Family : Series C
- Type : A1
- Connection : Pigtail Leads
- Configuration : 1A/1B
- Compatible Frames : ND,HND,NDC,NDU,CND,CHND,CNDC,E2N,E2NM
- UPC : 078667902712
- GTIN : 00786679027127
- Country of Origin : United States
- Dimensions : 5.5 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight : 0.32
