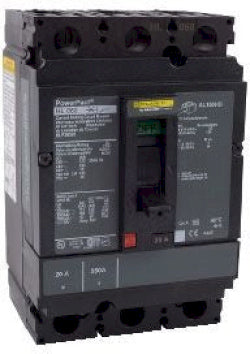

HLP36100 - Square D 100A 600V 3 Pole Molded Case Circuit Breaker

HLP36100

HLP36100 is a 3 pole, 100A, 600V molded case circuit breaker from Square D, designed for reliable protection in commercial and industrial applications.This Square D HLP36100 circuit breaker features a thermal-magnetic trip unit, H frame, and unit mount design. It is rated for up to 600V AC and 500V DC, with an interrupt rating of 100kA at 480V. The breaker is UL 489 listed and CSA approved, making it suitable for a wide range of electrical distribution systems.

• Part Number: HLP36100
• Manufacturer: Square D
• Amperage: 100A
• Voltage: 600V AC, 500V DC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 100kA @ 480V
• Series/Frame: H Frame
• Tripping Mechanism: Thermal-Magnetic
• Certifications: UL 489, CSA
• Terminal Connection: Lug
• Application: Commercial/Industrial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLP36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLP
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901835691
• GTIN : 00785901835691
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.18
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
