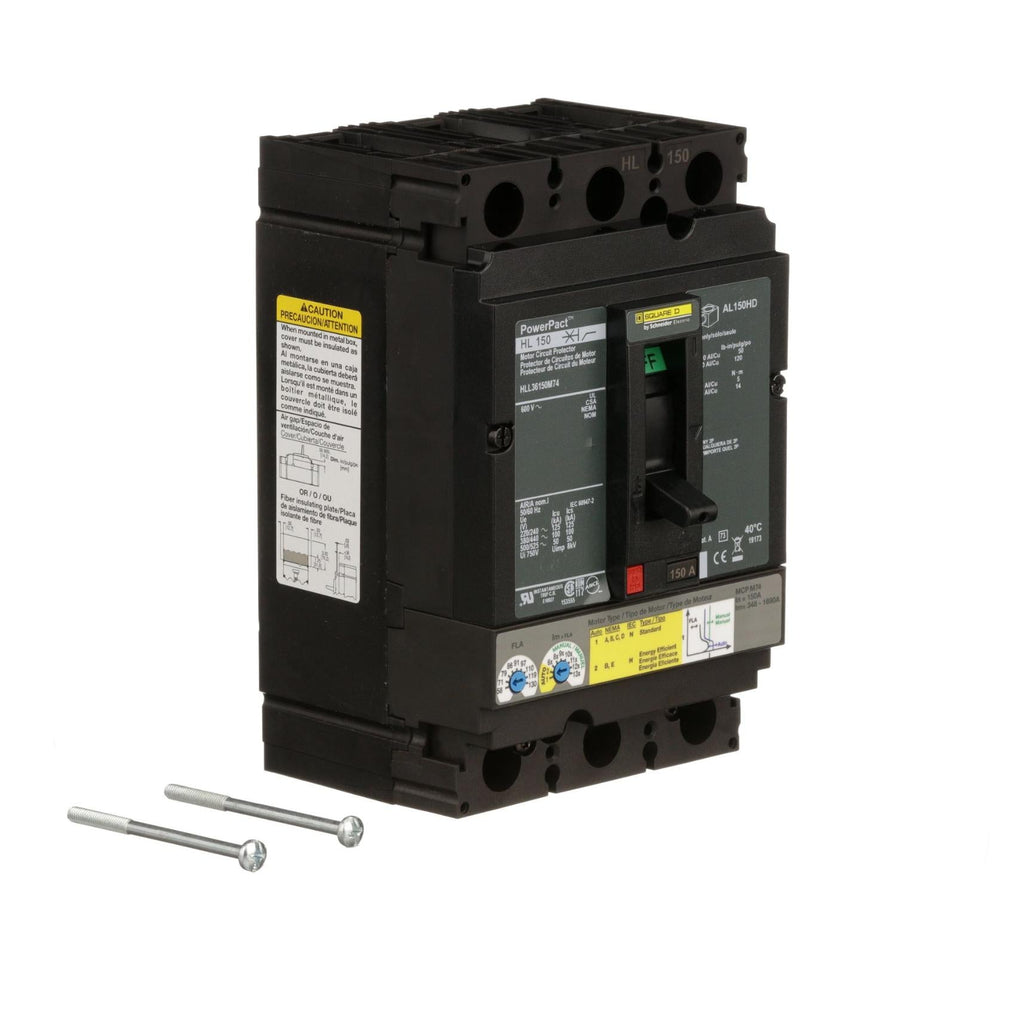

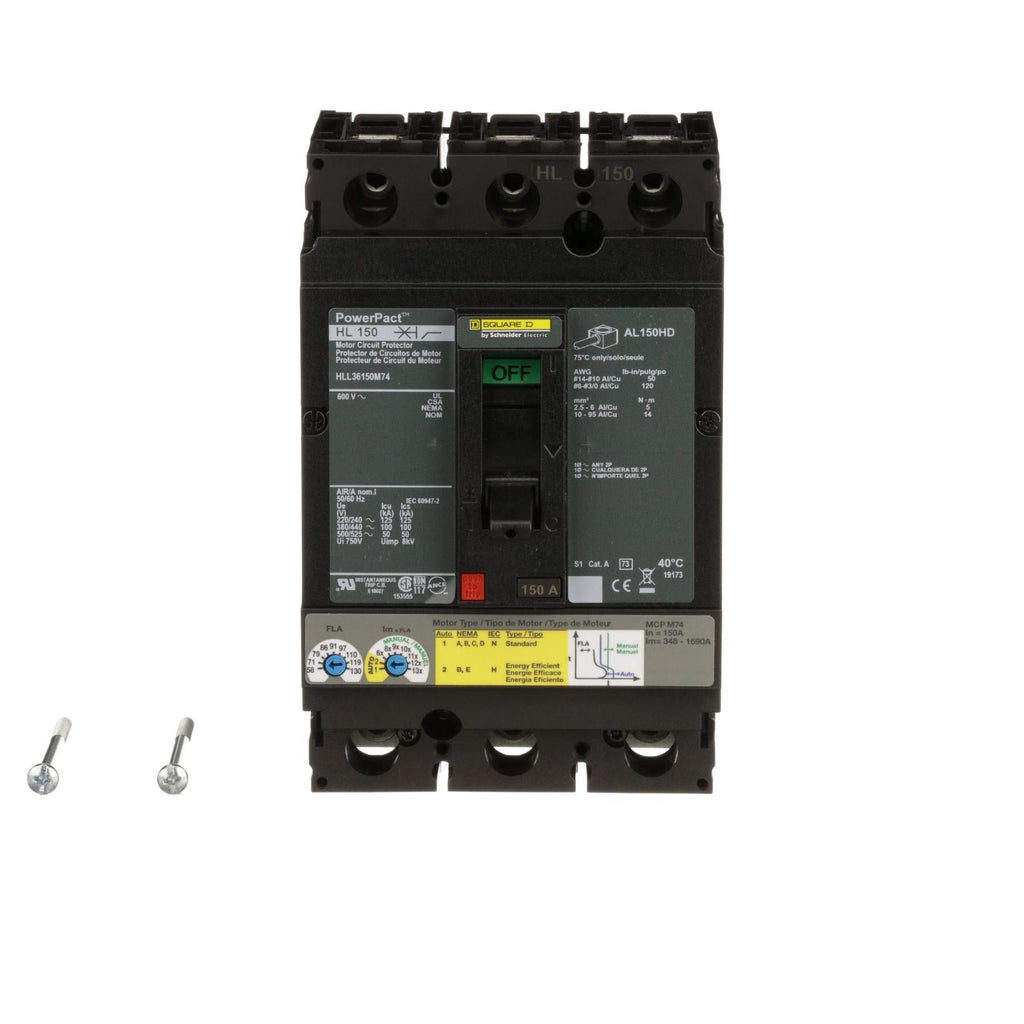

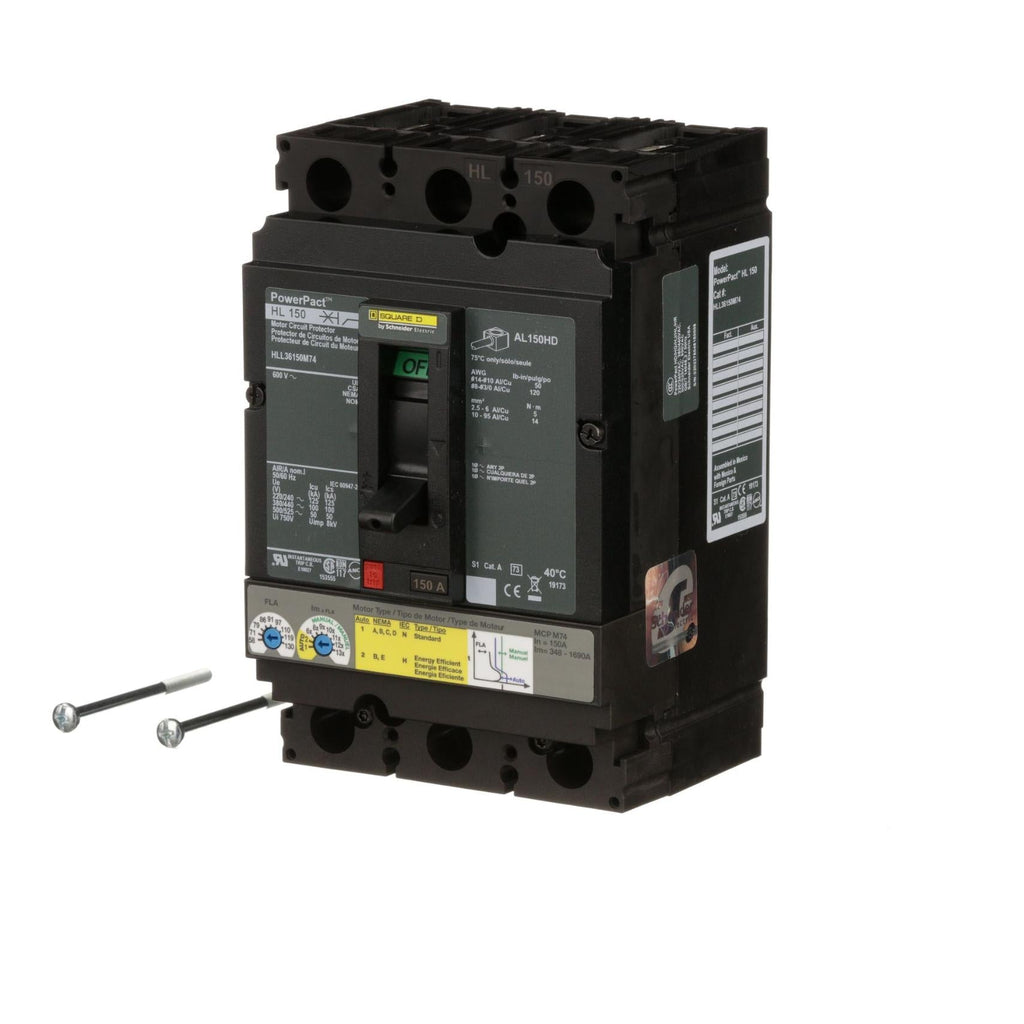

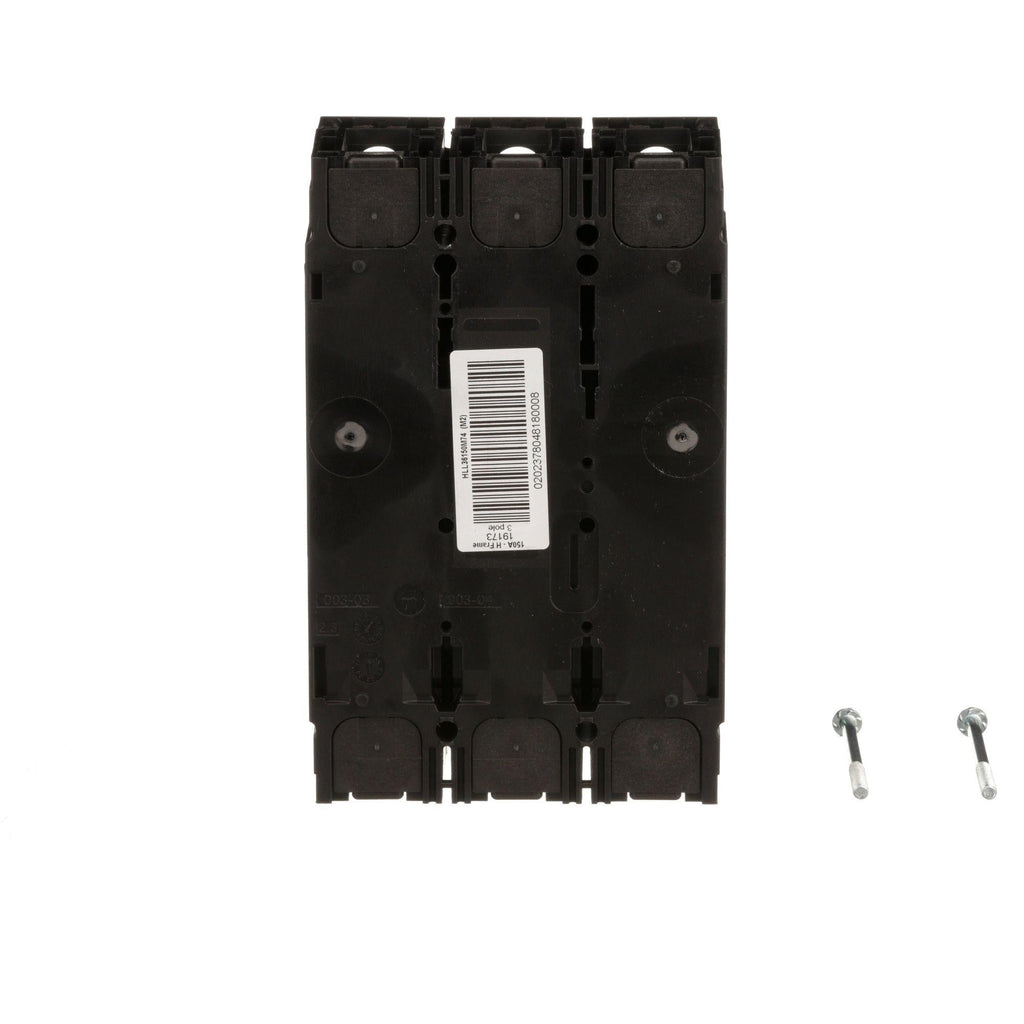

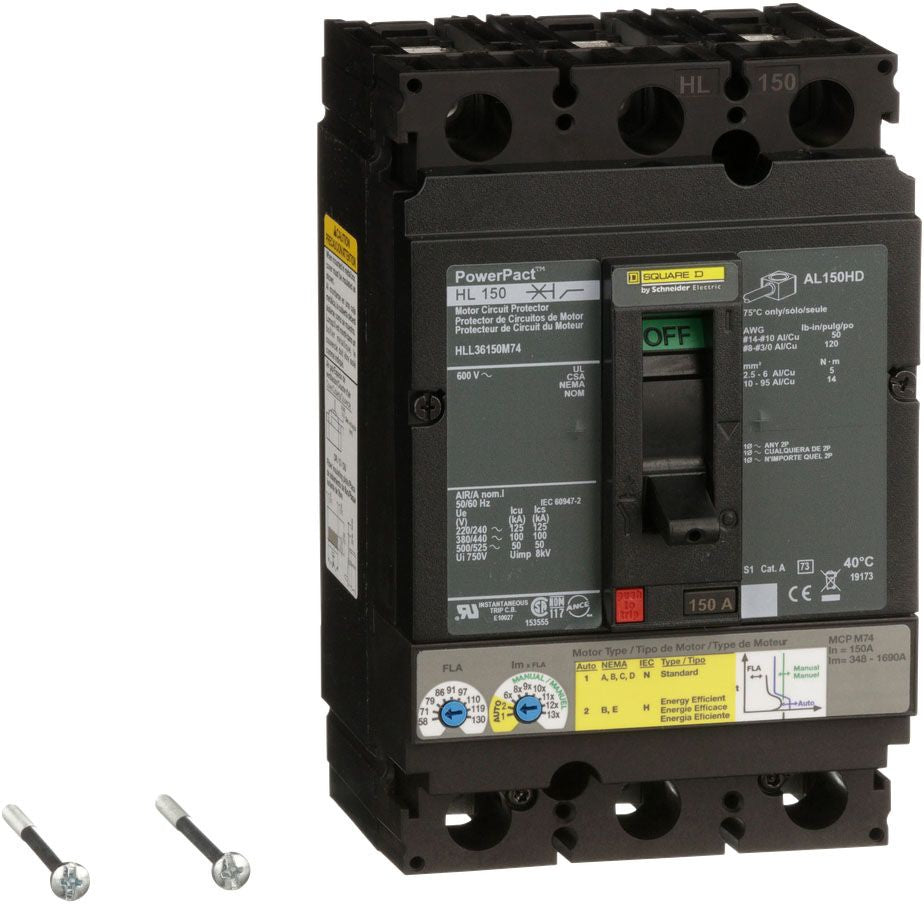

HLL36150M74 - Square D 150A 600V 3 Pole Motor Circuit Breaker H Frame Magnetic Trip

HLL36150M74

HLL36150M74 is a Square D 3 pole motor circuit breaker with a 150 amp rating and 600 volt AC capacity designed for reliable motor protection.This PowerPact H frame molded case circuit breaker features a magnetic trip unit and a 50kA interrupt rating at 600VAC. It is UL 489 listed and certified by CSA, IEC, CCC, and other standards. The breaker has a unit mount design with line lug terminals supporting 14 to 3/0 AWG copper or aluminum wire. Dimensions are approximately 4.12 inches wide, 4.36 inches deep, and 6.4 inches high.

Key Specifications
• Amperage: 150 A
• Voltage: 600 VAC
• Poles: 3
• Frame Type: H Frame (PowerPact H)
• Trip Unit: Magnetic
• Interrupt Rating: 50kA at 600 VAC
• Mounting Type: Unit Mount
• Terminal Type: Line Lug
• Wire Range: 14 to 3/0 AWG Copper/Aluminum
• Certifications: UL 489, CSA, IEC, CCC, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HLL36150M74
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Magnetic Only



Product Data

• UPC : 785901835677
• GTIN : 00785901835677
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.409 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
