HLL36045 - Square D 45 Amp 600V 3 Pole H Frame Molded Case Circuit Breaker

HLL36045

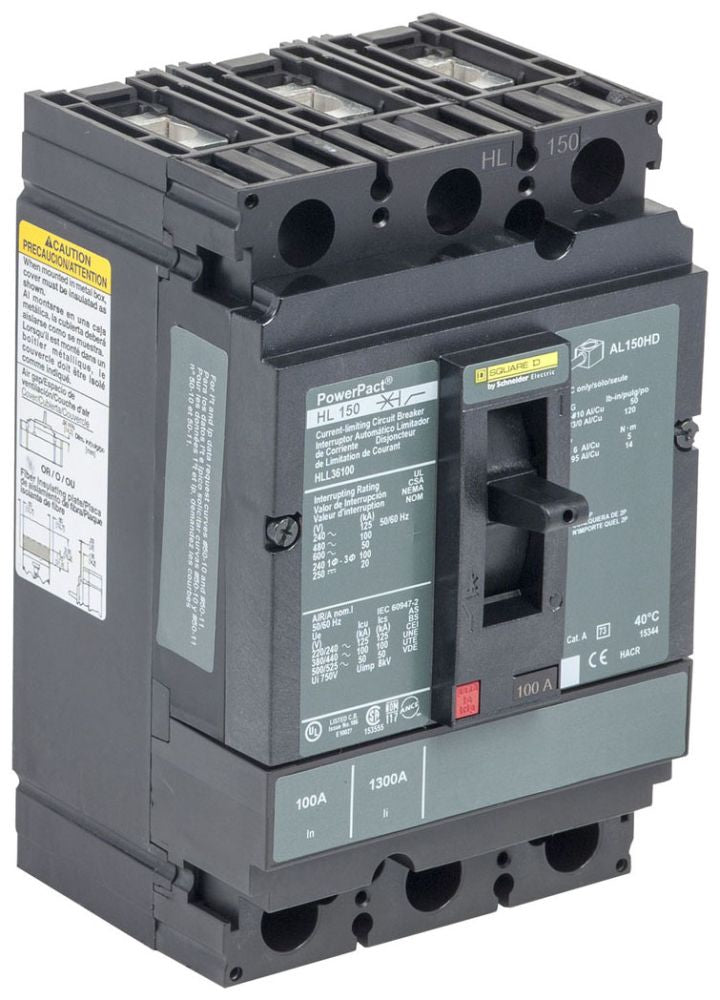

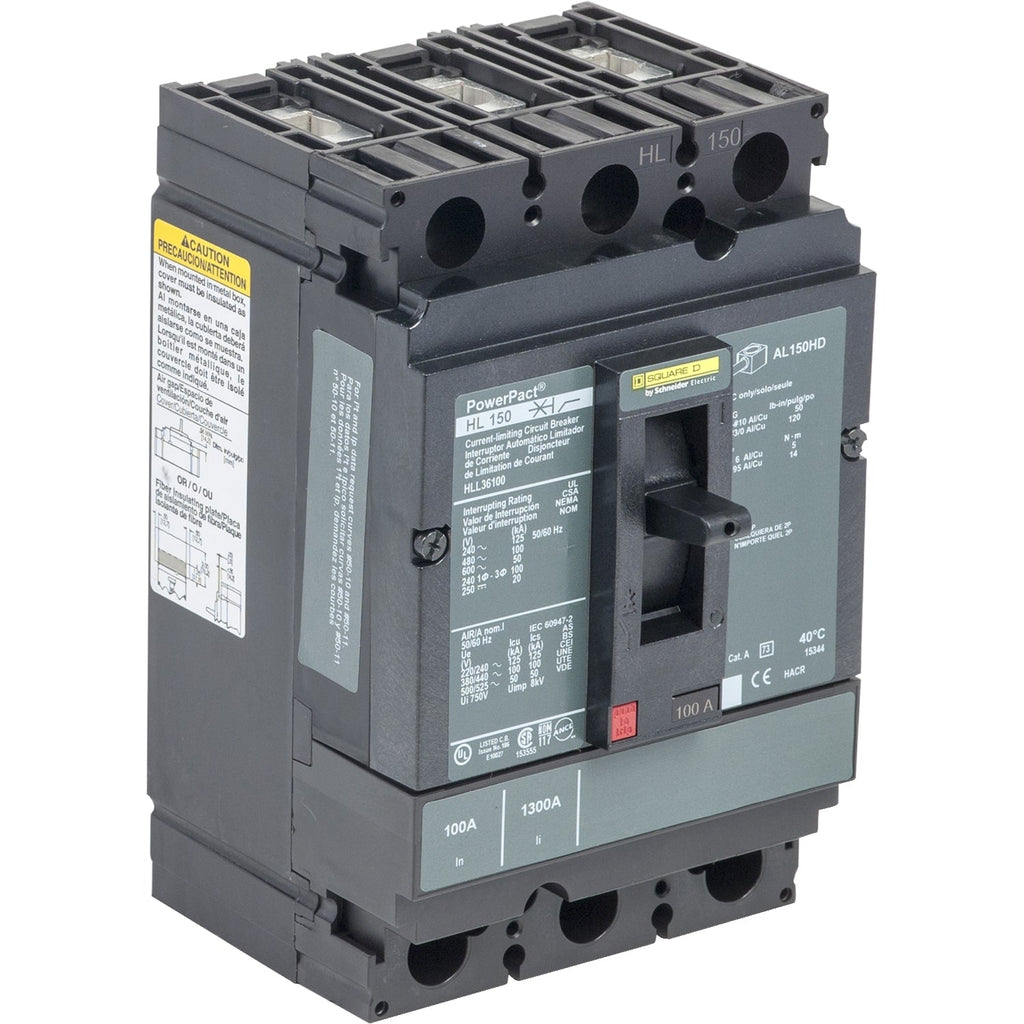

HLL36045 is a Square D 45 Amp, 3 Pole, H Frame molded case circuit breaker designed for reliable power distribution protection.This circuit breaker features a thermal magnetic trip unit with current limiting capabilities, suitable for up to 600 VAC or 500 VDC applications. It has an L interrupt rating with 100 kA interrupt capacity at 480 VAC, 125 kA at 240 VAC, and 50 kA at 600 VAC. The breaker is UL 489 listed and designed for unit mount installation with line and load side lug terminals. It supports reverse fed applications and includes long time and instantaneous trip functions.

Key Specifications
• Amperage: 45 Amp
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3
• Frame Type: H Frame (HLL Series)
• Interrupt Rating: 100 kA at 480 VAC, 125 kA at 240 VAC, 50 kA at 600 VAC
• Mounting Type: Unit Mount
• Trip Unit: Thermal Magnetic, Current Limiting
• UL Listing: UL 489
• Suitable for Reverse Fed Applications
• Line and Load Side Lug Terminals
• Non-Interchangeable Trip
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HLL36045
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901883791
• GTIN : 00785901883791
• Country of Origin : Mexico

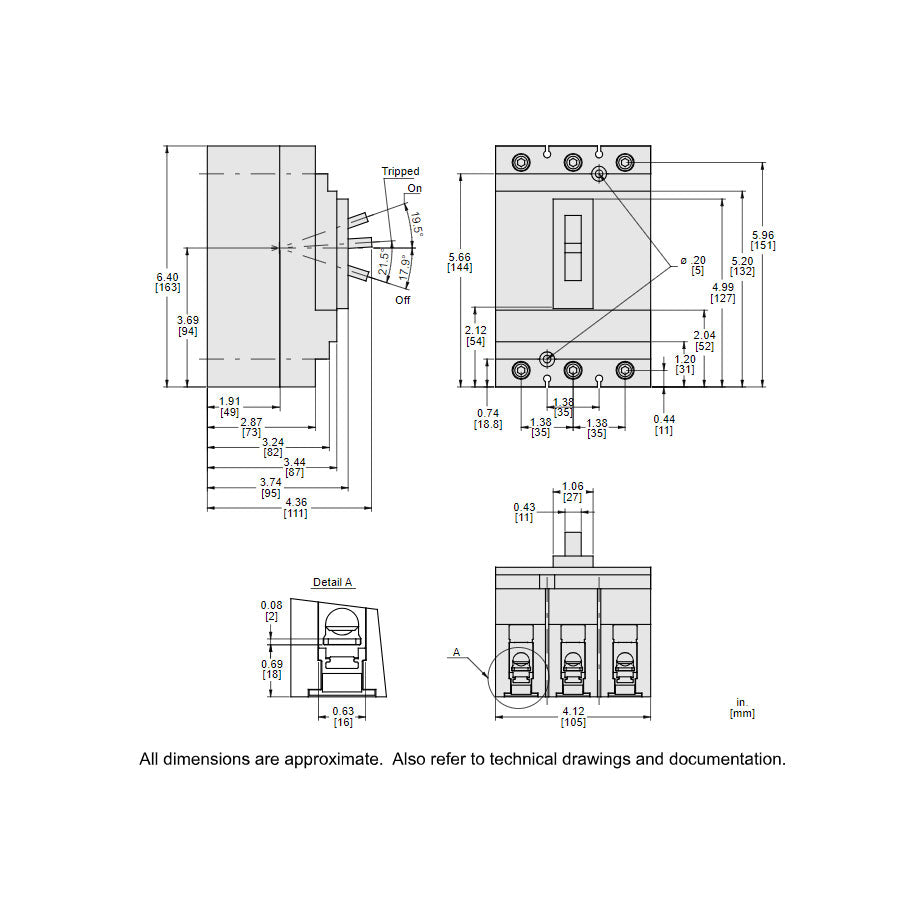

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.12
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
