HLL36030M71 - Square D 30A 600VAC 3 Pole Thermal Magnetic Circuit Breaker H Frame

HLL36030M71

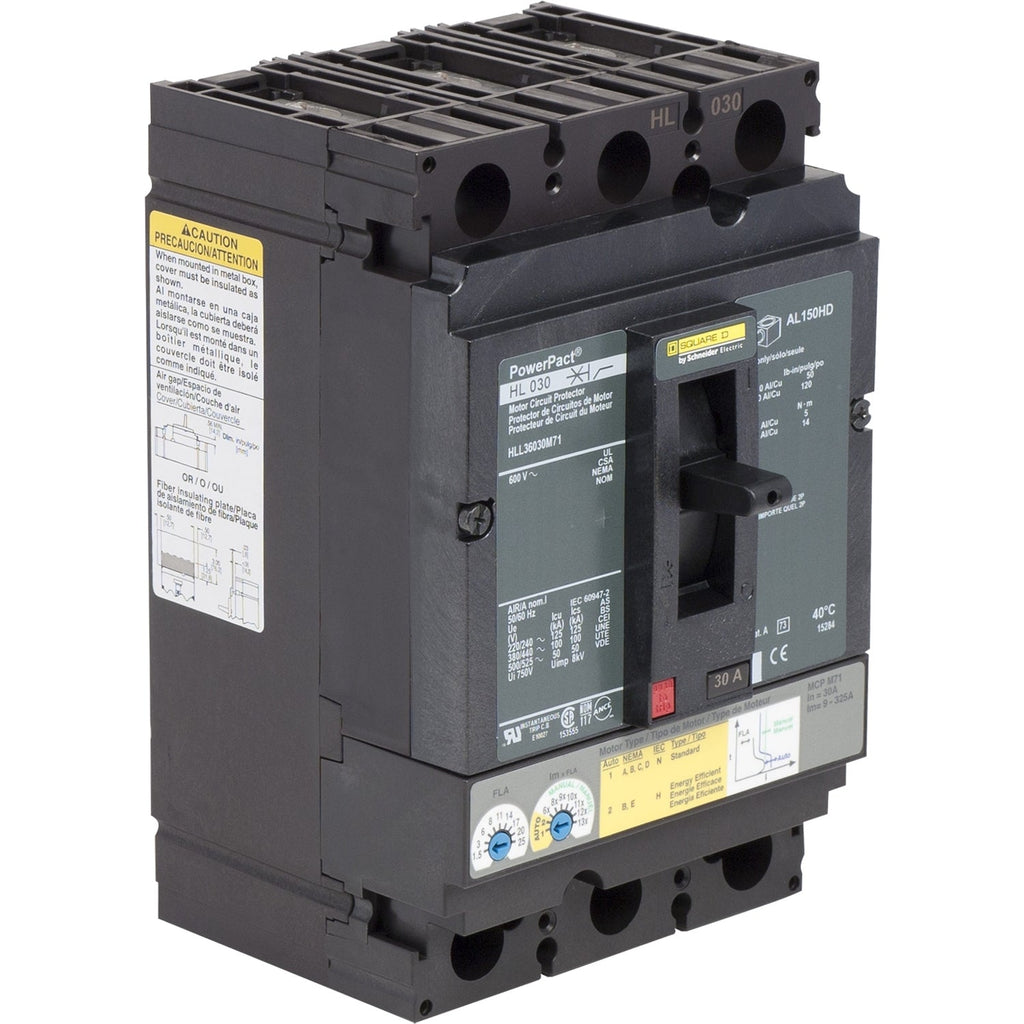

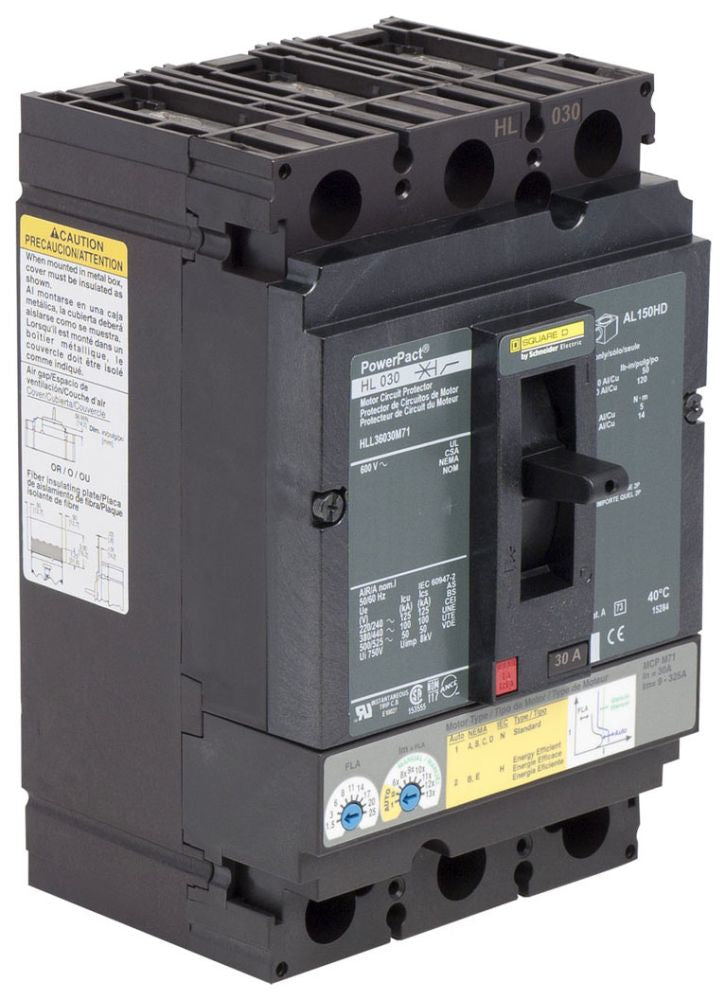

HLL36030M71 is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 30 amps and 600VAC, designed for reliable motor protection.This circuit breaker features a unit mounting type with line and load side lug connections, an interrupting rating of 100kA at 480V, and long time and instantaneous trip functions. It supports wire sizes from AWG 14 to 3/0 aluminum or copper and meets multiple certifications including UL, CSA, IEC, CE, NEMA, NOM, and RoHS. The breaker has a black toggle actuator and is part of the HLL series with an H frame.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 600VAC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupting Rating: 100kA at 480V
• Frame Type: HLL (H Frame)
• Trip Functions: Long Time and Instantaneous
• Terminal Connection: Line and Load Side Lug
• Wire Gauge: AWG 14 to 3/0 Aluminum/Copper
• Standards: UL, CSA, IEC, CE, NEMA, NOM, RoHS
• Actuator Type: Toggle
• Color: Black

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLL36030M71
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : L
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Magnetic Only

Product Data

• UPC : 785901632139
• GTIN : 00785901632139
• Country of Origin : Mexico

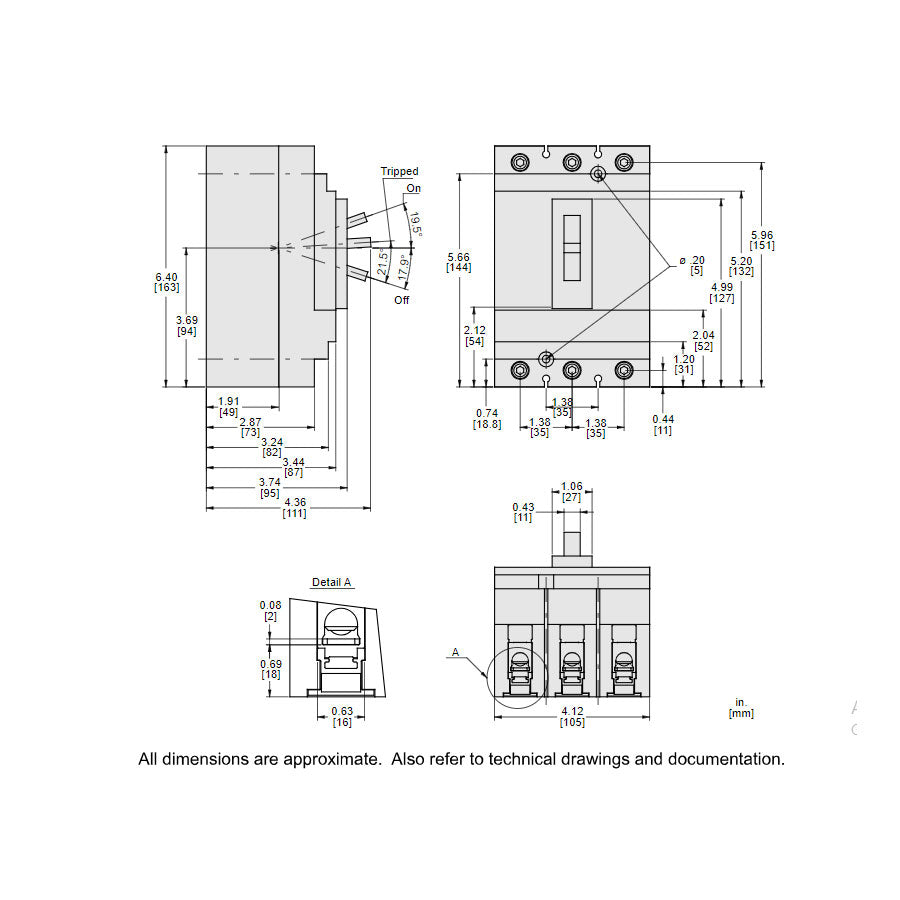

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.29
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
