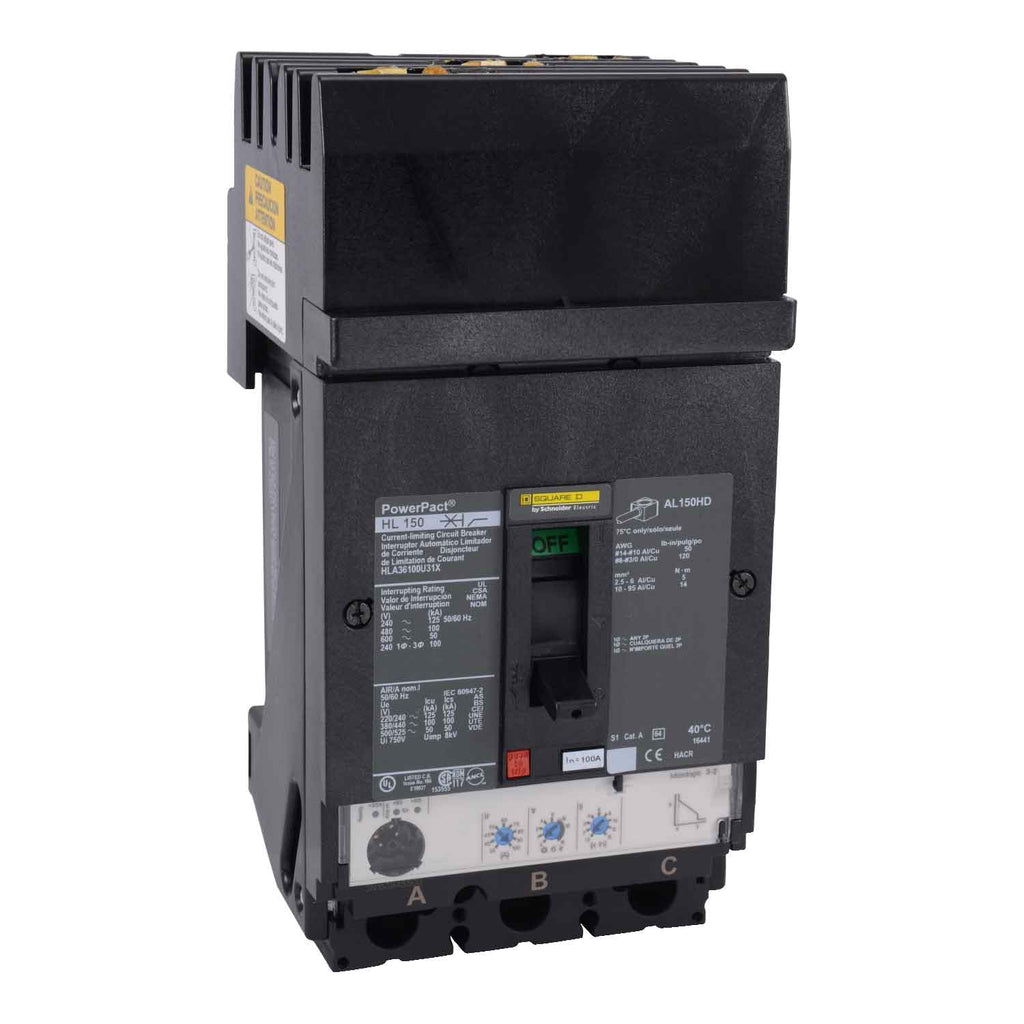

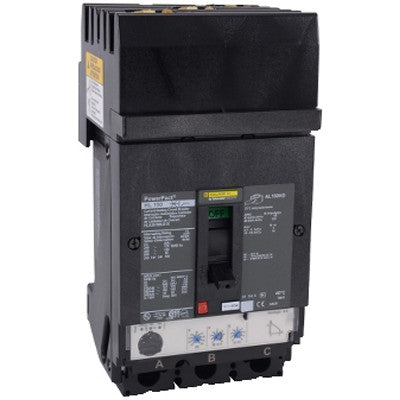

HLA36100U31X - Schneider Electric PowerPacT H 3 Pole 100A 600V Molded Case Circuit Breaker w/ Micrologic 3.2 Trip Unit

HLA36100U31X

HLA36100U31X is a 3 pole, 100A, 600V molded case circuit breaker from Schneider Electric's PowerPacT H series, featuring a Micrologic 3.2 trip unit for reliable protection in industrial applications. This PowerPacT H-Frame circuit breaker is designed for I-Line style plug-in mounting and provides solid-state electronic trip protection with Long-Time and Instantaneous functions. It is suitable for three-phase systems and offers precise overload and short-circuit protection.

• Part Number: HLA36100U31X
• Manufacturer: Schneider Electric
• Series/Frame: PowerPacT H
• Amperage: 100A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 50kA @ 600VAC
• Phase: 3
• Trip Unit: Micrologic 3.2 (LI function)
• Certifications: UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC, CE
• Connection: ABC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA36100U31X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 606486282772
• GTIN : 03606490000000
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.28
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
