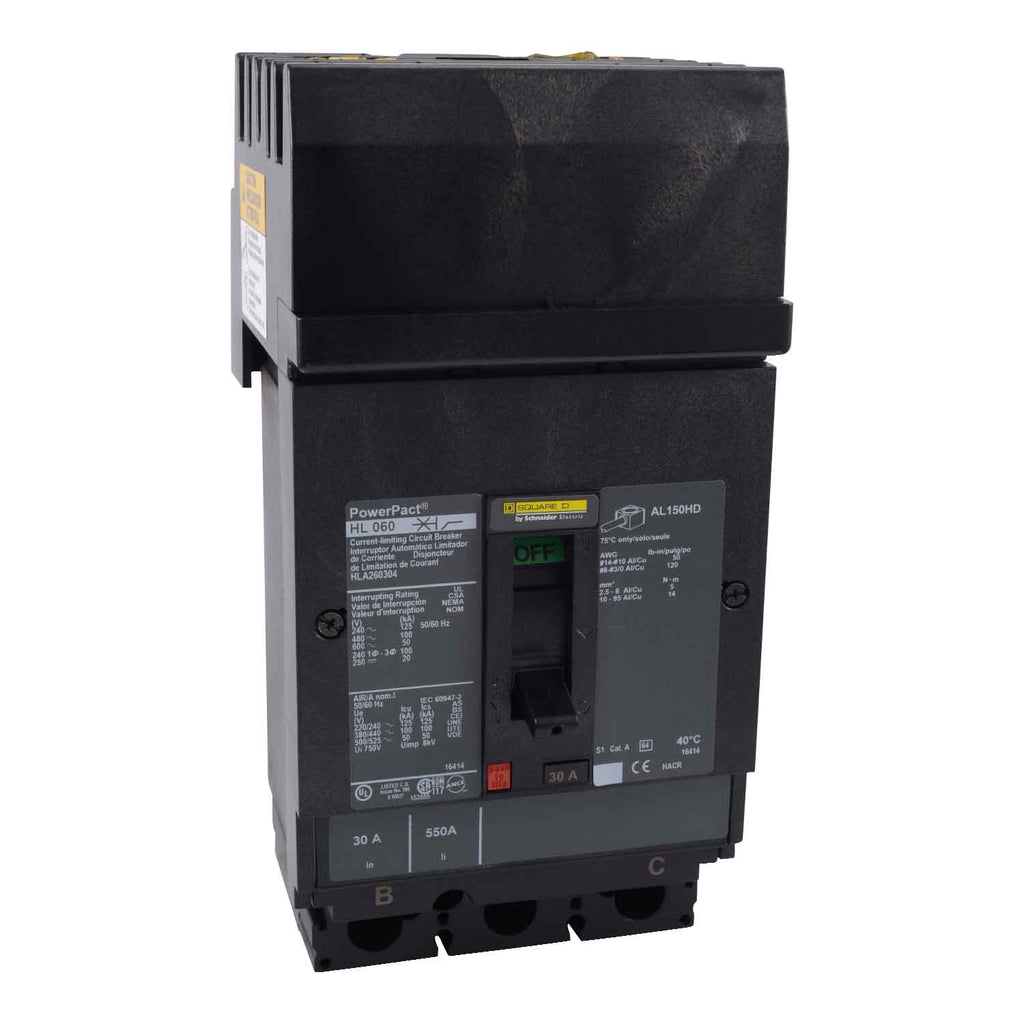

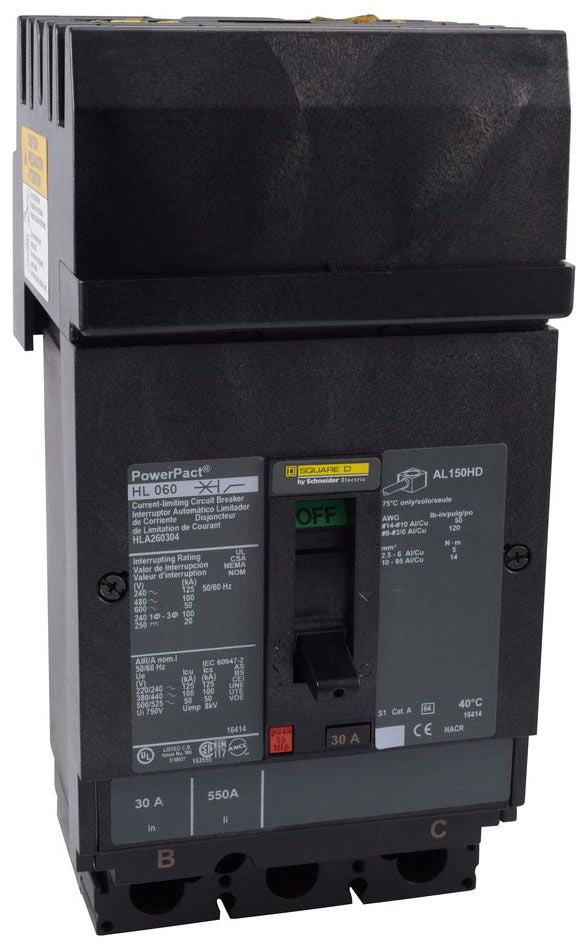

HLA36045 - Square D PowerPact H 45A 3 Pole 600V I-Line Molded Case Circuit Breaker

HLA36045

HLA36045 is a 3 pole, 45A molded case circuit breaker from Square D's PowerPact H series, designed for I-Line panelboard and switchboard applications. This breaker features a thermal-magnetic trip unit, 600V AC voltage rating, and is suitable for use in power distribution systems requiring high interrupting capacity. It is UL, CSA, and CE listed, and offers a robust solution for commercial and industrial installations.

• Part Number: HLA36045
• Manufacturer: Square D
• Series/Frame: PowerPact H
• Amperage: 45A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 100kAIC @ 480V
• Tripping Mechanism: Thermal-Magnetic
• Wire Size: 14-3/0 AWG
• Certifications: UL, CSA, CE
• Application: Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA36045
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901422358
• GTIN : 00785901422358
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
