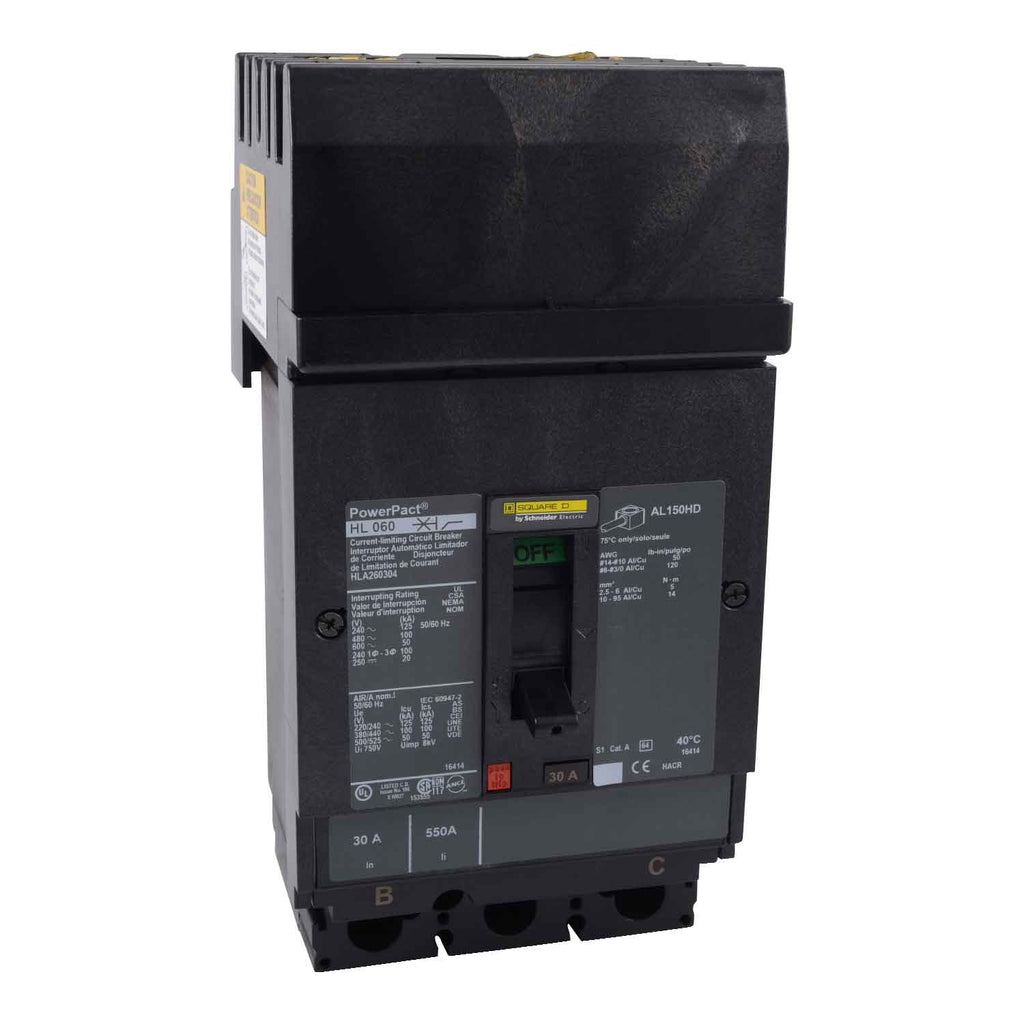

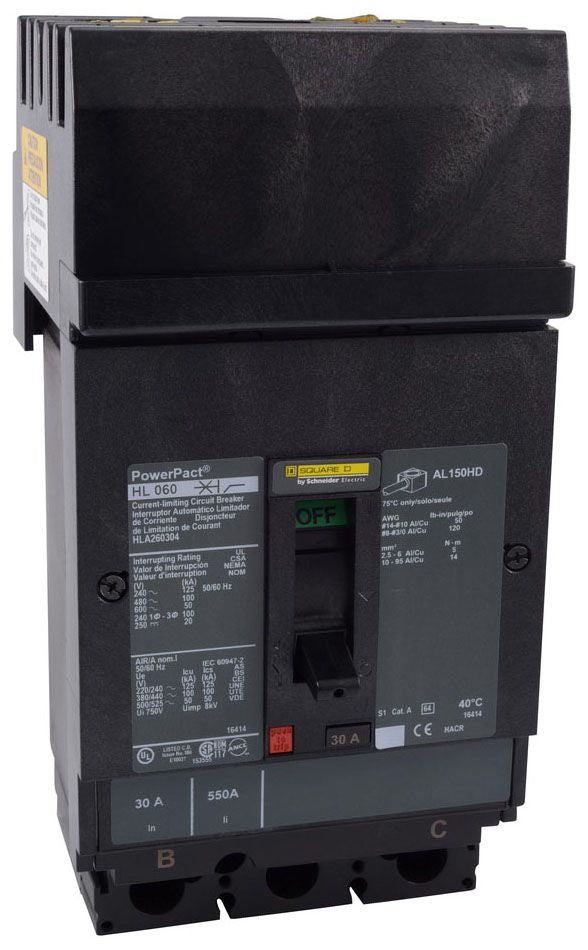

HLA36035 - Square D 35 Amp 600VAC 3 Pole Thermal Magnetic Circuit Breaker I-Line Frame HLA

HLA36035

HLA36035 is a 3 pole, 35 amp thermal magnetic molded case circuit breaker designed for 600VAC applications with I-Line mounting.This Square D HLA36035 breaker features a 100kA interrupting rating at 480V, long time and instantaneous trip functions, and a plug-in I-Line style connection. It is UL, CSA, CE, and IEC certified, suitable for use in commercial and industrial power distribution systems. The breaker supports wire gauges from AWG 14 to 3/0 aluminum or copper and is rated for 40°C ambient temperature.

• Amperage: 35A
• Voltage Rating: 600VAC
• Poles: 3
• Interrupting Rating: 100kA at 480V
• Mounting Type: I-Line Bracket
• Frame Type: HLA
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Connection Type: Plug-In
• Approvals: UL, CSA, CE, IEC, NOM, NEMA
• Wire Gauge: AWG 14 to 3/0 Aluminum/Copper
• Temperature Rating: 40°C
• Color: Black

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA36035
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901422297
• GTIN : 00785901422297
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
