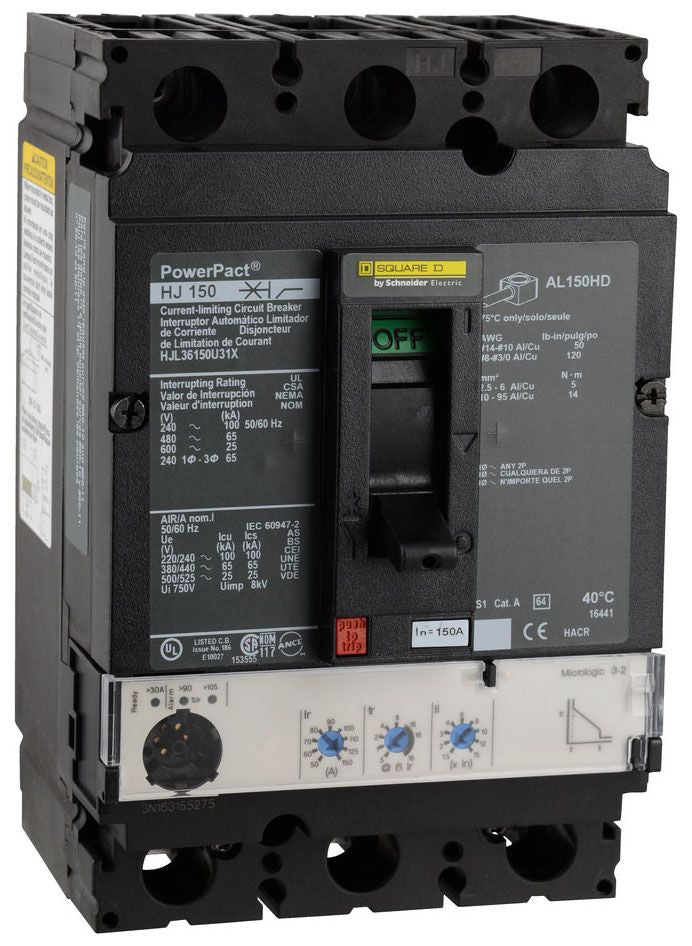

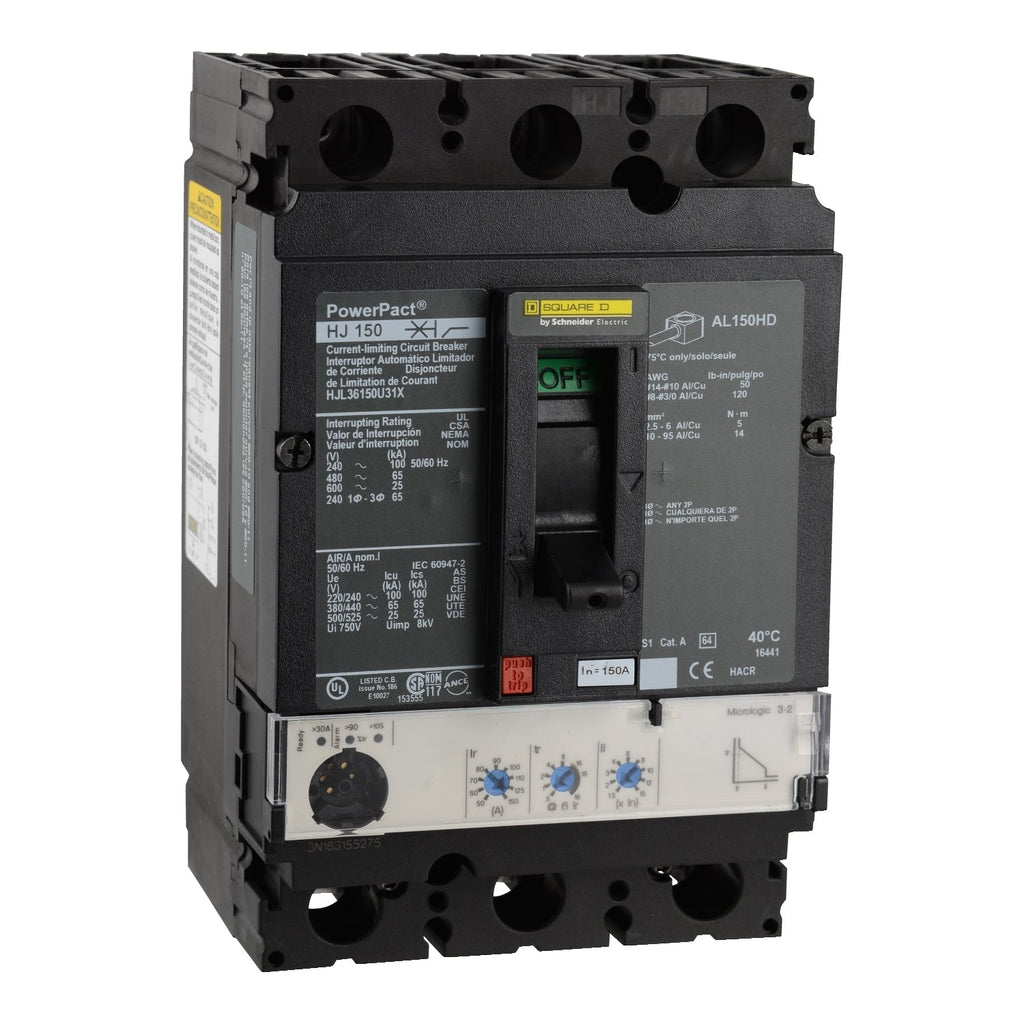

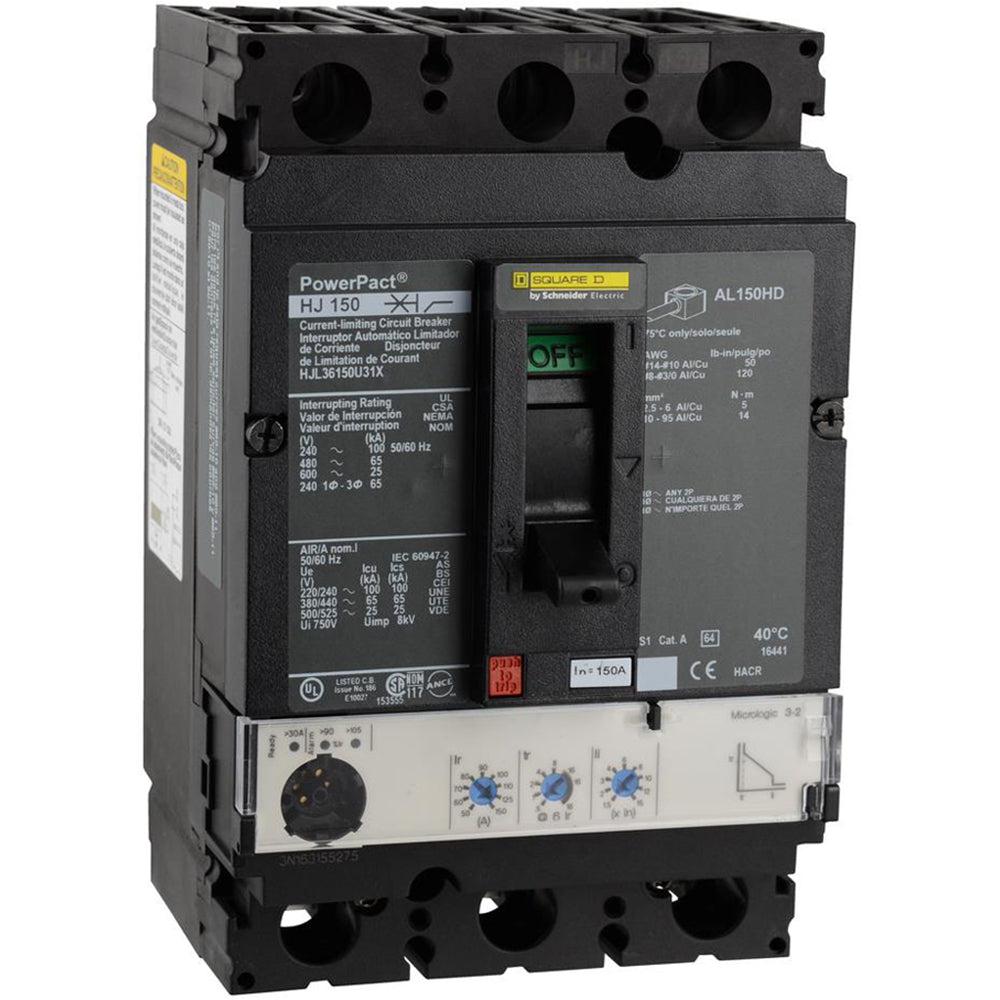

HJL36150U31X - Square D 150A 600V 3-Pole Molded Case Circuit Breaker H Frame

HJL36150U31X

HJL36150U31X is a Square D 3-pole molded case circuit breaker designed for 150 ampere current rating and 600 volt maximum AC voltage. It features a robust H frame and current limiting technology.This circuit breaker offers electronic trip unit with Micrologic 3.2, LI current limiting type, suitable for unit mount applications. It is UL 489 listed and CSA, CE approved, with interrupt ratings of 100kA at 240VAC, 65kA at 480VAC, and 25kA at 600VAC. The breaker supports 250V DC rating and is suitable for reverse fed applications.

Key Specifications
• Amperage: 150A
• Voltage Rating: 600VAC / 690VAC, 250VDC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC
• Series/Frame: H Frame
• Trip Unit: Electronic, Micrologic 3.2, Current Limiting (LI)
• Certifications: UL 489, CSA, CE
• Feed-Thru Capability: Yes
• Suitable for Reverse Fed Applications
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HJL36150U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State



Product Data

• UPC : 785901276289
• GTIN : 00785901276289
• Country of Origin : United States

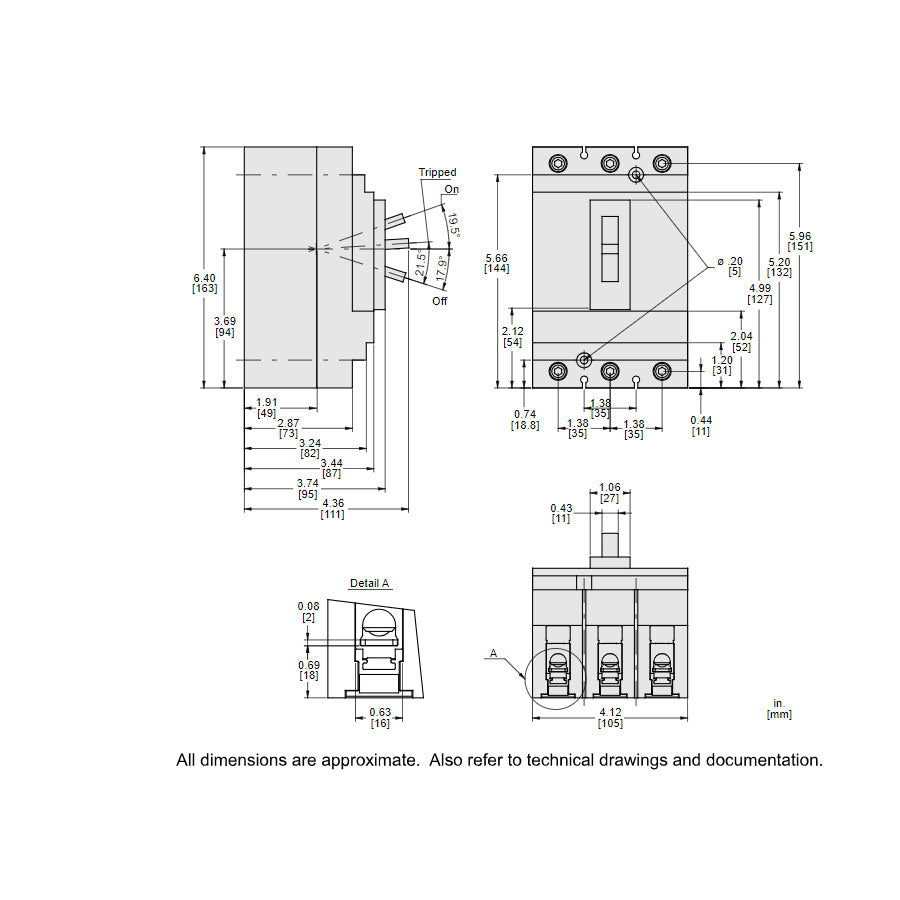

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.8
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
