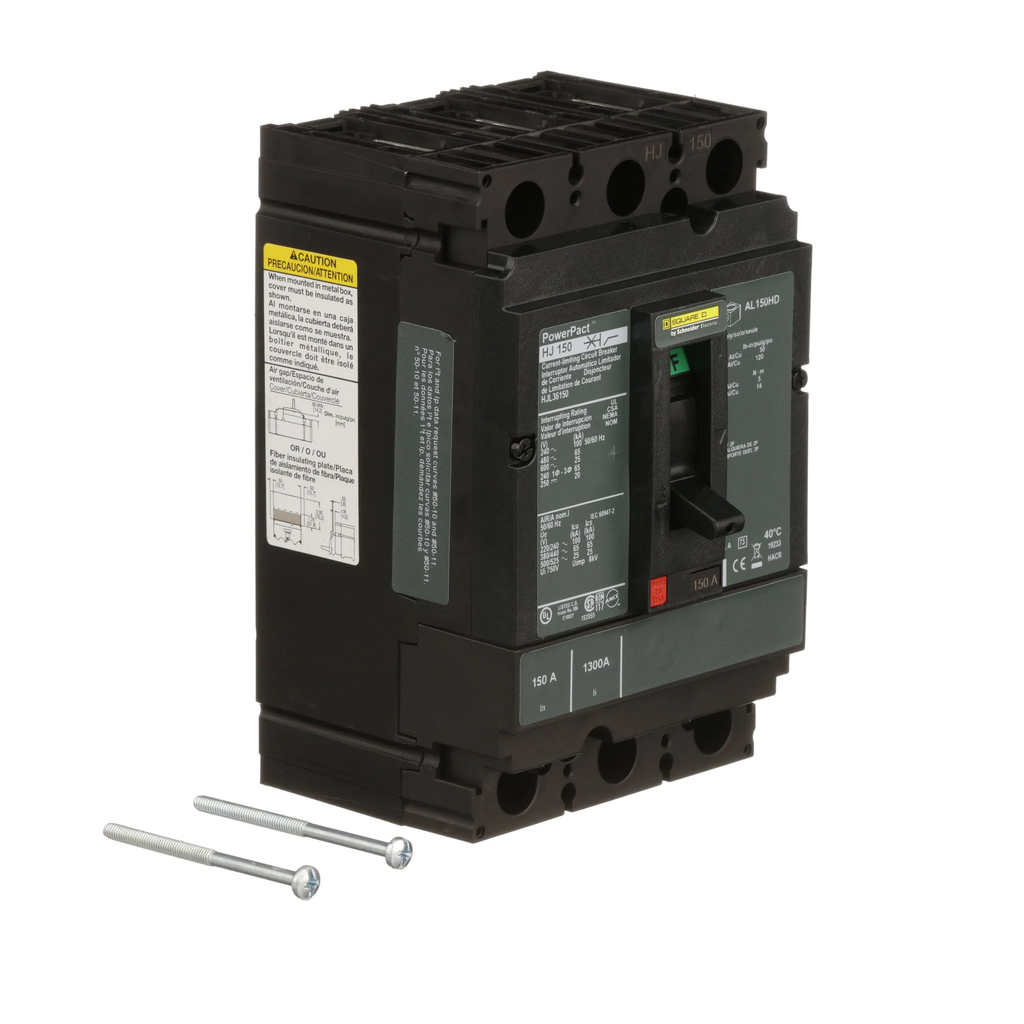

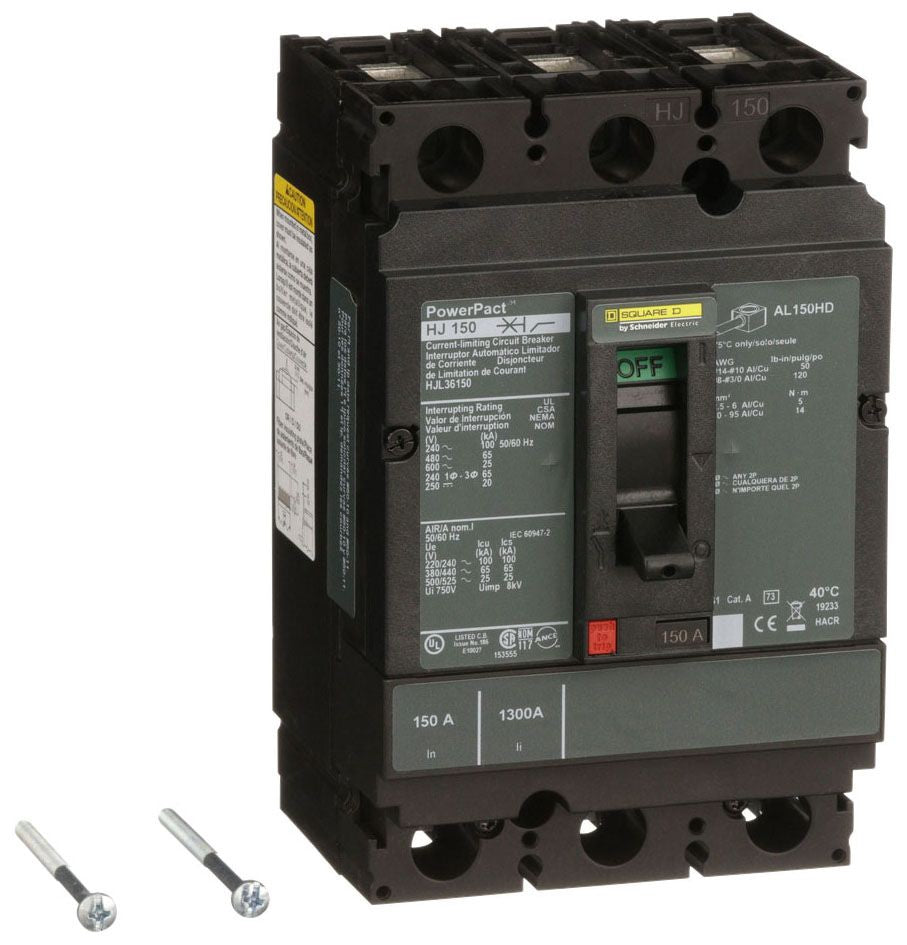

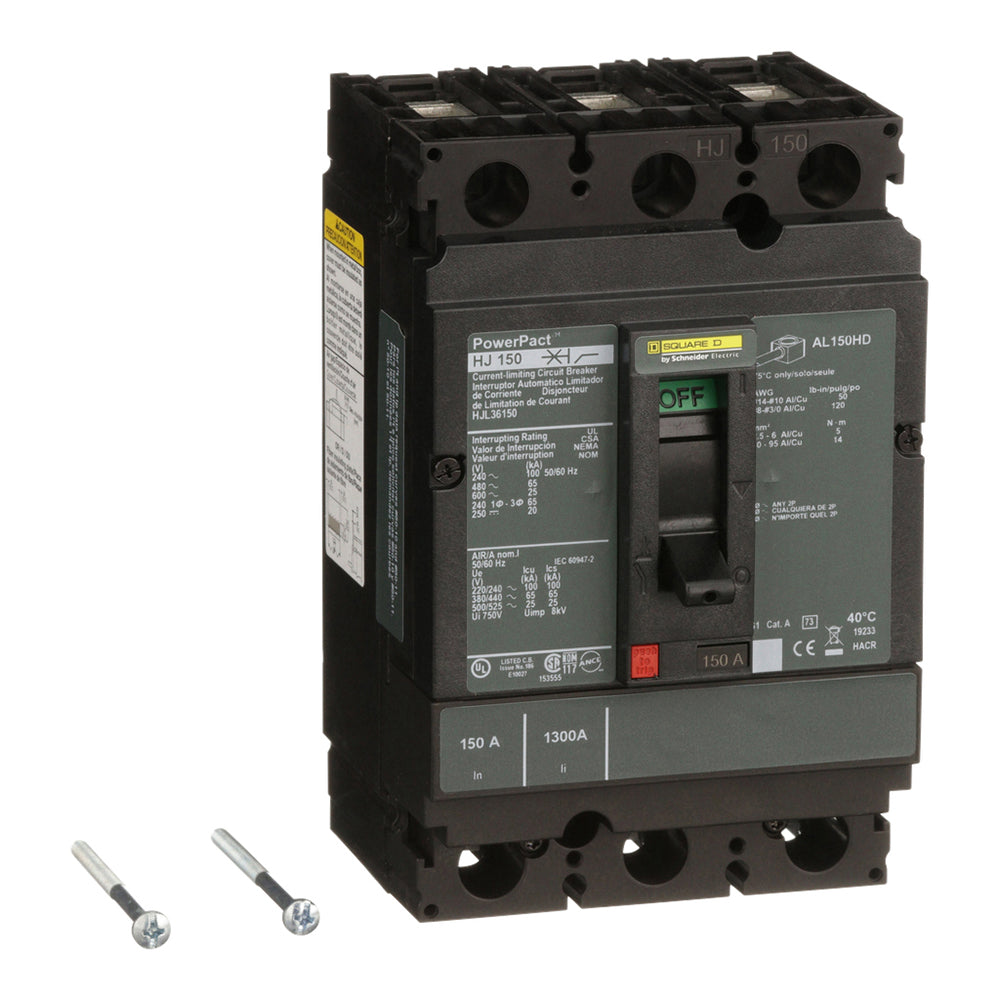

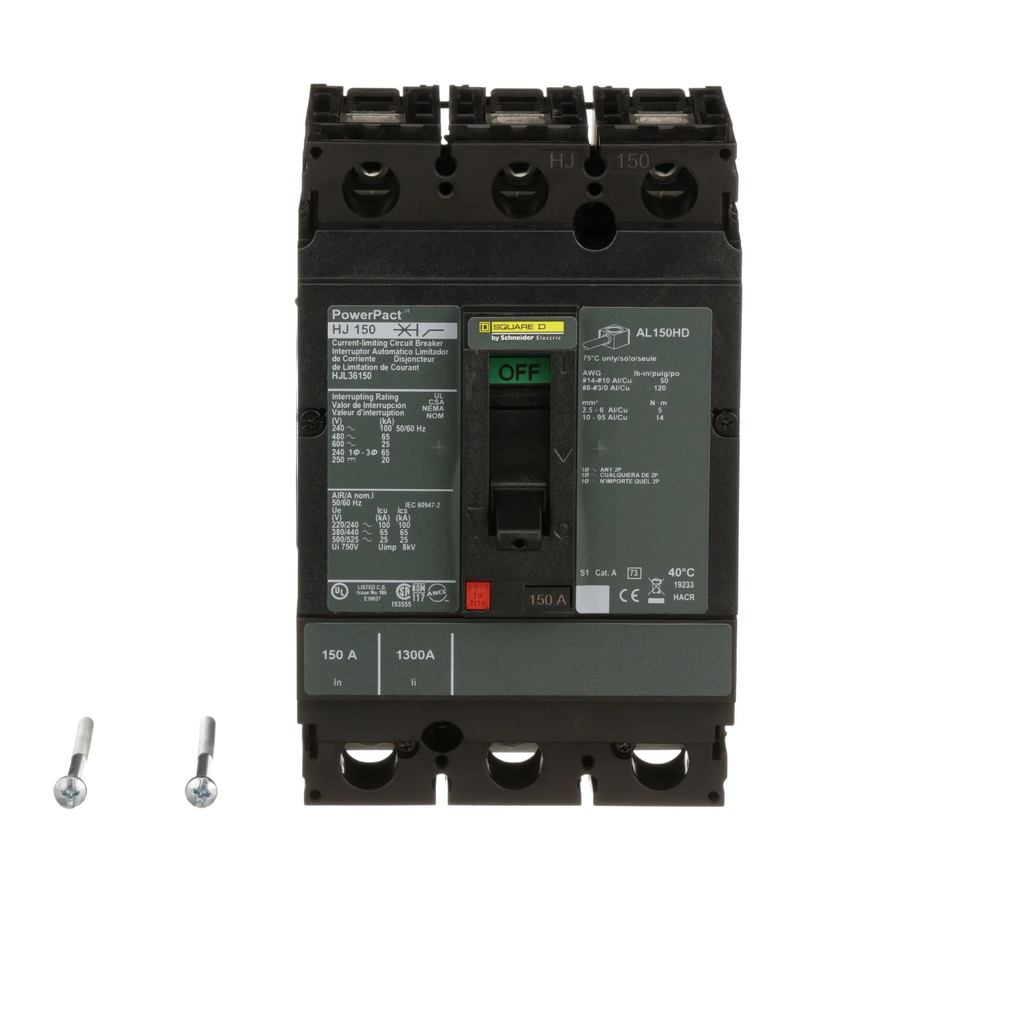

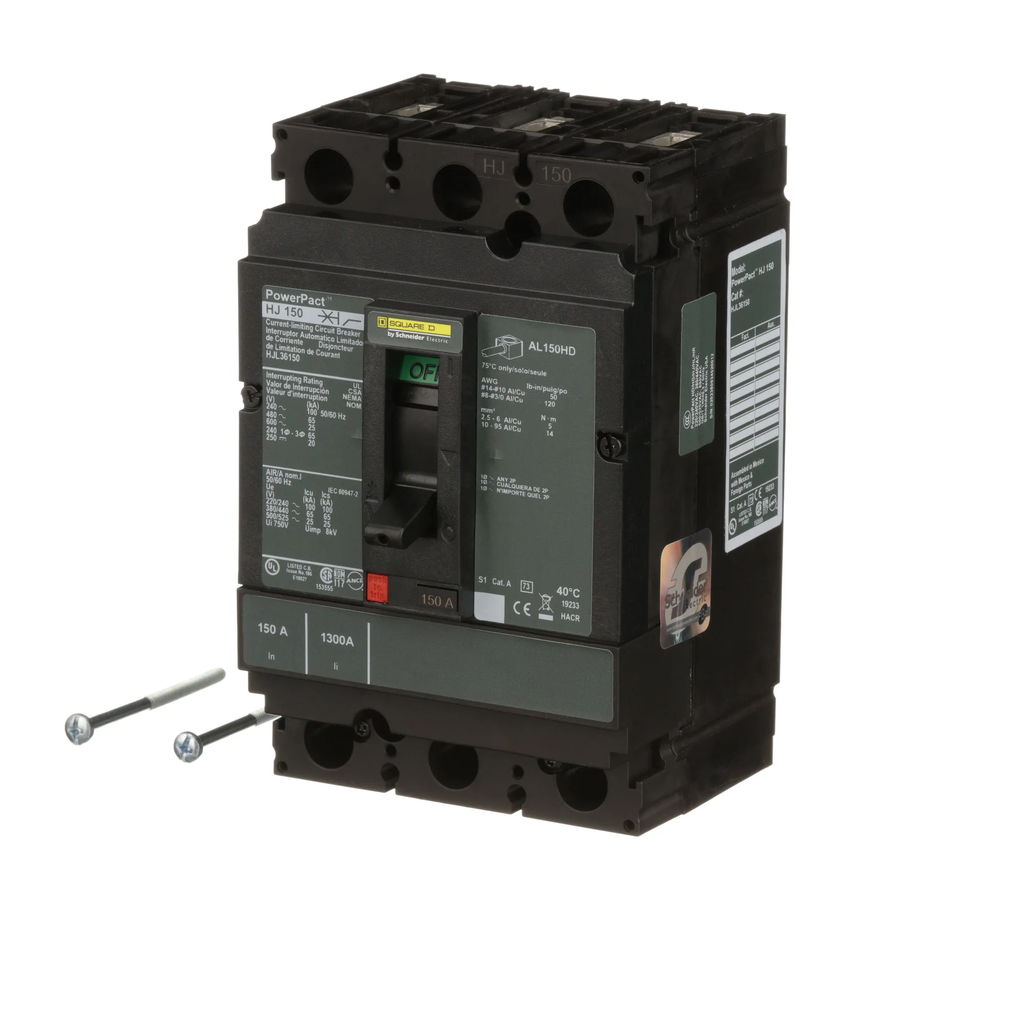

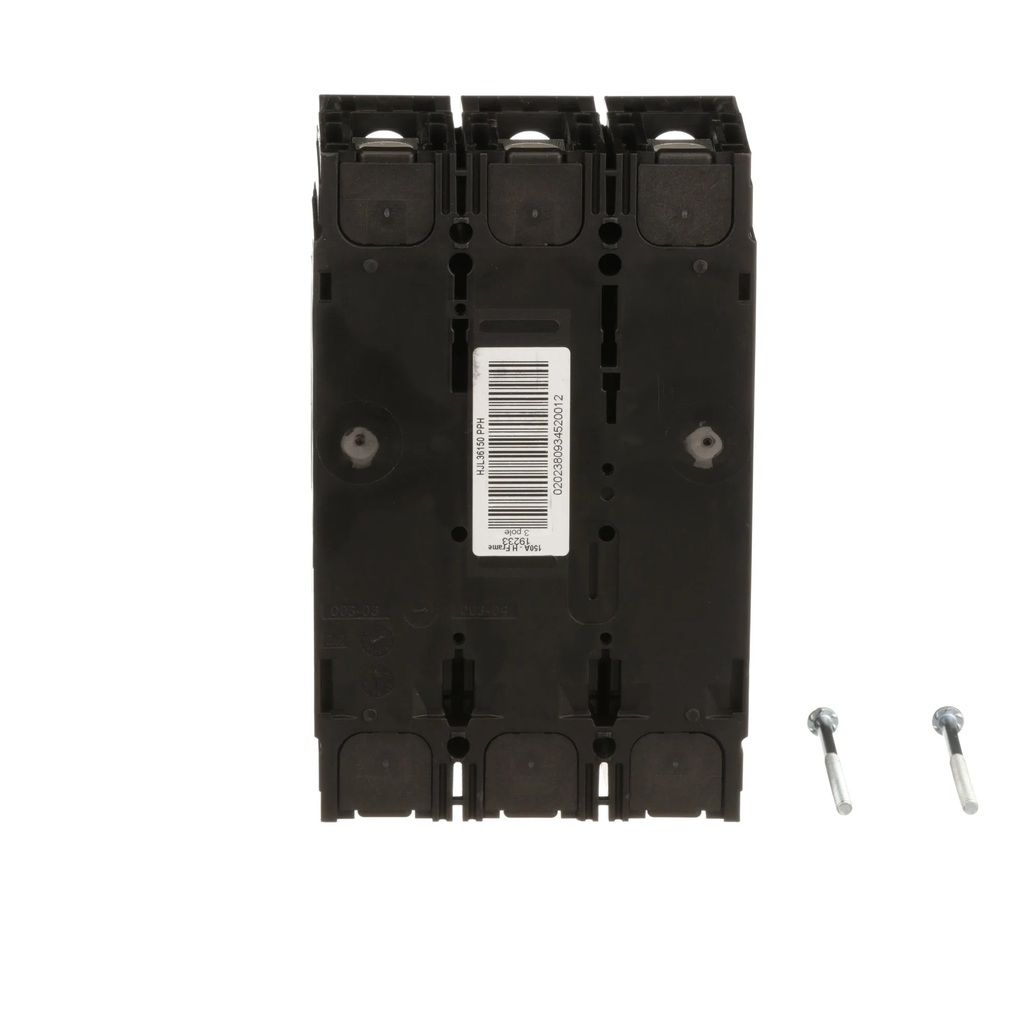

HJL36150 - Square D PowerPact H Molded Case Circuit Breaker 150A 600VAC 3 Poles Thermal Magnetic

HJL36150

HJL36150 is a Square D PowerPact H molded case circuit breaker designed for reliable overload and short circuit protection.This 150 amp, 3-pole breaker operates at up to 600 VAC and 250 VDC with a thermal magnetic trip unit. It features an H-frame design with unit mount lug terminals and a high interrupt rating of 100 kA at 240 VAC, 65 kA at 480 VAC, and 25 kA at 600 VAC. Certified to UL 489, CSA, IEC 60947-2, and other international standards, it is suitable for commercial and industrial applications requiring robust circuit protection.

Key Specifications
• Amperage: 150 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC
• Frame/Series: PowerPact H-Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, CSA, IEC 60947-2, CCC, CE
• Construction: Molded Case Circuit Breaker
• Frequency: 50/60 Hz
• Line and Load Lugs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HJL36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901839972
• GTIN : 00785901839972
• Country of Origin : United States

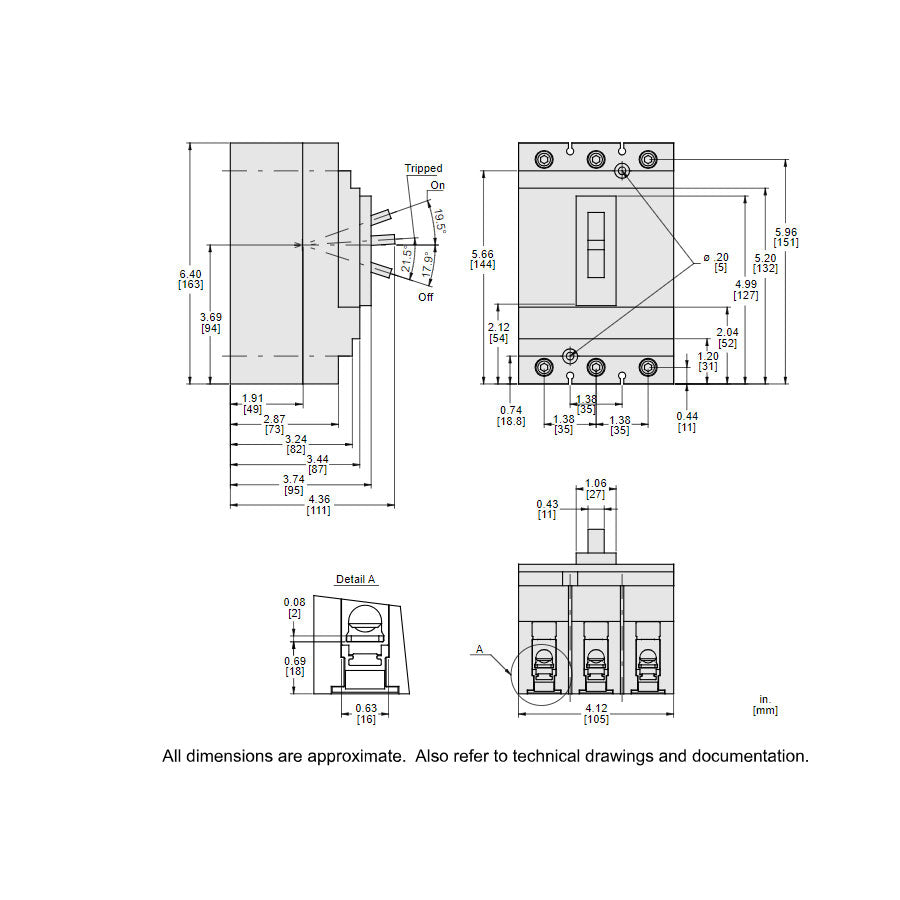

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.101
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
