HJL36100M38X - Square D PowerPact 3-Pole 100A 600V Circuit Breaker 65kA

HJL36100M38X

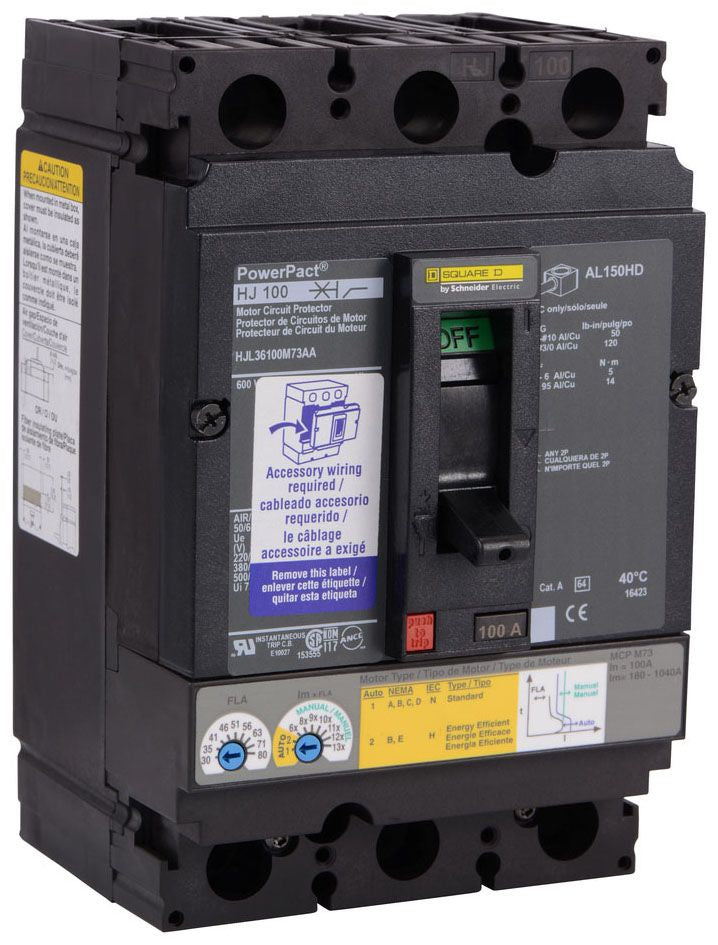

HJL36100M38X is a Square D PowerPact molded case circuit breaker designed for industrial power distribution and motor protection applications.

This type HJL circuit breaker features a 3-pole configuration rated for 600 volts and 100 amperes with thermal-magnetic protection. The breaker includes feed-thru connections suitable for reverse fed applications, non-interchangeable trip unit, and line and load side lug terminals. It is UL listed and current limiting with an AIC rating of 65kA at 480V. The H-frame design provides robust mounting with unit mount lug capability and supports AWG 14 through 3/0 aluminum or copper conductors.

• Poles: 3
• Amperage: 100A
• Voltage: 600V
• Series: PowerPact
• Frame Type: H-Frame
• Trip Functions: Long-Time and Instantaneous (LI)
• Protection Type: Thermal-Magnetic
• Interrupt Rating: 65kA at 480V
• Connection Type: Feed-Thru with Lugs
• Mounting: Unit Mount Lug
• Control: Toggle
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36100M38X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Magnetic Only

Product Data

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.9
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
