HJL36100 - Square D 100 Amp 600V 3 Pole H Frame Molded Case Circuit Breaker, Thermal Magnetic, Feed-Thru, UL 489

HJL36100

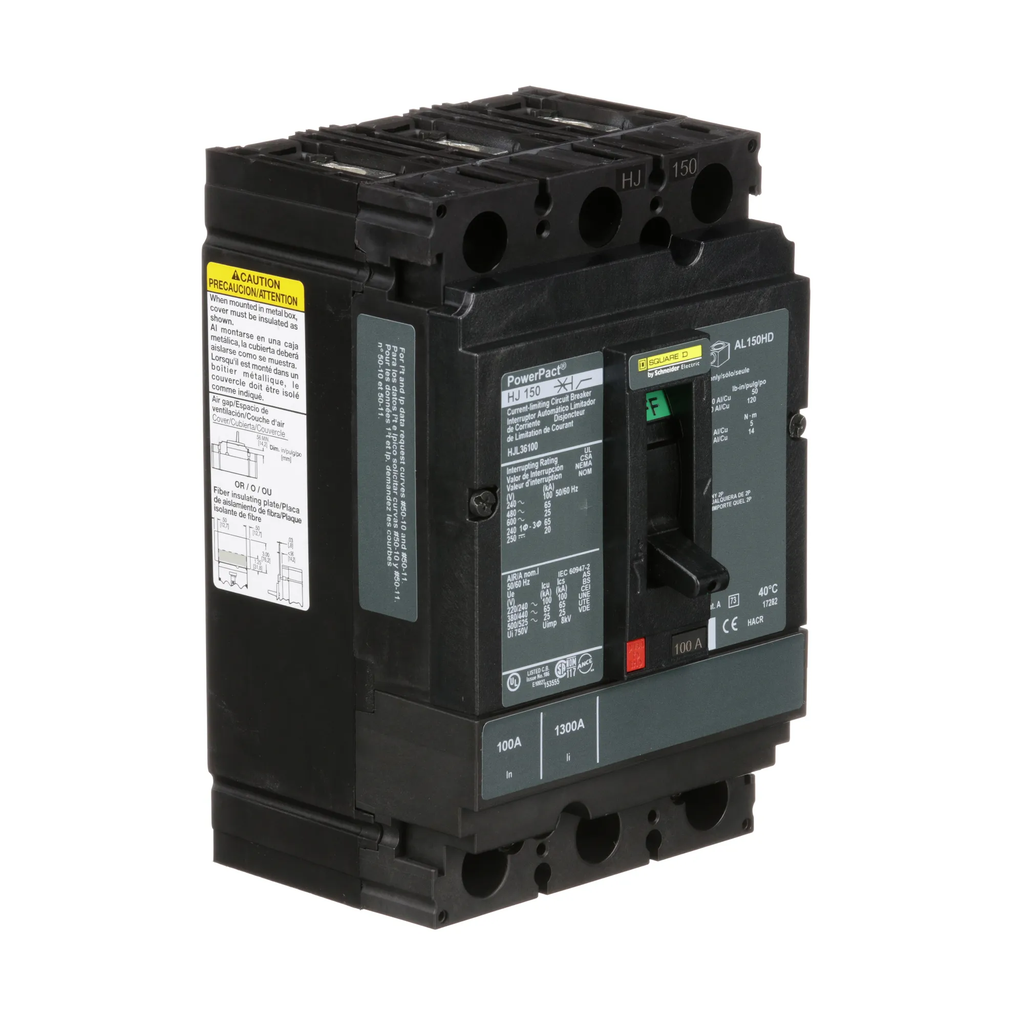

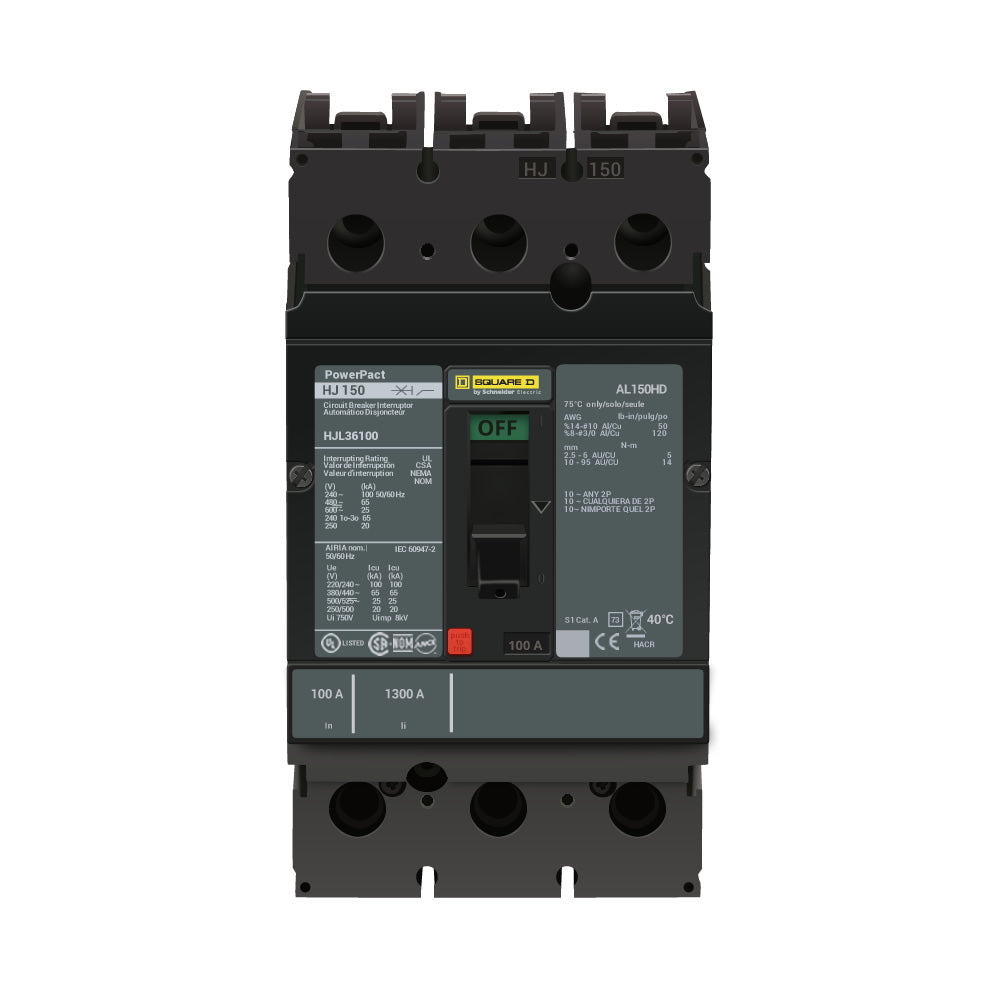

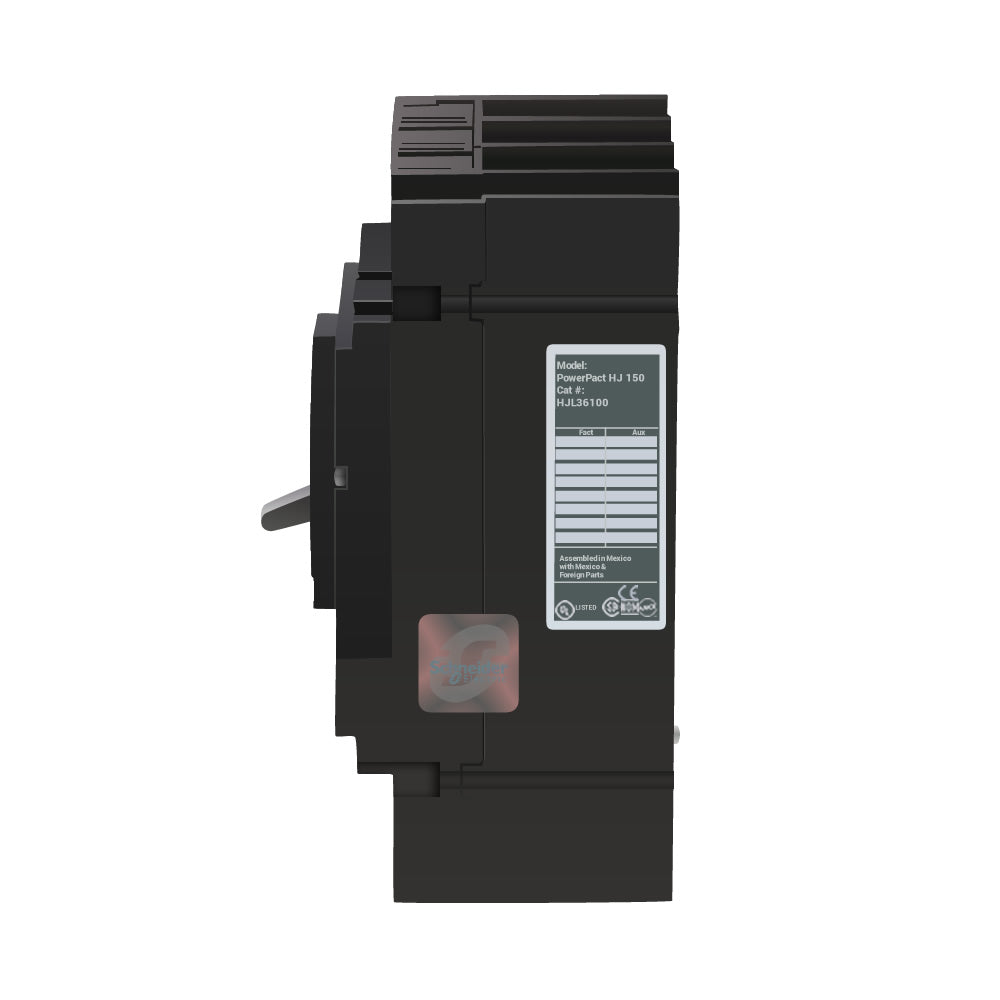

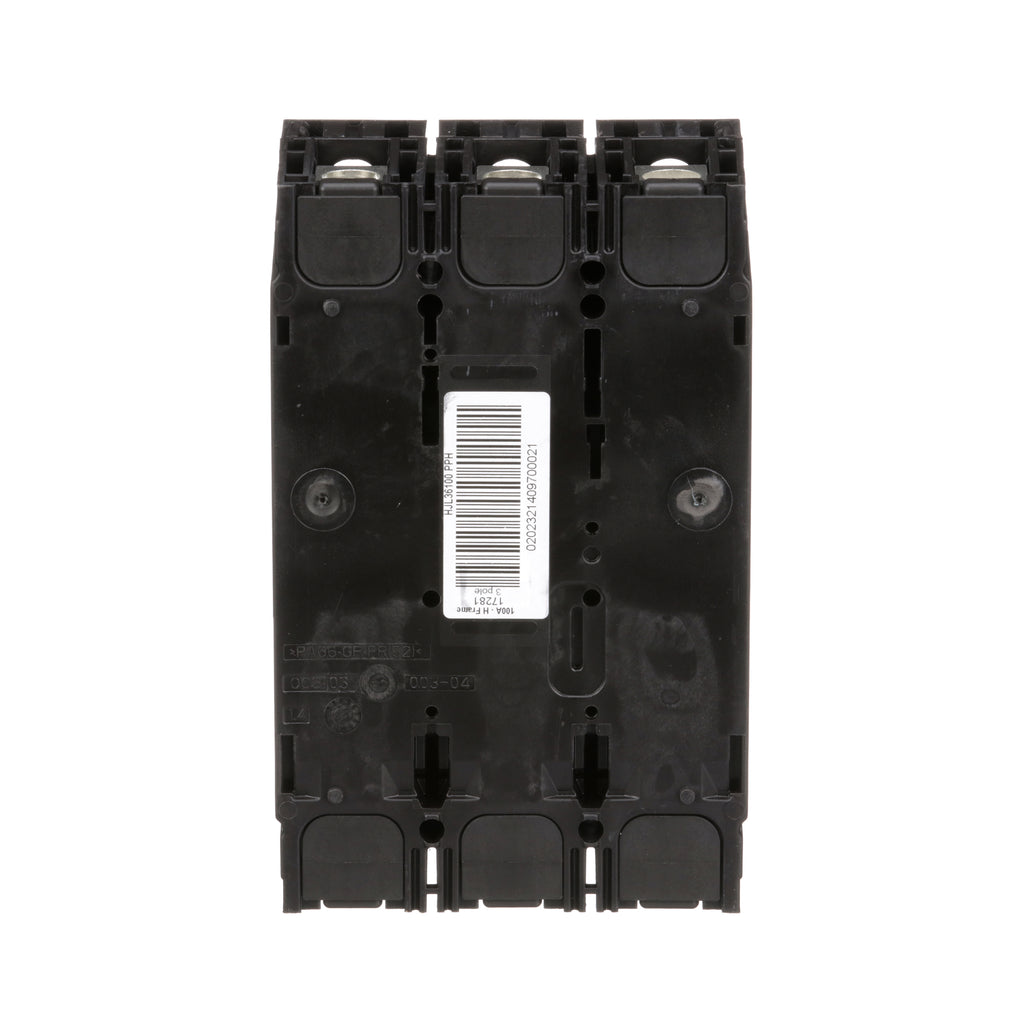

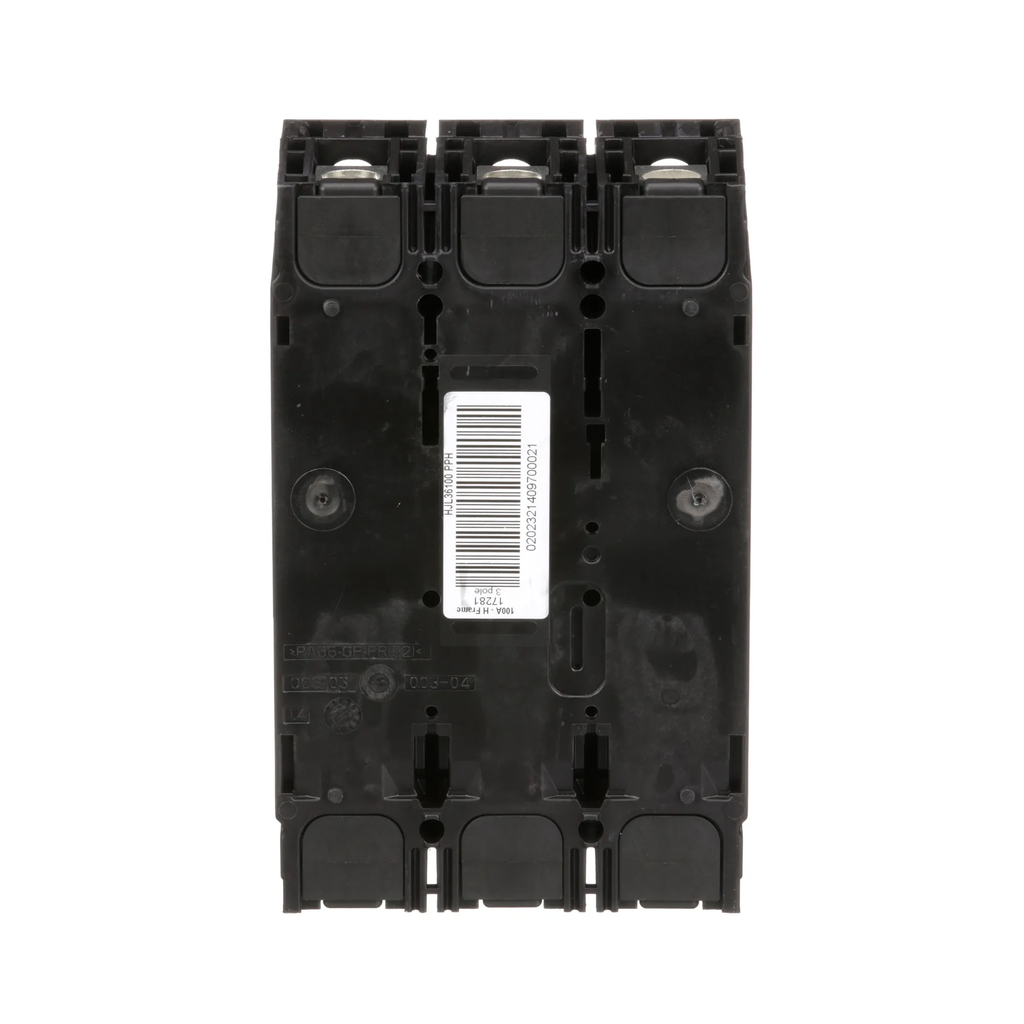

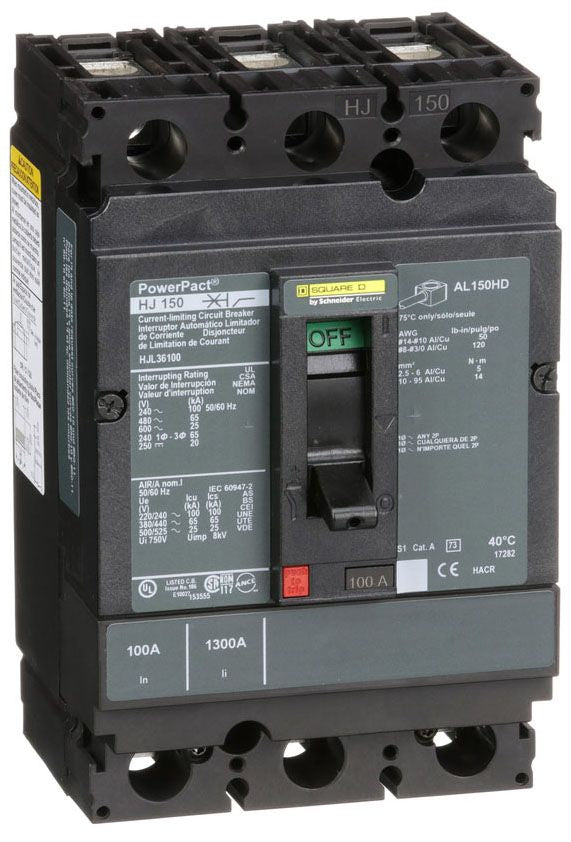

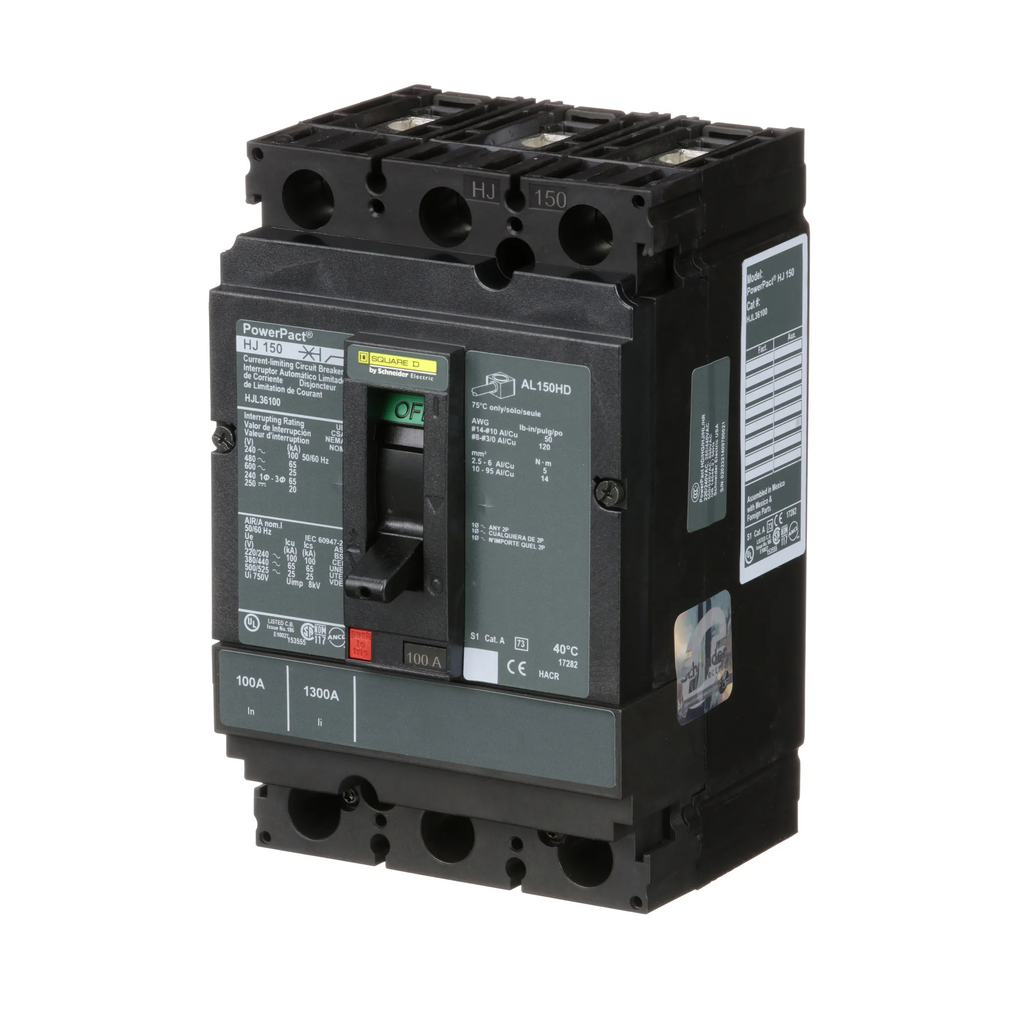

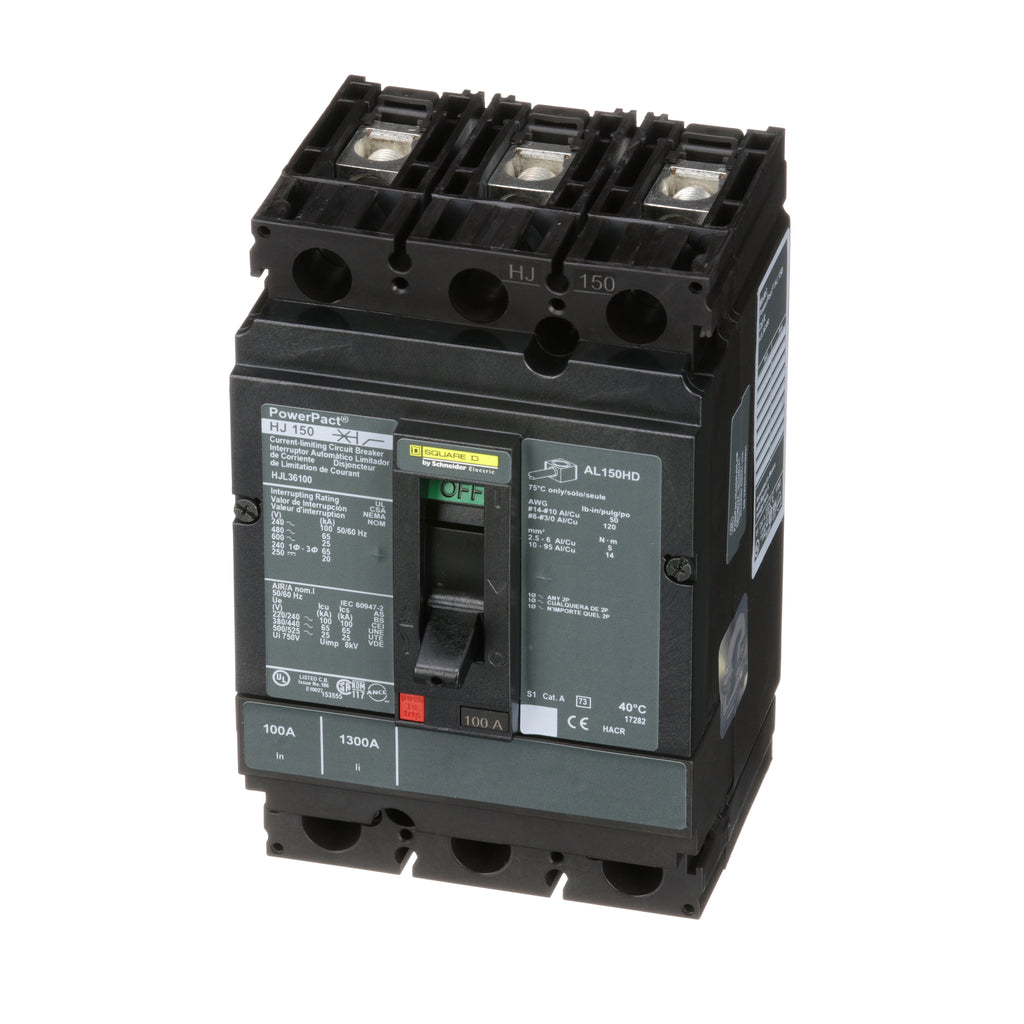

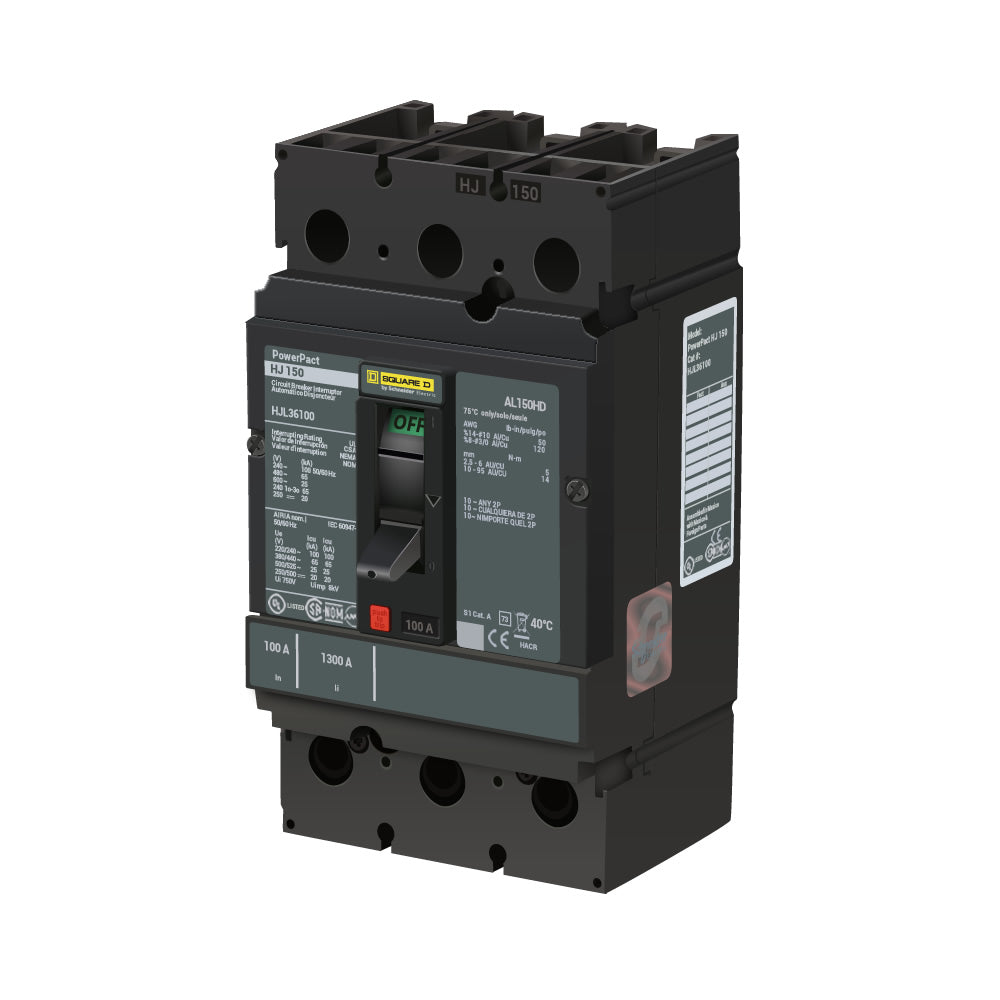

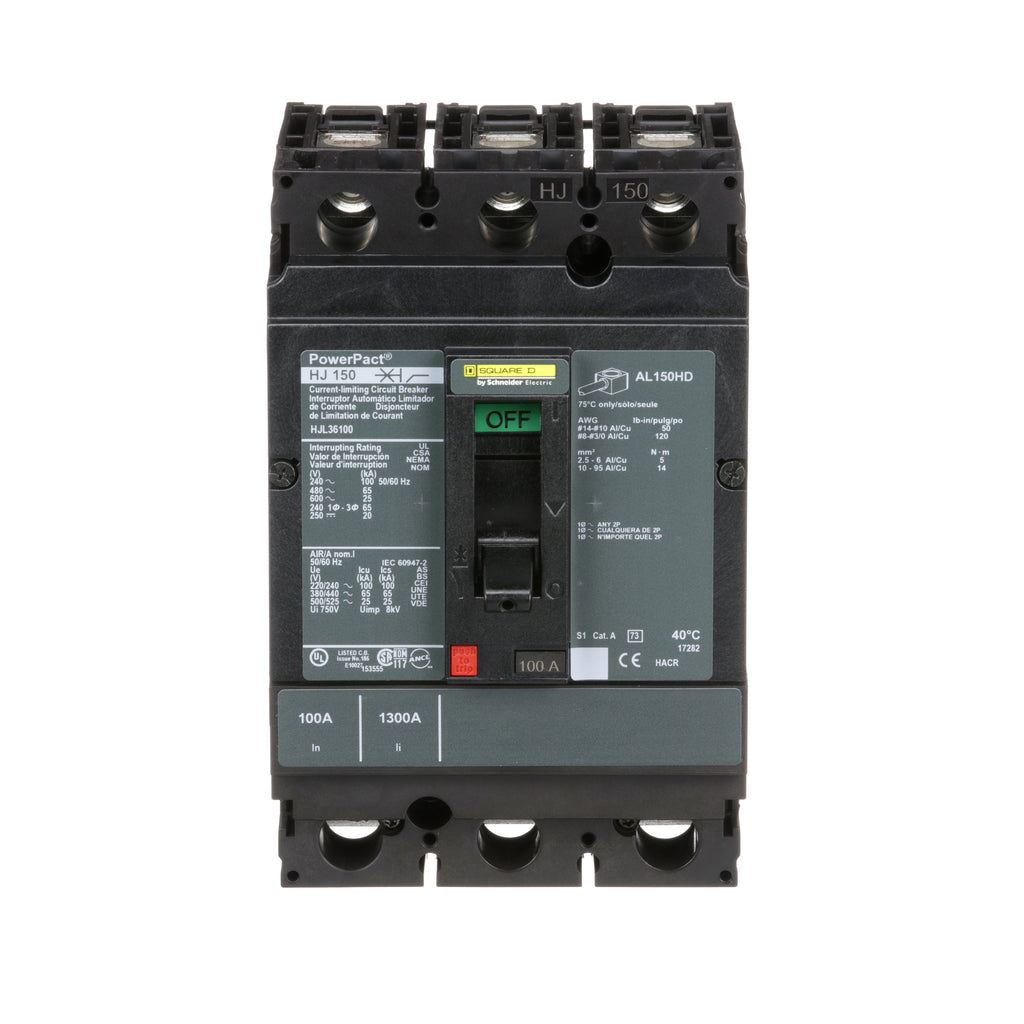

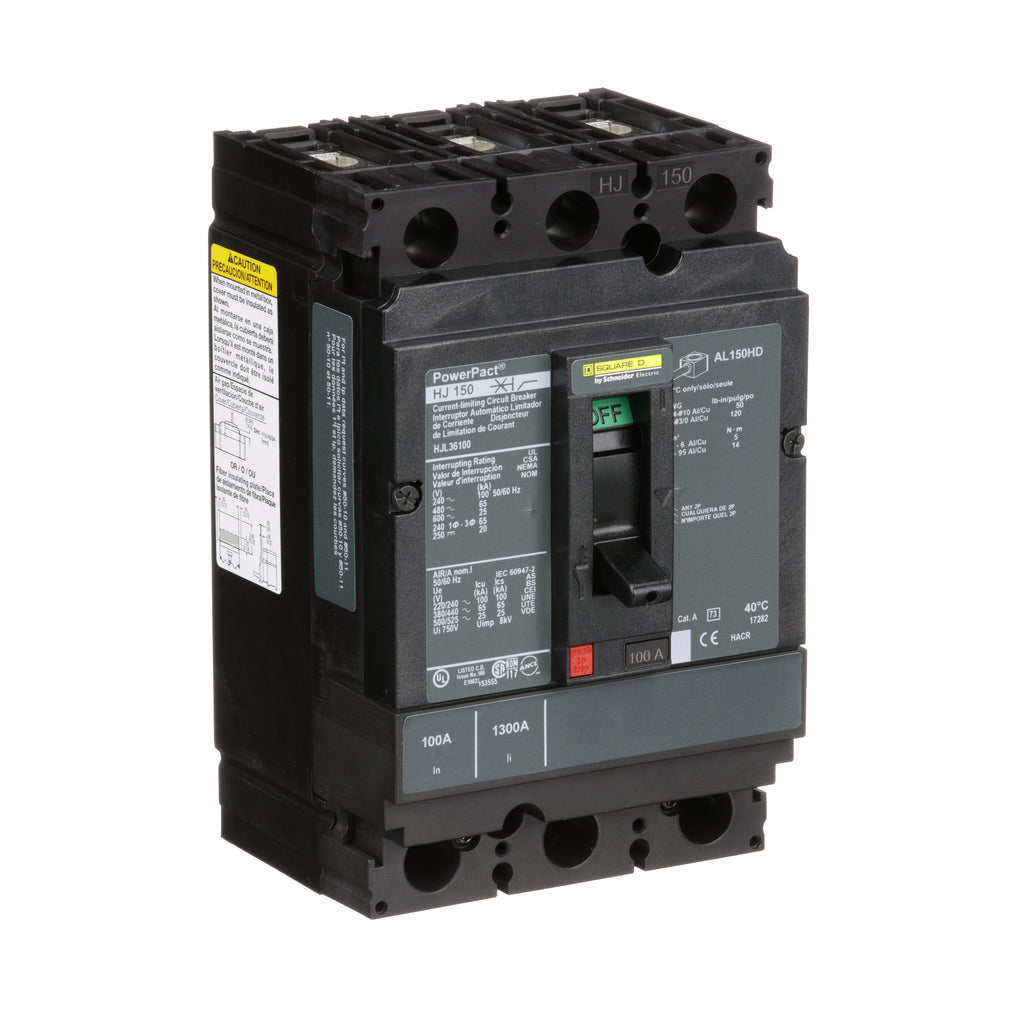

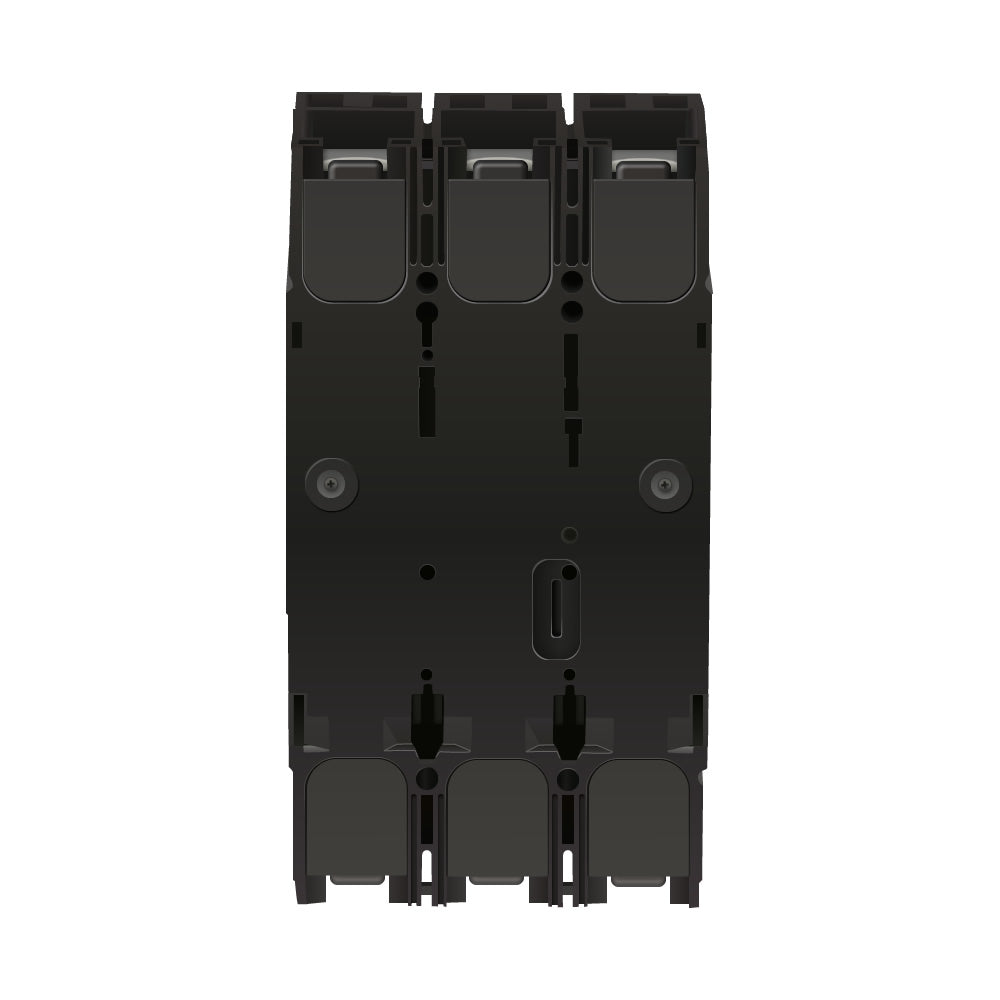

HJL36100 is a Square D 100 Amp, 600V, 3 Pole molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic, current limiting circuit breaker features a robust H frame, feed-thru mounting, and is suitable for both line and load connections. It is UL 489 listed, ensuring compliance with safety standards for molded case circuit breakers.

Key Specifications
• Part Number: HJL36100
• Manufacturer: Square D
• Amperage: 100 Amp
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupt Rating: 65kA @ 480V AC, 25kA @ 600V AC, 100kA @ 240V AC
• Series/Frame: H Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL 489 Listed
• Configuration: Line + Load Lugs

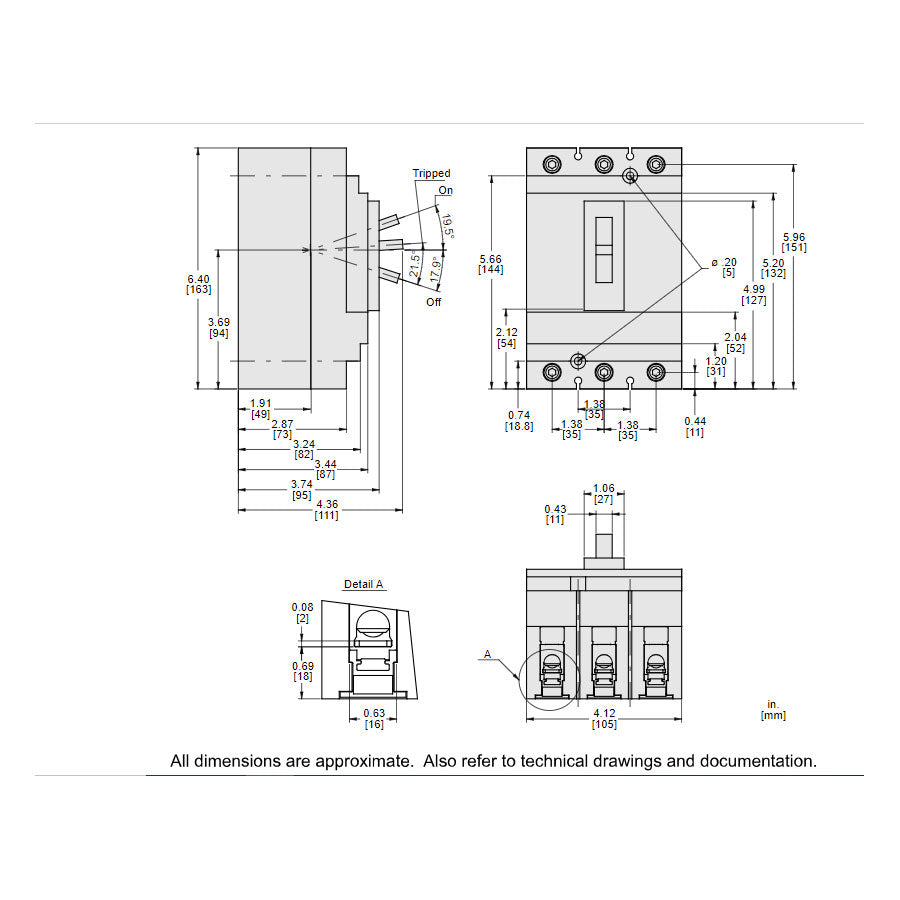

• Dimensions: 4.09" W x 3.39" D x 6.42" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901955962
• GTIN : 00785901955962
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.129
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
