HJL26100 - Square D 100A 2 Pole 600VAC Thermal Magnetic Circuit Breaker H Frame

HJL26100

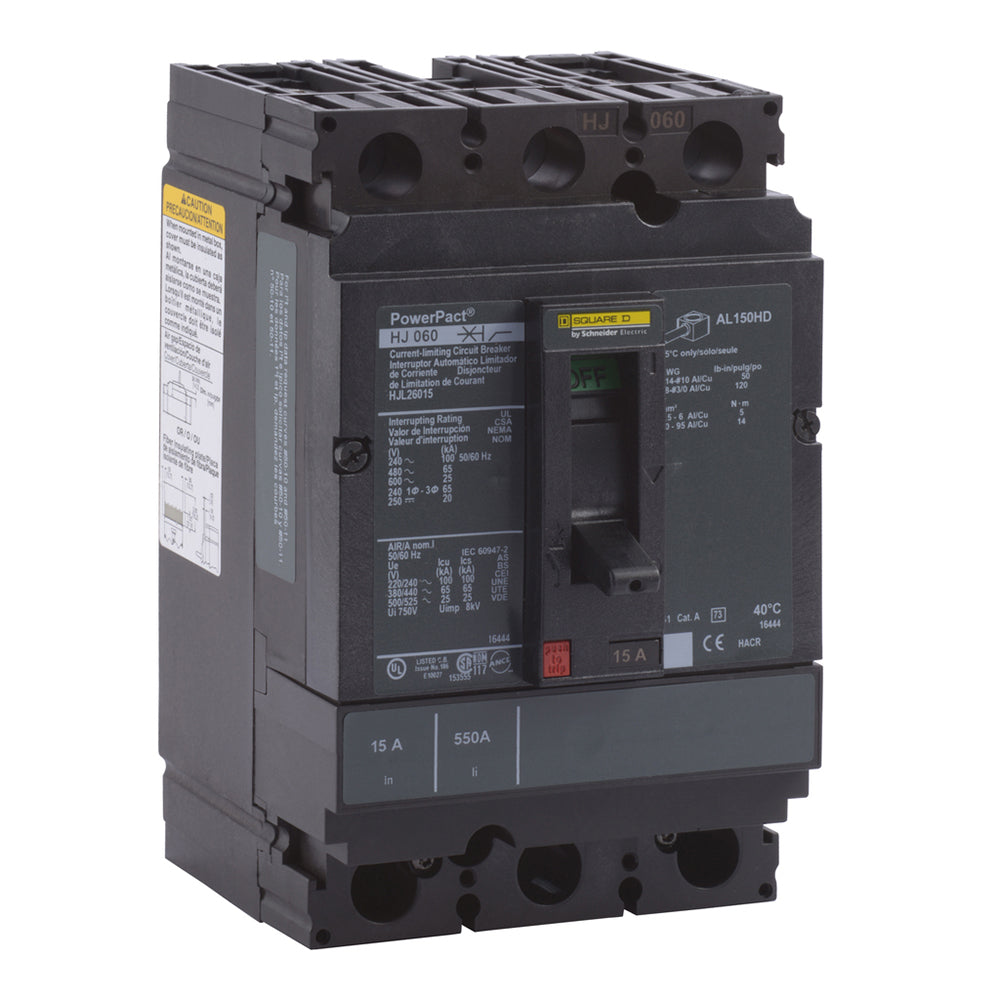

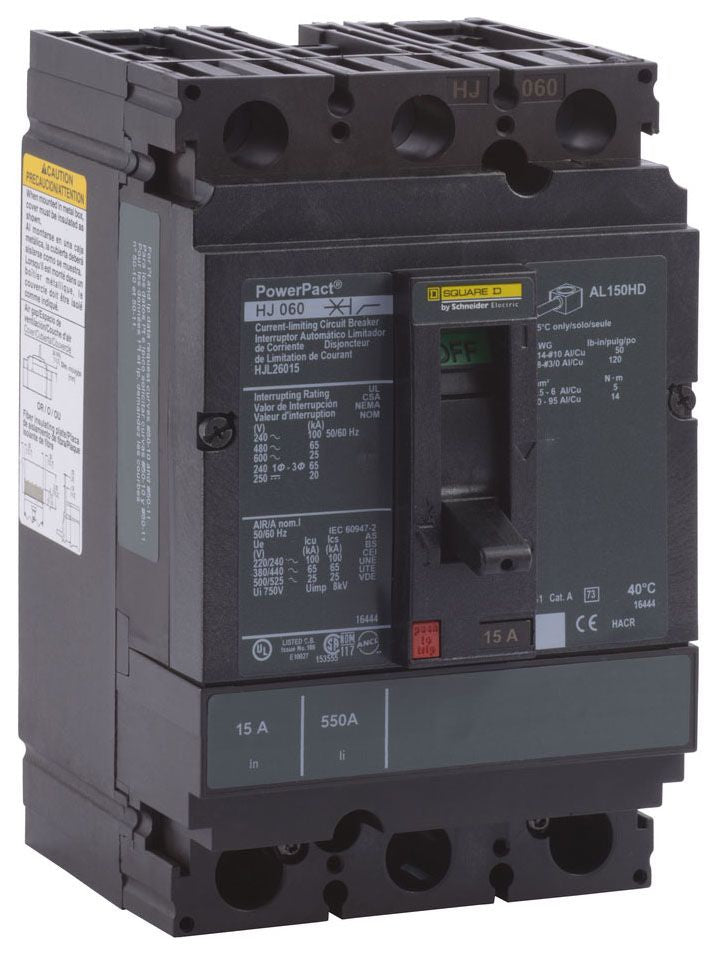

HJL26100 is a Square D 2 pole thermal magnetic molded case circuit breaker rated for 100 amps and 600VAC/250VDC operation.This circuit breaker features a unit mount design with long time and instantaneous trip functions, providing reliable overload and short circuit protection. It has a high interrupting rating of 100kA at 240VAC, 65kA at 480VAC, and 25kA at 600VAC. The breaker is part of the PowerPact H series with a toggle actuator and line/load side lug terminals supporting wire sizes from 14 AWG to 3/0 AWG aluminum or copper. It meets multiple certifications including UL 489, CSA, NEMA, CE, IEC, and RoHS.

Key Specifications
• Amperage: 100A
• Voltage Rating: 600VAC, 250VDC
• Poles: 2
• Mounting Type: Unit Mount
• Interrupting Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC
• Frame Type: H Frame (PowerPact H)
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Terminal Connection: Line and Load Side Lugs
• Wire Gauge Range: 14 AWG to 3/0 AWG Aluminum/Copper
• Actuator Type: Toggle
• Certifications: UL 489, CSA, NEMA, CE, IEC, RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL26100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901706656
• GTIN : 00785901706656
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.957
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
