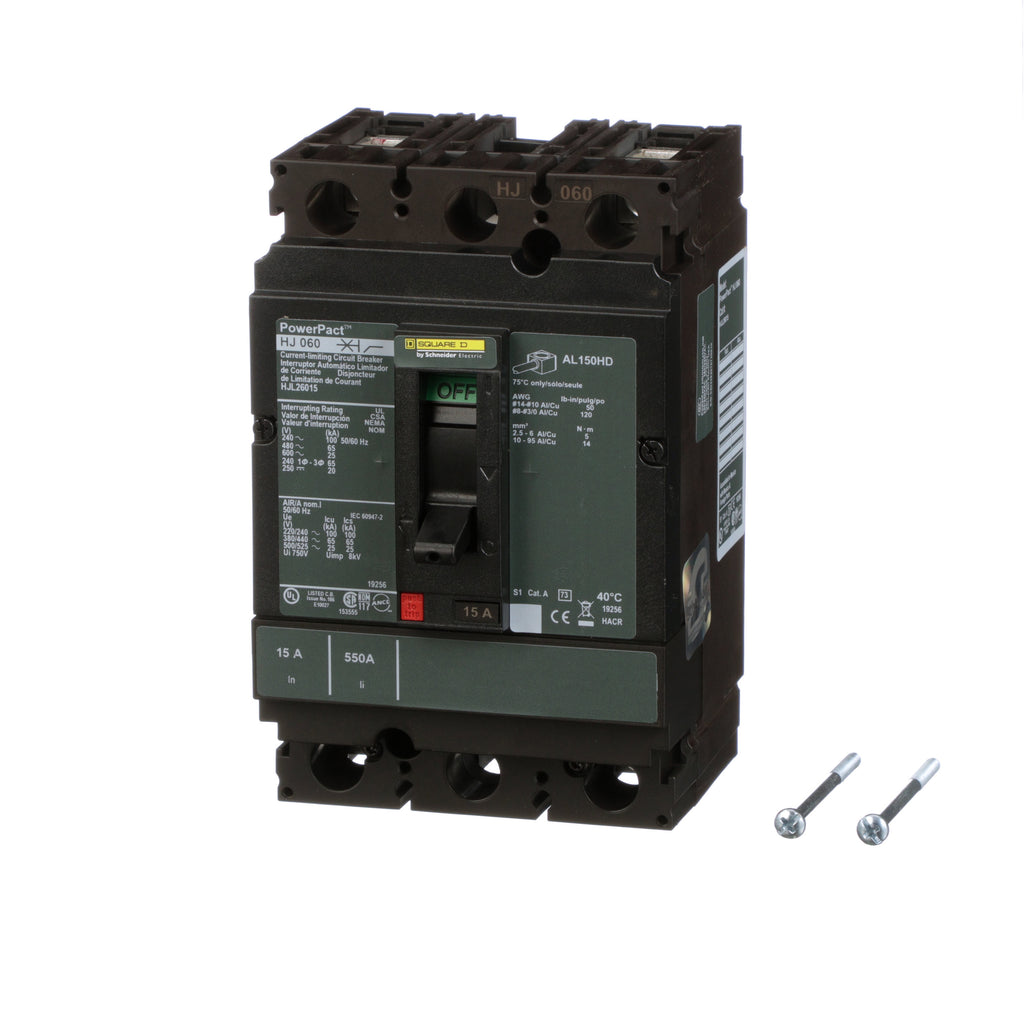

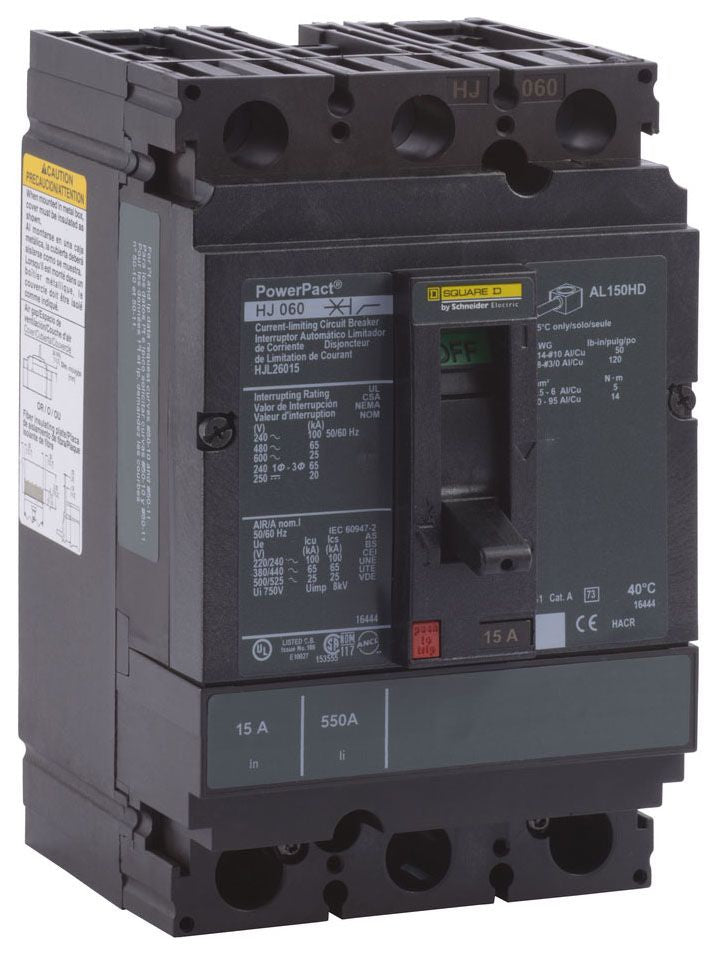

HJL26015 - Square D PowerPacT H-Frame 15A 2-Pole Molded Case Circuit Breaker 600VAC 25kA Interrupt Rating

HJL26015

HJL26015 is a Square D PowerPacT H-Frame molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This 15A, 2-pole breaker features a thermal magnetic trip unit and is rated for up to 600VAC or 250VDC, with an interrupt rating of 25kA at 600VAC. It is UL 489 listed and suitable for unit mount applications. The HJL26015 breaker is built for durability and safety, offering current limiting performance and compatibility with a wide range of wire sizes. Its compact design fits standard enclosures and panels, making it ideal for new installations or upgrades.

• Part Number: HJL26015
• Manufacturer: Square D
• Series/Frame: PowerPacT H-Frame
• Amperage Rating: 15A
• Number of Poles: 2
• Voltage Rating: 600VAC / 250VDC
• Interrupt Rating: 25kA at 600VAC
• Mounting Type: Unit Mount
• Trip Unit: Thermal Magnetic
• Frequency Rating: 50/60 Hz
• Certifications: UL 489 Listed
• Wire Size: 14 to 3/0 AWG Al/Cu

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL26015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 78590183943
• GTIN : 00785901839439
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
