HJD3200 - Cutler Hammer 200A 600V 3-Pole Molded Case Circuit Breaker Feed-Thru Mounting

HJD3200

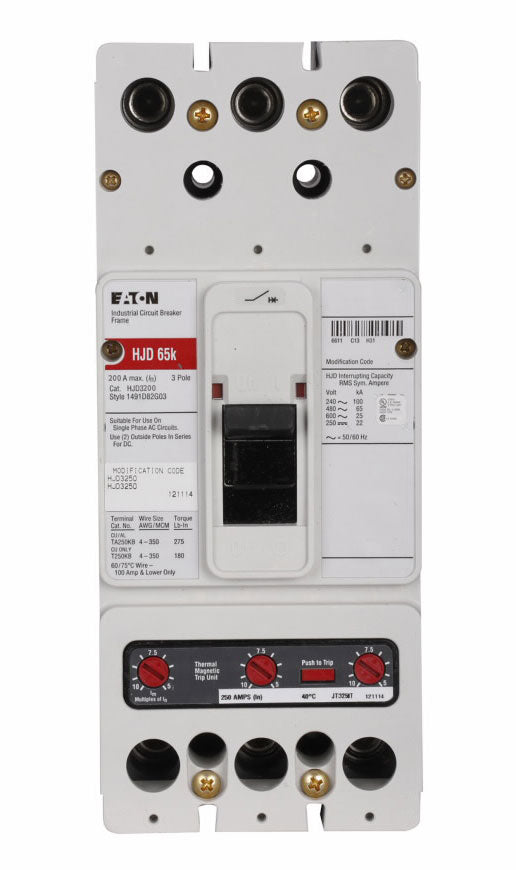

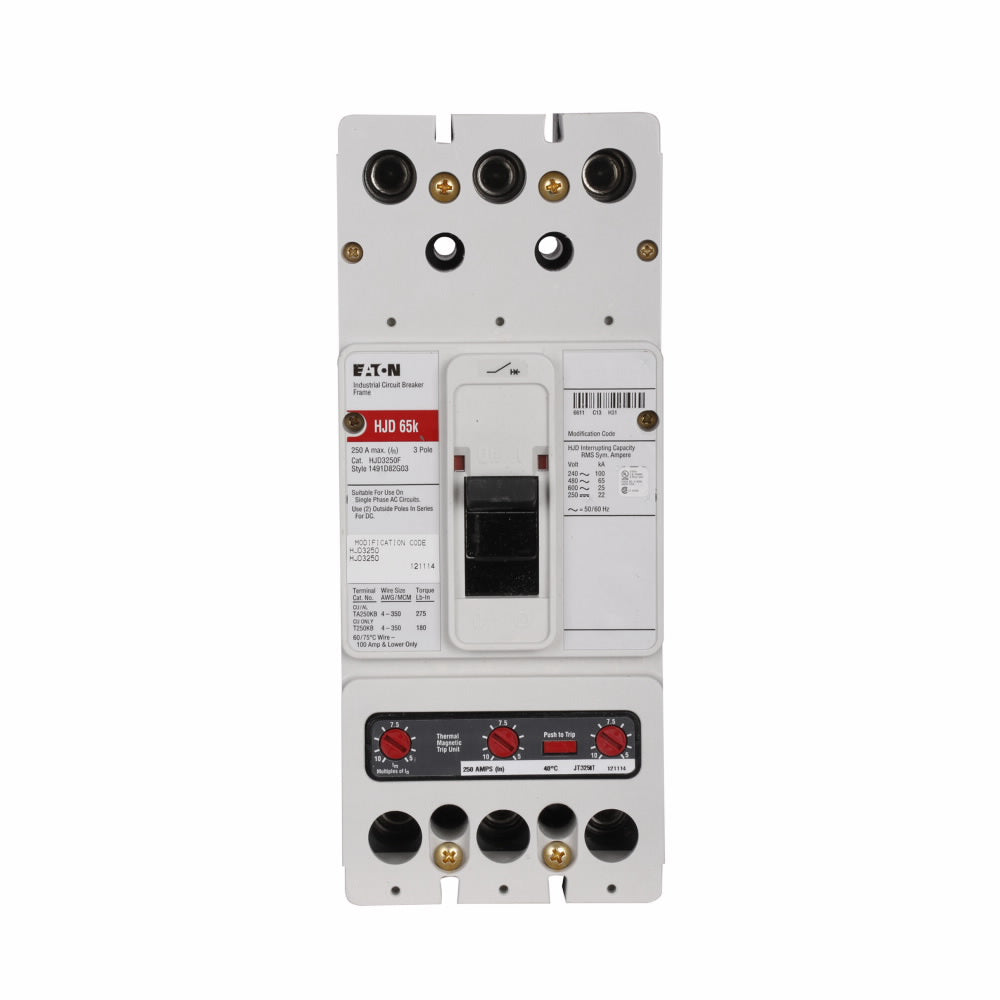

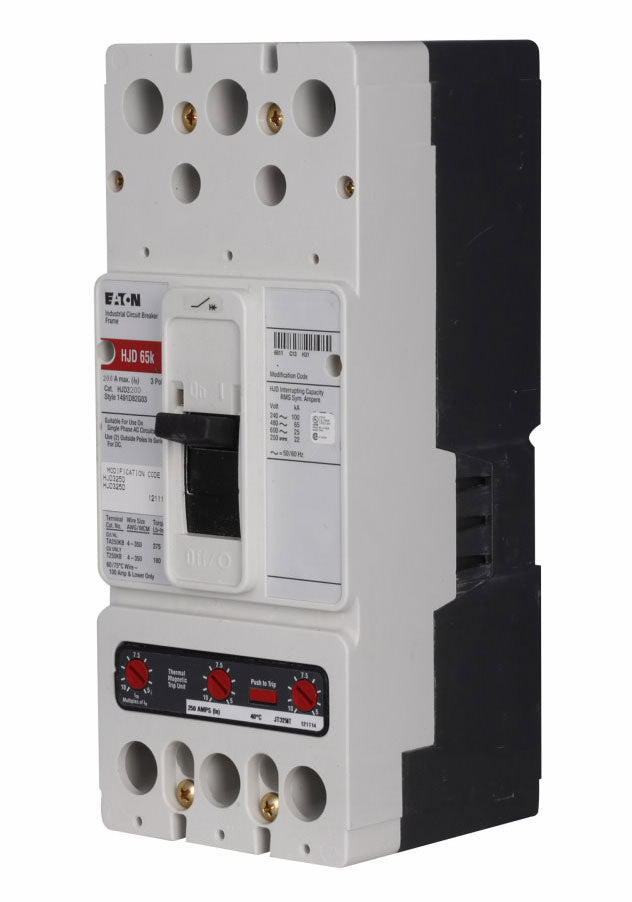

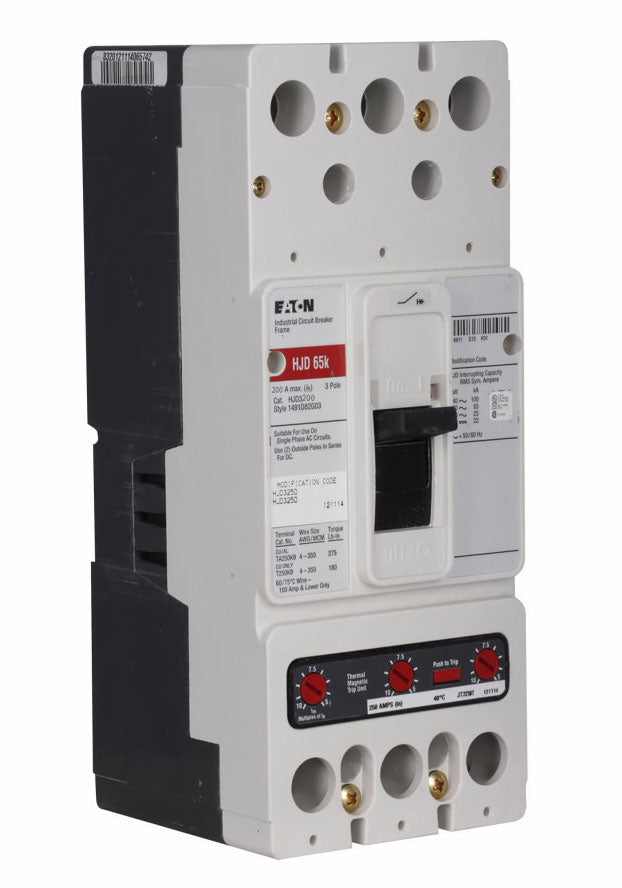

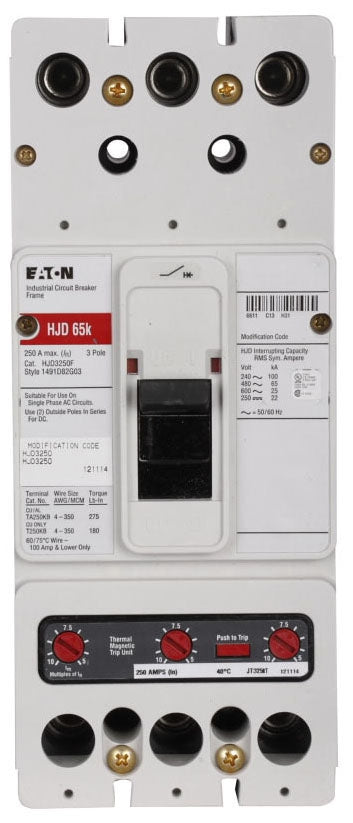

HJD3200 is a Cutler Hammer molded case circuit breaker with 200 amperes, 600 volts, and 3 poles designed for feed-thru mounting.This Eaton Cutler Hammer Series C, J-frame circuit breaker features a thermal magnetic trip unit with LI (Long-Time and Instantaneous) trip functions. It has a high interrupting capacity of 65kA at 480V, supports 3-phase power, and includes line and load side lug terminals. The breaker is rated for 600 VAC and 250 VDC operation and is designed for industrial and commercial power distribution applications.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Part Number: HJD3200
• Frame Type: HJD (J-frame)
• Amperage: 200 A
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupting Rating: 65kA @ 480V
• Trip Unit: Thermal Magnetic with LI functions
• Phase: 3
• Connection: Line and Load Side Lug Terminals
• Weight: Approx. 8.5 to 12.5 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HJD3200
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HJD
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/J
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 350 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 786679411841
• GTIN : 00786679411841
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 12.5
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
