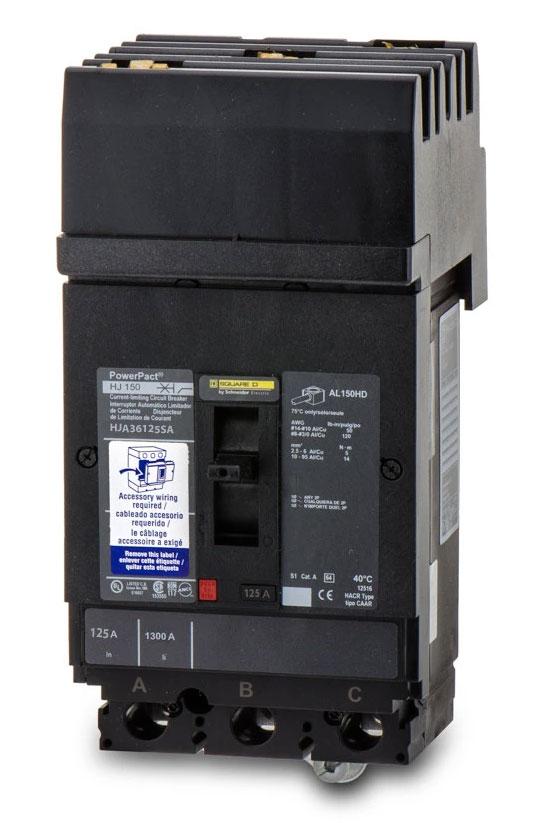

HJA36125SA - Square D PowerPact H 125A 3P 600V I-Line Thermal Magnetic Circuit Breaker with Shunt Trip

HJA36125SA

HJA36125SA is a Square D PowerPact H series 125A 3-pole I-Line plug-in molded case circuit breaker with thermal magnetic trip and shunt trip feature, designed for reliable power distribution in commercial and industrial applications. This circuit breaker features a 600V AC maximum voltage rating, 125A continuous current, and is suitable for I-Line panelboards and switchboards. It includes a shunt trip for remote operation, non-interchangeable trip unit, and is UL listed for safety and compliance. The breaker is rated for reverse fed applications and offers high interrupting capacity for robust protection.

• Manufacturer: Square D
• Series: PowerPact H
• Amperage: 125A
• Poles: 3
• Maximum Voltage: 600V AC
• Mounting Type: I-Line plug-in
• Interrupt Rating: 65kA @ 480V, 25kA @ 600V
• Trip Unit: Thermal Magnetic with Shunt Trip
• Standards: UL 489, CSA
• Application: Power Distribution, Panelboards, Switchboards
• Features: Non-interchangeable trip, Reverse fed compatible
• Phase: ABC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120Vac shunt trip

Specifications

• Part Number: HJA36125SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901429081
• GTIN : 00785901429081
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
