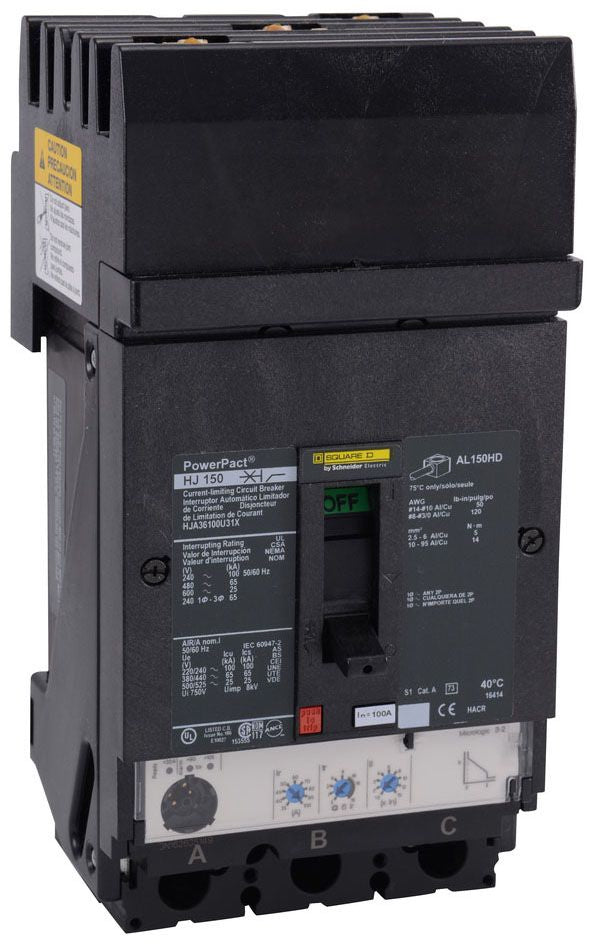

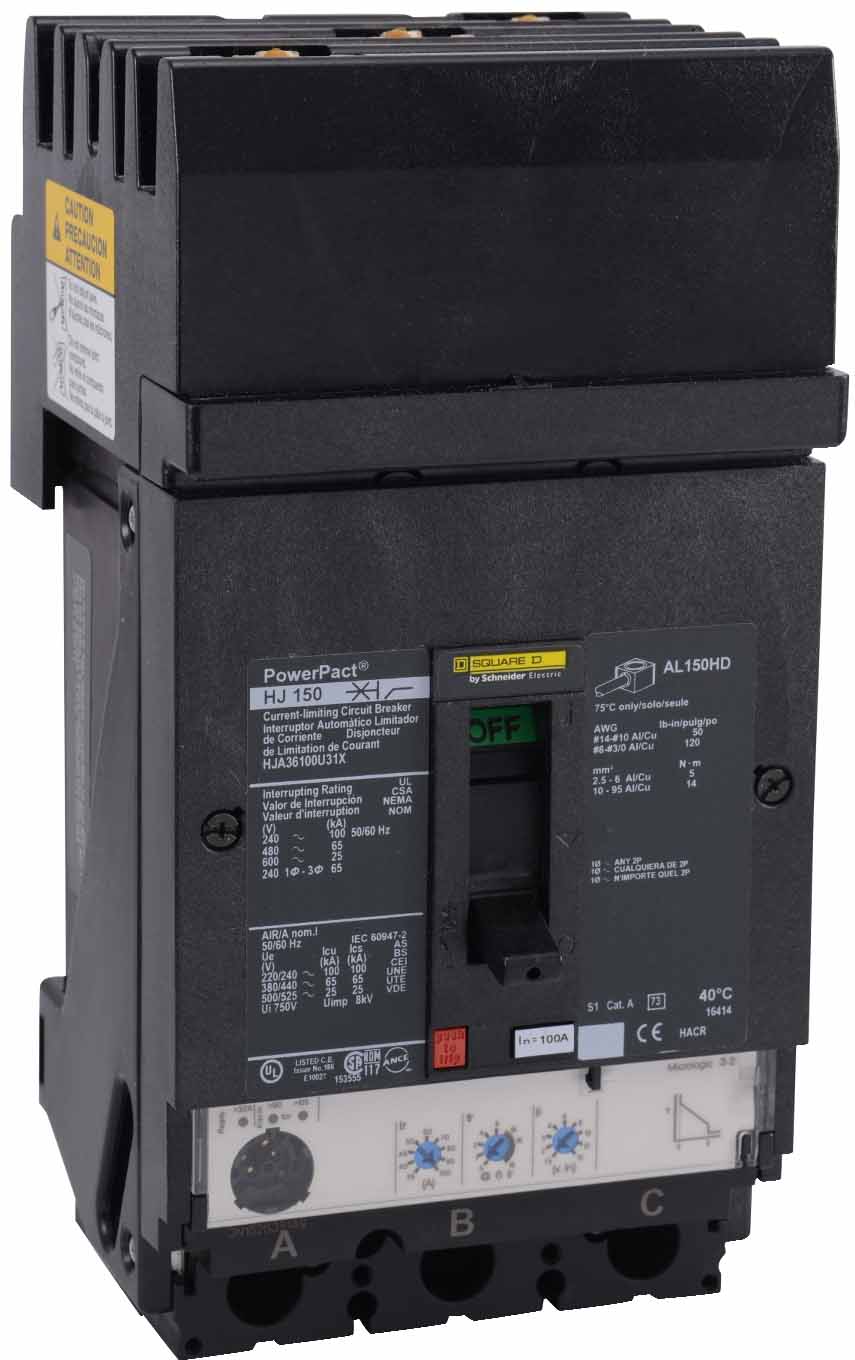

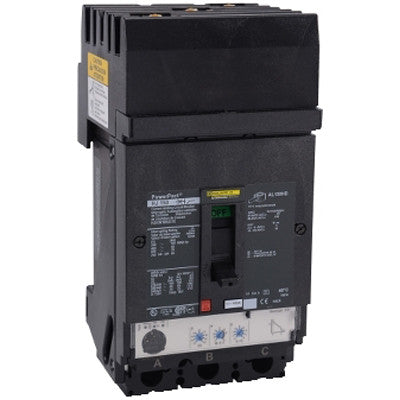

HJA36100U31X - Square D 100A 3-Pole 600V PowerPact H Frame I-Line Circuit Breaker with Micrologic 3.2 Trip Unit

HJA36100U31X

HJA36100U31X is a Square D PowerPact H Frame molded case circuit breaker featuring a 100 Amp rating, 3 poles, and 600 Volt maximum voltage with I-Line mounting.This circuit breaker includes a Micrologic 3.2 electronic trip unit with LI function, providing current limiting protection and a 25kA interrupt rating at 600 VAC. It is UL 489 listed and suitable for use in industrial and commercial power distribution applications. The breaker supports 80% continuous current rating and is designed for I-Line panelboard mounting.

• Amperage: 100 Amp
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: PowerPact H
• Mounting Type: I-Line
• Trip Unit: Micrologic 3.2 Electronic, LI
• Interrupt Rating: 25kA @ 600V, 65kA @ 480V, 100kA @ 240V
• UL Listing: UL 489
• Continuous Current Rating: 80%
• Phase: ABC
• Manufacturer: Square D (Schneider Electric)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA36100U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901508786
• GTIN : 00785901508786
• Country of Origin : Mexico

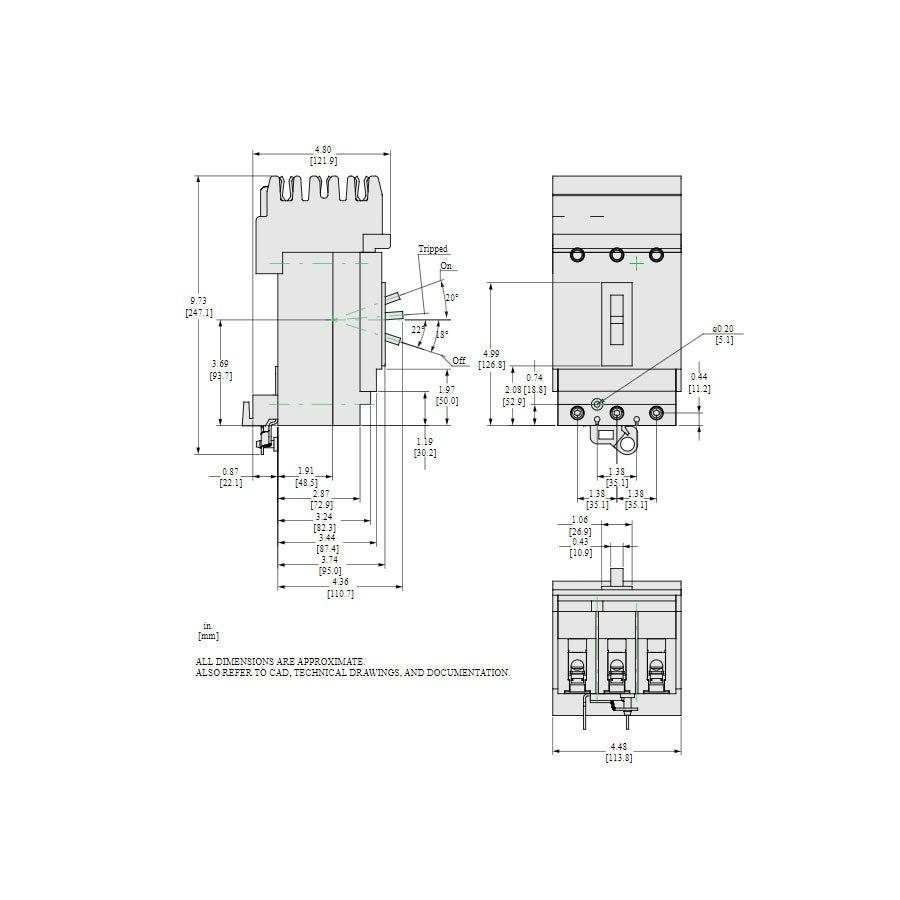

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.809
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
