HHFXD63B100 - Siemens 100A 600V 3-Pole Molded Case Circuit Breaker, FD Frame, Non-Interchangeable Trip, 100kAIC @ 480V, 25kAIC @ 600V

HHFXD63B100

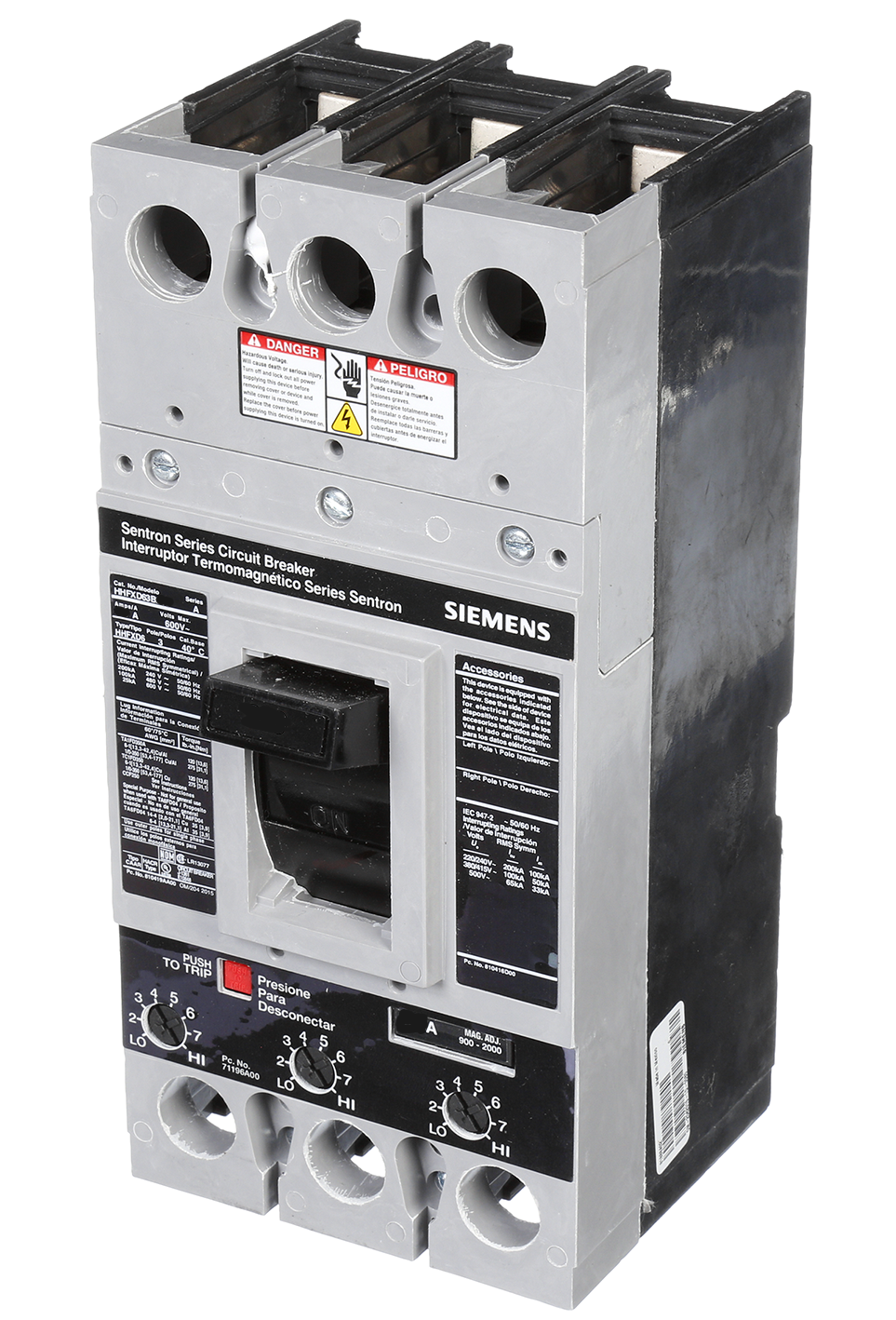

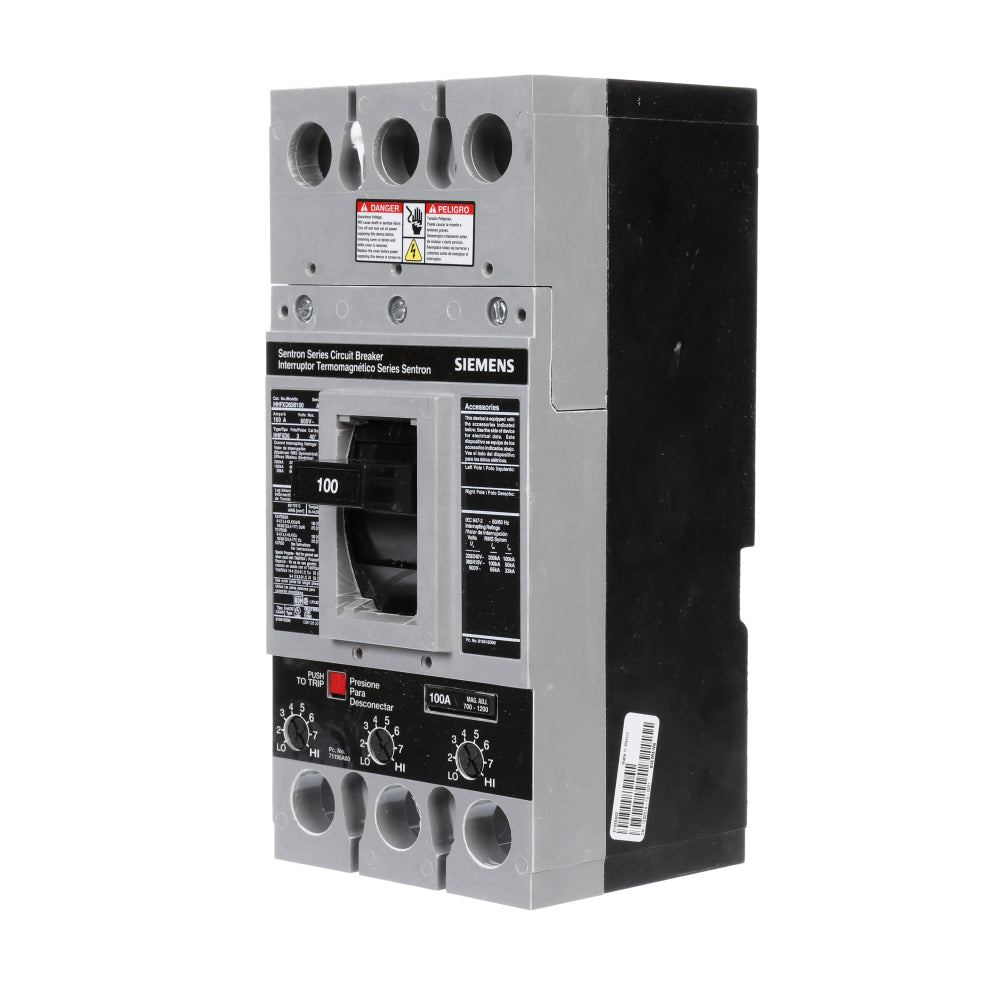

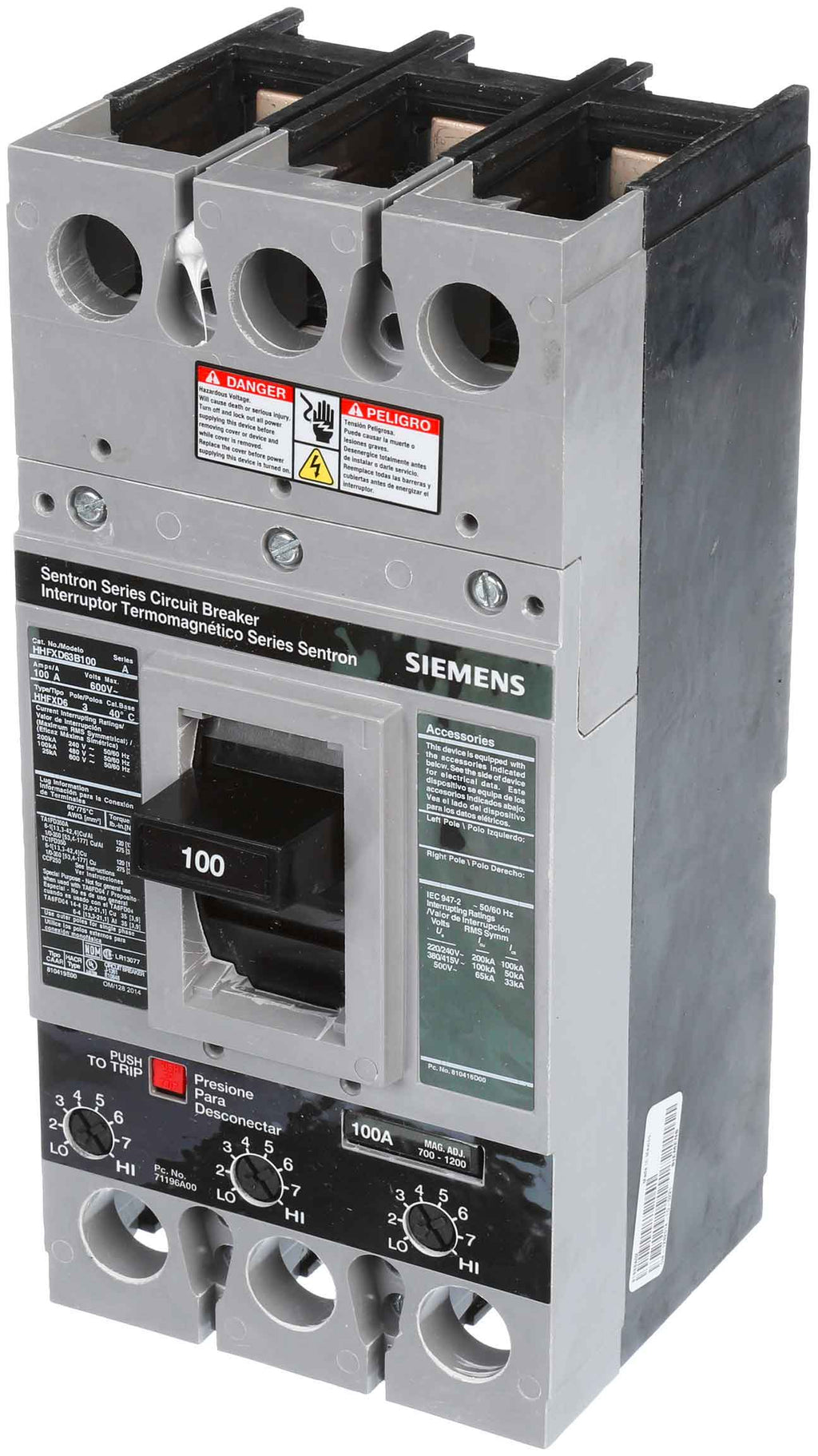

HHFXD63B100 is a Siemens Sentron Series molded case circuit breaker designed for reliable power distribution and protection in commercial and industrial applications.

This 3-pole breaker features a 100A amperage rating, 600V AC voltage rating, and is part of the FD frame series with extra high breaking capacity. It comes with a non-interchangeable trip unit, is assembled standard for 40°C environments, and is suitable for panel or switchboard mounting. The HHFXD63B100 offers an interrupting rating of 100kAIC at 480V AC and 25kAIC at 600V AC, ensuring robust protection for your electrical system.

Key Specifications
• Part Number: HHFXD63B100
• Manufacturer: Siemens
• Series/Frame: Sentron FD Frame
• Amperage: 100A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Panel or switchboard
• Interrupt Rating: 100kAIC @ 480V AC, 25kAIC @ 600V AC
• Trip Unit: Non-interchangeable
• Breaking Capacity: Extra high
• Certifications: Not specified in available data

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: HHFXD63B100
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHFXD
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643318564
• GTIN : 00783643318564
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 7.5
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
