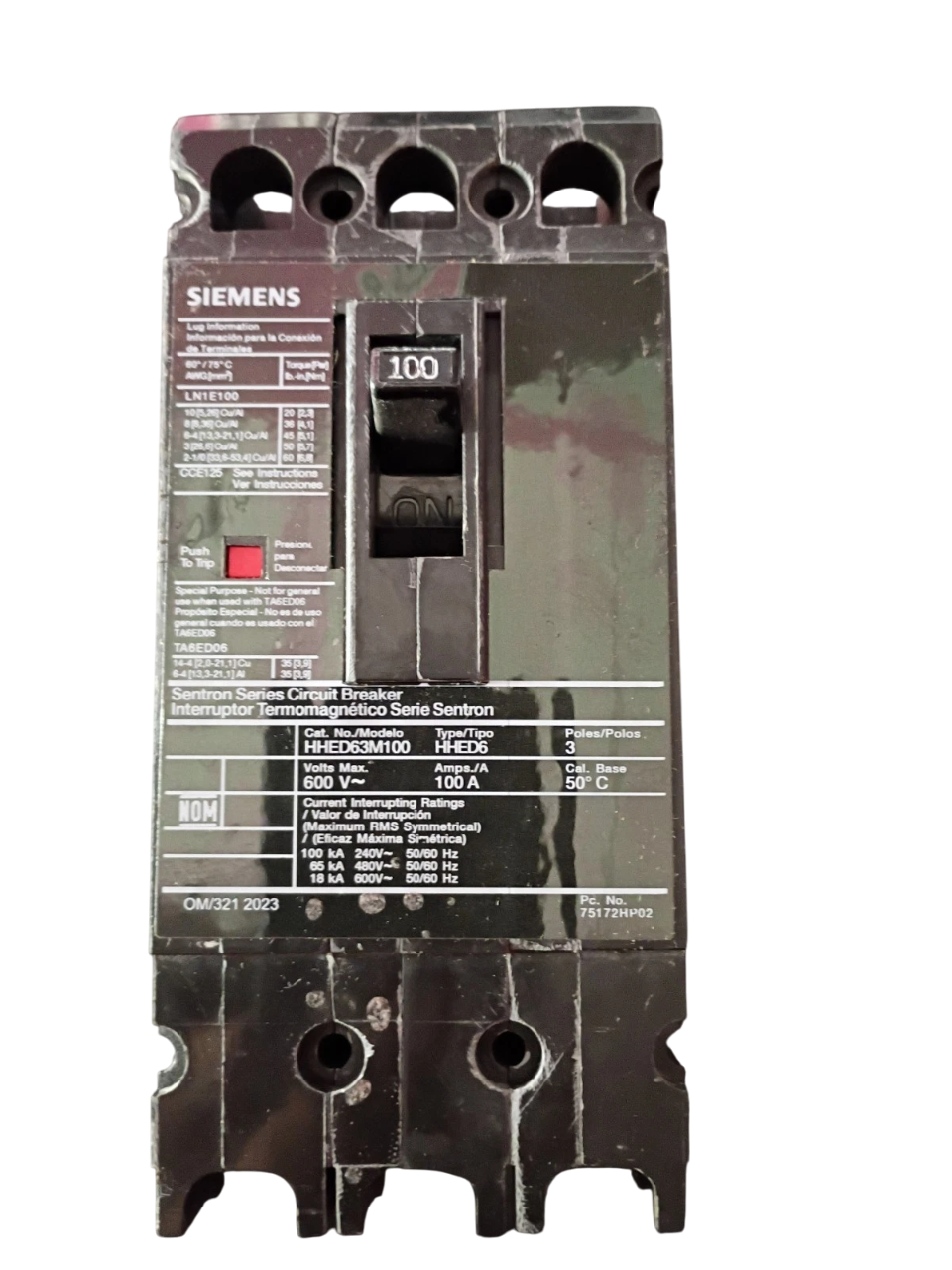

HHED63B100 - Siemens 100A 600V 3-Pole ED Frame Molded Case Circuit Breaker Thermal Magnetic Trip

HHED63B100

HHED63B100 is a Siemens 100 amp, 600 volt, 3-pole molded case circuit breaker with thermal magnetic trip unit designed for low voltage applications.This Siemens Sentron Series ED frame breaker features a bolt-on mounting type, 18 kA interrupt rating at 600 VAC, and is UL 489 and IEC 60947-2 certified. It supports 3-phase systems with a wire range of 10 to 1/0 AWG copper or aluminum. The breaker operates at 50/60 Hz frequency and is rated for 40°C ambient temperature.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame Type: ED
• Interrupt Rating: 18 kA at 600 VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Wire Size Range: 10 to 1/0 AWG (Cu/Al)
• Frequency: 50/60 Hz
• Phase: 3
• Certifications: UL 489, IEC 60947-2, HACR Rated, CSA Certified
• Operating Temperature: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HHED63B100
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHED
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 783643308145
• GTIN : 00783643209787
• Weight : 7
