HHED63B015L - Siemens 15 Amp 3 Pole 600V Molded Case Circuit Breaker

HHED63B015L

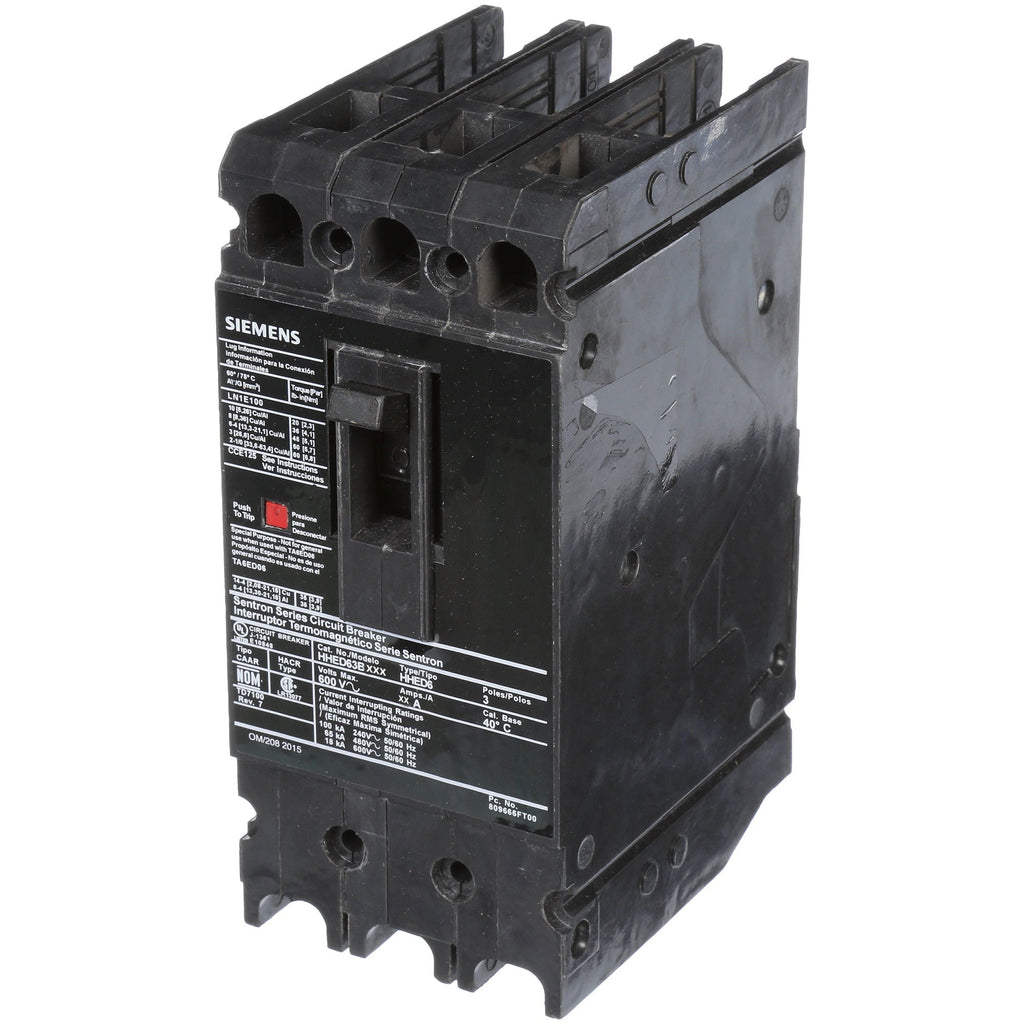

HHED63B015L is a 3-pole molded case circuit breaker from Siemens designed for industrial and commercial power distribution applications. This thermal magnetic circuit breaker provides reliable overcurrent protection with a 15-amp trip rating and 600-volt maximum voltage rating. The unit features a 125-amp frame size and bolt-on mounting configuration, making it suitable for integration into existing electrical panels and switchgear assemblies. With a 65-kiloampere interrupt rating at 480VAC, this breaker delivers robust short-circuit protection for demanding electrical systems. The lug load terminal accommodates wire sizes from 10 AWG to 1/0 AWG, ensuring flexible installation options. Operating at 40 degrees Celsius ambient temperature, the HHED63B015L is part of the Sentron series and utilizes thermal magnetic trip sensing technology for precise fault detection and load protection.

• Amperage Rating: 15 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Size: 125 Amps
• Mounting Type: Bolt-On
• Interrupt Rating: 65 kA at 480 VAC
• Trip Unit: Thermal Magnetic
• Series: Sentron
• Terminal Type: Lug Load
• Wire Size Range: 10 AWG to 1/0 AWG
• Ambient Temperature Rating: 40 Degrees Celsius

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HHED63B015L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHED
• Voltage : 600
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : ED
• Protection : Thermal Magnetic

Product Data

• Weight : 9
