Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HHED63B020

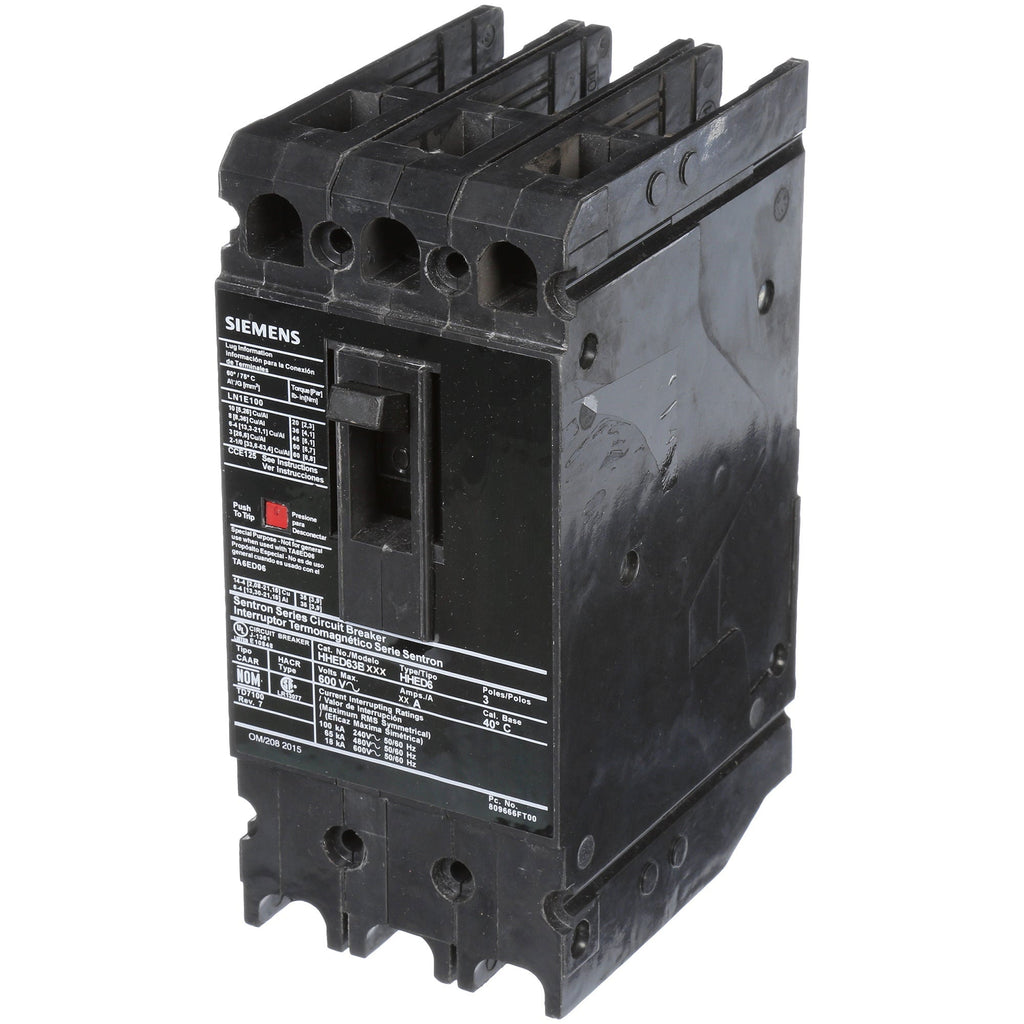

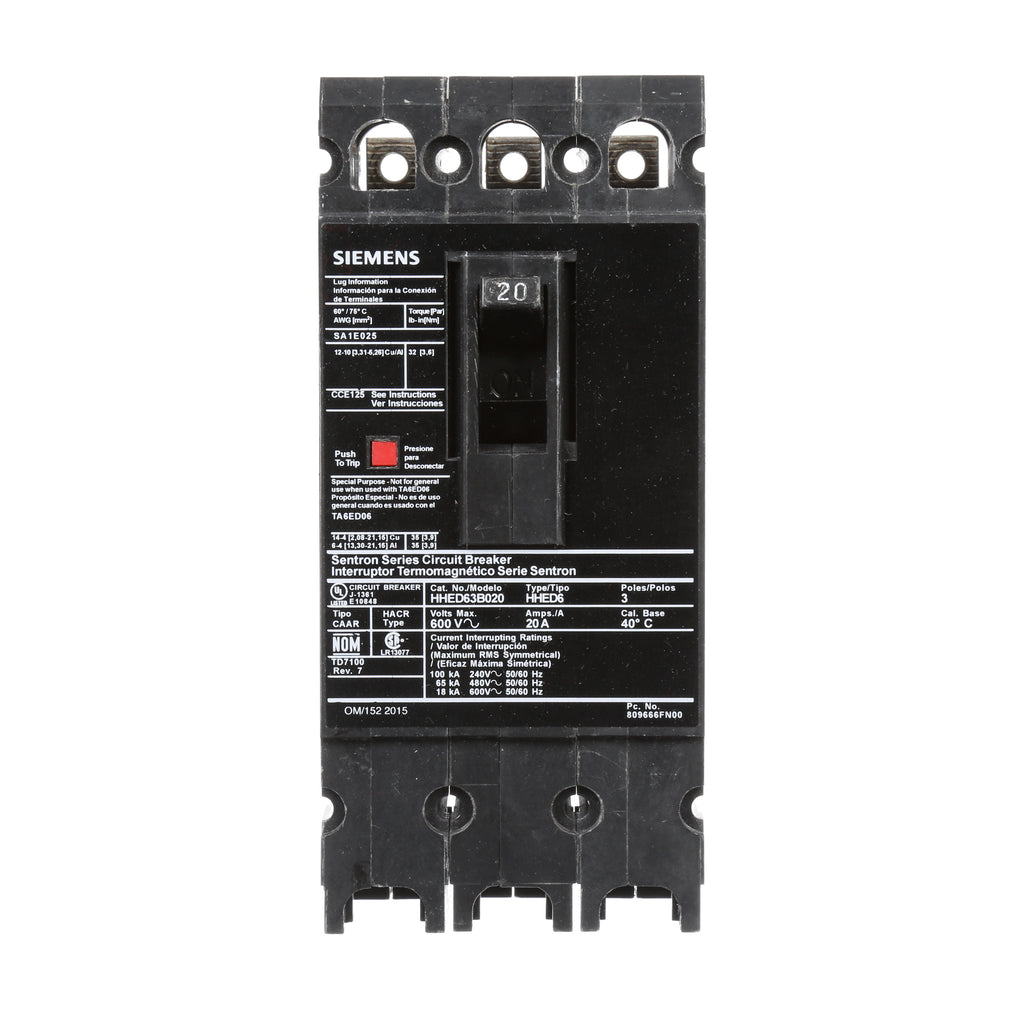

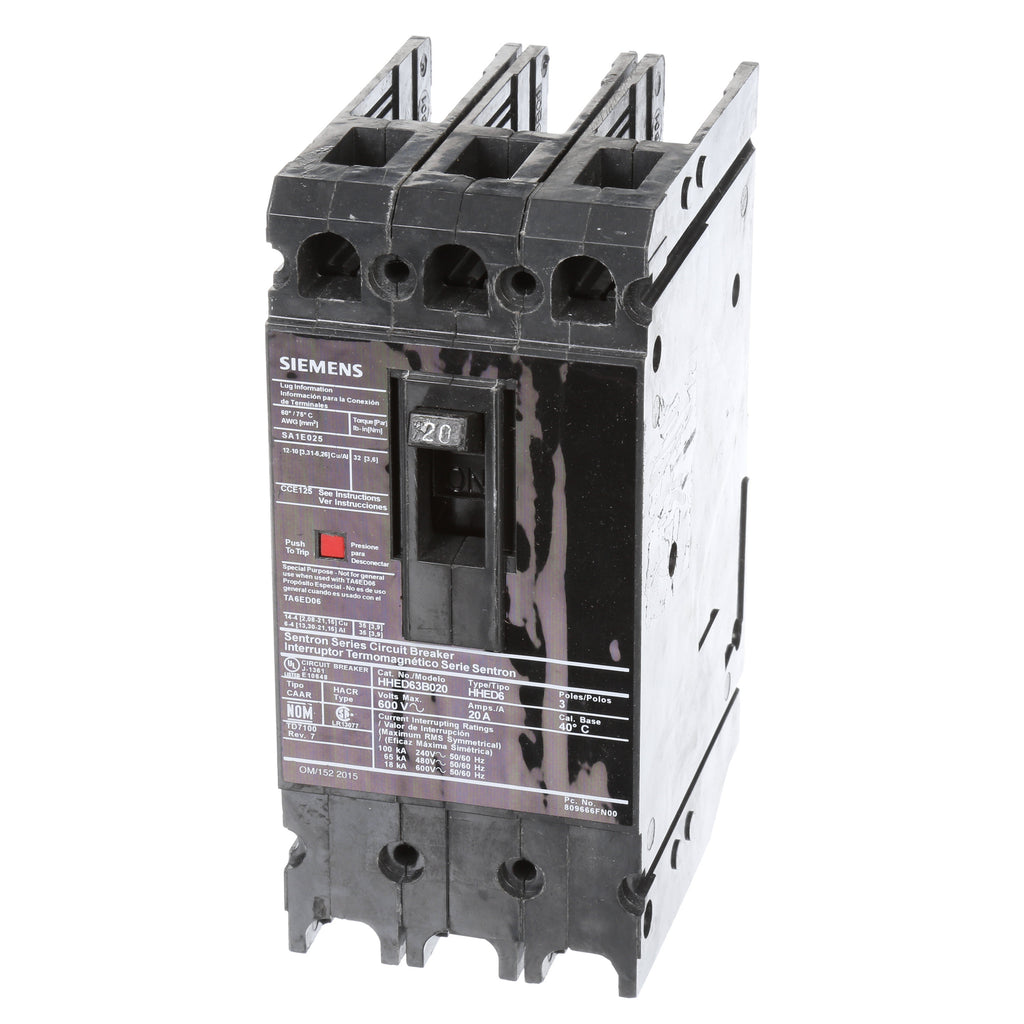

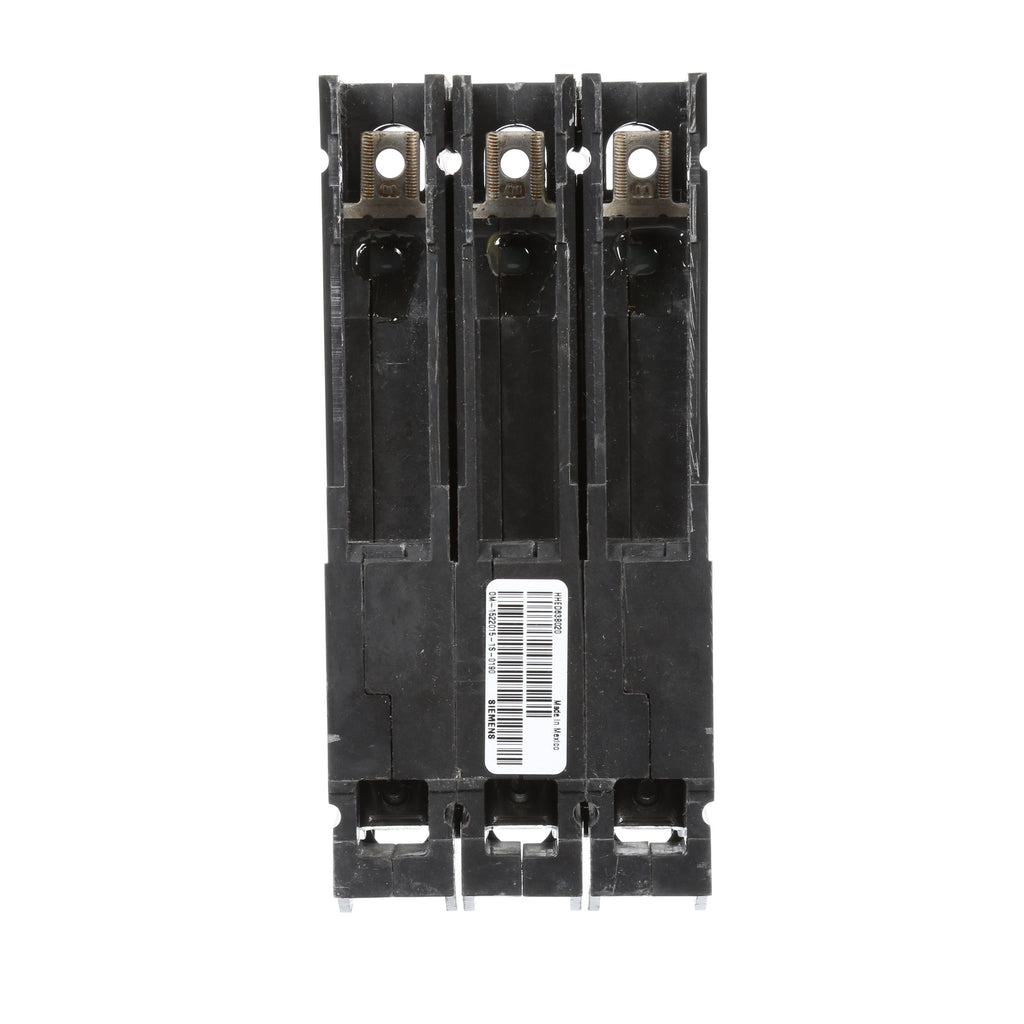

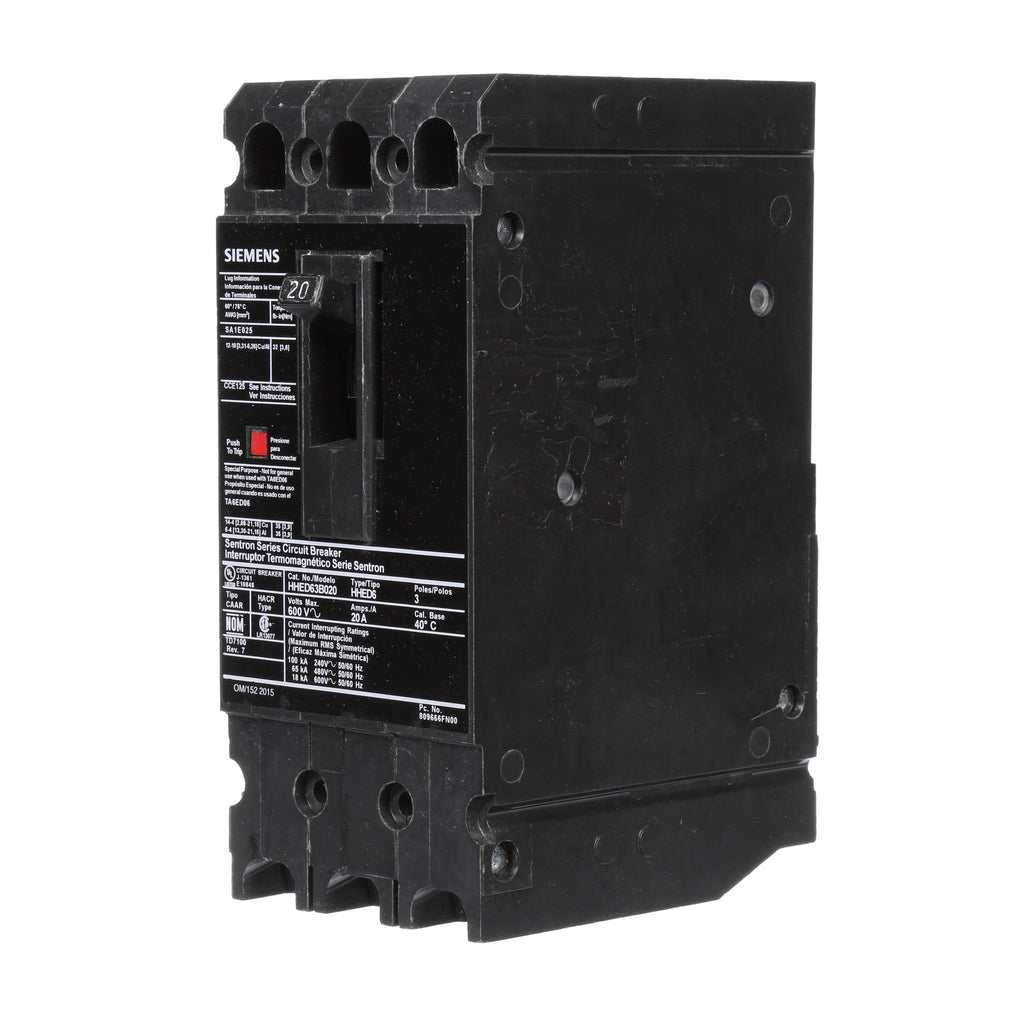

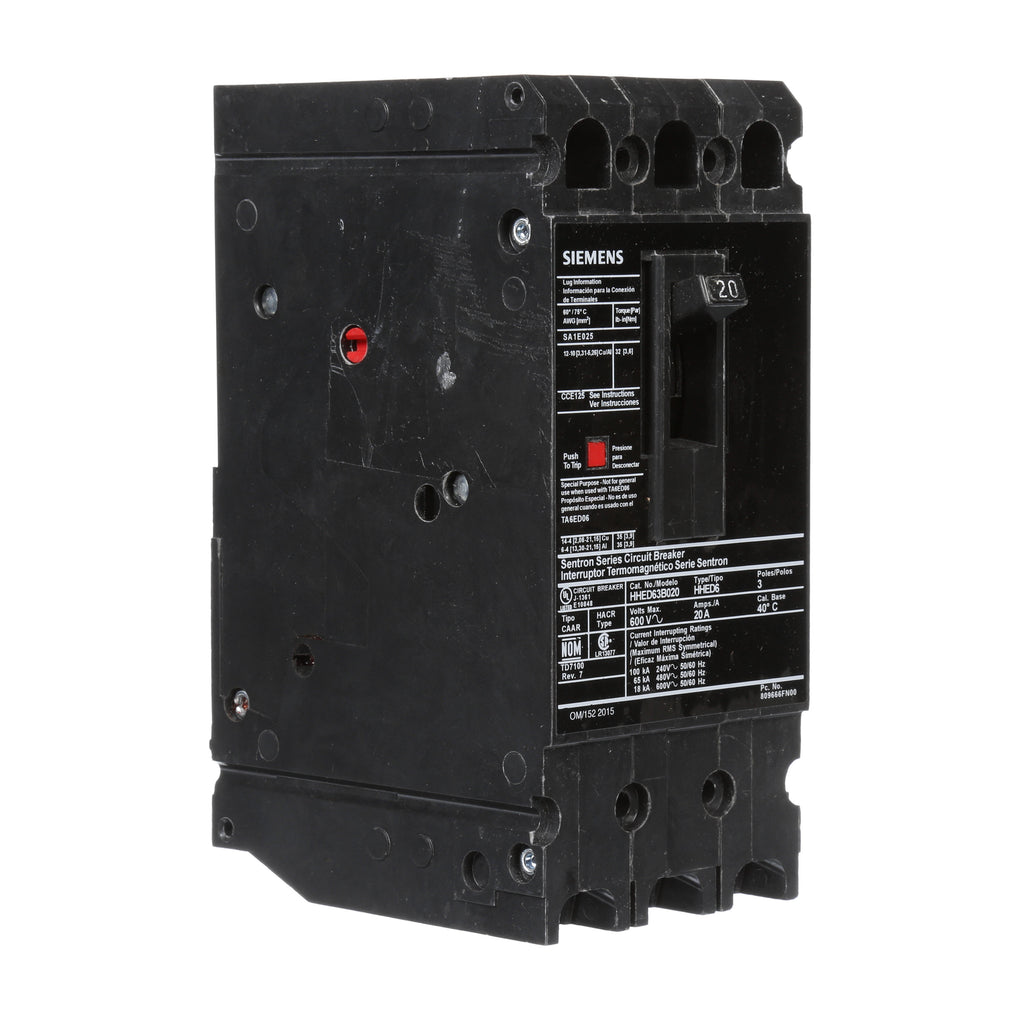

HHED63B020 is a Siemens 3-pole, 20 amp, 600 volt molded case circuit breaker designed for reliable power distribution protection.This Siemens Sentron series breaker features an ED frame with bolt-on mounting and a thermal/magnetic trip unit. It offers an interrupt rating of 18 kA at 600 VAC and complies with UL 489 and IEC 60947-2 standards. The breaker is rated for 40 degree C operation and includes load side lug terminals for easy installation.
- Manufacturer: Siemens
- Part Number: HHED63B020
- Amperage: 20A
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: ED (HHED series)
- Mounting Type: Bolt-On
- Interrupt Rating: 18 kA at 600V
- Trip Unit: Thermal/Magnetic
- Standards: UL 489, IEC 60947-2
- Operating Temperature: 40°C
- Load Side Lug Terminals Included
Specifications
- Part Number: HHED63B020
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HHED
- Voltage : 600
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643308039
- GTIN : 00783643308039
- Country of Origin : Mexico
- Weight : 2
- Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
