HHED63B020L

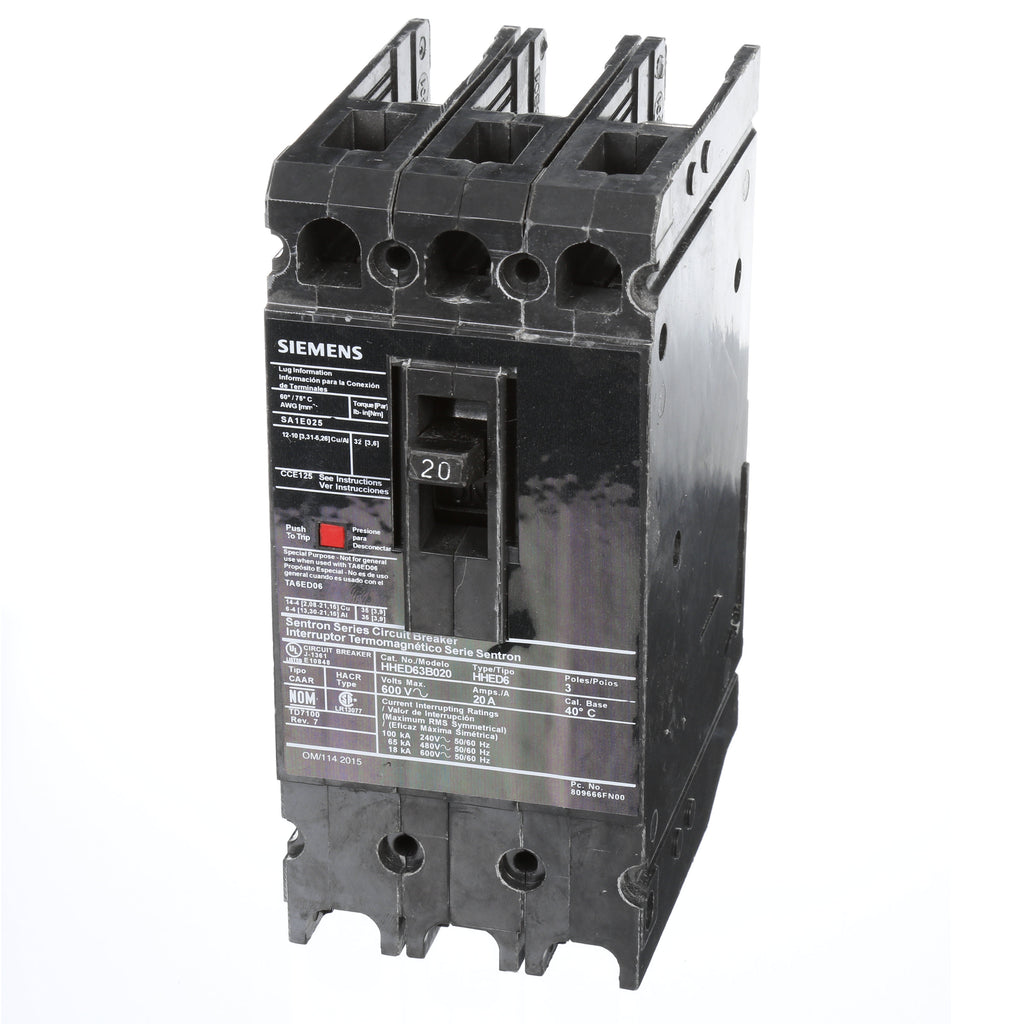

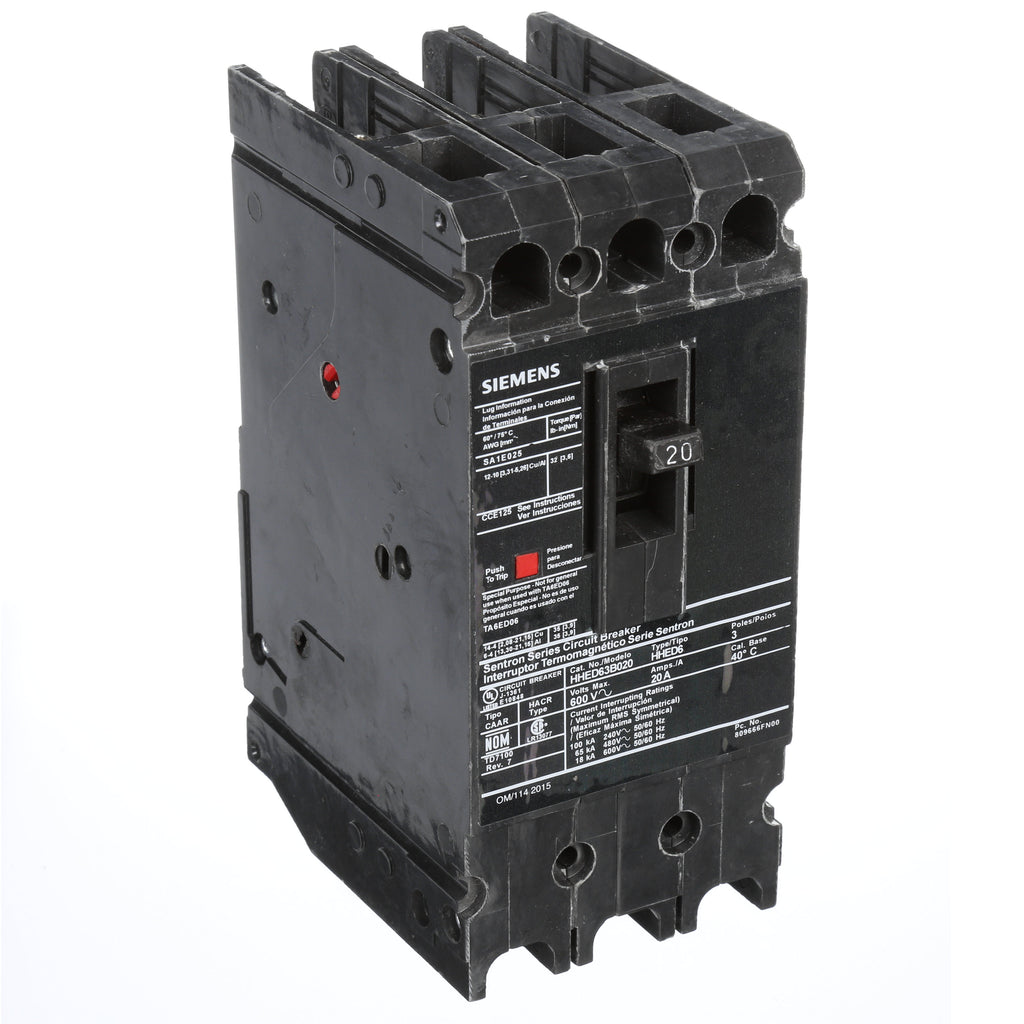

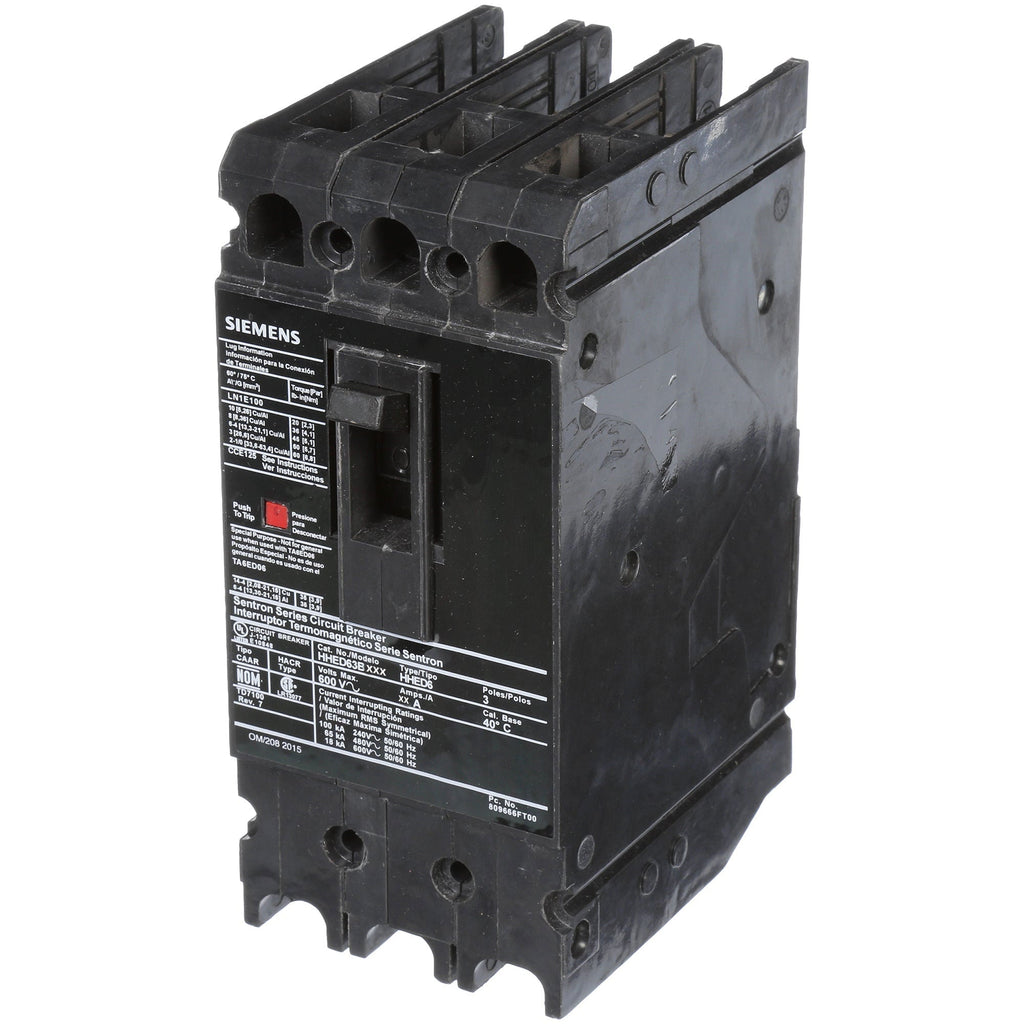

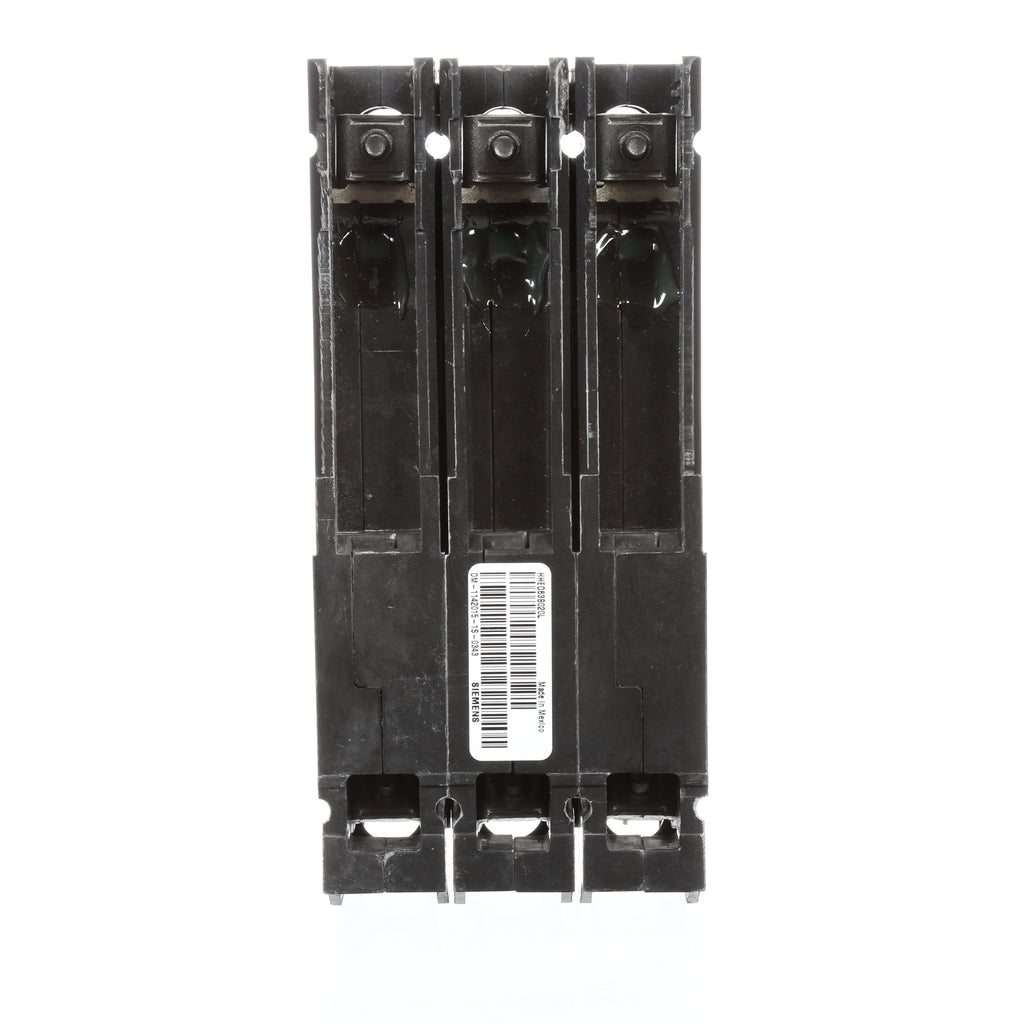

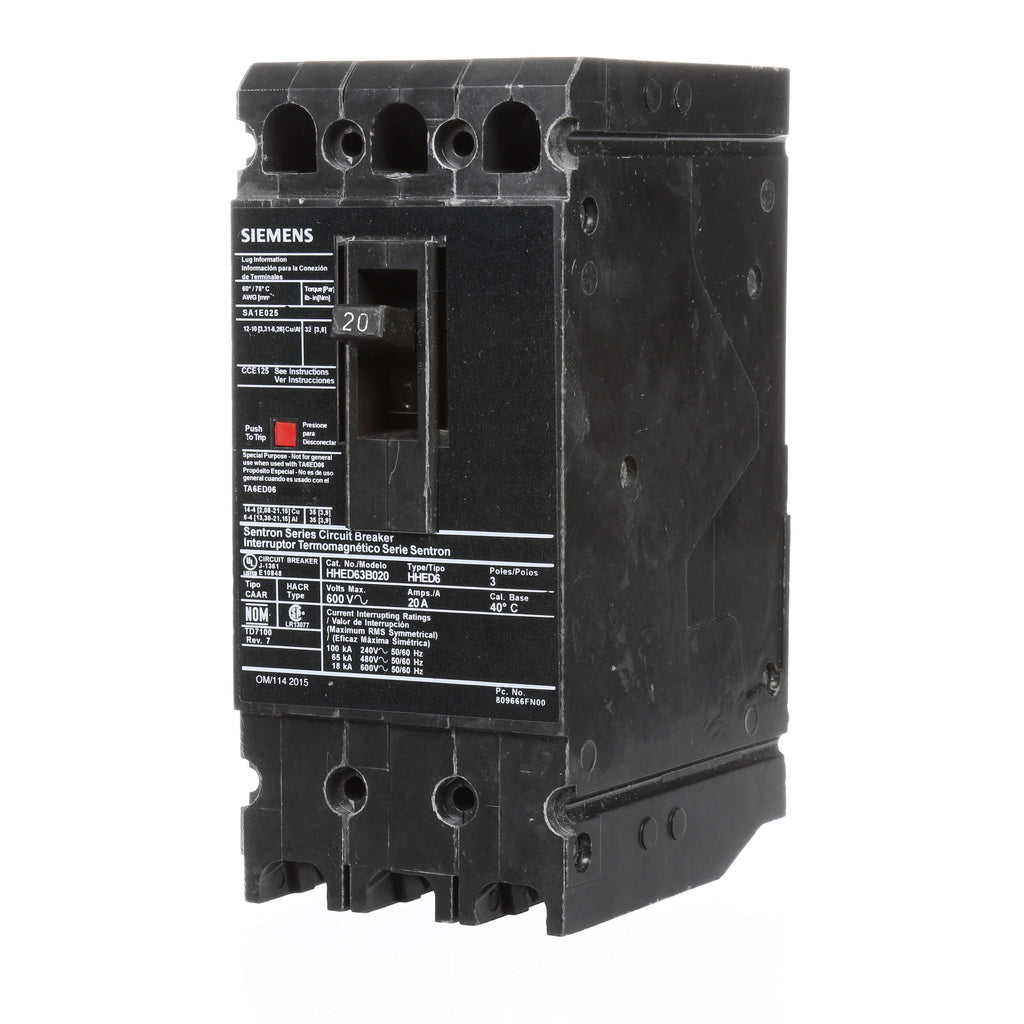

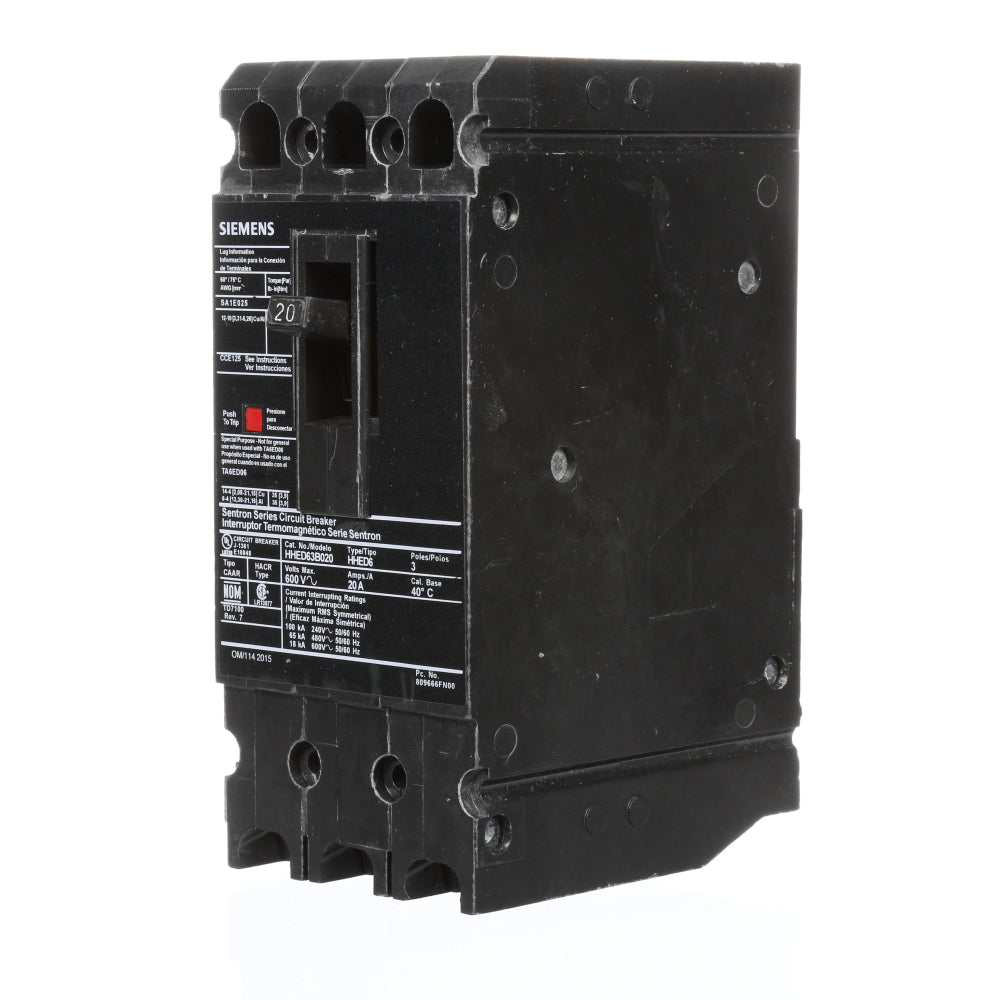

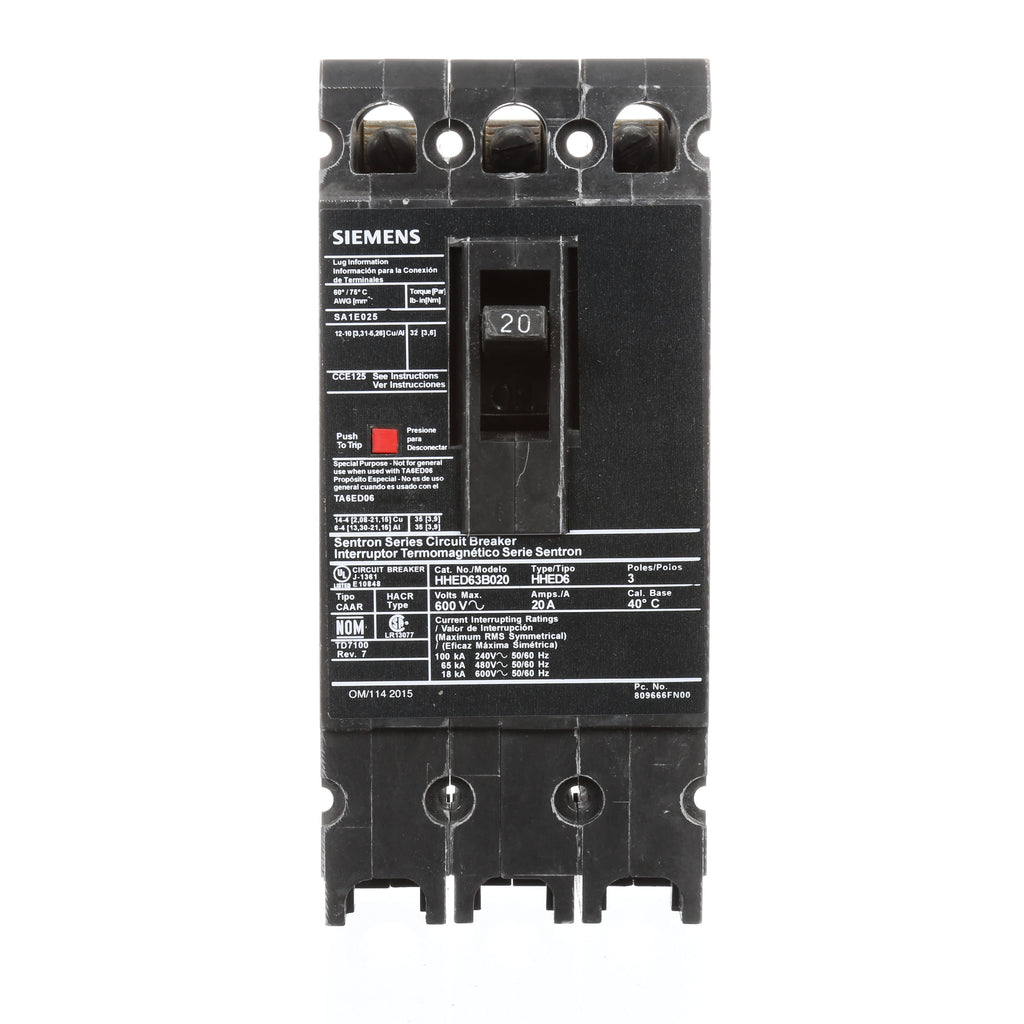

HHED63B020L is a Siemens Sentron Type HHED6 low voltage molded case circuit breaker designed for reliable circuit protection.This breaker features a 20 ampere rating, 600 VAC voltage rating, and 3 poles with a thermal magnetic trip unit. It offers an 18 kA interrupt rating at 600 volts and is bolt-on mounted. The breaker supports line and load side lugs with wire ranges of 14-10 AWG copper and 12-10 AWG aluminum. It is part of the Sentron HHED series and meets industry certifications for safety and performance.
- Key Specifications
- Amperage: 20 A
- Voltage Rating: 600 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 18 kA at 600 V
- Trip Unit: Thermal Magnetic
- Series/Frame: Sentron HHED6
- Wire Range: 14-10 AWG CU, 12-10 AWG AL
- Line and Load Side Lugs
- Certifications: Industry Standard Safety Certified
- Part Number: HHED63B020L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HHED
- Voltage : 600
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 783643331051
- GTIN : 00783643331051
- Country of Origin : Mexico
- Weight : 4.081
- Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
