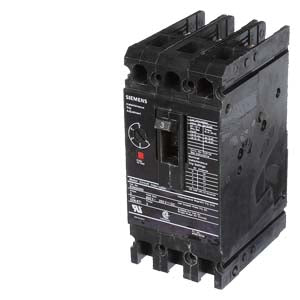

HHED63B025 - Siemens 25A 600V 3-Pole Molded Case Circuit Breaker ED Frame

HHED63B025

HHED63B025 is a Siemens 3-pole molded case circuit breaker rated for 25 amps and 600 volts, designed for robust electrical protection.This Siemens Sentron series breaker features a bolt-on mounting type with an extra high interrupting capacity of 18kA at 600V and 65kA at 480V. It has a non-interchangeable thermal magnetic trip unit and meets UL 489 and IEC 60947-2 standards. The breaker is rated for operation at 40 degrees Celsius and includes load side lug terminals for secure connections.

Key Specifications
• Amperage: 25A
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: Bolt-on
• Interrupt Rating: 18kA at 600V, 65kA at 480V
• Series/Frame: ED Frame, Sentron Series
• Trip Unit: Thermal Magnetic, Non-interchangeable
• Certifications: UL 489, IEC 60947-2
• Operating Temperature: 40°C
• Connection: Load side lug terminals
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HHED63B025
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHED
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643308046
• GTIN : 00783643308046
• Country of Origin : Mexico
• Weight : 0.348
• Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
