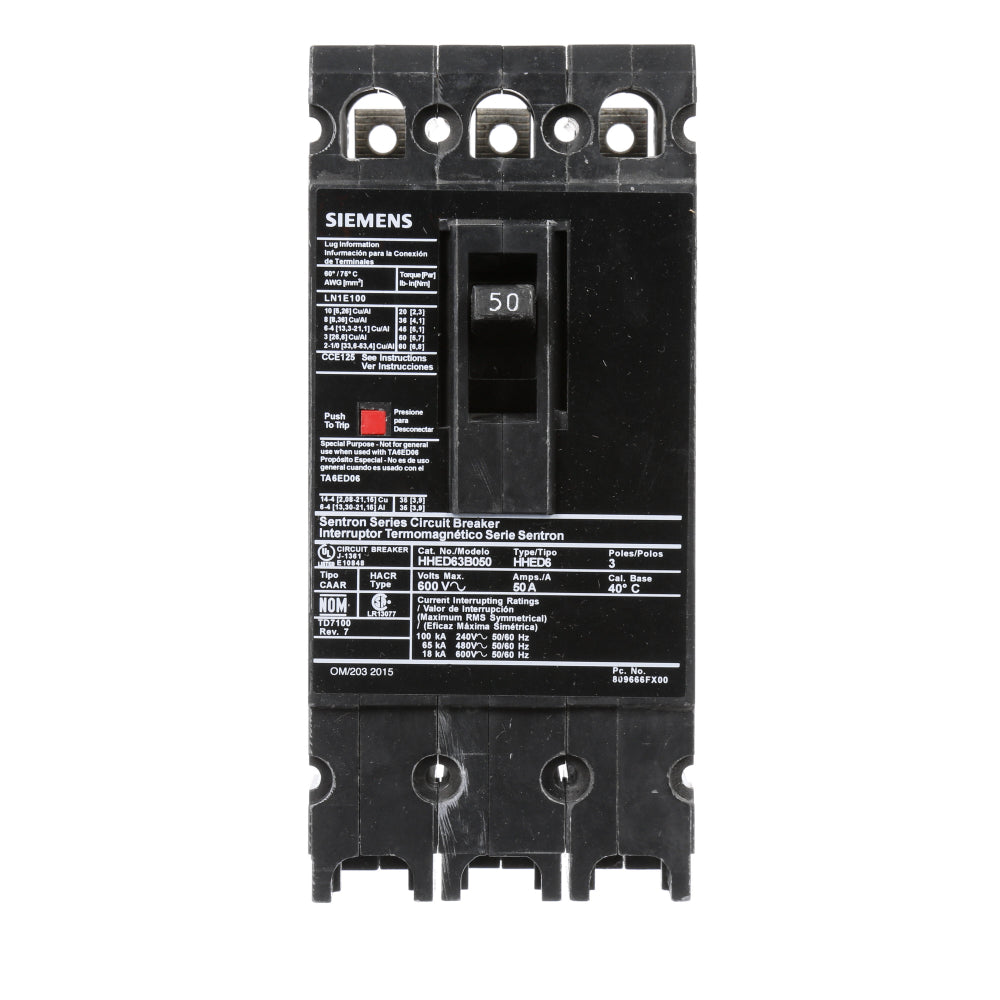

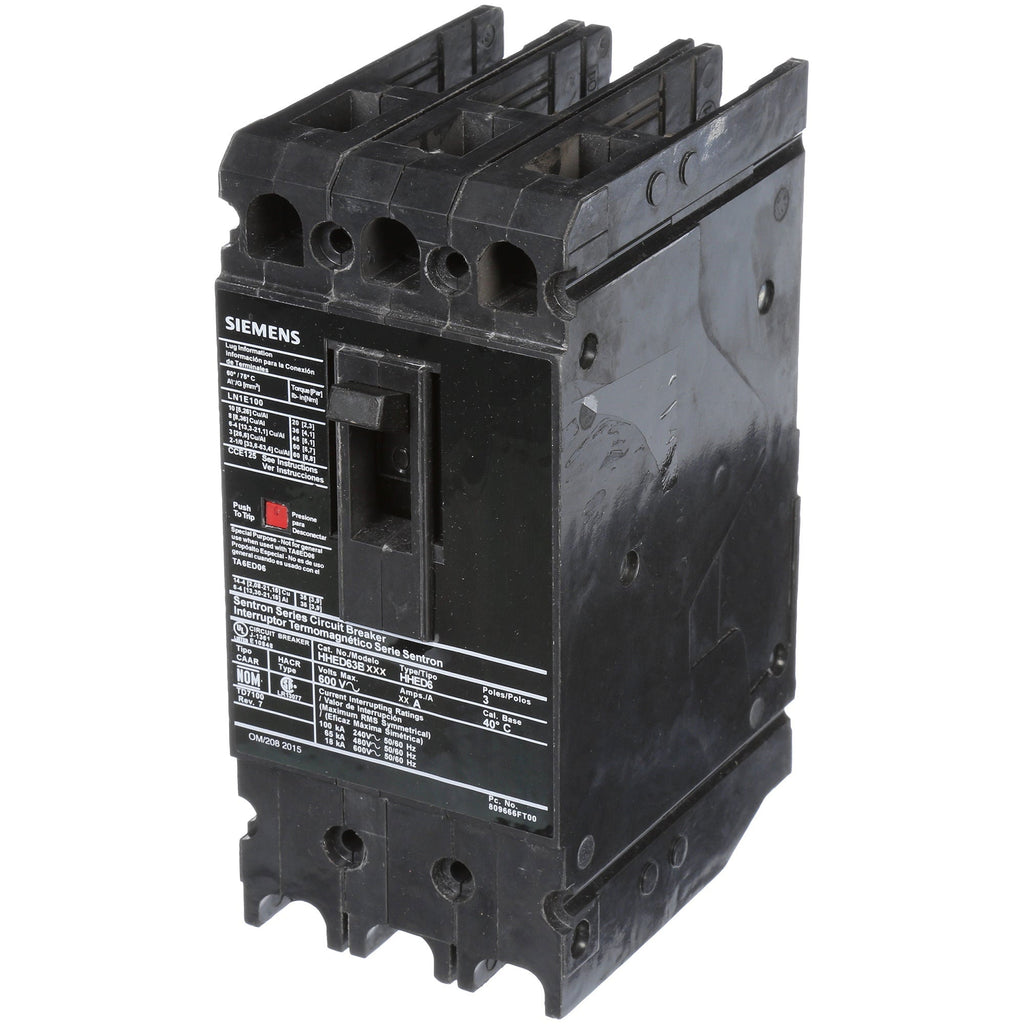

HHED63B050 - Siemens 50 Amp 600 Volt 3 Pole Molded Case Circuit Breaker Bolt-On Mount

HHED63B050

HHED63B050 is a Siemens 3 pole molded case circuit breaker rated for 50 amps and 600 volts AC, designed for bolt-on mounting.This Siemens Sentron series circuit breaker features a thermal-magnetic trip unit with an interrupt rating of 16-18 kA at 600 VAC. It is suitable for industrial and commercial power distribution applications requiring reliable overcurrent protection. The breaker is designed for 3-pole operation and includes load side lug terminals for secure connections.

Key Specifications
• Amperage: 50 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 16-18 kA at 600 VAC
• Series/Frame: HHED6 Sentron
• Trip Unit: Thermal-Magnetic
• Certifications: UL Listed (implied by Siemens standard)
• Frequency: 50/60 Hz
• Dimensions: Approx. 4 in L x 6 in W x 7 in H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HHED63B050
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHED
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643308091
• GTIN : 00783643308091
• Country of Origin : Mexico
• Weight : 3.937
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
