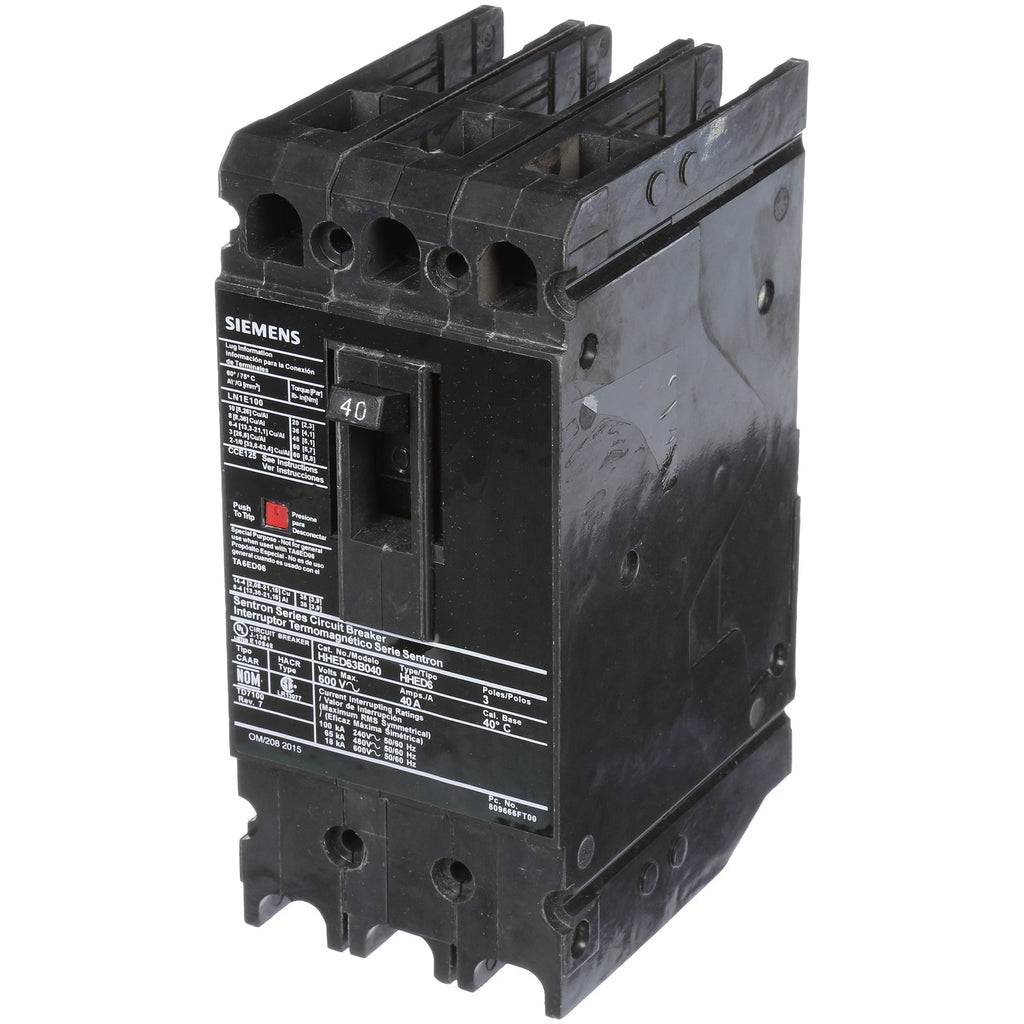

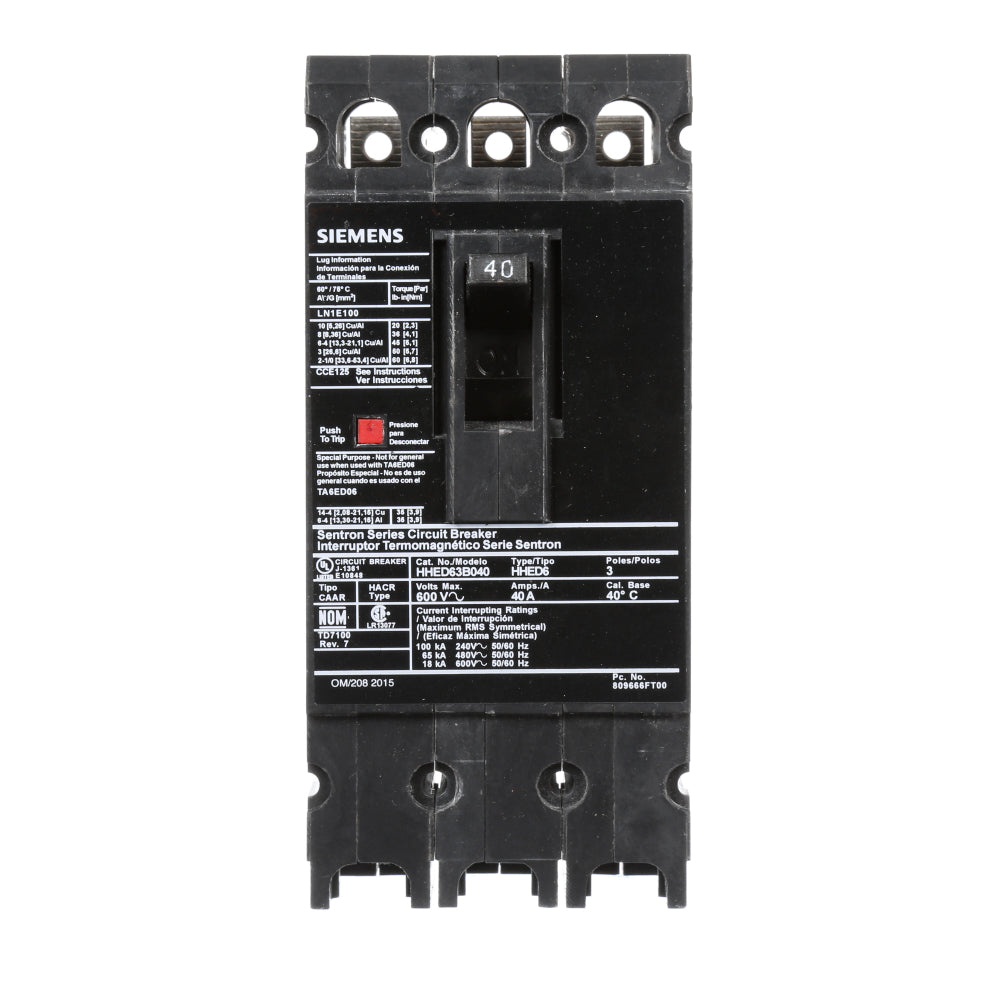

HHED63B040 - Siemens 40A 600V 3-Pole Molded Case Circuit Breaker Bolt-On

HHED63B040

HHED63B040 is a Siemens 3-pole molded case circuit breaker rated for 40 amps and 600 volts AC, designed for bolt-on mounting in industrial and commercial electrical systems.This Siemens HHED63B040 circuit breaker features a thermal magnetic trip unit providing reliable overcurrent protection with an interrupt rating of 18kA at 600V. It belongs to the Sentron HHED series and supports wire sizes from 10 to 1/0 AWG copper or aluminum. The breaker includes load side lug terminals and is UL listed for safety compliance.

• Amperage: 40A
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA at 600V
• Series/Frame: HHED (Sentron)
• Trip Unit: Thermal Magnetic
• Wire Range: 10 - 1/0 AWG CU/AL
• Load Side Lug Terminals Included
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HHED63B040
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHED
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643308077
• GTIN : 00783643308077
• Country of Origin : Mexico
• Weight : 3.951
• Certification : UL, CSA
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
