Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HHED63B030

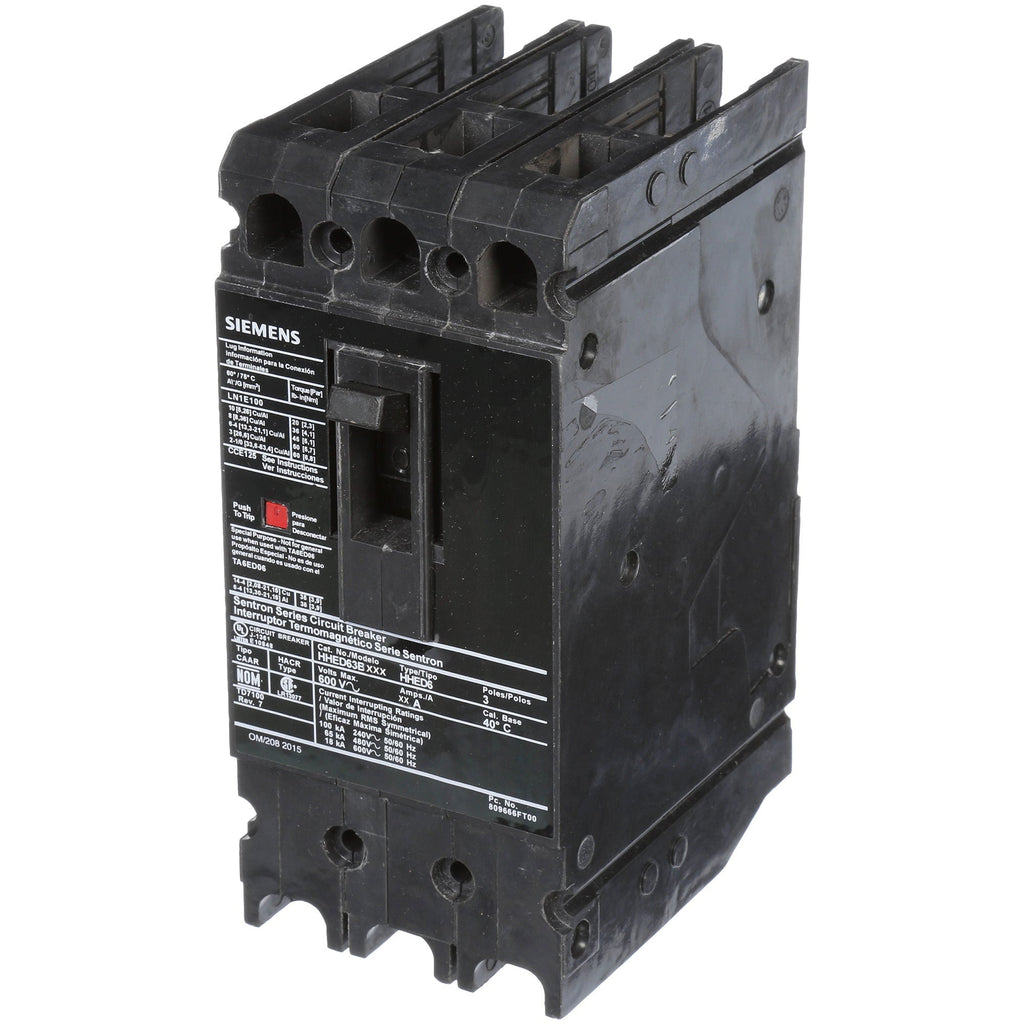

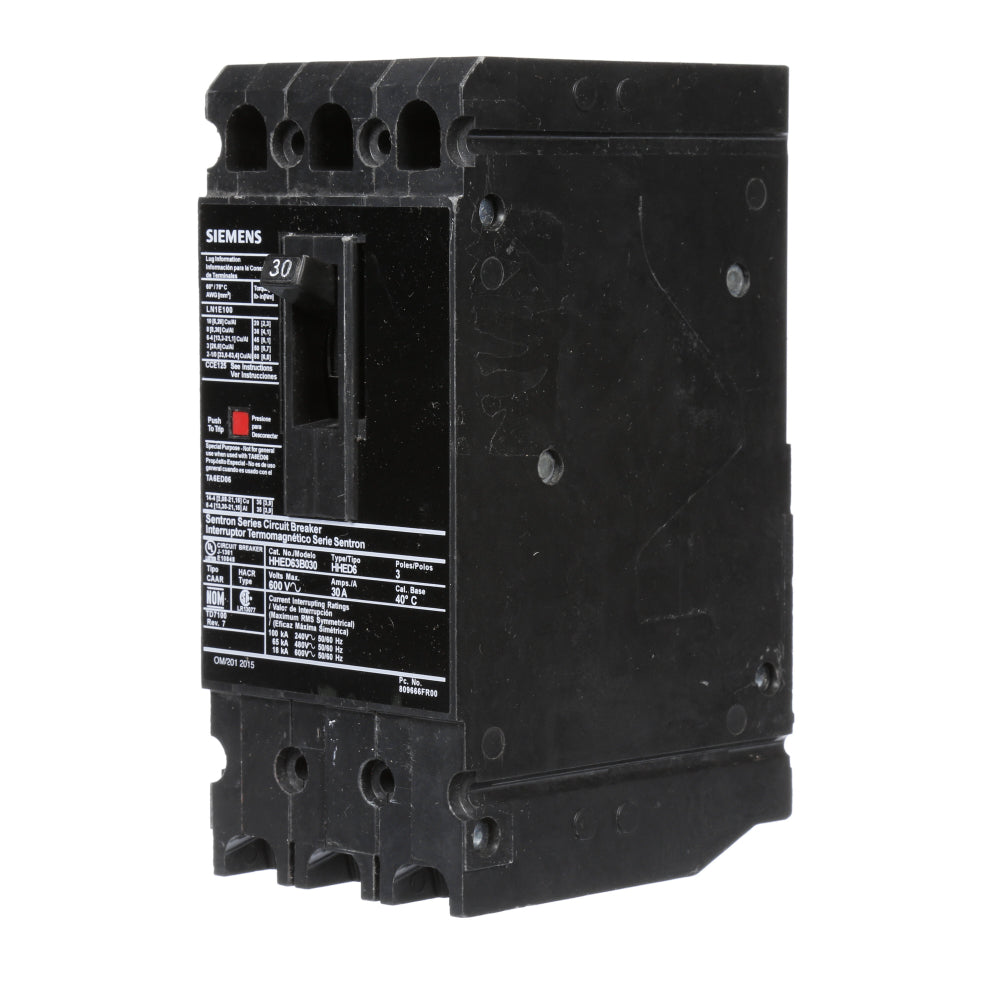

HHED63B030 is a Siemens Sentron series molded case circuit breaker designed for reliable protection in 600V electrical systems. This 3-pole, 30A breaker features a bolt-on mounting style and is built for high interrupting capacity applications. Engineered for industrial and commercial use, the HHED63B030 offers thermal-magnetic trip protection and is suitable for 3-phase circuits. It is constructed with a robust ED frame and includes load side lug terminals for secure connections. The breaker is rated for 18kA interrupting capacity at 600V and is UL 489 listed and CSA 22.2 certified for safety and compliance.
- Manufacturer: Siemens
- Series: Sentron HHED
- Frame: ED
- Amperage: 30A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 18kA at 600V
- Trip Unit: Thermal-Magnetic
- Terminal Type: Load Side Lug
- Certifications: UL 489, CSA 22.2
- Wire Size: 10 to 1/0 AWG (Al/Cu)
Specifications
- Part Number: HHED63B030
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HHED
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643308053
- GTIN : 00783643308053
- Country of Origin : Mexico
- Weight : 3.96
- Wire Size : AWG 10 to AWG 1/0, Cu/Al
