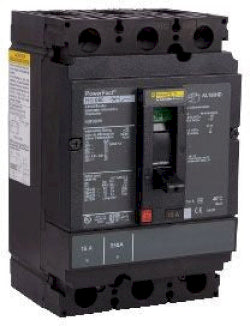

HGP36125 - Square D 125A 600V 3 Pole Molded Case Circuit Breaker H Frame

HGP36125

HGP36125 is a Square D 3 pole, 125 amp, 600 Volt molded case circuit breaker designed for reliable circuit protection.This H Frame PowerPact series breaker features a thermal magnetic trip unit, bolt-on mounting, and an interrupt rating of 35kA at 480V AC. It is UL and CSA listed, suitable for industrial and commercial applications requiring robust circuit interruption and safety compliance.

• Amperage: 125A
• Voltage Rating: 600V AC, 250V DC max
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA at 480V AC
• Frame/Series: HGP PowerPact H Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, CSA
• Type: Molded Case Circuit Breaker
• Brand: Square D
• UPC: 785901579656

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGP36125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGP
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901579656
• GTIN : 00785901579656
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
