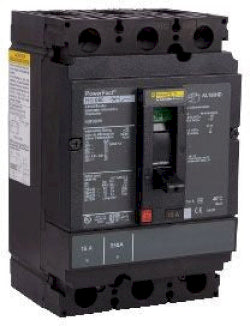

HGP36100 - Square D 100A 600VAC 3 Pole Thermal Magnetic Circuit Breaker, PowerPact H Frame

HGP36100

HGP36100 is a 3 pole, 100 amp thermal magnetic molded case circuit breaker from Square D's PowerPact H frame series designed for unit mounting.This circuit breaker is rated for 600VAC and 250VDC with an interrupting rating of 18kA at 600VAC. It features long time and instantaneous trip functions, bolt-on connection type, and load side lug terminals supporting wire gauges from AWG 14 to AWG 3/0 aluminum or copper. The breaker complies with UL 489, CSA, NEMA, IEC, and CE certifications.

Key Specifications
• Amperage: 100A
• Voltage Rating: 600VAC / 250VDC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA at 600VAC
• Frame Type: PowerPact H (HGP Series)
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Connection Type: Bolt-On
• Terminal Connection: Load Side Lug
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper
• Certifications: UL 489, CSA, NEMA, IEC, CE, NOM, RoHS
• Color: Black

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGP36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGP
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug, Terminal Nut
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901676935
• GTIN : 00785901676935
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.14
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
